The same liquid feed can produce powders with different particle sizes, bulk densities, and flow properties when processed using different atomization methods and drying conditions. These differences can affect packaging, transportation, mixing, and downstream processing.

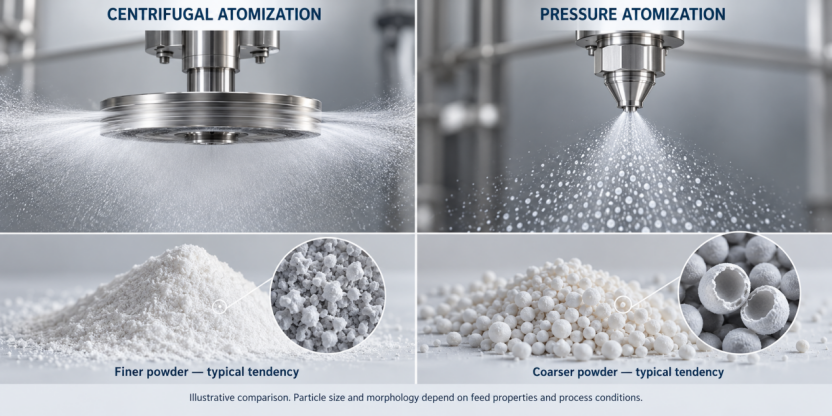

Centrifugal and pressure atomization are two common methods used in industrial spray drying. Each has its advantages. The key is to select the method that best matches your feed properties, product specifications, and production conditions.
The liquid feed enters a rotating atomizer wheel or disc. Centrifugal force disperses the liquid into fine droplets, which contact hot air and rapidly lose moisture to form powder.
Droplet size depends on the atomizer speed, wheel design, feed rate, and liquid properties. Adjusting the rotational speed allows particle size to be controlled within a certain range.
Broad feed compatibility: Suitable for solutions, emulsions, and certain suspensions and slurries, making it an option for production lines handling different products.
Flexible particle size adjustment: Atomizer speed and other operating parameters can be adjusted to meet different powder requirements.
Suitable for finer powders: In many applications, centrifugal atomization produces relatively fine powder.
Centrifugal atomization does not mean that any high-viscosity feed can be processed. Excessive viscosity, high solids content, or large suspended particles may affect pumping and atomization. Preheating, dilution, or other feed preparation measures may be necessary.
For abrasive slurries, atomizer material and wear resistance require particular attention. The balance of rotating components, bearings, and drive system must also be maintained according to the equipment requirements.
Plant extracts, protein products, food ingredients, dyes, and certain specialty chemical slurries. Suitability should be assessed based on the formulation and test results.
A high-pressure pump delivers the liquid feed to a pressure nozzle. The liquid forms a thin film as it passes through the nozzle and then breaks into droplets. These droplets contact hot air and dry into powder.
Nozzle design, orifice size, operating pressure, and feed properties jointly determine atomization performance. The nozzle and feed system therefore need to be designed together.
Suitable for coarser powders: Compared with centrifugal atomization, pressure atomization can often produce larger particles.
Adaptable to specific powder requirements: Nozzle selection and process adjustments can help achieve the required particle size distribution and bulk density.
Multiple-nozzle configurations: Several nozzles can be installed to match production capacity and drying chamber design.
Pressure atomization is often considered when a relatively coarse powder with a narrow particle size distribution is required. Actual results still depend on the feed and system design.
Pressure atomization requires careful matching of feed properties and nozzle specifications. Contaminants, large solid particles, or unsuitable viscosity can cause blockage, wear, or unstable spraying.
Feed filtration should be selected according to the nozzle passage dimensions and raw material characteristics. When processing suspensions, filtration must avoid removing solid components that are required in the finished product.
Pressure atomization alone does not guarantee hollow spherical particles, excellent flowability, or instant properties. These characteristics also depend on the formulation, residual moisture, particle surface properties, and drying conditions. Instant products may require additional processes, such as agglomeration, to improve wettability and dispersibility.
Ceramic granules, certain dairy powders, detergents, and other products with specific particle size or powder property requirements. These applications are not exclusive to pressure atomization; the choice should be based on the process requirements.
Comparison Factor | Centrifugal Spray Drying | Pressure Spray Drying |
Atomization method | Rotating atomizer wheel or disc | High-pressure pump and pressure nozzle |
Particle size adjustment | Mainly through atomizer speed, wheel design, and feed conditions | Mainly through pressure, nozzle specifications, and feed conditions |
Typical particle size trend | Generally suitable for finer powders | Generally suitable for coarser powders |
Feed compatibility | Handles various liquids and certain slurries, subject to viscosity and particle size limits | Requires careful matching of viscosity, suspended particle size, and nozzle passages |
Powder flowability | Depends on particle size, shape, moisture, and material properties | Larger particles may improve flowability, but performance must be verified |
Space requirements | Conventional designs often have a wider chamber and relatively lower height | Conventional designs often require a taller chamber, depending on spray configuration and drying requirements |
Maintenance focus | Atomizer wheel, bearings, drive system, and dynamic balance | Nozzle wear and blockage, high-pressure pump, and seals |
Key selection factors | Fine powder requirements, product changes, and flexible atomization control | Coarser powder requirements, stable feeding, and nozzle compatibility |
This table describes common trends rather than fixed characteristics of every system. The particle size ranges of the two methods overlap, so particle size alone is insufficient to determine the appropriate atomization method.
If you need relatively fine powder and process several types of feed, centrifugal atomization is worth evaluating first.
If you need coarser powder or have specific requirements for conveying, pressing, or granulation, pressure atomization may be worth evaluating first.
When flowability, instant properties, or bulk density are critical, include these properties in the testing criteria instead of assessing only average particle size.
Provide the feed solids content, viscosity at the actual feed temperature, and suspended particle size. Also identify whether the material is abrasive, corrosive, or prone to settling.
These characteristics directly influence the selection of the atomizer, feed pump, and feed preparation system.
Spray dryer selection should consider both the liquid feed rate and the amount of water that must be evaporated.
At the same feed rate, different solids concentrations can result in significantly different heating, airflow, and drying chamber requirements.
Available building height, floor space, heat source, cleaning frequency, replacement parts, and maintenance access should all be included in the comparison.
The atomization method alone does not determine which system will consume less energy or have lower maintenance costs.
The choice between centrifugal and pressure spray drying should be based on feed data and finished product requirements. For formulations without established drying data, small-sample testing can help evaluate atomization performance, wall deposition, final moisture content, particle size, and powder collection.
If you are planning a spray drying production line, please share your material name, solids content, required throughput, available heat source, and finished product specifications. Our technical team can recommend an appropriate atomization method and equipment configuration based on your operating conditions. If testing is required, we can discuss sample requirements and test arrangements.
