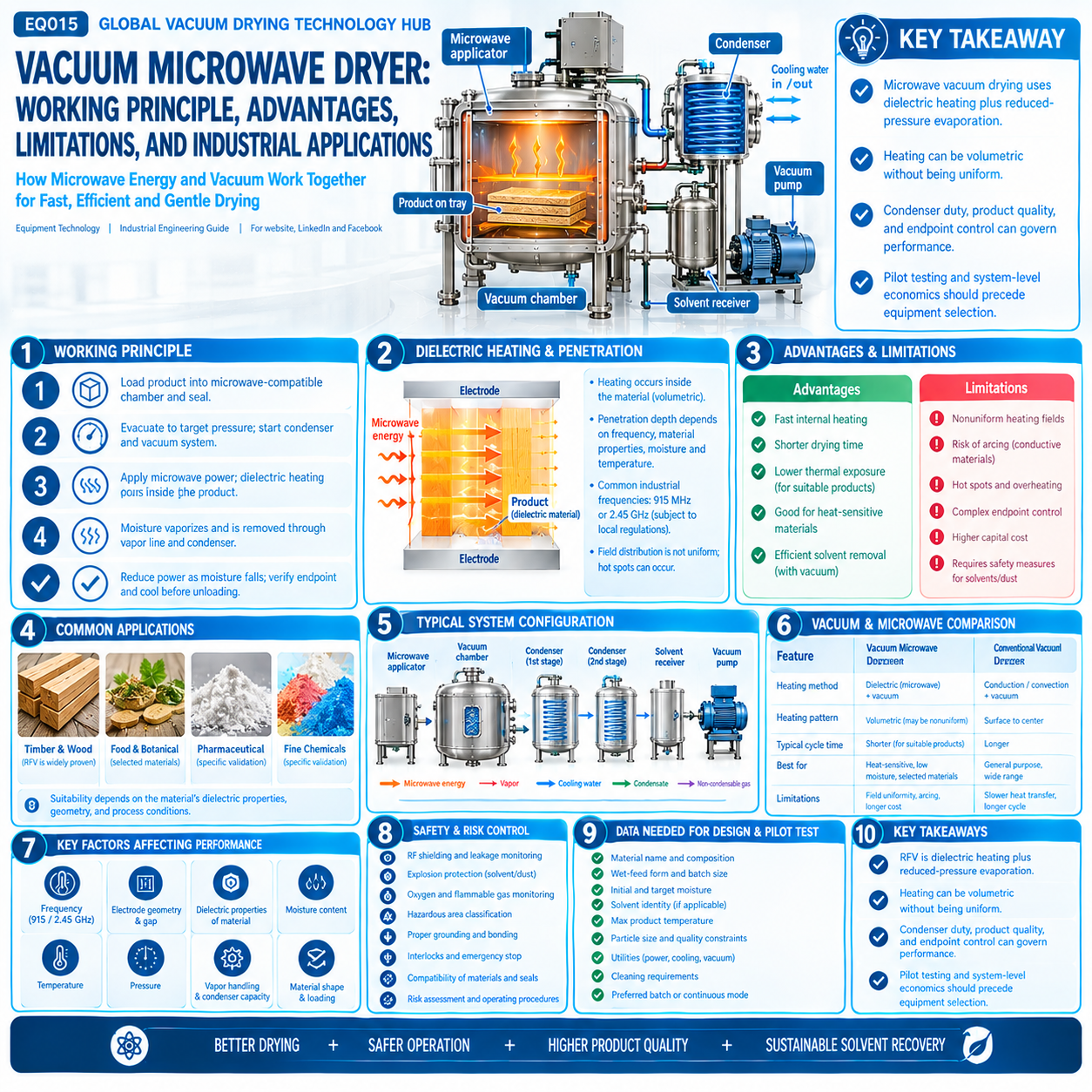

A vacuum microwave dryer is a closed dryer that applies microwave electromagnetic energy to wet dielectric material under reduced pressure. It can use static trays, moving carriers, tumbling drums, or specialized continuous transport.
Vacuum lowers the saturation temperature of the evaporating liquid but does not supply the latent heat of vaporization. Heat input, internal moisture transport, condenser performance, and vacuum-system capacity must be evaluated together.
This guide explains dielectric heating, vapor removal, process control, safety, applications, and the material-specific testing needed before industrial selection.
A vacuum microwave dryer is a closed dryer that applies microwave electromagnetic energy to wet dielectric material under reduced pressure. It can use static trays, moving carriers, tumbling drums, or specialized continuous transport.
Vacuum lowers the saturation temperature of the evaporating liquid but does not supply the latent heat of vaporization. Heat input, internal moisture transport, condenser performance, and vacuum-system capacity must be evaluated together.
Microwave absorption depends on complex dielectric permittivity, temperature, moisture, composition, geometry, and frequency; it is not equally effective for all powders or liquids.
Charge the wet material in a microwave-compatible vessel or carrier and seal the vacuum chamber.
Establish the specified absolute pressure; start the condenser and vapor-removal system.
Apply controlled microwave power. Polar molecules and mobile ions dissipate electromagnetic energy as heat.
Moisture vaporizes, migrates toward the surface, and is removed through the vapor line and condenser.
Reduce power as moisture falls and the dielectric response changes; verify the endpoint and cool before unloading.
Microwave heating deposits energy within material rather than relying solely on wall-to-center conduction. Volumetric does not mean spatially uniform: standing waves, field gradients, material geometry, and moisture gradients can cause hot and cold spots.
Industrial microwave equipment commonly uses 915 MHz or 2.45 GHz where permitted. Frequency choice, penetration depth, shielding, and equipment configuration must follow applicable regional requirements.
The loss factor and effective penetration depth change during drying. Consequently, a fixed power-per-kilogram scale-up rule is unreliable.
Vacuum lowers the saturation temperature of the evaporating liquid but does not supply the latent heat of vaporization. Heat input, internal moisture transport, condenser performance, and vacuum-system capacity must be evaluated together.
Internal vapor pressure can accelerate moisture migration, but rapid vapor generation can cause foaming, puffing, cracking, or product loss. The condenser must handle the peak rather than only the average vapor load.
Measure actual product temperature at representative locations. Chamber temperature alone cannot identify a localized microwave hot spot.
Tray and shelf configurations can protect fragile or shaped products but require controlled loading depth and field uniformity.
Tumbling systems renew exposure for suitable particulate foods; attrition and dust generation need evaluation.
Continuous systems require engineered vacuum feeding/discharge, residence-time control, shielding, and vapor handling.
Commercial applications include selected food, botanical, nutraceutical, and pharmaceutical materials; specific suitability must be demonstrated with the actual product.
Potential benefits include rapid internal heating, fast power response, reduced thermal exposure in suitable products, and controlled low-temperature evaporation. These are not guaranteed outcomes.
Key risks include nonuniform fields, arcing with unsuitable conductive components, local overheating, weak microwave coupling, product puffing, complex endpoint control, and capital cost. Solvent-bearing and combustible-dust duties require specialist process-safety assessment.
A vacuum shelf dryer delivers heat primarily by conduction through a shelf and tray; a microwave vacuum dryer can deposit energy within dielectric product. The shelf dryer may be simpler to validate and maintain, while microwave heating may reduce conduction-limited cycle time for suitable materials.
A hollow screw vacuum dryer uses heated surfaces and screw-driven material renewal. Microwave drying avoids some contact-heat limitations but introduces electromagnetic compatibility, field uniformity, and hot-spot risks. Neither method is universally superior.
Record the dielectric response over the entire moisture range, not just at the initial wet condition. Compare identical endpoint moisture and product-quality criteria.
Measure drying curves, product temperature distribution, moisture uniformity, condensate rate, and specific energy consumption.
Test representative load geometry and thickness; confirm vacuum stability, cleaning, shielding, and interlocks.
Scale the electromagnetic field and vapor system as well as batch mass; document allowable product-temperature and solvent/dust safety limits.
Microwave vacuum drying is dielectric heating plus reduced-pressure evaporation.
Heating can be volumetric without being uniform.
Condenser duty, product quality, and endpoint control can govern performance.
Pilot testing and system-level economics should precede equipment selection.
Does microwave heat every product from the inside out?
No. Heating distribution depends on field strength, penetration depth, geometry, dielectric properties, and moisture distribution.
Does deeper vacuum always shorten the cycle?
No. Internal diffusion, available microwave power, vapor conductance, and product-temperature limits may become controlling.
Can it process solvent-wet powders?
Possibly, but solvent compatibility, ignition risks, conductive contamination, containment, and exhaust handling require specialist assessment.
Is microwave vacuum drying the same as freeze drying?
No. Conventional microwave vacuum drying usually evaporates liquid moisture. Freeze drying removes ice by sublimation from a frozen product.
