In modern industrial manufacturing—spanning food, pharmaceuticals, chemicals, and new energy—rapidly and safely transforming liquid slurries into uniform dry powder is a core requirement. The Spray Dryer has become one of the most popular industrial drying equipment choices due to its continuous production capabilities, extremely short drying time, and precise control over powder physical properties.
How does a spray dryer perform the miracle of turning liquid into powder in just a few seconds? This article will comprehensively explain its working principles and core advantages.

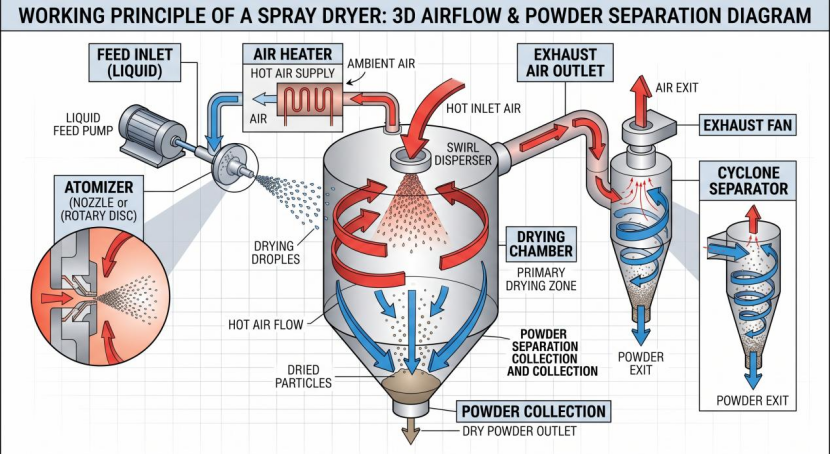

The essence of spray drying is to use "atomization" to vastly increase the surface area of the liquid material, allowing it to complete heat and mass exchange instantly upon contact with hot air. The entire process is typically completed within few seconds and is divided into three core stages:
1. Liquid Atomization: This is the most critical first step. The pumped liquid material (solution, emulsion, or suspension) enters the Atomizer at the top of the drying tower. Driven by high-speed centrifugal force or a high-pressure nozzle, the liquid is rapidly dispersed into tens of thousands of micron-sized fine droplets. The finer the droplets, the faster the water evaporates.
2. Hot Air Contact and Instant Evaporation: After being heated, the air enters the drying tower evenly and spirally through the hot air distributor. When the extremely fine droplets meet the high-temperature hot air, the moisture vaporizes instantly. Technical Highlight: Although the inlet air temperature can be as high as 150°C - 250°C, the actual temperature on the surface of the material remains relatively low because moisture evaporation absorbs a large amount of latent heat. This characteristic greatly protects the biological activity of the material.
3. Gas-Solid Separation and Powder Collection: The dried powder mixes with the exhaust gas and then enters the Cyclone Separator. Under the action of centrifugal force, the heavier dry powder falls along the wall and is collected in the bottom tank; the clean exhaust gas is discharged after passing through a dust removal system.
Compared to other traditional drying methods, spray dryers possess irreplaceable process advantages:
Ultra-Fast Drying, Perfect for Heat-Sensitive Materials: The drying process is completed instantly, minimizing heat exposure time. It is highly suitable for temperature-sensitive materials like proteins, enzymes, and plant extracts, effectively preventing coking, denaturation, or inactivation.
Excellent Powder Morphology and Flowability: The powder obtained from spray drying is usually hollow and spherical, demonstrating excellent flowability and solubility. This is crucial for subsequent tableting, capsule filling, or instant brewing (such as instant coffee and milk powder).
Single-Step Continuous Production: Traditional processes often require multiple tedious steps. A spray dryer converts liquids directly into powders that meet particle size requirements in one step, saving significant floor space and labor costs.
High-Standard Sanitary Design: The equipment is typically made of high-quality SUS304 or 316L stainless steel. The system operates fully enclosed under slightly negative pressure with no flying dust, perfectly matching pharmaceutical GMP standards and food hygiene regulations.
From trace formula R&D in laboratories to large-scale mass production of tons per hour in factories, spray dryers provide an efficient and reliable material handling solution. Different materials have entirely different requirements for inlet temperature, atomizer speed, and system configuration.
If you want to dive deeper into the selection parameters for specific materials or view more detailed engineering data, welcome to contact with us: info@machtechdryer.com . Our professional team of engineers is also ready to provide you with customized drying solutions at any time.
