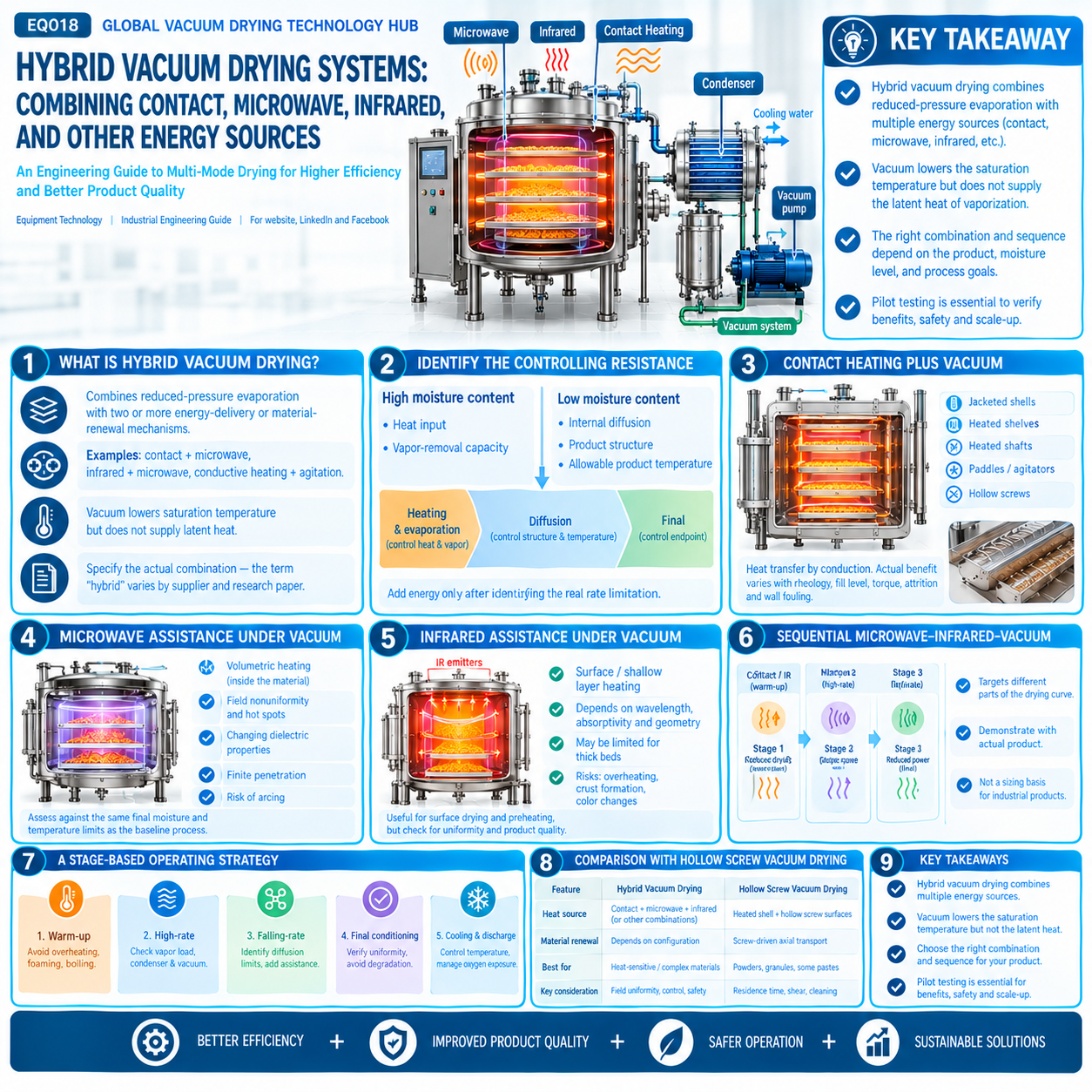

Hybrid vacuum drying combines reduced-pressure evaporation with more than one energy-delivery or material-renewal mechanism. Examples include contact plus microwave, infrared plus microwave under vacuum, and conductive heating plus mechanical agitation.
Vacuum lowers the saturation temperature of the evaporating liquid but does not supply the latent heat of vaporization. Heat input, internal moisture transport, condenser performance, and vacuum-system capacity must be evaluated together.
This engineering guide explains stage-specific hybrid processing, heat and mass transfer, applications, safety, scale-up, and how to establish whether additional energy sources create a measurable benefit.
Hybrid vacuum drying combines reduced-pressure evaporation with more than one energy-delivery or material-renewal mechanism. Examples include contact plus microwave, infrared plus microwave under vacuum, and conductive heating plus mechanical agitation.
Vacuum lowers the saturation temperature of the evaporating liquid but does not supply the latent heat of vaporization. Heat input, internal moisture transport, condenser performance, and vacuum-system capacity must be evaluated together.
The term hybrid is used differently across suppliers and research papers. Specify the actual combination rather than assuming a particular equipment design.
At high moisture content, heat input and vapor-removal capacity may control the cycle. At low moisture content, internal diffusion, product structure, or the allowable product temperature may dominate.
A hybrid system should be proposed only after the existing rate limitation is identified. Adding microwave power will not correct an undersized condenser, and adding infrared radiation will not necessarily accelerate diffusion through a thick impermeable cake.
Jacketed shells, shelves, heated shafts, paddles, and hollow screws transfer heat by conduction. Their first-order heat-transfer rate may be estimated by Q = U × A × ΔT, with U and effective contact area changing as the material dries.
Agitation or conveying renews the heated contact surface, but the actual benefit depends on rheology, fill level, torque, attrition, and wall fouling.
Microwave fields generate heat in dielectric material, potentially reducing reliance on long surface-to-center conduction paths. However, field nonuniformity, changing dielectric properties, finite penetration, hot spots, and arcing can limit scale-up.
Microwave assistance should be assessed against the same final moisture and product-temperature constraints as the baseline process.
Infrared radiation delivers energy mainly to the surface or shallow layers according to wavelength, absorptivity, and geometry. It can accelerate surface heating, but thick beds can remain internally diffusion-limited.
Surface overheating, crust formation, color changes, and line-of-sight limitations should be included in the process evaluation.
Sequential energy delivery can target different parts of the drying curve. A published 2025 study examined vacuum–microwave–infrared hybrid drying of thin apple slices, illustrating stage-dependent moisture removal. Its numerical results are not a sizing basis for industrial powders or filter cakes.
A rational recipe may use contact or infrared energy during initial heating, controlled microwave assistance during a diffusion-limited phase, and reduced power near the final endpoint. The appropriate sequence must be demonstrated experimentally.
Initial warm-up: avoid local overheating, foaming, and uncontrolled boiling.
High-rate evaporation: verify peak vapor load, condenser duty, and vacuum stability.
Falling-rate period: identify internal diffusion limitations and test targeted energy assistance.
Final conditioning: reduce power, verify residual moisture uniformity, and avoid thermal degradation.
Cooling and discharge: manage oxygen exposure, product temperature, and safe vacuum break.
A hollow screw vacuum dryer already combines reduced pressure, indirect heating through shell and hollow screw surfaces, and screw-driven material renewal; continuous variants can convey material axially.
Adding microwave or infrared energy is not inherently an upgrade. It should be considered only when trials identify a specific residual limitation that cannot be addressed more simply by heat-transfer area, residence time, agitation, or vapor-system design.
Microwave integration with metallic screw assemblies requires dedicated electromagnetic and safety design rather than a routine retrofit.
Potential applications include heat-sensitive foods, botanicals, high-value ingredients, and selected specialty chemicals where a shorter cycle or different product structure has measurable value.
Evaluate assay, color, aroma, activity, particle morphology, residual solvent, final moisture uniformity, and cleaning. A shorter cycle is not automatically better if product quality or repeatability deteriorates.
Total energy should include thermal-fluid input, microwave/RF/IR electricity, vacuum pumping, condenser refrigeration or cooling, product movement, standby losses, and cleaning. A reduced cycle time alone does not establish energy savings.
Scale-up must preserve representative product geometry while reassessing field distribution, radiation view factors, heat transfer, internal diffusion, vapor conductance, and peak condenser load.
For solvent-bearing or combustible-dust materials, conduct a qualified hazard assessment of ignition sources, inerting where required, electrical classification, grounding, interlocks, and safe vacuum break.
Establish a baseline drying curve and measure the rate-limiting stage.
Test the same wet material, loading depth, and target moisture with the hybrid recipe.
Record temperature distribution, vacuum stability, condensate rate, subsystem energy, product quality, and repeatability.
Assess cleanability, fouling, mechanical loads, controls complexity, and maintenance cost.
Select hybrid technology only when the measured benefit justifies the additional engineering complexity.
Hybrid vacuum drying targets specific heat- and mass-transfer limitations rather than maximizing energy input.
Contact, microwave, and infrared mechanisms have different strengths and constraints.
Product quality, peak vapor load, safety, and total system energy must be measured.
Representative trials and multi-physics scale-up are essential before industrial selection.
Does hybrid vacuum drying always reduce energy consumption?
No. Compare all thermal, electrical, vacuum, cooling, and auxiliary inputs at the same product endpoint.
When is microwave assistance worth testing?
When heat delivery or internal moisture transport is a demonstrated bottleneck and the material has a suitable, controllable dielectric response.
Can infrared replace contact heating for a thick cake?
Not necessarily. Infrared mainly heats exposed surfaces, while internal diffusion and thermal transport through a thick cake may remain limiting.
Is a hollow screw vacuum dryer a hybrid dryer?
In a broad engineering sense it combines vacuum, conductive heating, and mechanical renewal, but the equipment term should be defined explicitly.
What is the first step in selecting a hybrid system?
Measure a baseline drying curve and identify the controlling limitation before selecting supplemental energy.
