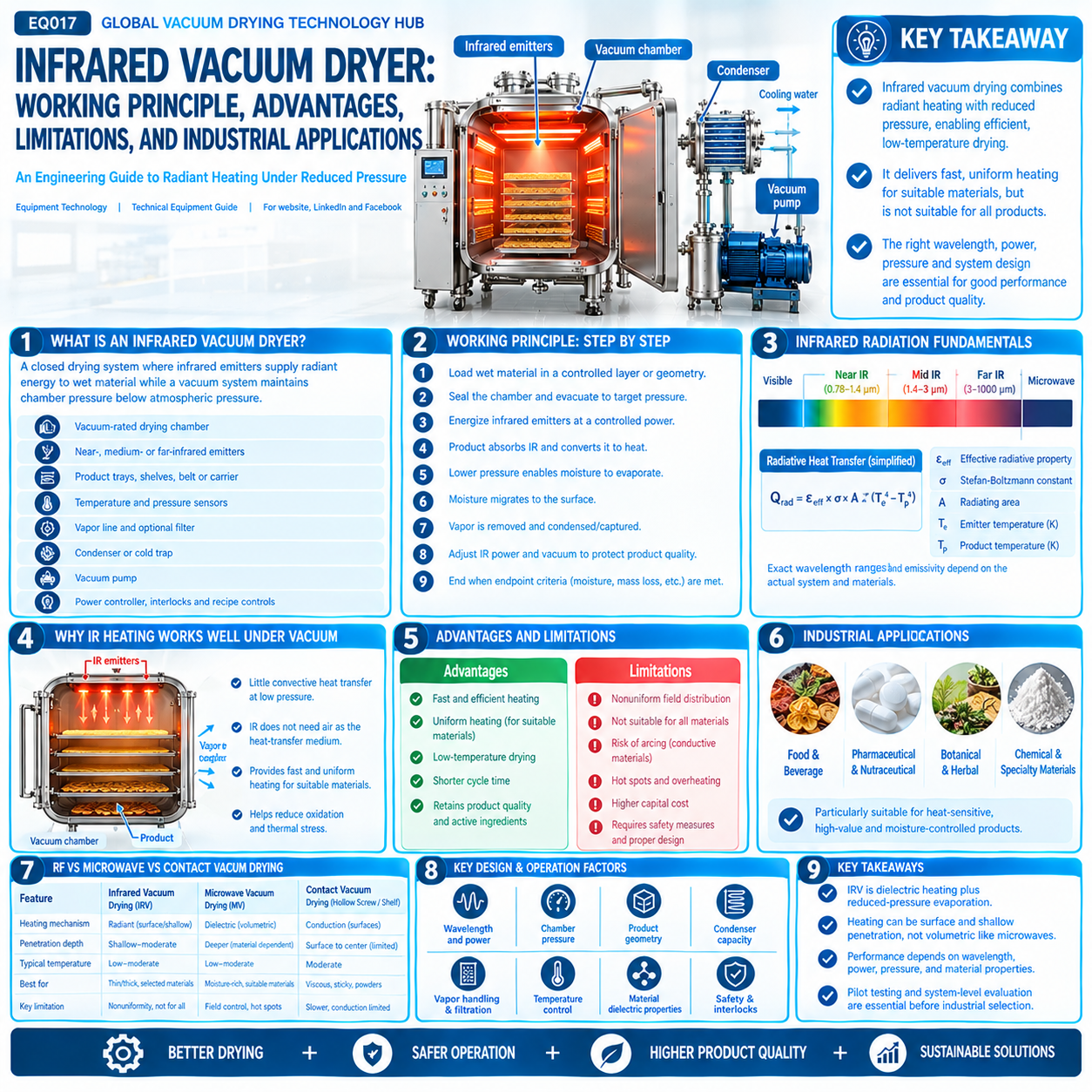

An infrared vacuum dryer combines radiant infrared (IR) heating with reduced-pressure drying. Infrared emitters transfer electromagnetic radiation to the product; absorbed radiation is converted to heat near the product surface and, depending on wavelength and material optical properties, within a limited penetration depth. Vacuum simultaneously lowers the saturation temperature of water or solvent and increases the vapor-pressure driving force for moisture removal.
The combination is technically attractive because conventional vacuum systems have little gas-phase convection at low pressure. Infrared radiation can deliver heat without relying on a circulating gas and can respond rapidly to changes in heater power. Research on fruits, vegetables, medicinal plants, and other heat-sensitive biological materials shows that IR power, emitter temperature, pressure, product thickness, and wavelength strongly influence drying kinetics and final quality.
Infrared vacuum drying should not be confused with microwave vacuum drying. Microwave energy can generate heat volumetrically through dielectric loss, whereas infrared radiation is primarily a surface and shallow-penetration heating mechanism. This distinction is critical when selecting equipment for thick beds, powders, cakes, slices, coatings, or high-value heat-sensitive products.
An infrared vacuum dryer is a closed drying system in which infrared emitters supply radiant energy to wet material while a vacuum system maintains chamber pressure below atmospheric pressure. The vapor generated from the product is removed through the vacuum line and may be condensed before the vacuum pump.
Vacuum-rated drying chamber
Near-, medium-, or far-infrared emitters
Product trays, shelves, belt, or another carrier
Temperature and pressure sensors
Vapor line and optional product-retention filter
Condenser or cold trap
Vacuum pump
Power controller, interlocks, and recipe controls
1. Load the wet material in a controlled layer or geometry.
2. Seal the chamber and evacuate it to the required absolute pressure.
3. Energize the infrared emitters at a controlled power or surface temperature.
4. The product absorbs part of the incident IR radiation and converts it into heat.
5. Reduced pressure allows moisture or solvent to evaporate at a lower temperature than at atmospheric pressure.
6. Internal moisture migrates toward the exposed surface as evaporation proceeds.
7. Vapor leaves the chamber and is condensed or otherwise captured where required.
8. IR power and vacuum pressure are adjusted to keep the product within its allowable temperature and quality limits.
9. Drying ends when validated endpoint criteria - such as moisture, mass loss, condensate rate, or cycle time - are met.
Infrared radiation lies between visible light and microwaves in the electromagnetic spectrum. Engineering literature commonly divides IR into near-infrared, mid-infrared, and far-infrared bands. Exact band boundaries vary by convention, so dryer design should specify actual emitter wavelength or spectral range rather than relying only on NIR, MIR, or FIR labels.
Radiative heat transfer from an emitter is strongly dependent on absolute temperature. For idealized surfaces, the Stefan-Boltzmann relationship shows that radiative emission scales with the fourth power of absolute temperature. Real industrial systems additionally depend on emitter emissivity, product absorptivity, view factor, geometry, wavelength, and surface condition.
A simplified net-radiation relationship is Q_rad = epsilon_eff x sigma x A x (T_e^4 - T_p^4), where epsilon_eff represents an effective radiative property, sigma is the Stefan-Boltzmann constant, A is effective radiating area, T_e is emitter absolute temperature, and T_p is product absolute temperature. This equation is a conceptual design relation; real dryers require geometry- and spectrum-specific analysis.
At reduced pressure, convective heat transfer through the chamber gas becomes weak. Infrared radiation does not require air as the primary heat-transfer medium, so radiant energy can travel from the emitter to the product across the evacuated chamber. This is one reason IR is attractive as a supplemental or primary heat source in vacuum systems.
Vacuum does not provide the latent heat of evaporation. The energy still must come from the infrared emitters, heated shelves, or another thermal source. Vacuum primarily changes the thermodynamic conditions for evaporation and vapor removal.
Infrared energy generally penetrates only a limited distance into wet biological and many industrial materials. A 2021 review in Trends in Food Science & Technology describes IR energy in high-moisture foods as penetrating to a small depth before conversion to heat. Therefore, IR drying is especially effective for exposed surfaces, thin layers, slices, coatings, and products that can be turned or mixed.
For thick static beds, internal conduction and moisture diffusion may still control the later stages of drying. Increasing IR power cannot indefinitely overcome this limitation and can instead overheat or discolor the surface.
IR emitter -> incident radiant energy
Product surface/shallow layer -> radiation absorption and heat generation
Internal moisture -> diffusion/capillary transport toward the evaporation zone
Vacuum -> lower external vapor pressure and lower saturation temperature
Condenser/vacuum system -> vapor removal and pressure stability
Drying rate is therefore governed by both energy delivery and moisture transport. Early drying may respond strongly to IR intensity. Later drying can become diffusion controlled as the easily removable moisture is depleted.
IR wavelength or emitter type
Emitter temperature and radiant intensity
Distance between emitter and product
Absolute chamber pressure
Product temperature
Layer or slice thickness
Initial and target moisture
Product absorptivity/emissivity
Product movement or tray arrangement
Condenser temperature and capacity
Vacuum-pump capacity and leakage rate
Cycle endpoint criterion
A broad review of infrared food drying found that increasing IR power, intensity, and drying temperature generally accelerated drying, while excessive intensity or temperature could overheat the product. This trade-off is central to process optimization.
A peer-reviewed study on combined infrared-vacuum drying of pumpkin evaluated IR power from 204 to 272 W, system pressure from 5 to 15 kPa, and slice thicknesses of 5 and 7 mm. IR power, vacuum pressure, and slice thickness significantly affected drying kinetics and product quality. The study also showed that higher IR power reduced drying time but could negatively affect beta-carotene retention and color, demonstrating why maximum power is not necessarily the optimum process condition.
A Food Science & Nutrition study evaluated kiwifruit at 200-300 W IR power and 5-15 kPa system pressure. Both lamp power and vacuum pressure affected drying time, and effective moisture diffusivity increased as IR power increased. The work again reported a color penalty at higher power.
A 2024 study dried okra under combined far-infrared and vacuum conditions at 7 kPa absolute pressure and 70-90 C. A 2025 study on Arctium lappa roots evaluated 45-65 C and 6-24 kPa and found faster drying at higher temperature and lower system pressure within the tested range. These are material-specific experiments, not universal industrial performance guarantees.
Fruit and vegetable slices
Herbs and medicinal plants
Botanical and nutraceutical materials
Food ingredients where color/aroma retention matters
Thin coatings and films
Heat-sensitive pieces or granules with exposed surface area
Selected pharmaceutical or specialty materials after compatibility testing
The strongest published evidence for IR-vacuum drying is currently concentrated in food, agricultural, and botanical materials. For chemical powders, filter cakes, solvent-wet solids, or hazardous materials, industrial suitability should be established by material-specific testing and a formal process-safety review rather than inferred from food-drying studies.
Direct radiant energy transfer without needing a hot circulating gas
Rapid heater response and controllability
Low-temperature evaporation enabled by vacuum
Potentially shorter drying time for thin layers and strongly absorbing products
Compact heating elements and relatively simple radiant geometry
Potential quality benefits when lower product temperature and shorter exposure are achieved
Easy combination with conductive shelves, vacuum, microwave, or freeze-drying concepts
Limited penetration depth can make thick products internally diffusion limited.
Line-of-sight geometry can create shadowed or under-heated regions.
Excessive IR intensity can overheat, harden, discolor, or degrade the product surface.
Product absorptivity changes with wavelength, composition, moisture, and surface condition.
Uneven layer thickness creates non-uniform drying.
Dust deposition on emitters or windows can alter heat transfer and create maintenance issues.
Some emitter/window materials may be unsuitable for aggressive solvent vapors.
Flammable solvent service requires a dedicated ignition-risk and hazardous-area assessment.
Published laboratory results cannot be directly scaled by heater wattage alone.
Factor | Infrared Vacuum Dryer | Vacuum Shelf Dryer | Engineering Meaning |
Primary heat transfer | Radiation to exposed product | Conduction through shelf/tray | Different contact requirements |
Product contact with hot surface | Not always required | Usually important | IR can heat across a gap |
Penetration | Shallow/material dependent | Conductive from contact surface | Thick beds remain challenging |
Control response | Fast emitter response | Higher thermal inertia | IR suits modulated heating |
Uniformity risk | View factor/shadowing | Tray contact/shelf uniformity | Different validation needs |
The technologies are both electromagnetic but operate through different mechanisms. Infrared radiation is absorbed primarily at the surface or shallow depth and is converted to heat. Microwave energy interacts with dielectric properties and can generate heat more volumetrically within the material.
IR: simpler radiant heating architecture; Microwave: dielectric applicator and electromagnetic field design.
IR: strong line-of-sight and surface effects; Microwave: stronger dependence on dielectric properties and field uniformity.
IR: limited penetration; Microwave: generally deeper penetration but still material and frequency dependent.
IR: surface overheating is a major risk; Microwave: hot spots and non-uniform volumetric heating are major risks.
Both require pilot testing because moisture content changes the heating and mass-transfer behavior during the cycle.
Infrared vacuum drying delivers energy radiatively; hollow screw vacuum drying relies mainly on indirect conductive heating through shell, shaft, and screw surfaces.
IR is attractive for thin layers and exposed surfaces; hollow screws are designed for bulk powders, cakes, and granules that benefit from mechanical renewal.
Hollow screw motion can reduce internal temperature/moisture gradients and support continuous conveying; a static IR bed does not inherently mix the material.
IR systems avoid agitator torque as a process constraint, but shadowing and penetration depth become important instead.
For sticky bulk solids, screw torque/fouling and IR surface crusting/limited internal transport should both be evaluated experimentally.
Infrared energy can be used as a supplemental heat source during freeze drying. A 2021 review cites studies in which infrared-assisted freeze drying reduced drying time and energy use under specific experimental conditions. The mechanism remains freeze drying: ice is removed by sublimation from a frozen product. It should not be described as ordinary infrared-vacuum evaporation.
Preserve representative emitter-to-product geometry and view factor.
Scale by effective irradiated area and absorbed flux, not only chamber volume.
Maintain realistic layer thickness and product loading.
Map product temperatures across shelves or belt width.
Confirm that vapor conductance and condenser capacity match peak evaporation.
Evaluate emitter/window fouling over long campaigns.
Validate endpoint moisture uniformity, not only average moisture.
For solvent service, review material compatibility, ignition sources, inerting, and electrical classification.
Infrared-vacuum performance is strongly dependent on optical properties, geometry, moisture, and product quality limits. Representative tests should measure more than drying time.
Drying curve and condensate rate
Surface and core temperature
Moisture uniformity
Color and thermal degradation
Shrinkage or cracking
Crust formation
Aroma or volatile retention
Emitter power profile
Vacuum stability
Specific energy consumption
Product handling and unloading
What is an infrared vacuum dryer?
A vacuum dryer that supplies all or part of its process heat by infrared radiation directed at the wet product.
Why use infrared under vacuum?
Infrared can transfer heat across a low-pressure chamber without relying on gas convection, while vacuum lowers the evaporation temperature.
Is far-infrared always better than near-infrared?
No. Performance depends on the product absorption spectrum, emitter temperature, geometry, penetration, and quality target. Wavelength should be selected experimentally or from validated optical data.
Does infrared heat the product uniformly?
Not automatically. Line-of-sight, distance, product geometry, layer thickness, emitter layout, and absorptivity can produce non-uniform heating.
Is IR vacuum drying suitable for thick filter cakes?
It may assist surface heating, but limited penetration and internal diffusion can restrict thick-bed performance. Agitated contact dryers may be more suitable for many bulk cakes.
Can IR vacuum drying handle solvents?
Potentially, but solvent compatibility, condensation, electrical components, ignition hazards, and hazardous-area requirements must be engineered for the specific solvent.
Is it the same as microwave vacuum drying?
No. IR is primarily radiant surface/shallow heating; microwave heating is dielectric and can be volumetric.
How should an industrial system be sized?
Use material-specific drying tests, absorbed heat flux, exposed area, bed thickness, vapor load, condenser duty, vacuum conductance, and product-quality limits - not chamber volume alone.
