Solvent recovery is a major reason for selecting closed vacuum drying for pharmaceutical, fine-chemical, specialty-chemical, and other solvent-wet products. During drying, solvent leaves the wet solid as vapor. A well-designed recovery train captures most of the condensable vapor in one or more condensers, separates and stores the condensate, and sends only the remaining non-condensable gas and residual solvent vapor to the vacuum pump or downstream treatment.
Recovery efficiency is not determined by the dryer alone. It depends on solvent vapor pressure, vapor concentration, absolute pressure, condenser temperature, non-condensable gas load, leakage, receiver design, pump technology, and any secondary adsorption or absorption step. EPA guidance identifies condensation, adsorption, and absorption as established VOC recovery approaches and notes that condensation is especially useful for concentrated solvent streams.
A portion remains in the product until the drying endpoint.
Most evaporated solvent enters the vapor line.
A large fraction may condense in the primary/secondary condenser train.
Some solvent can dissolve in seal liquid or vacuum-pump oil depending on pump technology.
Residual vapor may leave the vacuum system exhaust unless recovered or treated.
Solvent can also be lost through leaks, venting, sampling, or handling.
A practical mass balance is: Solvent in wet feed = solvent in dried product + recovered condensate + solvent retained in auxiliary fluids/equipment + solvent emitted or otherwise lost. Measuring these terms is important for yield, environmental reporting, economics, and troubleshooting.
Condensation is usually the first recovery step for high solvent vapor loads from vacuum dryers. The vapor stream is cooled until the solvent partial pressure exceeds its equilibrium vapor pressure at the condenser temperature, causing liquid to form. Lower condenser outlet temperature generally improves recovery, but refrigeration demand increases.
A common strategy is staged condensation. The first condenser removes the bulk load using cooling water or moderate-temperature coolant. A second, colder condenser captures more volatile residual solvent using chilled water, glycol, brine, or refrigeration. Staging can reduce energy cost compared with refrigerating the entire vapor load at the lowest temperature.
Provide sufficient receiver volume for expected condensate plus surge.
Use level indication and high-level protection to prevent liquid carryover.
Maintain vacuum integrity during draining or use lock-hopper/dual-receiver arrangements when continuous removal is required.
Select metallurgy, gaskets, seals, and instruments for solvent compatibility.
Provide grounding/bonding and hazardous-area design where flammable liquids are handled.
Account for water-solvent phase separation, emulsions, and mixed-solvent composition.
Many wet cakes contain both water and organic solvent. The condensate may form one liquid phase, two phases, or an azeotropic/mixed composition depending on chemistry. Recovery for reuse may therefore require decantation, distillation, drying, or other purification after condensation.
Solvent vapor pressure and boiling characteristics
Solvent partial pressure in the vapor stream
Condenser outlet temperature
Absolute system pressure
Air leakage and nitrogen purge rate
Peak vapor flow
Heat-transfer area and fouling
Pressure drop and liquid drainage
When residual solvent concentration is too low for economical condensation, adsorption can be used downstream. Activated carbon is widely used for VOC capture. Depending on the system, adsorbed solvent may be regenerated and recovered, or the adsorbent may be treated as a control medium. Adsorption design must consider solvent properties, humidity, temperature, fire risk, and regeneration method.
Absorption transfers solvent vapor into a liquid absorbent. It can be useful when a compatible solvent or scrubbing liquid selectively absorbs the target compound. Other specialized approaches include membrane separation, cryogenic condensation, and hybrid adsorption-condensation systems. The appropriate technology depends on concentration, flow, solvent value, emissions target, and process safety.
A dry screw vacuum pump can be attractive when keeping process vapor free from pump oil or seal liquid is important. Liquid ring pumps tolerate condensable vapor well but mix process gas with the operating liquid, so separation and recovery strategy must account for this. Busch also offers chemical vacuum systems using liquid ring pumps and double condensation to reduce carryover and improve solvent recovery.
Overall solvent recovery includes every solvent destination, not just the condenser. A condenser can perform as designed while total plant recovery remains poor because of venting, leaks, solvent dissolved in seal liquid, receiver losses, or solvent remaining in the product.

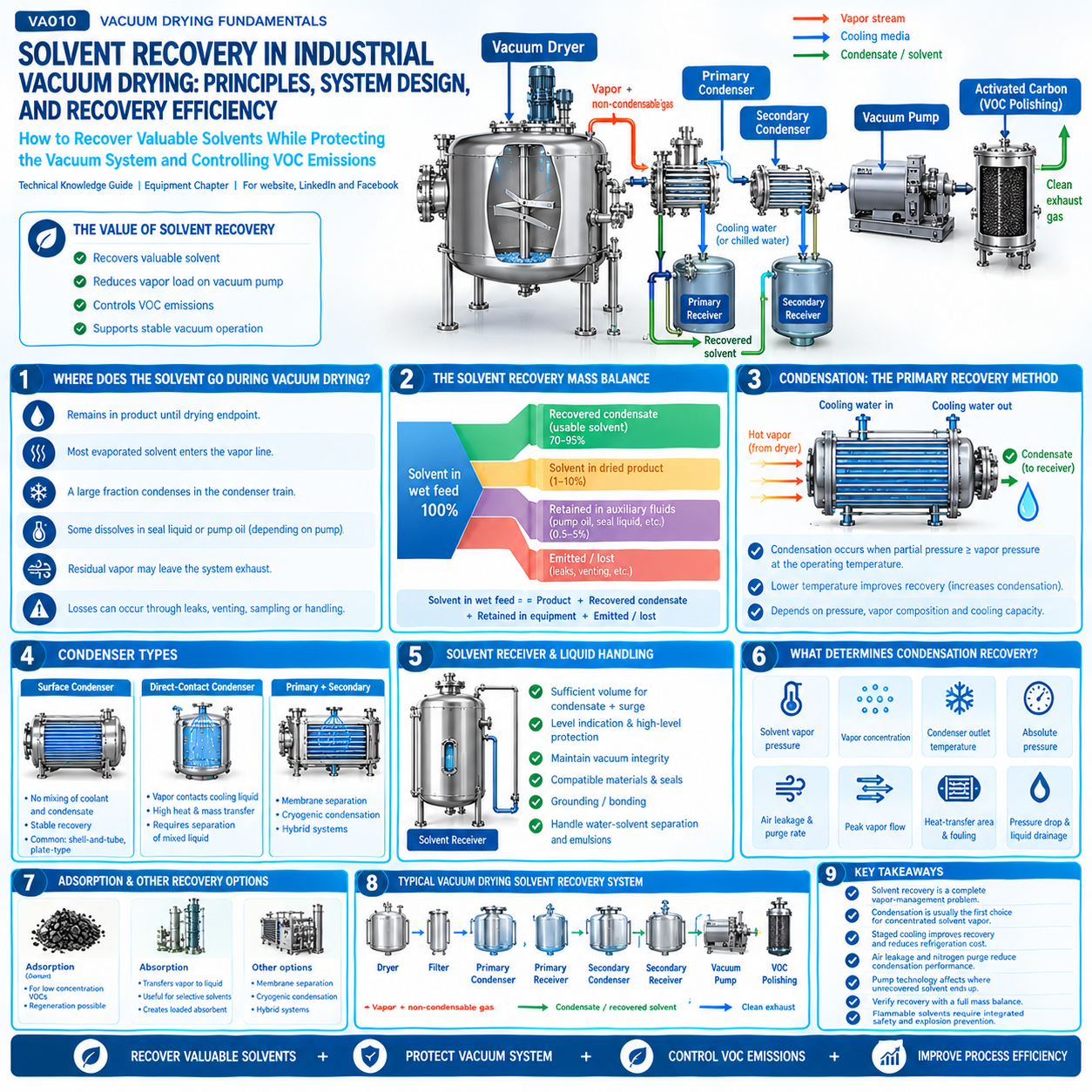

A typical closed system is: Vacuum Dryer -> Dust Filter -> Primary Condenser -> Primary Receiver -> Secondary Condenser/Cold Trap -> Secondary Receiver -> Vacuum Pump -> Optional VOC Polishing. The exact sequence depends on solvent, pressure, pump technology, and safety philosophy.
Reduce unnecessary air leakage and purge flow.
Match condenser temperatures to solvent vapor-pressure behavior.
Use staged condensation when appropriate.
Keep condenser surfaces clean and vapor filters functional.
Prevent receiver flooding and re-evaporation.
Use a vacuum pump compatible with the recovery objective.
Control venting and depressurization steps.
Measure condensate mass and composition rather than assuming recovery.
Add secondary adsorption/absorption when emissions targets require it.
Recovered solvent systems can contain flammable vapor and liquid. Vacuum does not eliminate risk because air can enter through leaks or during venting, charging, discharge, and maintenance. Depending on the solvent and jurisdiction, the system may require inerting, oxygen monitoring, hazardous-area electrical equipment, bonding/grounding, temperature limits, compatible vacuum equipment, pressure protection, and formal process hazard assessment.
Objective | Typical Approach | Best Fit | Important Limitation |
Recover bulk solvent | Condensation | High vapor concentration | Residual vapor remains at equilibrium |
Polish residual VOC | Adsorption | Lower concentration | Regeneration/fire/humidity considerations |
Transfer VOC to liquid | Absorption | Soluble/selective VOC | Creates loaded absorbent stream |
Destroy VOC | Thermal/catalytic oxidation | When recovery is not economical | Destroys solvent value; fuel/energy use |
Solvent identity and composition
Initial solvent content in wet material
Final residual-solvent target
Batch size or continuous feed rate
Evaporation-rate profile
Operating pressure and temperature
Water content and other co-volatiles
Nitrogen purge and estimated air leakage
Available cooling water/chilled water/brine
Required recovery purity and reuse route
VOC emission limit or plant target
Hazardous properties and compatibility data
Can 100% of the solvent be recovered?
In practice, complete recovery is difficult. Some solvent remains in product, equipment, auxiliary fluids, or residual exhaust. The target should be defined by mass balance, economics, safety, and emissions requirements.
Why does colder condensation improve recovery?
Lower temperature reduces the equilibrium vapor pressure of most solvents, so less solvent remains in the gas phase.
When is activated carbon useful?
It is often useful for residual VOC concentrations that are too low for economical condensation or when a polishing step is required.
Can recovered solvent be reused directly?
Sometimes, but water, mixed solvents, impurities, or degradation products may require analysis and purification before reuse.
Does vacuum automatically make solvent drying explosion-proof?
No. Air ingress and operating transitions can create flammable mixtures; explosion prevention requires a system-level risk assessment.
How should recovery performance be verified?
Use a solvent mass balance including wet feed, dry product, each condensate receiver, vacuum-pump auxiliary fluids, and exhaust where relevant.
