A high-performance industrial Spray Dryer can transform liquids into dry powder in an instant. This is not magic, but the result of the perfect coordination of precision components within the system. If you are planning to purchase spray drying equipment for your facility, understanding its core structure is the first step to making the right choice.
Today, we take you inside the equipment to comprehensively analyze the three core components that determine spray drying efficiency and the quality of the finished powder.
If a spray dryer has a "heart," it is undoubtedly the atomizer. Its function is to instantly "tear" the pumped bulk liquid into tens of thousands of micron-sized droplets. The finer the droplets, the larger the surface area, and the faster the water evaporates.
There are two main types of atomizers commonly used in the industry:

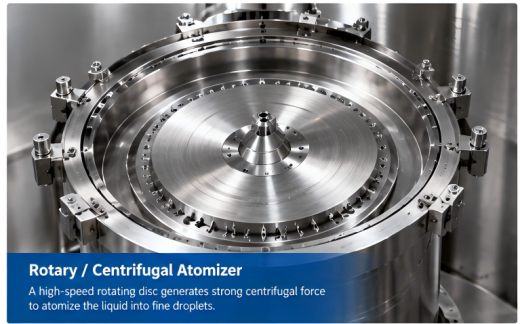

Rotary/Centrifugal Atomizer: Relies on a high-speed rotating disc (speeds can reach 10,000 - 30,000 rpm) to generate strong centrifugal force to throw the liquid out. It is suitable for processing materials of various concentrations and is less prone to clogging, making it the most widely used type.

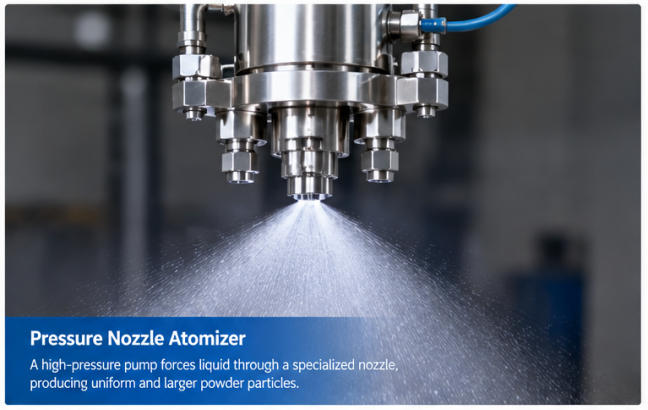

Pressure Nozzle Atomizer: Uses a high-pressure pump to force liquid into a specialized nozzle. The resulting powder particle size is usually larger and more uniform than that from a centrifugal atomizer, making it ideal for granules that require extremely high flowability (such as ceramic powders).

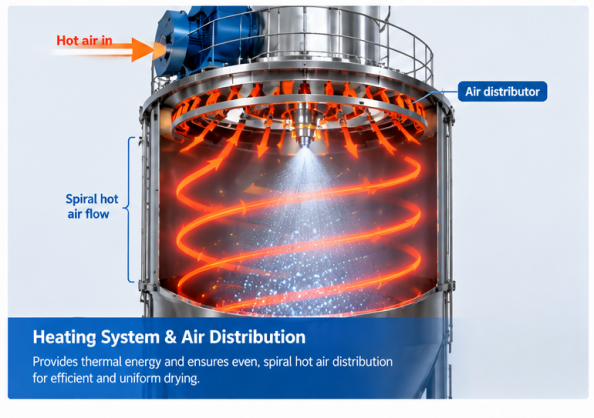

The drying process is essentially heat exchange. The heating system is responsible for providing the immense thermal energy required for moisture evaporation, usually employing electrical, steam, or gas heating. The Air Distributor, however, is the unsung hero that determines drying quality. Located at the top (or bottom) of the drying tower, it is responsible for introducing high-temperature hot air evenly and spirally into the chamber.
Why is it so important? Uneven hot air distribution can cause some droplets to be under-heated (resulting in high residual moisture) or over-heated and scorched. Excellent air duct design effectively prevents the material "wall-sticking" phenomenon, dramatically increasing the powder yield.
After the moisture in the droplets is instantly evaporated in the drying tower, the formed dry powder mixes with a large volume of exhaust gas. How can they be separated efficiently? This relies on the cyclone separator.

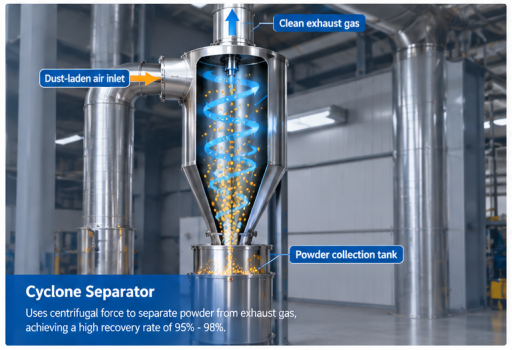

Working Principle: The dust-laden airflow enters the cylinder of the cyclone separator tangentially at high speed, forming a strong rotating airflow. Under the action of centrifugal force, the heavier powder particles are thrown toward the wall and then slide down the conical cylinder into the collection tank at the bottom. The lighter, clean exhaust gas is discharged from the top exhaust pipe.
A well-designed cyclone separator system can achieve a powder recovery rate of 95% - 98%, ensuring zero waste of your valuable materials.
The atomizer determines the particle size of the powder, the heating system determines the drying efficiency, and the cyclone separator determines the final product recovery rate. The engineering design level of these three components directly dictates the value of a spray dryer.
For more information on our designs, technical parameters, and further engineering details regarding spray dryer,please feel free to contact us : info@machtechdryer.com . Our engineering team is always ready to match you with the highest quality drying solutions.
