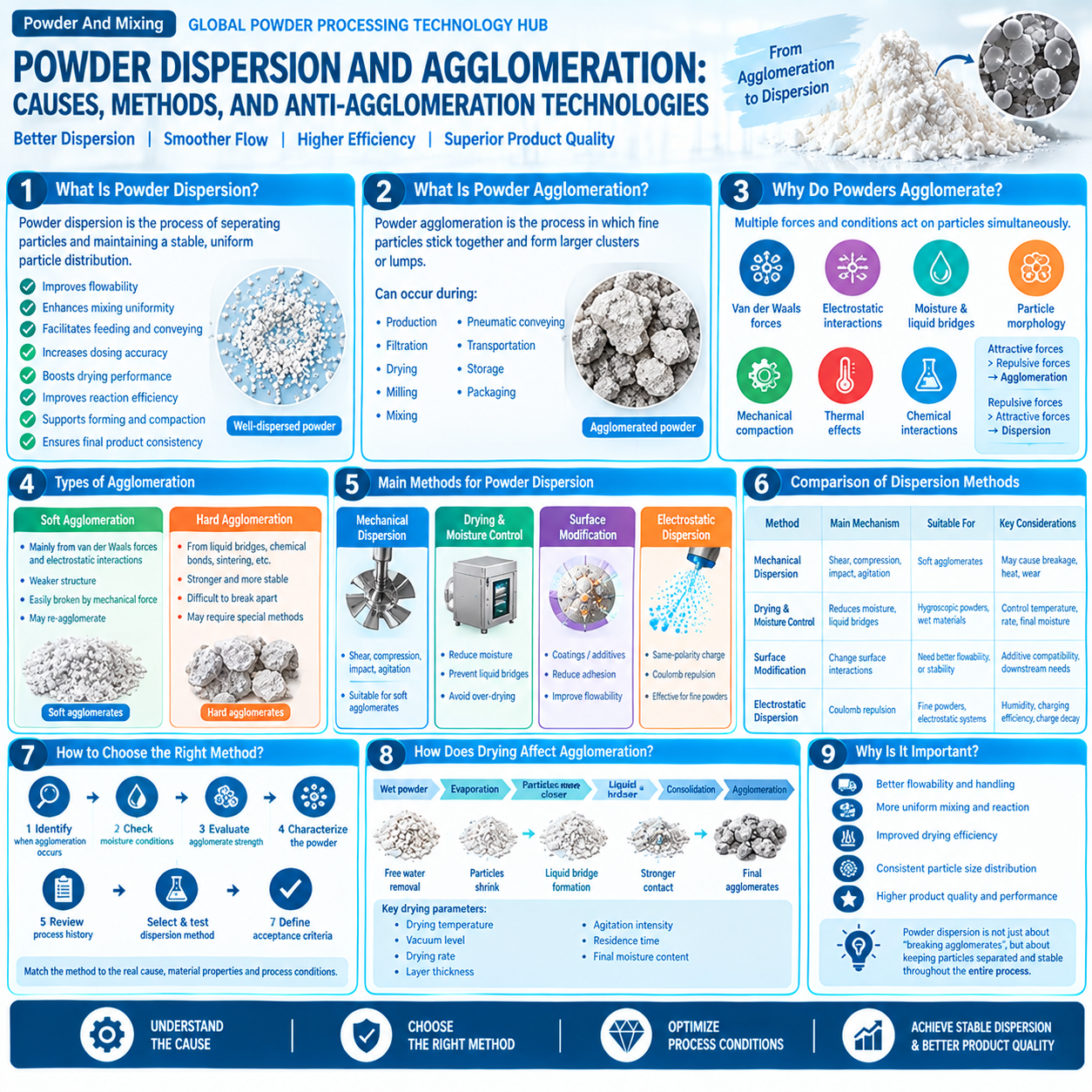

Powder dispersion is the process of separating particles and maintaining a stable, uniform particle distribution, while powder agglomeration occurs when fine particles stick together and form larger clusters or lumps.
Powder agglomeration can be caused by van der Waals forces, electrostatic interactions, moisture, liquid bridges, particle morphology, thermal history, and chemical interactions. The appropriate powder dispersion method depends on the type and strength of the agglomeration.
Common approaches include mechanical dispersion, drying and moisture control, particle surface modification, and electrostatic dispersion.
For industrial powder processing, the most effective strategy is usually to identify the underlying cause of agglomeration first and then select a dispersion method that matches the material properties and process conditions.
Powder dispersion refers to the process of separating powder particles and maintaining them in a relatively independent and uniformly distributed state.
In industrial applications, good powder dispersion can improve:
Powder flowability
Mixing uniformity
Feeding and conveying
Dosing accuracy
Drying performance
Reaction efficiency
Forming and compaction
Final product consistency
The degree of dispersion required depends on the application. A powder used for simple bulk conveying may have different dispersion requirements from a pharmaceutical formulation, battery material, or metal powder used in additive manufacturing.
Powder agglomeration is the process in which individual or fine particles adhere to one another and form larger clusters, aggregates, or lumps.
Agglomeration can occur during:
Powder preparation
Precipitation
Filtration
Drying
Milling
Mixing
Pneumatic conveying
Transportation
Storage
Packaging
The resulting agglomerates may range from relatively weak structures that can be easily broken apart to strong, stable structures that are difficult to deagglomerate.
In practical powder processing, identifying where and when agglomeration occurs is often the first step toward solving the problem.
Powders agglomerate because multiple forces and process conditions act on the particles simultaneously.
The main causes include:
Van der Waals forces
Electrostatic interactions
Moisture and liquid bridges
Particle morphology and surface roughness
Mechanical compaction
Thermal effects
Chemical interactions
When attractive forces between particles become greater than repulsive forces or external dispersion forces, particles are more likely to form agglomerates.
This can be understood as a balance:
Attractive forces > Repulsive or dispersive forces → higher agglomeration tendency
Repulsive or dispersive forces > Attractive forces → better particle dispersion
Van der Waals forces are particularly important for fine and ultrafine powders.
As particle size decreases, specific surface area generally increases. This means that surface interactions become increasingly important.
When particles come into close contact, van der Waals attraction can contribute to particle adhesion and the formation of agglomerates.
This is one reason why powders with very small particle sizes can be significantly more difficult to disperse than larger particles.
Electrostatic charging can occur when particles experience:
Friction
Collision
Conveying
Mixing
Pneumatic transport
Contact with equipment surfaces
Electrostatic forces can either promote or reduce agglomeration.
Particles carrying opposite charges may attract each other, while particles carrying charges of the same polarity may experience Coulombic repulsion.
Therefore, electrostatic behavior needs to be considered carefully when designing a powder handling or dispersion process.
Moisture is one of the most important factors affecting powder agglomeration.
When hygroscopic particles absorb water from the surrounding environment, a thin liquid film or liquid bridge can form between particles.
These liquid bridges increase particle adhesion and may cause powders to become:
Sticky
Less flowable
More difficult to feed
More difficult to disperse
More prone to caking
For moisture-sensitive powders, controlling ambient relative humidity, drying conditions, residual moisture, and storage conditions can therefore be critical.
Particle shape and surface structure can also affect agglomeration.
Irregular particles, rough surfaces, porous structures, and high specific surface areas can increase the number or strength of particle contacts.
Compared with relatively spherical particles, highly irregular particles may exhibit different flow and packing behavior and can be more susceptible to mechanical interlocking.
Powder properties can change during processing, transportation, and storage.
Vibration, impact, compression, and repeated handling can bring particles into closer contact and increase the strength of existing agglomerates.
Temperature changes can also affect powder behavior. Certain materials may soften, become sticky, or undergo structural changes at elevated temperatures, increasing the risk of caking or agglomeration.
In some systems, particles may undergo chemical reactions or surface transformations.
The formation of chemical bonds, reaction products, or other binding phases can create stronger particle-to-particle connections.
These agglomerates may be significantly more difficult to break apart than those held together primarily by weak physical forces.
Powder agglomerates are often discussed in terms of soft agglomerates and hard agglomerates.
Soft agglomerates are generally held together by relatively weak physical forces, such as:
Van der Waals forces
Electrostatic interactions
Weak surface adhesion
They can often be broken apart by appropriate mechanical forces.
Typical deagglomeration approaches may include controlled mixing, agitation, shear, milling, or other mechanical dispersion techniques.
Hard agglomerates have stronger or more stable interparticle bonds.
They may result from:
Liquid bridge solidification
Chemical bonding
Sintering
Strong surface adhesion
Solid binder formation
Thermal processing
Hard agglomerates are generally more difficult to break apart.
Simply increasing mechanical energy may not solve the problem and may instead cause particle breakage, excessive heat generation, or equipment wear.
Important: The distinction between soft and hard agglomeration depends on the material and process history. Laboratory or pilot-scale testing is recommended before selecting an industrial deagglomeration process.
Preventing agglomeration is often more effective than trying to break apart large agglomerates after they have formed.
A powder anti-agglomeration strategy may include:
Control Moisture
Maintain appropriate humidity during processing and storage and control the final moisture content of the powder.
Optimize Drying
Avoid excessive drying temperatures, uneven drying, and prolonged residence times that may promote shrinkage or strong particle bonding.
Minimize Unnecessary Compaction
Review conveying, vibration, storage, and packaging conditions that may compress the powder.
Control Electrostatic Charging
Evaluate particle charging and grounding conditions where electrostatic effects are significant.
Consider Surface Modification
For appropriate materials, surface treatments or additives can reduce particle-to-particle adhesion and improve flowability.
Optimize Particle Properties
Particle size distribution, particle morphology, surface roughness, and porosity should be considered during material and process development.
There is no single powder dispersion method that works for every material.
The most common approaches are:
Mechanical dispersion
Drying and moisture control
Particle surface modification
Electrostatic dispersion
The appropriate method depends on the agglomeration mechanism, material properties, required particle size, moisture sensitivity, and downstream application.
Mechanical dispersion uses external forces to break apart agglomerates.
Common mechanical forces include:
Shear
Compression
Impact
Agitation
Milling
Mechanical dispersion is particularly useful when agglomerates are relatively weak and can be broken apart without damaging the primary particles.
However, excessive mechanical energy can lead to:
Particle breakage
Temperature increase
Changes in particle morphology
Equipment wear
Unwanted changes in particle size distribution
Therefore, mechanical dispersion should be optimized rather than simply maximized.
For hygroscopic powders, moisture management can be an important part of powder dispersion.
Reducing moisture can help minimize liquid bridge formation and particle adhesion.
However, drying itself can sometimes cause agglomeration.
During drying, particles may undergo:
Wetting → Particle contact → Liquid bridge formation → Shrinkage → Consolidation → Agglomeration
Therefore, drying parameters such as:
Drying temperature
Vacuum level
Drying rate
Material layer thickness
Agitation intensity
Residence time
Final moisture content
should be evaluated together.
This is particularly important for powders that become sticky during the intermediate stages of drying.
Surface modification changes the physical or chemical characteristics of particle surfaces.
A suitable surface treatment may:
Reduce direct particle contact
Lower surface energy
Reduce particle adhesion
Improve moisture resistance
Improve flowability
Improve storage stability
Depending on the material, surface modification may involve coatings, additives, hydrophobic treatments, or other surface-engineering techniques.
However, compatibility with the final product and downstream processing requirements must always be considered.
Electrostatic dispersion uses electrical charge to influence particle-to-particle interactions.
When particles carry charges of the same polarity, Coulombic repulsion can increase the distance between particles and reduce their tendency to remain in contact.
Corona charging is one commonly used industrial method for generating and transferring electrical charge to particle surfaces.
The effectiveness of electrostatic dispersion depends on factors such as:
Particle charging efficiency
Charge retention
Relative humidity
Particle properties
Surface conductivity
Charge dissipation rate
Because humidity can significantly influence electrical behavior, electrostatic dispersion should be evaluated under representative operating conditions.
Dispersion Method | Main Mechanism | Suitable Applications | Key Considerations |
|---|---|---|---|
Mechanical Dispersion | Shear, compression, impact, agitation | Soft agglomerates and rapid deagglomeration | Excessive force may cause breakage, heat, or wear |
Drying & Moisture Control | Reduces moisture and liquid bridge formation | Hygroscopic powders and wet-processed materials | Drying conditions must be carefully controlled |
Surface Modification | Changes surface interactions and reduces adhesion | Powders requiring improved flowability or storage stability | Additive compatibility and downstream requirements |
Electrostatic Dispersion | Coulombic repulsion | Selected fine powders and electrostatically sensitive systems | Humidity, charging efficiency, and charge decay |
The selection process should start with the cause of agglomeration, rather than the equipment itself.
Determine whether agglomeration happens during:
Production
Filtration
Drying
Conveying
Storage
Packaging
Measure:
Initial moisture
Final moisture
Ambient relative humidity
Moisture uptake during storage
Determine whether the agglomerates are easily broken apart or require significantly higher mechanical energy.
Evaluate:
Particle size
Particle size distribution
Particle morphology
Surface area
Surface chemistry
Flowability
Bulk density
Consider:
Mixing
Drying
Heating
Compression
Vibration
Conveying
Storage time
Rather than immediately increasing mechanical energy, compare different approaches through laboratory or pilot-scale testing.
Depending on the application, evaluate:
Particle size distribution
Agglomerate size
Flowability
Bulk density
Moisture content
Redispersion performance
Final product performance
Drying is not simply a process of removing water.
It can fundamentally change how particles contact and interact with each other.
As liquid evaporates, particles may move closer together, rearrange, shrink, and form stronger contacts.
If these contacts become sufficiently strong, the dried powder may contain persistent agglomerates.
This is why industrial powder drying should consider both drying efficiency and powder structure.
For example, when selecting a vacuum dryer, vacuum tray dryer, agitated vacuum dryer, or other industrial drying system, engineers should consider:
Heat sensitivity
Moisture distribution
Product stickiness
Agglomeration tendency
Agitation requirements
Final moisture target
Residence time
The optimal drying process is therefore not necessarily the process that removes moisture the fastest. It is the process that achieves the required moisture content while maintaining the desired powder properties.
Why does fine powder agglomerate easily?
Fine powders generally have a high specific surface area, which increases the importance of surface forces such as van der Waals interactions. Moisture, electrostatic charging, particle morphology, and surface chemistry can further increase the tendency toward agglomeration.
How does humidity affect powder agglomeration?
Humidity can cause hygroscopic particles to adsorb moisture. The resulting liquid films or liquid bridges can increase adhesion between particles and promote agglomeration and caking.
Can mechanical dispersion break all powder agglomerates?
No. Mechanical dispersion is generally more effective for weak or soft agglomerates. Hard agglomerates formed through strong bonding, solidified liquid bridges, or chemical interactions may require different processing strategies.
Does drying prevent powder agglomeration?
Not necessarily. Proper drying and moisture control can reduce liquid bridge formation, but inappropriate drying conditions may also cause shrinkage, consolidation, caking, or new agglomerates.
What is the difference between powder dispersion and deagglomeration?
Powder dispersion focuses on keeping particles separated and uniformly distributed.
Deagglomeration refers specifically to breaking existing agglomerates into smaller clusters or individual particles.
In many industrial processes, deagglomeration is one step within a broader powder dispersion strategy.
How can powder dispersion be measured?
Depending on the application, powder dispersion can be evaluated using:
Particle size distribution
Agglomerate size
Flowability
Bulk density
Moisture content
Microscopic analysis
Redispersion performance
Final product performance
The appropriate measurement method should be selected according to the material and intended application.
What is the best method for preventing powder agglomeration?
There is no universal best method.
The appropriate approach depends on the cause of agglomeration, particle size, surface properties, moisture sensitivity, process conditions, and final product requirements.
For this reason, material testing and process-specific evaluation are recommended before selecting an industrial powder dispersion solution.
Powder agglomeration is rarely caused by a single factor. Instead, it is typically the result of the combined effects of interparticle forces, humidity, liquid bridges, particle morphology, mechanical history, thermal effects, and chemical environment.
From a process engineering perspective, effective powder dispersion is not simply about using stronger agitation or higher mechanical energy.
The first step is to identify the primary mechanism responsible for agglomeration and then select a targeted dispersion strategy.
Mechanical dispersion is suitable for breaking relatively weak agglomerates.
Drying dispersion focuses on controlling moisture and liquid bridge formation.
Surface modification changes particle surface interactions and can reduce moisture adsorption.
Electrostatic dispersion uses repulsive forces between particles carrying charges of the same polarity to increase interparticle separation.
For industrial powder processing projects, powder agglomeration behavior should be evaluated together with upstream particle preparation, drying, conveying, and storage processes.
This is particularly important in industries such as pharmaceuticals, energy materials, fine chemicals, and 3D printing, where particle size, flowability, and dispersion state can have a significant impact on process performance and final product quality.
In practice, representative material testing is generally more reliable than relying solely on theoretical analysis when determining the appropriate powder dispersion and anti-agglomeration strategy.
