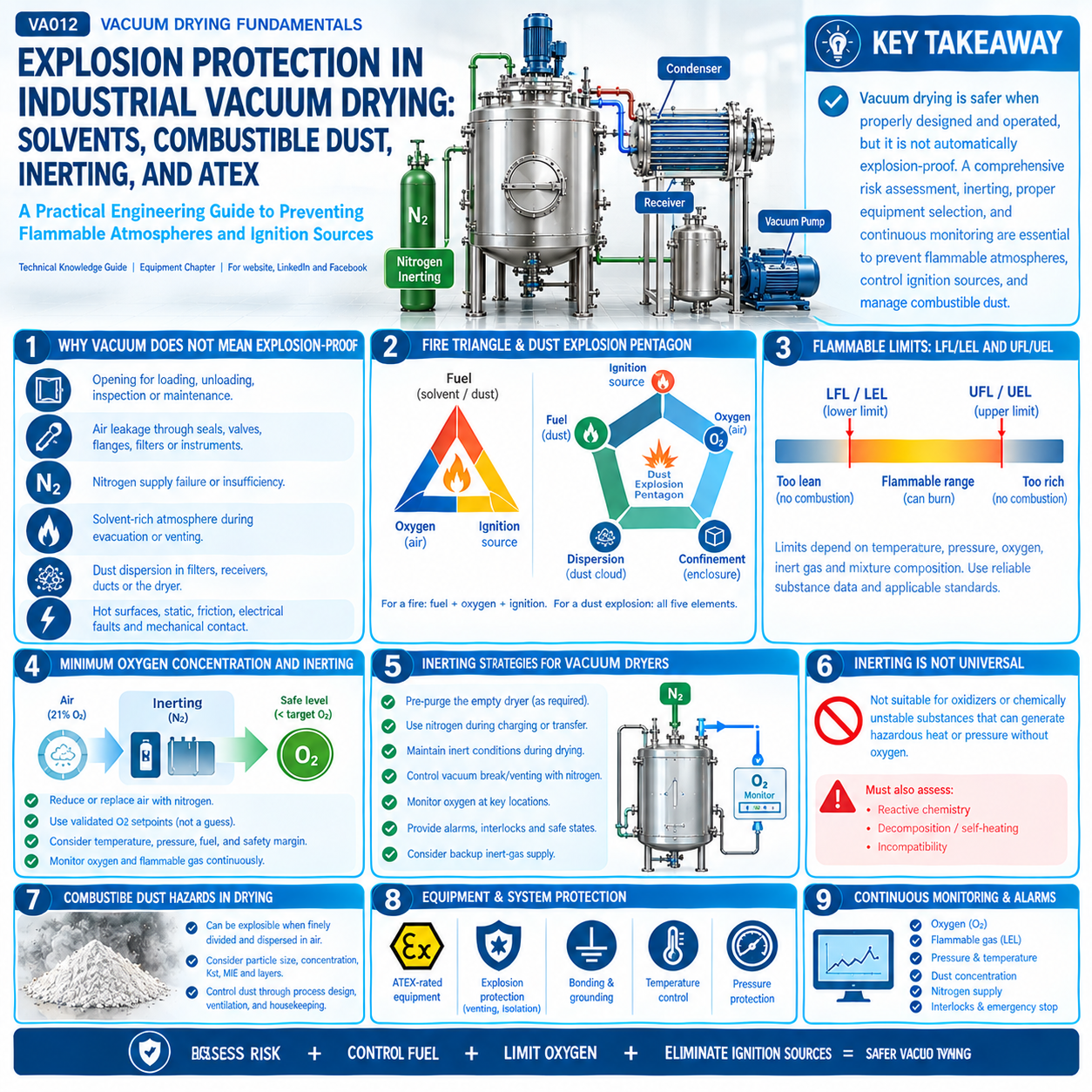

Vacuum drying is often selected for flammable solvents, combustible powders, and oxygen-sensitive materials because a closed low-pressure process can reduce oxygen exposure and facilitate solvent recovery. However, vacuum operation does not automatically make a dryer explosion-proof. Air can enter through leakage, charging, discharge, venting, maintenance, or loss of inerting, and combustible dust can become dispersed during mixing, filtration, discharge, or cleaning.
Explosion protection must therefore be based on a formal risk assessment that addresses fuel, oxidizer, ignition sources, dispersion, confinement, operating transitions, equipment classification, and protective measures. EU Directive 2014/34/EU applies to equipment and protective systems intended for use in potentially explosive atmospheres. HSE guidance identifies prevention of explosive atmospheres, ignition-source control, correct equipment selection, and inerting as core approaches. OSHA describes the combustible-dust explosion pentagon as fuel, ignition, oxygen, dispersion, and confinement.
A dryer is opened to atmosphere during loading, unloading, inspection, or maintenance.
Air can leak through seals, valves, flanges, filters, or instrumentation.
Nitrogen supply can fail or be insufficient.
A solvent-rich atmosphere can pass through its flammable range during evacuation or venting.
Dust can be dispersed inside filters, receivers, ducts, or the dryer.
Hot surfaces, static electricity, friction, electrical faults, and mechanical contact can provide ignition energy.
For a flammable vapor fire or explosion, fuel, oxidizer, and an ignition source must coincide within conditions that support combustion. Combustible dust explosions add two important factors: sufficient dust dispersion and confinement. OSHA calls these five elements the Dust Explosion Pentagon.
A flammable gas or vapor burns only within a concentration range under specified conditions. The lower flammable/explosive limit is the minimum concentration that can propagate combustion; the upper limit is the maximum. Temperature, pressure, oxygen concentration, inert gas, and mixture composition can change the limits. Design should use reliable substance data and applicable standards rather than generic percentages.
Inerting replaces or dilutes air with an inert gas such as nitrogen so oxygen is reduced below the concentration required to support combustion for the relevant fuel and conditions. HSE describes inerting as a highly effective explosion-prevention measure for enclosed plant when the flammable hazard cannot otherwise be eliminated.
The safe oxygen setpoint must not be guessed. It should be based on validated flammability data, the specific solvent or dust, temperature, pressure, inert gas, measurement uncertainty, and an engineering safety margin. HSE also emphasizes continuous monitoring of oxygen and flammable gas/vapor concentrations where appropriate.
Pre-purge the empty dryer before introducing flammable material when required by the process safety strategy.
Use nitrogen during charging or transfer if air ingress could create a hazardous mixture.
Maintain inert conditions during drying when specified by the risk assessment.
Control vacuum break/venting with nitrogen rather than air where required.
Monitor oxygen at representative locations, considering sampling lag and sensor suitability.
Provide alarms, interlocks, and defined safe states for loss of nitrogen or high oxygen.
Consider backup inert-gas supply where availability is safety-critical.
Inerting is not appropriate for every chemical hazard. HSE guidance notes that it is not a solution for oxidizers or chemically unstable substances that can generate hazardous heat or pressure without atmospheric oxygen. Reactive chemistry, decomposition, self-heating, and incompatibility must be assessed separately.
Many organic and some metallic powders can be explosible when finely divided and dispersed in air. Relevant material parameters can include minimum explosible concentration (MEC), minimum ignition energy (MIE), minimum ignition temperature, maximum explosion pressure, and Kst. OSHA notes that explosibility depends on sample-specific properties such as particle size and moisture content.
Drying can reduce moisture and make dust easier to ignite.
Grinding or attrition can create finer particles during processing.
Filters and dust collectors can contain high local dust concentrations.
Static charge can accumulate during powder movement and discharge.
Deposited dust outside equipment can create severe secondary-explosion hazards if disturbed.
Electrical sparks and unsuitable electrical equipment
Electrostatic discharge
Hot surfaces and overheated bearings
Mechanical friction, rubbing, or impact
Welding, cutting, and maintenance hot work
Open flames and smoking
Self-heating or exothermic decomposition
Lightning or stray electrical currents where relevant
Hot particles entering from upstream equipment
Conductive equipment, piping, receivers, and transfer components should be bonded and grounded where electrostatic ignition is credible. Non-conductive hoses, liners, filters, and product behavior can complicate static control. Grounding is one layer of protection, not a substitute for hazardous-area design or inerting.
Areas where flammable gases, vapors, mists, or combustible dust may be present are classified so electrical and mechanical equipment can be selected for the expected hazard. OSHA uses Class/Division and Zone designations in U.S. electrical rules. European practice uses ATEX/IECEx zone concepts. The exact classification should be performed by competent specialists using the applicable jurisdictional standards.
EU Directive 2014/34/EU applies to equipment and protective systems intended for use in potentially explosive atmospheres, as well as certain safety/control devices and components. It defines equipment groups and categories and requires integrated explosion safety, including prevention of explosive atmospheres where possible and control of ignition sources. Compliance is a product/equipment obligation; workplace zoning and operating risk controls are addressed through separate workplace requirements and national implementation.
Equipment surface temperature must remain below limits appropriate to the foreseeable explosive atmosphere. For dusts, deposited layers can insulate surfaces and change allowable temperatures. Temperature class or maximum surface-temperature selection should be based on the specific gas/vapor or dust data and applicable standard.
Explosion prevention aims to stop an explosive atmosphere or ignition from occurring. Explosion mitigation limits consequences if prevention fails. Depending on equipment and process, mitigation can include explosion venting, suppression, containment, or isolation. Vacuum vessels and connected equipment require special engineering because structural design, pressure/vacuum ratings, ducting, and indoor venting constraints may affect what measures are feasible. These systems should be designed by qualified explosion-protection specialists.
Select vacuum pumps compatible with flammable, toxic, corrosive, or condensable process gas.
Prevent uncontrolled condensation, overheating, or deposits that could create ignition or mechanical hazards.
Use condenser/receiver design that prevents liquid carryover and uncontrolled vapor release.
Evaluate pump exhaust: it can contain residual solvent even when the dryer is under vacuum.
Use appropriate hazardous-area equipment and ATEX/IECEx-certified versions where required by classification.
Steady-state drying may occur at low oxygen, but startup, evacuation, solvent evaporation onset, vacuum break, discharge, cleaning, and maintenance can move the system through different flammability conditions. A process hazard analysis should explicitly examine each operating phase and foreseeable failure mode.
Hazard | Prevention Layer | Detection/Control | Possible Mitigation |
Flammable solvent + air | Closed system; inerting | O2 / LEL monitoring; interlocks | Containment/venting/suppression as applicable |
Combustible dust cloud | Minimize dispersion; inerting where applicable | Dust/O2 process monitoring; housekeeping | Explosion protection/isolation as applicable |
Static ignition | Bonding/grounding; conductive design | Ground continuity monitoring where used | Limit consequences through system design |
Hot surface | Temperature-limited equipment | Temperature sensors/trips | Safe shutdown |
Air ingress | Leak-tight design; nitrogen blanketing | O2 trend / pressure monitoring | Automatic safe-state response |
Material SDS and full composition
Solvent flash point and flammability data
LFL/UFL or LEL/UEL under relevant conditions
Autoignition temperature
Dust explosibility data such as Kst, Pmax, MIE, MEC where applicable
Operating temperature and absolute pressure range
Oxygen concentration strategy
Nitrogen purity, pressure, and availability
Charging, discharge, venting, and cleaning sequence
Potential ignition sources
Hazardous-area classification
Vacuum pump and condenser configuration
Relief/mitigation philosophy and vessel pressure rating
Applicable national regulations and site standards
Is a vacuum dryer inherently explosion-proof?
No. Vacuum can reduce oxygen availability during some operating conditions, but air ingress and operating transitions can still create flammable mixtures.
Does nitrogen inerting guarantee safety?
No single measure guarantees safety. Inerting must be designed, monitored, maintained, and combined with ignition control and other safeguards based on risk assessment.
What oxygen concentration is safe?
There is no universal number. The limit depends on the fuel, inert gas, temperature, pressure, and test method; a validated limit plus safety margin is required.
Does ATEX certification mean the entire process is safe?
No. ATEX equipment conformity addresses equipment/protective systems. The plant still requires correct zoning, installation, operation, maintenance, process controls, and risk assessment.
Are all powders combustible?
No. But many materials can become explosible in finely divided form. Representative dust testing may be required.
Can vacuum pump exhaust be hazardous?
Yes. Residual solvent vapor and non-condensables can leave the pump. Exhaust routing and treatment must be included in the safety review.
