Radio-frequency vacuum drying (RFV) combines a radio-frequency alternating electric field with reduced-pressure evaporation. A product is exposed to a field between electrodes; dielectric loss converts some electromagnetic energy into heat within the product.
Vacuum lowers the saturation temperature of the evaporating liquid but does not supply the latent heat of vaporization. Heat input, internal moisture transport, condenser performance, and vacuum-system capacity must be evaluated together.
The most directly documented RFV applications involve timber. This article distinguishes demonstrated RFV practice from wider atmospheric RF uses and sets out the evidence needed for new industrial materials.
Radio-frequency vacuum drying (RFV) combines a radio-frequency alternating electric field with reduced-pressure evaporation. A product is exposed to a field between electrodes; dielectric loss converts some electromagnetic energy into heat within the product.
Vacuum lowers the saturation temperature of the evaporating liquid but does not supply the latent heat of vaporization. Heat input, internal moisture transport, condenser performance, and vacuum-system capacity must be evaluated together.
RFV has a particularly substantial published research base in thick timber and wood drying. Conventional RF heating in food, textile, and polymer processing does not by itself establish that the same product has been dried under vacuum.

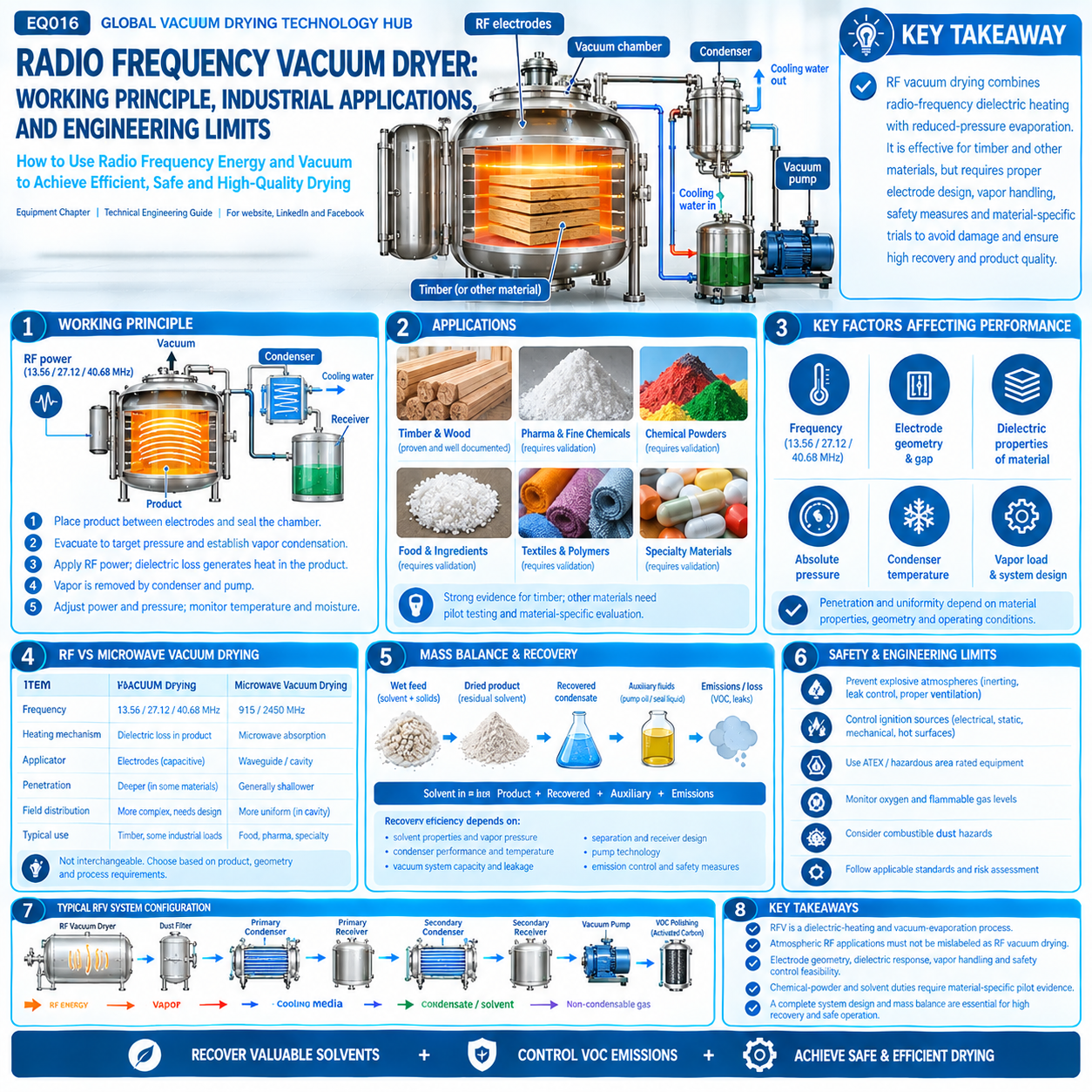

Place the product within the engineered electrode arrangement and seal the chamber.
Evacuate to the specified absolute pressure and establish vapor condensation.
Apply controlled RF power; the product dissipates electromagnetic energy according to its dielectric properties.
Moisture evaporates and migrates outward while the condenser and pump remove vapor and noncondensable gas.
Adjust power and pressure during drying; monitor temperature, field behavior, and moisture endpoint.
Common industrial RF ISM frequencies include 13.56, 27.12, and 40.68 MHz, subject to national allocation and equipment approval. RF systems often use a capacitive electrode arrangement, unlike typical microwave waveguide applicators.
The lower frequency can provide greater effective penetration than higher-frequency microwave heating in some materials and geometries, but penetration and uniformity are material-specific. Electrode gap, product position, field concentration, and dielectric properties determine practical performance.
RF power is not distributed uniformly by default. Local arcing, edge-field concentration, electrode contamination, and moisture gradients must be considered.
Vacuum lowers the saturation temperature of the evaporating liquid but does not supply the latent heat of vaporization. Heat input, internal moisture transport, condenser performance, and vacuum-system capacity must be evaluated together.
Internal heat generation can reduce surface-to-core thermal gradients in suitable thick products. However, vapor must still traverse the porous structure, and overly rapid vapor generation can cause checking, cracking, or deformation in wood and damage in other materials.
Vacuum pressure should be selected jointly with the RF power profile and condenser capacity rather than maximized independently.
RFV is extensively investigated for thick lumber and refractory wood species where conventional kiln drying can be slow or produce internal gradients. Wood outcomes depend on species, thickness, initial moisture, RF power, and drying schedule.
RF dielectric heating is also used industrially in textiles and other products, but such atmospheric RF installations should not be presented as verified RFV chemical-powder applications.
For pharmaceutical or chemical filter cakes, the actual dielectric response, solvent hazards, conductive contamination, dust behavior, and product-quality limits must be demonstrated before a feasibility claim.
Both technologies generate dielectric heat under vacuum, but operating frequency, electrode/applicator architecture, field distribution, and penetration behavior differ. Lower RF frequencies may suit thick loads in some applications; microwave systems can offer other applicator and product-handling options.
Neither frequency guarantees more uniform heating or lower energy consumption. Compare the actual product at the same moisture endpoint, quality specification, and system boundary.
Contact dryers supply heat from shelves, jackets, paddles, or hollow screws; RFV deposits energy according to dielectric response. For weakly coupling powders, conductive heating may be more predictable.
Hollow screw equipment can provide material renewal and continuous axial transport, whereas RFV systems must separately address transport and electrode geometry. Metal screw integration with an RF field is not a routine retrofit and needs dedicated electromagnetic design.
Confirm RF shielding, leakage monitoring, interlocks, electrode clearances, and electrical safety.
Assess arcing, conductive contamination, flammable solvent atmosphere, dust, static, and safe vacuum break.
Record dielectric behavior, temperature distribution, moisture profile, product quality, RF power, condenser load, and vacuum stability.
For wood, assess checks, collapse, internal stress, and final moisture gradients; for powders, assess agglomeration, entrainment, and cleaning.
Scale electrode geometry and electric field as well as product mass; report full-system energy consumption.
RFV is a dielectric-heating and vacuum-evaporation process with a strong timber research base.
Published atmospheric RF applications must not be mislabeled as RF vacuum drying.
Electrode geometry, dielectric response, vapor handling, and safety govern feasibility.
Chemical-powder and solvent duties require material-specific pilot evidence.
Is RF vacuum drying the same as microwave vacuum drying?
No. Both use dielectric heating, but frequency, applicator architecture, field behavior, and penetration differ.
Is RFV commercially proven for every chemical powder?
No. The evidence is much stronger in wood drying; chemical-powder suitability requires dedicated trials.
Does lower frequency guarantee deeper and more uniform heating?
No. Penetration and field uniformity depend on dielectric properties, geometry, electrode design, and moisture.
Can RFV operate with flammable solvents?
Only after a qualified process-safety assessment covering ignition, atmosphere, equipment compatibility, vapor recovery, and applicable standards.
