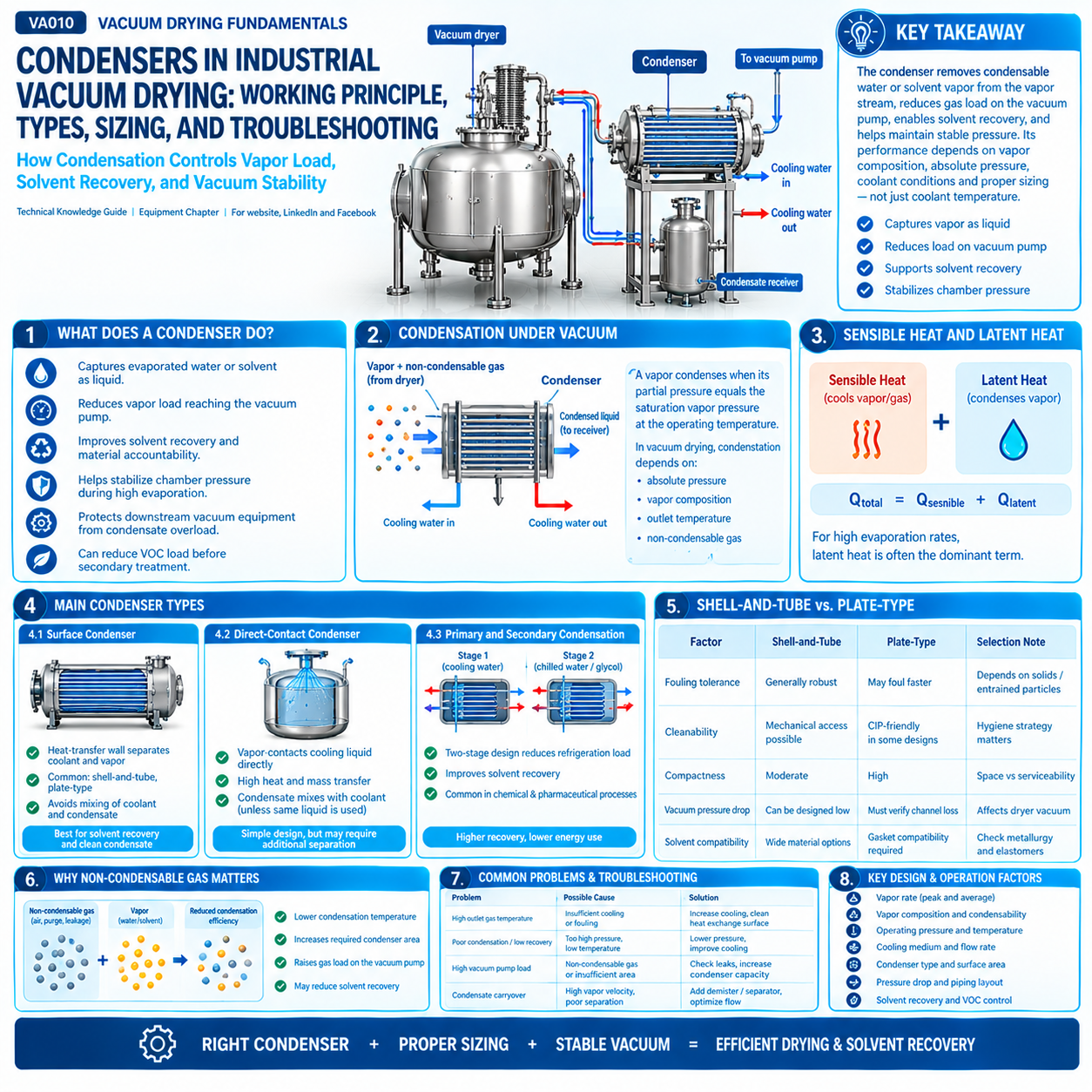

VA010 - Condensers in Industrial Vacuum Drying: Working Principle, Types, Sizing, And Troubleshooting

Executive Summary

The condenser is one of the most important components in a vacuum drying system. Its primary function is to remove condensable water or solvent vapor from the vapor stream before that vapor reaches the vacuum pump. By converting vapor to liquid, the condenser reduces gas load on the pump, supports stable vacuum, enables solvent recovery, and can reduce downstream emissions.

Condensation under vacuum must be analyzed using vapor partial pressure and vapor pressure at the condenser outlet temperature - not normal atmospheric boiling point alone. The U.S. EPA describes condensation as occurring when the partial pressure of a condensable component reaches its vapor pressure at the operating temperature, and notes that condenser performance depends strongly on outlet gas temperature and stream properties. In vacuum drying, condenser sizing therefore requires vapor rate, composition, absolute pressure, coolant conditions, non-condensable load, and pressure drop.

1. What Does a Condenser Do in a Vacuum Dryer?

• Captures evaporated water or solvent as liquid.

• Reduces vapor load reaching the vacuum pump.

• Improves solvent recovery and material accountability.

• Helps stabilize chamber pressure during high evaporation.

• Protects downstream vacuum equipment from condensate overload.

• Can reduce VOC load before secondary treatment.

2. Condensation Under Vacuum: The Core Principle

A vapor condenses when the operating conditions cross its phase-equilibrium boundary. For a condensable component in a gas mixture, condensation begins when its partial pressure equals the saturation vapor pressure at the local temperature. Cooling further generally increases condensation.

This means that condenser performance cannot be predicted from coolant temperature alone. Absolute pressure, solvent concentration, non-condensable gas, and vapor composition all matter.

3. Sensible Heat and Latent Heat

A condenser must remove both sensible heat and latent heat. Sensible duty cools the incoming vapor/gas mixture toward condensation conditions. Latent duty removes the phase-change enthalpy as vapor becomes liquid. A simplified total duty is Qtotal = Qsensible + Qlatent. For high evaporation rates, latent duty is often the dominant term.

4. Main Condenser Types

4.1 Surface Condensers

In a surface condenser, coolant and process vapor remain physically separated by a heat-transfer wall. Shell-and-tube and plate-type heat exchangers are common concepts. EPA guidance notes that surface condensers avoid mixing coolant with condensate, which can simplify recovery of a marketable solvent.

4.2 Direct-Contact Condensers

In a direct-contact condenser, vapor contacts cooling liquid directly. Heat and mass transfer can be effective, but the recovered condensate is mixed with the coolant unless the same liquid is intentionally used. This can create an additional separation or wastewater burden.

4.3 Primary and Secondary Condensation

A two-stage arrangement can use cooling water in the first stage and colder chilled water, glycol, brine, or refrigeration in the second. Staging can reduce refrigeration load and improve solvent recovery. Busch describes double-condensation vacuum systems for chemical and pharmaceutical processes to minimize carryover and increase solvent recovery.

5. Shell-and-Tube vs. Plate-Type Condensers

6. Why Non-Condensable Gas Matters

Air leakage, nitrogen purge, and other non-condensables reduce the condensable vapor partial pressure and add sensible cooling load. They also occupy flow area and must still be pumped after the condenser. A system with excessive air leakage can therefore show poor recovery even when coolant temperature appears low enough.

7. Condenser Sizing Inputs

• Peak and average evaporation rate

• Water/solvent identity and composition

• Absolute operating pressure

• Vapor temperature entering the condenser

• Non-condensable gas flow

• Coolant inlet temperature

• Allowable coolant outlet temperature

• Desired solvent recovery

• Allowable pressure drop

• Fouling/entrainment risk

• Materials of construction

• Required turndown and batch profile

8. Why the Coldest Coolant Is Not Always the Best Design

Lower coolant temperature generally reduces residual vapor pressure, but refrigeration cost, icing/freezing, viscosity, fouling, thermal stress, and utility complexity increase. A staged system is often more economical than using the coldest utility for the entire load.

9. Condenser Pressure Drop and Vacuum Performance

A condenser is installed in the vacuum line, so pressure drop is not a minor detail. High vapor velocity, fouling, undersized nozzles, liquid flooding, or restrictive channels can create a significant pressure difference between dryer and pump. The dryer may then operate at a higher pressure than the pump inlet gauge suggests.

10. Dust and Product Entrainment

Fine powder carried out of the dryer can coat heat-transfer surfaces, block drains, contaminate recovered solvent, and increase pressure drop. Vapor filtration or disengagement should therefore be designed together with the condenser. The filter itself must also be sized to avoid excessive vacuum loss.

11. Solvent Recovery Performance

EPA guidance emphasizes that condenser efficiency depends on outlet temperature and gas-stream properties. Condensation is particularly attractive for relatively concentrated VOC streams, while low solvent concentration or very volatile solvents can require much lower temperatures or a secondary recovery/control technology.

12. Typical Condenser Problems

13. Instrumentation That Matters

• Condenser inlet and outlet vapor temperature

• Coolant inlet and outlet temperature

• Coolant flow

• Pressure before and after condenser

• Receiver level

• Condensate mass or flow rate

• Vacuum pump inlet pressure

• Optional VOC concentration at outlet for emissions-critical service

14. Frequently Asked Questions

Should the condenser be before the vacuum pump?

For most condensable-vapor drying systems, upstream condensation is advantageous because it reduces pump vapor load, although the exact arrangement depends on pump technology and process design.

Why does solvent still reach the vacuum pump?

No practical condenser removes all vapor. Residual concentration is governed by phase equilibrium, outlet temperature, pressure, non-condensables, and equipment performance.

Can cooling water recover every solvent?

No. More volatile solvents or low vapor concentrations may require chilled water, glycol, brine, refrigeration, or another recovery method.

What is the best condenser type?

There is no universal best type. Surface condensers are attractive when clean solvent recovery matters; direct-contact systems can be effective but mix coolant and condensate.

Why does condenser fouling affect vacuum?

Fouling reduces heat transfer and can increase flow resistance, raising vapor load and pressure at the dryer.

Is condenser efficiency a fixed percentage?

No. It varies with solvent properties, concentration, coolant conditions, flow, pressure, and outlet temperature.
