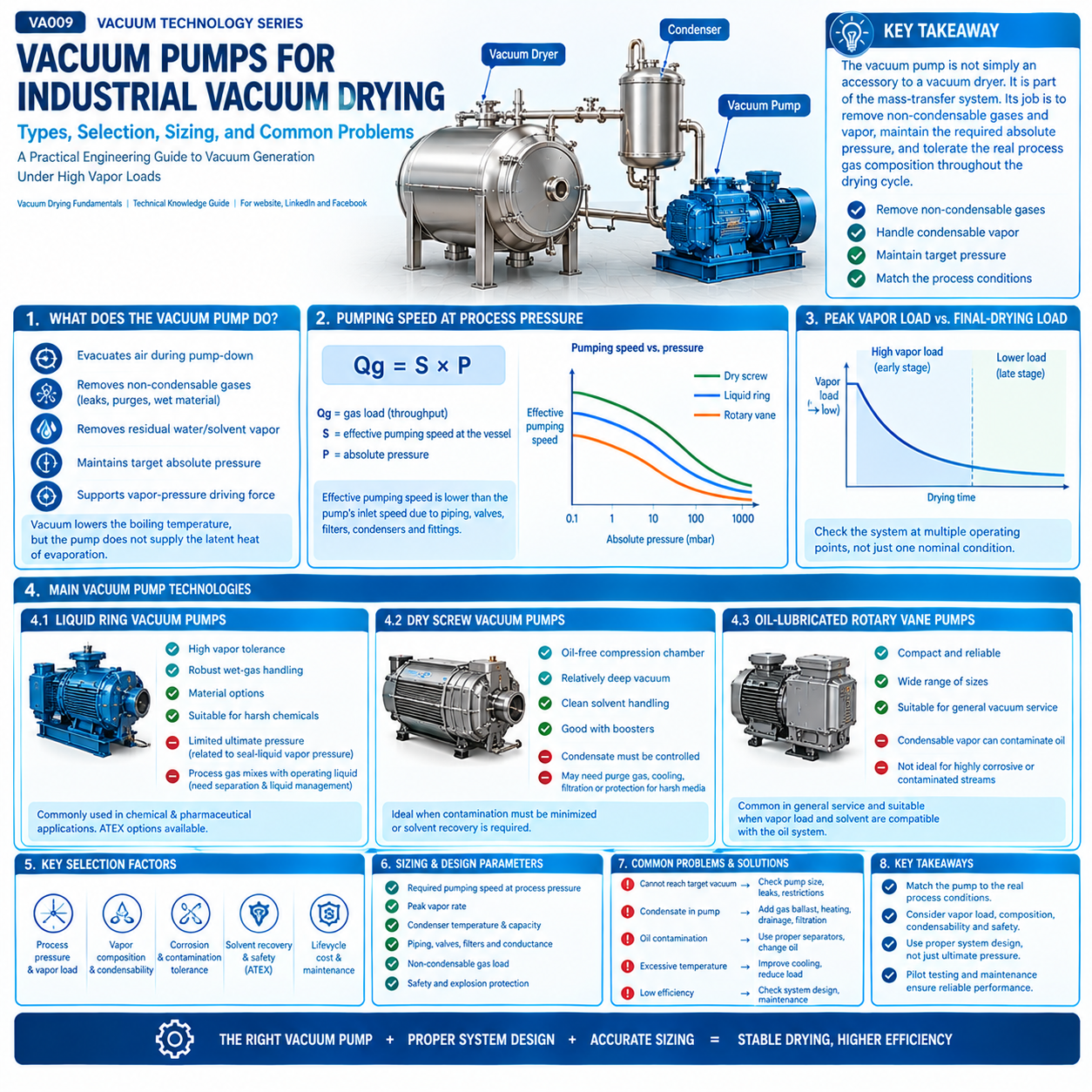

The vacuum pump is not simply an accessory to a vacuum dryer. It is part of the mass-transfer system. Its job is to remove non-condensable gases and the vapor that is not captured upstream, maintain the required absolute pressure, and tolerate the real process gas composition throughout the drying cycle. A pump that reaches a very low ultimate pressure on clean air can still perform poorly on a dryer if it is undersized for peak vapor load, exposed to condensate, chemically incompatible with the solvent, or connected through restrictive piping.
Industrial vacuum drying commonly uses liquid ring, dry screw, oil-lubricated rotary vane, and booster-assisted vacuum systems. Busch notes that liquid ring pumps are tolerant of vapor and particles, while dry screw pumps are also well suited to drying and can support recovery of relatively uncontaminated solvent at the exhaust. Leybold explains that gas ballast is used in oil-sealed pumps to reduce condensation of condensable vapor inside the pump. The correct choice therefore depends on process pressure, vapor composition, condensability, corrosion, contamination tolerance, solvent recovery, safety, and lifecycle cost - not on ultimate vacuum alone.
Evacuates air from the dryer during pump-down.
Removes non-condensable gases entering through leaks, purges, or the wet material.
Removes residual water or solvent vapor that is not condensed upstream.
Maintains the target absolute pressure as evaporation rate changes.
Supports vapor-pressure driving force for moisture or solvent removal.
Vacuum lowers the boiling temperature, but the pump does not supply the latent heat of evaporation. Heat must still enter the material through the dryer heat-transfer system.
Pump nameplate flow and ultimate pressure are not enough for sizing. The useful question is: what pumping speed can the complete system deliver at the required operating pressure while the dryer is generating vapor?
A simplified gas-load relationship is Qg = S × P, where Qg is throughput or gas load, S is effective pumping speed at the vessel, and P is absolute pressure. For a real dryer, effective pumping speed is lower than pump inlet speed because piping, valves, filters, condensers, and fittings add conductance resistance.
Vacuum drying is dynamic. Early in the cycle, evaporation may be high and the vacuum system sees a heavy condensable load. Late in the cycle, vapor generation falls and deeper pressure may become easier to maintain. A system should therefore be checked at multiple operating points rather than one nominal condition.
Liquid ring pumps use a rotating liquid ring as the sealing and compression medium. They are widely used in chemical and pharmaceutical vacuum duties because of their high tolerance for condensable vapor and particles. Busch lists liquid ring pumps for distillation, solvent recovery, evaporation, and drying, and offers ATEX-certified variants for some models.
Strengths: vapor tolerance, robust wet-gas handling, material options, and suitability for harsh chemical service.
Limitations: achievable pressure is linked to seal-liquid vapor pressure and temperature; process gas mixes with operating liquid, so separation and liquid management are required.
Dry screw pumps compress gas without process-contact oil in the compression chamber. They can provide clean vacuum and are widely applied to vacuum drying. Dry systems are attractive when contamination must be minimized or solvent vapor should remain relatively clean for downstream recovery.
Strengths: oil-free compression chamber, relatively deep vacuum, clean solvent handling, and good integration with boosters.
Limitations: condensate formation inside the pump must be controlled; corrosive, polymerizing, or particulate-laden streams may require temperature control, purge gas, flushing, filtration, or other protection.
Rotary vane pumps are common in general vacuum service and can be suitable for drying when the vapor load and solvent are compatible with the oil system. Condensable vapor can contaminate pump oil. Leybold describes gas ballast as a method for reducing vapor condensation inside oil-sealed pumps.
Strengths: mature technology, compact packages, and good vacuum capability.
Limitations: oil contamination, solvent compatibility, oil change frequency, and vapor handling must be evaluated.
A Roots-type vacuum booster can be installed upstream of a backing pump to increase pumping speed in a selected pressure range. Boosters are useful when a large vessel or high vapor load requires more effective pumping speed at low pressure. The booster does not replace the backing pump and must be matched to the full system.
Technology | Condensable Vapor Tolerance | Typical Strength | Key Selection Risk |
Liquid ring | High | Wet/dirty chemical service | Seal-liquid temperature and contamination |
Dry screw | Moderate to high with correct system design | Clean, deep vacuum; solvent recovery | Condensation, corrosion, deposits |
Oil rotary vane | Limited to moderate; gas ballast helps | Compact general vacuum | Oil contamination by solvent/water |
Booster + backing pump | Depends on backing system | Higher effective pumping speed | Incorrect staging or overload |
In solvent or high-water-load drying, the condenser should remove as much condensable vapor as practical before it reaches the pump. This reduces pump gas load, protects the pump, increases solvent recovery, and can stabilize vacuum. The pump should be sized for the residual vapor plus non-condensables after the condenser - while also surviving abnormal vapor carryover.
A fast empty-vessel pump-down does not prove that a vacuum system has adequate drying capacity. Pump-down is dominated by vessel free volume and non-condensable gas. Drying is dominated by sustained vapor generation. Both calculations are required.
Use sufficiently large vacuum piping; long, small-diameter lines can severely reduce effective pumping speed.
Minimize unnecessary elbows, restrictions, and undersized valves.
Place filters and condensers for low pressure drop as well as separation efficiency.
Design piping to drain condensate rather than create liquid pockets.
Provide isolation and maintenance access without creating major conductance bottlenecks.
Pump metallurgy, elastomers, seal liquids, lubricants, coatings, purge gases, and exhaust treatment must be checked against the actual solvent mixture, water content, acids, bases, and possible decomposition products. Compatibility should be evaluated for both normal and upset conditions.
A vacuum chamber may have low oxygen during stable operation, but vacuum alone is not a complete explosion-protection strategy. Air can enter during charging, venting, leakage, maintenance, or abnormal operation. Flammable solvent duties may require inerting, oxygen monitoring, hazardous-area classification, compatible vacuum equipment, grounding/bonding, temperature control, and other measures based on a formal risk assessment.
Symptom | Possible Cause | Engineering Check |
Cannot reach target pressure | Excess vapor, leaks, condenser overload, restriction | Leak test; vapor load; condenser outlet temperature; conductance |
Vacuum unstable | Foaming, batch vapor surges, control hunting | Pressure trend; condensate rate; valve logic |
Pump oil turns milky | Condensable vapor in oil | Gas ballast; warm-up; upstream condensation |
Dry screw deposits | Condensation or polymerization | Gas temperature; purge; cleaning strategy |
Liquid ring vacuum worsens | Seal liquid too warm | Seal-liquid temperature and vapor pressure |
Solvent loss at exhaust | Insufficient condensation | Condenser duty; coolant temperature; second-stage recovery |
Dryer free volume and operating volume
Target absolute pressure and acceptable pressure range
Required pump-down time
Water/solvent evaporation rate versus time
Solvent identity and vapor pressure
Non-condensable gas or nitrogen purge rate
Condenser outlet temperature and expected recovery
Corrosive, toxic, polymerizing, or particulate components
Required materials of construction
Hazardous-area / explosion-protection requirements
Cleaning and maintenance philosophy
Utility availability and ambient conditions
Which vacuum pump is best for vacuum drying?
There is no universal best pump. Liquid ring, dry screw, oil-sealed rotary vane, and booster systems each fit different vapor loads, pressures, solvents, contamination risks, and safety requirements.
Should the vacuum pump handle all evaporated solvent?
Usually not if effective condensation is practical. Capturing condensable vapor upstream reduces pump load and improves recovery.
Why does a liquid ring pump lose vacuum when the seal water gets hot?
Its achievable pressure is influenced by the vapor pressure of the operating liquid; warmer liquid has higher vapor pressure.
What is gas ballast?
Gas ballast introduces a controlled amount of non-condensable gas during compression in certain oil-sealed pumps to reduce condensation of vapor inside the pump.
Does a bigger pump always dry faster?
No. If heat transfer or internal diffusion controls drying, additional pumping speed may have little effect after adequate vapor removal is achieved.
Can a vacuum booster be added later?
Sometimes, but the backing pump, motor load, pressure control, condenser, piping, and mechanical design must be checked as a system.
