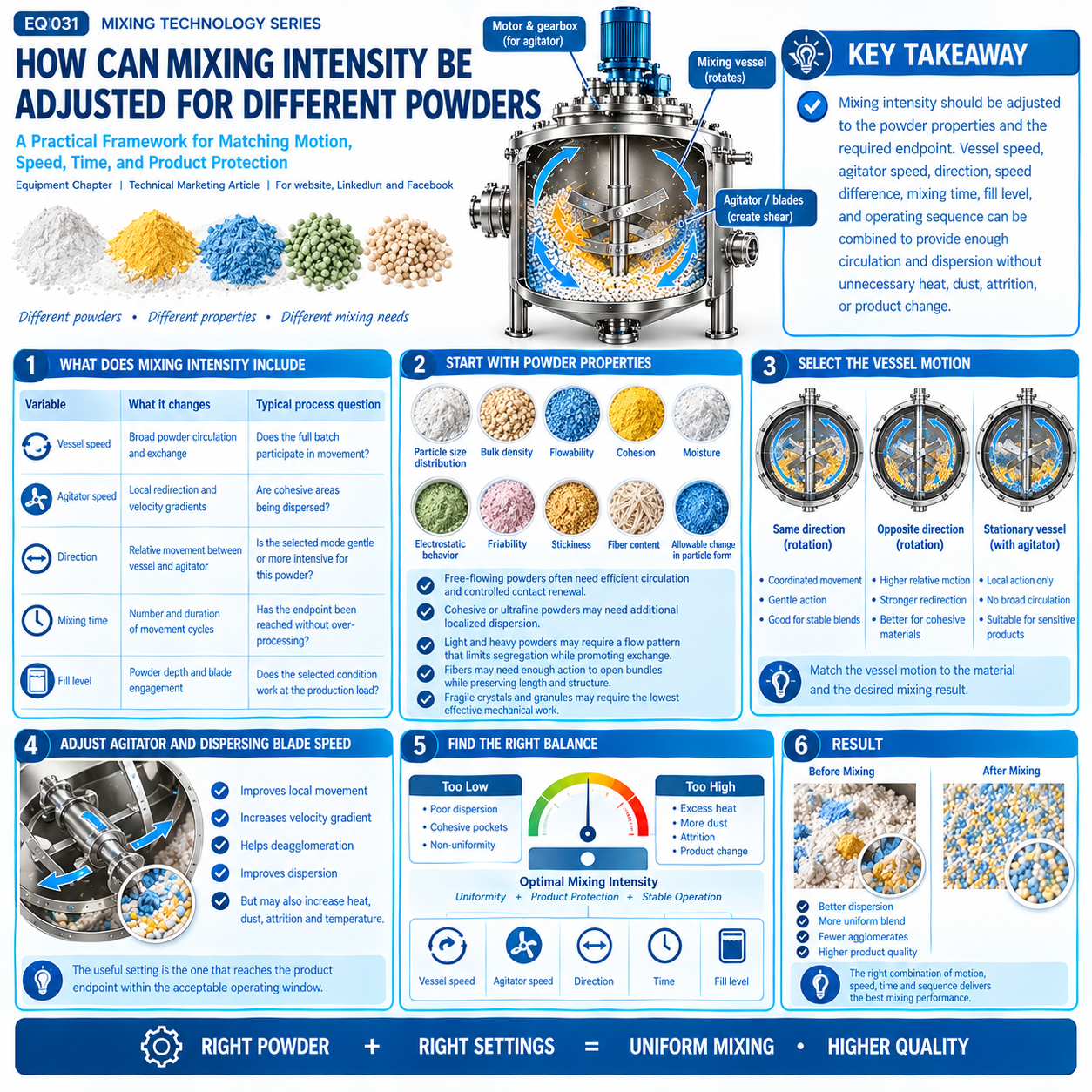

Powder And Mixing - 37. How Can Mixing Intensity Be Adjusted for Different Powders

Introduction

There is no single mixing intensity that is correct for every powder. A free-flowing blend may reach uniformity with moderate movement, while a cohesive fine powder may require controlled local shear. A fragile crystal, porous granule, or fiber-containing formulation may require a gentler condition to protect its physical form.

For this reason, mixing intensity should be treated as a process variable rather than as a simple high or low setting. A double motion or multi-mode mixer can provide several combinations of vessel movement and internal agitator action. The operator's task is to identify the lowest practical intensity that achieves the required result and remains stable during production.

1. What Does Mixing Intensity Include

Mixing intensity is the total mechanical condition experienced by the powder during the batch cycle. It is influenced by the speed and direction of the mixing vessel, the speed of the internal shaft or dispersing blades, the relative speed between moving elements, the duration of each stage, the fill level, and the way material is charged.

Motor speed is only one part of the condition. A fast agitator may have limited effect if it does not engage the powder bed. A moderate speed difference may provide stronger relative motion than a higher nominal speed in another configuration. The process should therefore be described using the complete set of operating variables and confirmed through trials.

2. Start with Powder Properties

The first step in selecting intensity is to understand the material. Important properties include particle-size distribution, bulk density, flowability, cohesion, moisture, electrostatic behavior, friability, stickiness, fiber content, and the allowable change in particle form. The relative quantities of the ingredients are also important because a low-dose fine component can require a different dispersion condition from the main carrier.

• Free-flowing powders often need efficient circulation and controlled contact renewal.

• Cohesive or ultrafine powders may need additional localized dispersion.

• Light and heavy powders may require a flow pattern that limits segregation while promoting exchange.

• Fibers may need enough action to open bundles while preserving length and structure.

• Fragile crystals and granules may require the lowest effective mechanical work.

3. Select the Vessel Motion

Vessel motion determines how the powder bed circulates through the chamber. A stationary vessel with internal blade movement can provide local action without broad vessel rotation. Same-direction rotation can create a more coordinated movement pattern. Reverse rotation can increase relative movement and may provide stronger redirection and shear when the material requires it.

The choice should be made from the intended process result. If material is not exchanging between regions, improve the circulation condition. If circulation is adequate but cohesive pockets remain, additional internal action may be more appropriate. The operating mode should not be selected from direction alone; it should be verified with the actual vessel, blade, fill level, and powder.

4. Adjust Agitator and Dispersing Blade Speed

The internal agitator or dispersing blade controls local movement and can increase the velocity gradient around cohesive material. A higher speed may improve deagglomeration and dispersion, but it can also increase mechanical work, dust, temperature, and attrition. The useful setting is the one that reaches the product endpoint within the acceptable operating window.

In the Flying Knife Dispersion Dual-Motion Mixer configuration used in this series, high-speed flying knives have a reference condition of about 1000 rpm and an edge speed of about 12 m/s. This reference does not replace a material-specific trial. The required speed depends on the model, blade geometry, clearance, powder properties, and allowable product change.

For sensitive materials, start with a lower condition and increase it progressively. For cohesive materials, use a controlled test to determine whether the extra dispersion action improves the product enough to justify the additional mechanical work.

5. Use Speed Difference as a Control Lever

When vessel and agitator speeds are independently controlled, their speed difference is a useful process variable. A smaller difference may provide gentle movement and contact renewal. A larger difference may create stronger relative motion and more local shear. Direction also changes the meaning of the same numerical speed difference.

6. Adjust Mixing Time Together with Intensity

Mixing time and intensity work together. A lower intensity may require more time to reach the same distribution, while a higher intensity may shorten the time needed for local dispersion. However, extending time is not always equivalent to increasing intensity. If the main limitation is a cohesive cluster, additional gentle circulation may not open it. If the product is fragile, a long exposure to mechanical action may create more damage even at a moderate setting.

The mixing endpoint should be based on sampling and product criteria rather than on a fixed time borrowed from another formulation. Compare uniformity, agglomerate condition, particle integrity, temperature, motor load, and discharge behavior at defined time points. This identifies the point at which additional mixing no longer provides a useful improvement.

7. Use Staged Intensity Profiles

A staged profile can match intensity to the changing needs of the batch. The starting stage can establish circulation and distribute the main ingredients. A middle stage can apply more localized action to a cohesive or low-dose component. A finishing stage can reduce mechanical stress before discharge if the product requires gentle handling.

1 Start with a controlled circulation condition during charging.

2 Allow the main carrier and major components to exchange through the vessel.

3 Apply a defined dispersion stage only when local agglomerates or concentration pockets require it.

4 Return to a moderate finishing condition when product protection or discharge stability is important.

5 Stop and discharge according to a validated position and transfer sequence.

Staged intensity should be stored as a complete recipe. Record the sequence, speed, direction, duration, fill level, addition timing, and acceptance results so the process can be repeated and scaled consistently.

8. Practical Intensity Guidance by Powder Type

9. Monitor Mechanical and Product Signals

A reliable intensity window is defined by both process signals and product results. Motor current or torque can indicate increasing resistance, but it does not prove uniformity. Temperature can reveal accumulating mechanical work, but a stable temperature does not prove that a cohesive minor component is dispersed. These signals should be interpreted together with representative samples.

• Record vessel speed, agitator speed, direction, relative speed, and stage duration.

• Monitor motor load, temperature, dusting, vibration, and residue behavior.

• Check blend concentration at multiple locations and time points.

• Check agglomerate condition, particle size, morphology, fiber length, or granule integrity as relevant.

• Confirm that uniformity is preserved during discharge and downstream transfer.

10. Practical Example for a Cohesive Fine Powder

A carrier powder and a small quantity of cohesive fine additive are charged into the mixer. At a low intensity, the carrier circulates, but the additive remains in local pockets. At a higher condition, the pockets are reduced, but visible dust and temperature increase. The development team therefore compares a staged profile rather than selecting the maximum speed.

1 Use moderate vessel movement to establish broad circulation.

2 Apply a time-limited increase in agitator speed to target soft clusters.

3 Reduce the intensity for a finishing stage if the product requires lower mechanical stress.

4 Compare multi-point uniformity with temperature, motor load, dust, and agglomerate condition.

5 Validate samples across discharge and downstream transfer.

The final recipe may use a moderate circulation stage, a defined dispersion stage, and a controlled finish. The exact values must be established from trial data because powder cohesion, fill level, blade geometry, and product sensitivity determine the practical operating window.

11. How to Establish an Operating Window

A simple development matrix can compare low, moderate, and higher intensity conditions while keeping the material charge and sampling plan consistent. For each condition, record the time to endpoint, uniformity result, product condition, motor load, temperature, and discharge behavior. The best setting is normally the lowest condition that reliably meets the specification with process margin.

 Mixing Intensity Checklist

• Characterize particle size, density, flowability, cohesion, moisture, friability, fibers, and allowable product change.

• Separate the needs for bulk circulation, local dispersion, and product protection.

• Set vessel speed, agitator speed, direction, speed difference, time, and fill level as trial variables.

• Compare staged and constant-intensity recipes where the formulation changes during processing.

• Use representative multi-point sampling to establish the mixing endpoint.

• Monitor temperature, motor load, dust, attrition, residue, and discharge stability.

• Define a routine operating window with lower and upper limits.

Conclusion

Mixing intensity should be adjusted according to the powder and the result required. Vessel motion controls broad circulation, internal blades control local redirection and dispersion, and the relative speed and direction determine how the two motions interact.

The correct setting is not the highest available intensity. It is the lowest practical condition that reaches the uniformity endpoint while protecting particle form, fiber structure, granule integrity, temperature, and downstream handling behavior. Staged speed profiles can provide additional flexibility when the batch has different requirements during charging, dispersion, and finishing.

A double motion or multi-mode mixer provides a useful platform for this approach because the process can be developed around several coordinated motion variables. With representative testing and a defined operating window, mixing intensity becomes a repeatable engineering parameter rather than an operator guess.
