Views: 0 Author: Site Editor Publish Time: 2026-09-16 Origin: Site

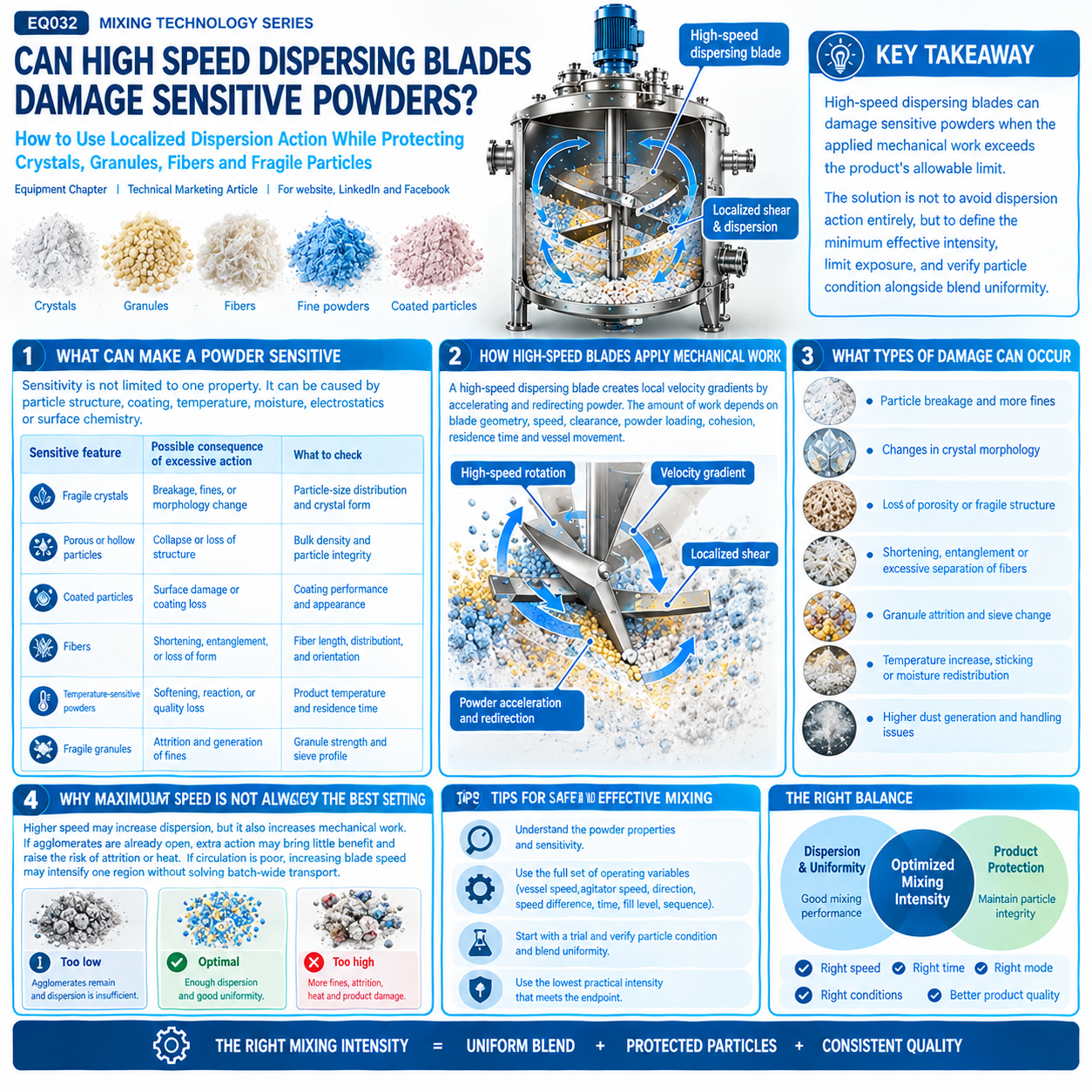

High-speed dispersing blades are useful when a powder contains soft agglomerates, cohesive fines, sticky portions, or bundled fibers. They create local velocity gradients and can help distribute material that does not separate through bulk circulation alone. However, not every powder should receive the same level of mechanical action.
Sensitive powders may include fragile crystals, porous granules, coated particles, hollow particles, fibers, temperature-sensitive ingredients, or materials whose shape and surface condition affect product performance. For these products, mixing development must consider two outcomes at the same time: whether the blend becomes uniform and whether the particles remain fit for use.
Sensitivity is not limited to one physical property. A powder may be sensitive because its particles fracture easily, its crystal form matters, its coating can be damaged, its porous structure can collapse, or its fibers must retain a defined length. Temperature, moisture, electrostatic charge, and surface chemistry can also change the response to mechanical action.
Sensitive feature | Possible consequence of excessive action | What to check |
Fragile crystals | Breakage, fines, or morphology change | Particle-size distribution and crystal form |
Porous or hollow particles | Collapse or loss of structure | Bulk density and particle integrity |
Coated particles | Surface damage or coating loss | Coating performance and appearance |
Fibers | Shortening, entanglement, or loss of form | Fiber length, distribution, and orientation |
Temperature-sensitive powders | Softening, reaction, or quality loss | Product temperature and residence time |
Fragile granules | Attrition and generation of fines | Granule strength and sieve profile |
A high-speed dispersing blade accelerates and redirects material in its working zone. The powder near the blade may move at a different velocity from the surrounding bed, creating a local velocity gradient. The resulting action can deform soft agglomerates and renew contacts, but it also transfers mechanical work into the particles and into frictional interfaces.
The amount of work transferred depends on blade geometry, speed, edge speed, clearance, powder loading, cohesion, residence time in the blade zone, and the relationship between blade movement and vessel movement. Therefore, a nominal rpm value alone cannot predict whether a sensitive product will be damaged.
In the Flying Knife Dispersion Dual-Motion Mixer configuration used in this series, a reference condition for high-speed flying knives is about 1000 rpm and an edge speed of about 12 m/s. This is a technical reference for the equipment configuration, not a universal operating recommendation for every sensitive powder.
The visible appearance of a powder may remain acceptable while its functional properties change. Excessive mechanical action can increase fines, alter particle shape, break granules, shorten fibers, damage coatings, raise bulk density, or create additional heat. The relevant failure mode depends on how the material is used after mixing.
Particle breakage and an increase in fine material.
Changes in crystal morphology or surface condition.
Loss of porosity or collapse of fragile structures.
Shortening, entanglement, or excessive separation of fibers.
Granule attrition and a change in sieve distribution.
Temperature increase, softening, sticking, or moisture redistribution.
Higher dust generation and changes in handling or discharge behavior.
A higher speed may increase local dispersion, but it can also increase the mechanical work applied to the product. If the agglomerates are already sufficiently open, extra action may provide little benefit while increasing the risk of attrition or heat. If the main problem is poor circulation, increasing blade speed may intensify one local region without solving the batch-wide transport problem.
The process objective should therefore be defined before changing speed. If the objective is to open soft agglomerates, use a time-limited condition and verify the agglomerate result. If the objective is to distribute a low-dose component, verify concentration uniformity. If the objective is to preserve a fiber or crystal form, establish an upper limit from product testing.
The movement of the vessel changes which material reaches the dispersing blades and how often. Broad convection can distribute exposure throughout the batch, reducing the risk that one region receives all of the blade action. A stationary vessel, same-direction rotation, and reverse rotation create different relative movement patterns and should be treated as distinct process conditions.
The same blade speed can therefore have a different product effect under different vessel conditions. A higher relative movement may improve dispersion, but it may also increase local impact frequency or residence in a high-gradient zone. The interaction must be evaluated with the actual powder load and the required product condition.
Product protection can often be improved by controlling both intensity and exposure time. A short, defined high-intensity stage may open a soft cluster without exposing the entire batch to unnecessary mechanical work for the rest of the cycle. A moderate condition may be preferable when the product requires a longer finishing stage or has a narrow temperature limit.
1 Establish bulk circulation at a controlled condition.
2 Apply the lowest blade intensity expected to affect the defined dispersion problem.
3 Limit the high-intensity stage to the time required for the observed product response.
4 Return to a lower-stress condition when additional local action is no longer necessary.
5 Discharge using a controlled stop and transfer sequence.
Material | Reason for dispersion action | Protection strategy | Useful validation |
Soft agglomerated fine powder | Open clusters and release fines | Use progressive speed and limited exposure | Agglomerate size and concentration |
Fragile crystals | Improve local exchange without breaking particles | Use minimum effective action | Morphology, fines, and assay |
Coated granules | Redistribute particles while preserving coating | Limit tip speed and residence time | Coating integrity and sieve profile |
Fiber bundles | Separate clusters for better distribution | Use controlled shear and protect length | Fiber length and entanglement |
Porous particles | Disperse without structural collapse | Avoid excessive impact and heat | Bulk density and microscopy |
Product-damage testing should compare the material before and after mixing under defined conditions. The correct tests depend on the product, but the goal is to detect changes that could affect downstream use, packaging, storage, or performance.
Particle-size distribution and generation of fines.
Crystal morphology, coating condition, or surface appearance.
Bulk density, tapped density, porosity, or compressibility where relevant.
Fiber length, fiber dispersion, and entanglement.
Granule strength, sieve profile, and dust generation.
Product temperature and any change in moisture or stickiness.
Functional performance or analytical quality criteria required by the application.
A formulation contains a carrier powder and a small quantity of bundled fibers. A gentle vessel movement distributes the carrier but leaves some fiber bundles concentrated. The team tests a controlled flying-knife stage to separate the bundles, while recognizing that excessive action could shorten the fibers or increase entanglement.
1 Record the incoming fiber length range and the required final form.
2 Establish circulation so fiber bundles are repeatedly exchanged through the working volume.
3 Apply a moderate, time-limited blade condition.
4 Compare fiber distribution with fiber length, entanglement, dust, temperature, and motor load.
5 Increase intensity only when the uniformity benefit is measurable and product form remains acceptable.
The final recipe may use a controlled blade stage followed by a gentler finishing condition. The correct balance is determined by the required fiber distribution and the allowable change in fiber structure, not by the maximum blade speed available on the machine.
A blend of fragile granules and a fine additive requires uniform composition, but the granules lose strength when exposed to excessive mechanical work. The development team compares a low-intensity circulation condition with a short, moderate dispersion stage. In addition to blend samples, the team checks sieve distribution, fines, bulk density, and granule strength.
If the moderate stage improves uniformity without a meaningful increase in fines or loss of granule strength, it may be used as a defined part of the recipe. If the product changes beyond the acceptable limit, the process should investigate charging sequence, fill level, addition method, or a different dispersion strategy rather than increasing speed further.
A sensitive powder should have a documented upper operating limit for blade speed, relative movement, exposure time, or mechanical load as appropriate. The limit should be based on product testing and process evidence. It may be lower than the machine's maximum capability, and it may vary with fill level, batch size, moisture, or the condition of the incoming material.
Control point | Why it matters | Example acceptance check |
Blade speed or edge speed | Controls local velocity and mechanical work | No unacceptable particle or fiber change |
Exposure time | Controls cumulative action on the batch | Uniformity endpoint reached before the limit |
Vessel and blade relationship | Changes relative motion and exposure pattern | Uniformity achieved without localized over-processing |
Temperature | Can indicate heat accumulation or material sensitivity | Within product-specific limit |
Motor load and residue | Indicate changing resistance and handling condition | Stable operation and acceptable cleanability |
Define what must be protected: crystal form, particle size, coating, porosity, fiber length, granule strength, or temperature.
Define what the dispersing blades must achieve: open clusters, distribute fines, or separate bundles.
Begin with the lowest practical intensity and increase it through controlled trials.
Control blade speed, vessel condition, relative movement, and exposure time as a complete set.
Monitor temperature, motor load, dust, residue, vibration, and discharge behavior.
Compare before-and-after particle size, morphology, fiber length, granule integrity, or other relevant properties.
Set a documented upper operating limit and validate it at production fill level.
Use representative sampling to verify that the blend is uniform throughout the batch and discharge.
High-speed dispersing blades can damage sensitive powders when the applied mechanical work exceeds the product's allowable limit. Potential effects include particle breakage, increased fines, crystal or coating damage, fiber shortening, granule attrition, structural collapse, temperature rise, and changes in handling behavior.
This risk can be managed by separating the need for bulk circulation from the need for local dispersion, selecting the minimum effective blade intensity, limiting exposure time, and coordinating vessel and blade movement. A reference condition such as about 1000 rpm and about 12 m/s edge speed can describe a machine configuration, but it cannot replace material-specific validation.
A double motion or multi-mode mixer should therefore be developed around both uniformity and product protection. When the process window is established through representative trials, high-speed dispersing blades can be used as a controlled tool for difficult powders without treating maximum speed as the default solution.
