Powder And Mixing - 22. Double Motion Mixer Vs Traditional Mixer: What Are The Fundamental Differences?

In the history of powder processing, traditional mixers have played an important role in many industries.

Equipment such as:

• V-Type Mixers;

• Double Cone Mixers;

• Three-Dimensional Mixers;

• Two-Dimensional Mixers;

• Ribbon Mixers;

have been widely used for decades due to their:

• Simple structure;

• Reliable operation;

• Low maintenance requirements;

• Cost-effective performance.

For conventional powder systems with:

• Good flowability;

• Similar particle sizes;

• Low cohesion;

• Simple formulations;

traditional mixers can achieve satisfactory mixing results.

However, as modern industries move toward advanced materials, the requirements for powder mixing have fundamentally changed.

Today, many applications involve:

• Ultrafine powders;

• Nanomaterials;

• Light and heavy powder systems;

• Fibrous materials;

• Functional additives;

• Multi-component formulations.

These materials require not only mixing, but also:

• Deagglomeration;

• Dispersion;

• Micro-uniformity;

• Long-term stability.

This raises a key question:

What Is the Fundamental Difference Between a Traditional Mixer and a Double Motion Mixer?

The answer lies in the difference between: Moving Powders And Controlling Particle Behavior.

1. The Working Principle of Traditional Mixers

Most traditional mixers are based on one primary mechanism: Gravity Diffusion Mixing.

• During operation

• The mixing vessel rotates

• Powder layers are lifted

• Materials fall under gravity

Different regions exchange positions.

The main objective is to create sufficient movement and contact between different powder components.

Advantages of Traditional Mixing Technology

Traditional mixers provide several benefits:

1. Gentle Mixing

Because the mixing force is relatively low, they are suitable for materials that are sensitive to:

• Breakage;

• Heat;

• Mechanical stress.

2. Simple Operation

Their structure is relatively simple:

• Few moving parts;

• Easy maintenance;

• Reliable operation.

3. Good Macro-Uniformity

For many free-flowing powders, traditional mixers can effectively achieve:

• Bulk blending;

• Overall composition consistency.

2. The Limitations of Traditional Mixers

Although traditional mixers are effective for many applications, their working principle creates several limitations.

2.1 Limited Deagglomeration Capability

Many modern powders exist not as individual particles, but as:

• Agglomerates;

• Secondary particles;

• Particle clusters.

Examples:

• Carbon black;

• Nano silica;

• Carbon nanotubes;

• Ultrafine mineral powders.

Gravity diffusion can move these clusters, but it usually cannot provide enough force to separate them.

The result:

The powder may appear mixed, but microscopic agglomerates remain.

2.2 Limited Dispersion Ability

Mixing and dispersion are different concepts.

Traditional mixers are good at: Distributing materials.

However, they are limited in: Breaking particle structures.

For advanced materials, dispersion quality often determines final performance.

2.3 Easy Segregation After Mixing

Many powder systems contain components with different:

• Density;

• Particle size;

• Shape;

• Flowability.

After mixing, during:

• Transportation;

• Storage;

• Feeding;

particles may rearrange and separate again.

This phenomenon is called Powder Segregation.

3. What Is Double Motion Mixing Technology?

Double Motion Mixing introduces a different concept.

It combines two complementary movement mechanisms:

Gravity Diffusion Mixing and Controlled Shear Mixing.

The purpose is not only to move powders, but to actively control particle interaction.

4. The First Motion: Gravity Diffusion

The gravity diffusion mechanism provides Large-Scale Material Circulation

It allows powders to:

• Move throughout the mixing chamber;

• Exchange positions;

• Achieve overall distribution.

This mechanism mainly improves:

• Macro-uniformity;

• Material turnover;

• Mixing efficiency.

It solves the problem:

How can powders be distributed throughout the mixer?

5. The Second Motion: Controlled Shear

The controlled shear mechanism introduces relative movement between particles.

During shear:

• Particle layers move at different speeds;

• Particles slide against each other;

• Agglomerates experience mechanical stress.

This provides the ability to:

• Break agglomerates;

• Improve dispersion;

• Release primary particles.

It solves the problem:

How can particle structures be controlled?

6. The Fundamental Difference: Mixing vs Particle Engineering

The biggest difference between traditional mixers and Double Motion Mixers is the design philosophy.

Traditional Mixer Philosophy:

"Move powders until they become uniform."

Focus:

• Material movement;

• Bulk blending;

• Macroscopic distribution.

Double Motion Mixer Philosophy:

"Control particle behavior to achieve true uniformity."

Focus:

• Particle interaction;

• Agglomerate breaking;

• Dispersion;

• Micro-uniformity.

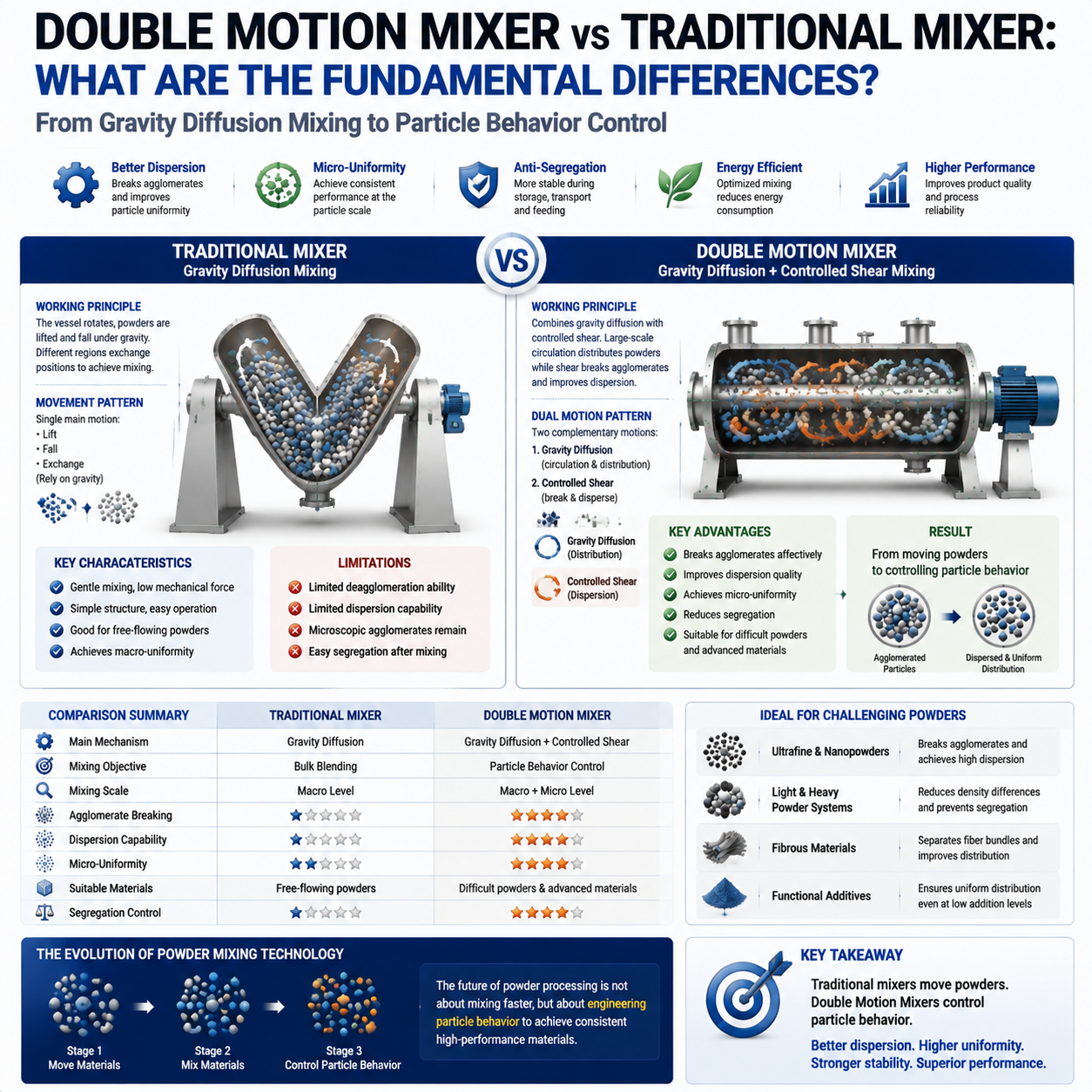

7. Comparison Between Traditional Mixer and Double Motion Mixer

8. Why Is Double Motion Mixing Suitable for Difficult Powders?

8.1 Ultrafine Powders

Challenges:

• High surface energy;

• Strong particle attraction;

• Easy agglomeration.

Double Motion Mixing provides:

• Particle interaction;

• Controlled shear;

• Improved dispersion.

8.2 Light and Heavy Powder Systems

Challenges:

• Density differences;

• Different settling behavior.

Double Motion Mixing improves:

• Particle redistribution;

• Mixing stability;

• Anti-segregation performance.

8.3 Fibrous Materials

Challenges:

• Fiber entanglement;

• Bundle formation.

The combination of different motion modes helps:

• Separate fiber groups;

• Improve distribution;

• Maintain material integrity.

8.4 Functional Additives

Examples:

• Conductive additives;

• Nano additives;

• Performance modifiers.

These materials often require:

• Low dosage;

• High dispersion quality.

Double Motion Mixing improves their distribution at the particle scale.

9. Why Does Double Motion Mixing Improve Micro-Uniformity?

Micro-uniformity requires three important processes:

Step 1: Move particles into contact.

↓

Step 2: Break particle clusters.

↓

Step 3: Redistribute particles uniformly.

Traditional mixers mainly complete Step 1.

Double Motion Mixing combines all three processes.

This is why it can achieve a higher level of powder uniformity.

10. Double Motion Mixing Is Not Simply Stronger Mixing

A common misunderstanding is "A better mixer is simply a mixer with stronger force."

This is incorrect.

The objective is not maximum mechanical force.

Excessive force may cause:

• Particle damage;

• Material degradation;

• Temperature increase.

Advanced mixing requires the right force at the right time.

The combination of diffusion and shear provides a balanced mixing environment:

• Gentle circulation;

• Effective dispersion;

• Controlled particle interaction.

11. The Future Development of Powder Mixing

Powder mixing technology is evolving through several stages:

Stage 1: Move Materials

↓

Stage 2: Mix Materials

↓

Stage 3: Control Particle Behavior

Double Motion Mixing represents the transition from traditional mixing toward particle engineering.

The future of powder processing will focus on:

• Micro-uniformity;

• Dispersion quality;

• Stable particle structures;

• Reduced segregation.

12. Conclusion

Traditional mixers have successfully served many industries because they efficiently achieve bulk powder blending.

However, as powder materials become:

• Finer;

• More complex;

• More functional;

gravity diffusion alone reaches its physical limit.

Double Motion Mixing introduces a new approach by combining gravity diffusion with controlled shear.

This allows the mixing process to move beyond simple powder movement and toward:

• Particle control;

• Agglomerate reduction;

• Improved dispersion;

• Micro-uniformity;

• Long-term stability.

The future question in powder processing is no longer "How can we mix powders faster?"

The real question is "How can we control particle behavior and achieve consistent high-performance powder systems?"
