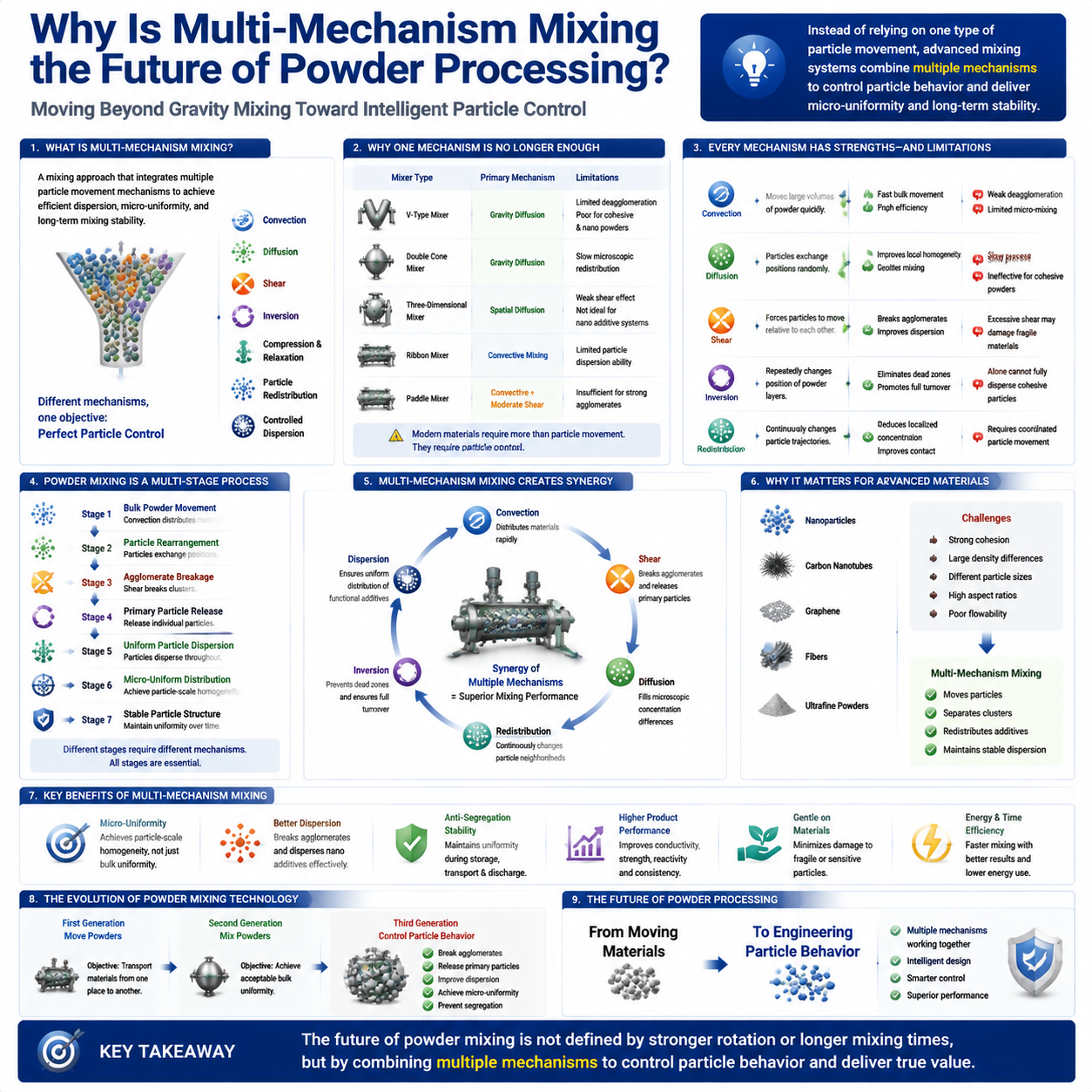

Powder And Mixing - 19. Why Is Multi-Mechanism Mixing The Future of Powder Processing?

1. What Is Multi-Mechanism Mixing?

Multi-mechanism mixing refers to:

A powder mixing approach that integrates multiple particle movement mechanisms simultaneously or sequentially to achieve efficient dispersion, micro-uniformity, and long-term mixing stability.

Rather than relying solely on gravity, particles experience multiple types of movement during mixing, including:

• Convection

• Diffusion

• Shear

• Inversion

• Compression and relaxation

• Particle redistribution

• Controlled dispersion

Each mechanism performs a different function, and together they create a far more effective mixing process than any single mechanism alone.

2. Why Is One Mixing Mechanism No Longer Enough?

Every traditional mixer has a dominant mixing principle.

For example:

These machines perform well for many conventional powders. However, modern materials require much more than particle movement.Engineers now expect a mixer to:

• Break agglomerates

• Redistribute nanoparticles

• Prevent segregation

• Maintain micro-uniformity

• Handle powders with very different physical properties

No single mechanism can effectively accomplish all of these objectives.

3. Every Mixing Mechanism Has Strengths—and Limitations

Understanding why multiple mechanisms are needed begins with understanding the role of each individual mechanism.

3.1 Convection Mixing

Convection moves large quantities of powder from one region to another.

Advantages:

• Fast bulk movement

• High efficiency

• Short macro mixing time

Limitations:

• Limited microscopic redistribution

• Weak deagglomeration capability

3.2 Diffusion Mixing

Diffusion occurs when individual particles randomly exchange positions.

Advantages:

• Improves local homogeneity

• Gentle mixing

Limitations:

• Slow process

• Ineffective for cohesive powders

3.3 Shear Mixing

Shear forces neighboring particles to move relative to each other.

Advantages:

• Breaks agglomerates

• Improves dispersion

• Releases primary particles

Limitations:

• Excessive shear may damage fragile materials

3.4 Inversion Mixing

Inversion repeatedly changes the position of powder layers.

Advantages:

• Eliminates dead zones

• Promotes complete material turnover

Limitations:

• Alone, it cannot fully disperse cohesive particles

3.5 Particle Redistribution

Redistribution continuously changes particle trajectories.

Advantages:

• Reduces localized concentration

• Improves microscopic particle contact

Limitations:

• Requires coordinated particle movement

Each mechanism solves one part of the problem.

None solves the entire problem independently.

4. Powder Mixing Is Actually a Multi-Stage Process

Many people imagine powder mixing as one continuous operation.

In reality, successful powder processing consists of several sequential stages.

Stage 1 Bulk Powder Movement → Stage 2 Particle Rearrangement → Stage 3 Agglomerate Breakage → Stage 4 Primary Particle Release → Stage 5 Uniform Particle Dispersion → Stage 6 Micro-Uniform Distribution → Stage 7 Stable Particle Structure

Different stages require different physical mechanisms. This is why multiple mechanisms must work together.

5. Multi-Mechanism Mixing Produces Synergy

The greatest advantage of multi-mechanism mixing is not simply having more movement. It is creating synergy.

For example:

Convection rapidly distributes materials throughout the mixer.

Shear then separates agglomerates.

Diffusion fills microscopic concentration differences.

Particle redistribution continuously changes particle neighborhoods.

Inversion prevents stagnant regions.

Together, these mechanisms continuously reinforce one another, creating a mixing process that is significantly more effective than any individual mechanism.

6. Why Is This Especially Important for Advanced Materials?

Modern functional materials often contain:

• Nanoparticles

• Conductive additives

• Carbon nanotubes

• Graphene

• Fibers

• Ultrafine powders

These materials present several simultaneous challenges:

• Strong cohesion

• Large density differences

• Different particle sizes

• High aspect ratios

• Poor flowability

One mechanism cannot overcome all of these characteristics.

A combination of mechanisms is required to:

• Move particles

• Separate clusters

• Redistribute additives

• Maintain stable dispersion

7. Multi-Mechanism Mixing Supports Micro-Uniformity

Micro-uniformity is the ultimate objective of advanced powder mixing.

Achieving it requires much more than simply rotating powders.

Micro-uniformity depends on:

• Particle separation

• Controlled dispersion

• Continuous redistribution

• Stable particle interaction

Each of these processes is supported by a different mixing mechanism.

Without multiple mechanisms working together, micro-uniformity becomes extremely difficult to achieve.

8. Multi-Mechanism Mixing Also Reduces Segregation

One of the greatest challenges in powder processing is maintaining uniformity after mixing.

Traditional gravity-driven systems often produce satisfactory initial mixing, but during discharge, transportation, or storage, particles begin to separate again.

Multi-mechanism mixing reduces this risk by:

• Improving particle distribution;

• Breaking agglomerates before discharge;

• Reducing localized concentration gradients;

• Enhancing particle interaction consistency.

As a result, the mixture remains more stable over time.

9. Future Mixers Will Be Designed Around Particle Behavior

Historically, mixers were designed around machine structure.

Engineers focused on:

• Vessel shape

• Rotation speed

• Mixing blades

• Capacity

Today, equipment design increasingly begins with particle behavior.

Questions now include:

• How do particles collide?

• How do they separate?

• How do they redistribute?

• How do they form stable microstructures?

The machine is designed to control these behaviors, rather than simply rotate powder. This represents a fundamental shift in powder engineering.

10. Multi-Mechanism Mixing Is the Foundation of Next-Generation Powder Processing

The future of powder processing is not defined by faster mixing. It is defined by smarter mixing.

Next-generation powder processing systems must simultaneously achieve:

• Efficient bulk movement

• Controlled shear

• Effective dispersion

• Continuous particle redistribution

• Micro-uniformity

• Anti-segregation stability

• Gentle handling of sensitive materials

These objectives cannot be achieved by a single physical mechanism. They require the coordinated action of multiple mechanisms throughout the entire mixing cycle.

11. Conclusion

As powder materials become increasingly finer, lighter, more functional, and more complex, the limitations of single-mechanism mixing become increasingly apparent.

The future of powder mixing lies not in stronger rotation or longer mixing times, but in combining multiple particle movement mechanisms into one integrated mixing philosophy.

Multi-mechanism mixing enables engineers to control not only where particles move,

but also:

• How they separate;

• How they interact;

• How they redistribute;

• How they remain uniformly dispersed.

Ultimately, powder mixing is evolving from moving materials to engineering particle behavior.

This transformation represents one of the most significant advances in modern powder processing technology.
