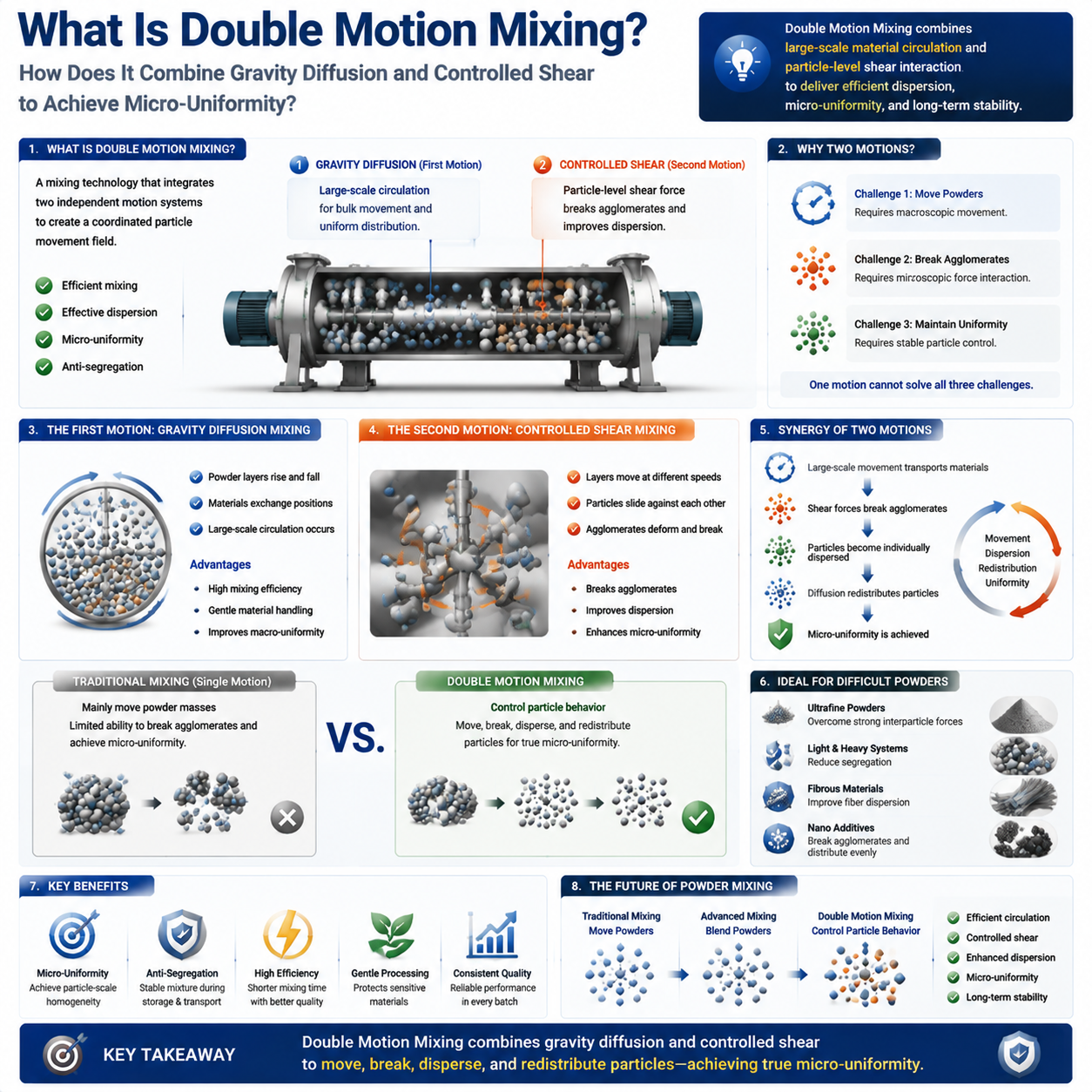

Double Motion Mixing refers to:
A mixing technology that combines two independent motion systems to create a coordinated particle movement field, enabling both gravity diffusion mixing and controlled shear mixing within the same process.
Unlike conventional mixers that mainly depend on one movement mechanism,
Double Motion Mixing integrates:
Large-scale material circulation;
Particle-level shear interaction.
The objective is to achieve:
Efficient mixing + Effective dispersion + Stable micro-uniformity.
Powder mixing is not a single physical process.
It contains several different challenges:
Powders need to move throughout the mixing chamber.
This requires macroscopic movement.
Agglomerates need to be broken apart.
This requires microscopic force interaction.
Particles must remain uniformly distributed.
This requires stable particle control. A single movement pattern cannot efficiently solve all three problems.
The first motion in Double Motion Mixing is based on gravity diffusion.
This mechanism is responsible for large-scale material exchange.
During operation:
Powder layers continuously rise and fall;
Different regions exchange positions;
Materials move throughout the entire mixing space.
Its advantages include:
High mixing efficiency
Large quantities of material can be circulated quickly.
Gentle material handling
Suitable for materials sensitive to:
Heat;
Mechanical damage;
Particle breakage.
Uniform bulk distribution
It effectively improves:
Macro-uniformity;
Overall composition consistency.
However, gravity diffusion has a natural limitation:
It mainly moves particles, but it does not strongly separate agglomerates.
The second motion introduces controlled shear force.
Unlike gravity diffusion, shear focuses on particle-level interaction.
During this process:
Particle layers move at different speeds;
Particles slide against each other;
Agglomerates experience deformation and breakage.
The main functions include:
Many advanced powders exist as:
Clusters;
Secondary particles;
Pseudo-particles.
Shear helps separate these structures.
After agglomerates are broken,
individual particles can distribute more evenly.
Shear improves particle-scale distribution,
which is critical for:
Battery materials;
Pharmaceutical powders;
Functional additives.
The key advantage of Double Motion Mixing is not simply having two motions.
The real value is:
The combination of two complementary mechanisms.
Gravity diffusion solves: "How to move materials efficiently?"
Controlled shear solves: "How to control particle structure?"
Together:
Large-scale movement transports materials → Shear forces break agglomerates → Particles become individually dispersed → Diffusion redistributes particles → Micro-uniformity is achieved.
This creates a continuous cycle of:
Movement → Dispersion → Redistribution → Uniformity
Traditional mixers mainly focus on moving powder masses.
Their objective:
Make different regions exchange positions.
Double Motion Mixing focuses on controlling particle behavior.
Its objectives include:
Moving particles;
Separating particles;
Dispersing particles;
Stabilizing particle distribution.
This represents a change from powder mixing to particle engineering.
Many difficult powders share common characteristics:
Small particle size;
High surface energy;
Strong cohesion;
Poor flowability;
Easy agglomeration.
Examples:
Ultrafine Powders
Problem: Strong interparticle forces.
Solution: Controlled shear helps overcome attraction forces.
Light and Heavy Powder Systems
Problem: Different settling behavior.
Solution: Continuous redistribution reduces segregation.
Fibrous Materials
Problem: Fiber entanglement.
Solution: Multi-directional movement improves dispersion.
Nano Additives
Problem: Agglomeration.
Solution: Shear assists deagglomeration and uniform distribution.
The ultimate goal of advanced powder mixing is micro-uniformity.
Achieving micro-uniformity requires:
Particle movement;
Agglomerate breaking;
Particle dispersion;
Uniform redistribution.
A single mixing mechanism usually cannot complete all four steps.
Double Motion Mixing creates an environment where these processes occur simultaneously.
A major challenge in powder processing is:
The powder may become uniform during mixing, but separate again afterward.
This happens because different particles have different:
Density;
Size;
Shape;
Flowability.
Double Motion Mixing reduces segregation risk through:
More uniform particle distribution;
Stronger particle interaction;
Reduced local concentration differences;
Improved mixture stability.
A common misunderstanding is: Advanced mixers only improve mixing speed.
However, the real improvement is not speed.
It is mixing quality.
The goal is not "Complete mixing in less time."
The goal is "Achieve a higher level of particle uniformity that traditional equipment cannot reach."
The development path of powder mixing can be summarized as:
Traditional Mixing
Move powders.
↓
Advanced Mixing
Blend powders.
↓
Future Mixing
Control particle behavior.
Double Motion Mixing represents this transition.
It combines:
Efficient material circulation;
Controlled shear;
Enhanced dispersion;
Micro-scale uniformity;
Anti-segregation stability.
Double Motion Mixing represents a new generation of powder processing technology.
By combining gravity diffusion mixing and controlled shear mixing, it addresses the fundamental limitations of traditional single-mechanism mixers.
The objective is not simply to make powders move faster, but to create a controlled particle environment where powders can:
Move efficiently;
Disperse effectively;
Achieve micro-uniformity;
Maintain long-term stability.
As advanced materials continue to develop, the future of powder mixing will depend increasingly on:
Controlling particle behavior rather than simply mixing materials together.
