The Hollow Screw Vacuum Dryer is an advanced continuous vacuum drying system designed for efficient drying of powders, granules, pastes, and solvent-containing materials.
Unlike conventional vacuum dryers that mainly rely on external jacket heating, the Hollow Screw Vacuum Dryer introduces heat through multiple surfaces:
Heating jacket
Hollow screw shaft
Hollow screw flights
At the same time, the rotating screw structure provides continuous conveying and mixing, improving both:
Heat transfer efficiency
Mass transfer performance
By combining vacuum drying technology with indirect heating and continuous material movement, the Hollow Screw Vacuum Dryer provides an efficient solution for industries requiring:
Shorter drying cycles
Lower energy consumption
Uniform moisture control
Solvent recovery
Continuous production
This article explains the working principle, structure, advantages, applications, and selection considerations of Hollow Screw Vacuum Dryers.
Traditional vacuum drying equipment has been widely used for decades.
However, as modern industries develop, manufacturers face increasingly demanding requirements:
Higher production capacity
Lower energy consumption
Better product consistency
Shorter processing time
Continuous automated production
Many traditional vacuum dryers encounter limitations:
Limited Heat Transfer Area
Most conventional designs rely mainly on:
External jacket heating
Heated shelves
Heat must travel from the equipment wall into the material.
For thick materials or powders with poor thermal conductivity, this creates high thermal resistance.
Poor Moisture Migration
When materials remain static:
Surface moisture evaporates first.
Internal moisture migrates slowly.
Drying becomes uneven.
Batch Operation Limitations
Batch dryers require:
Loading
Drying
Cooling
Discharging
This limits production efficiency.
The Hollow Screw Vacuum Dryer was developed to solve these challenges by combining:
Vacuum Environment + Large Heating Surface + Continuous Mixing + Continuous Discharge
A Hollow Screw Vacuum Dryer is a continuous indirect heating dryer that uses hollow screws as both:
A conveying mechanism
A heating surface
The system operates under vacuum conditions.
The material enters the dryer continuously, moves through the heated screw chamber, loses moisture through evaporation, and exits as dried product.

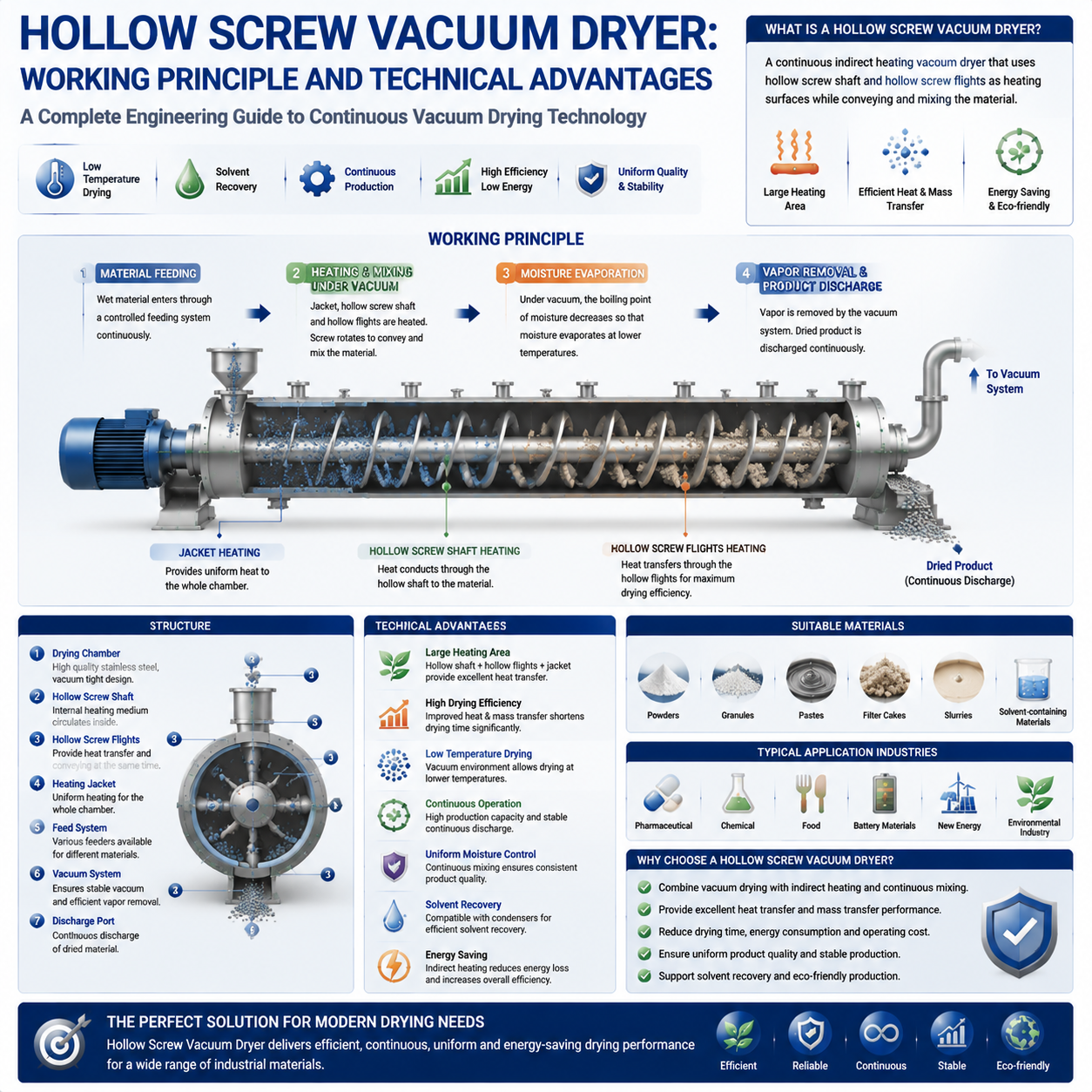

The drying process consists of four main steps:
Wet material enters the dryer through a controlled feeding system.
The feeding system can be designed according to material characteristics:
Powder feeder
Screw feeder
Pump feeding system
Customized feeding device
The goal is to achieve stable and continuous material flow.
Inside the dryer:
The vessel jacket is heated.
The hollow screw shaft is heated.
The hollow screw flights are heated.
The screw rotates continuously, transporting and mixing the material.
During this process:
Heat transfers into the material.
Moisture temperature increases.
Solvent evaporates under reduced pressure.
Because the dryer operates under vacuum:
The boiling point of moisture decreases.
This allows drying at lower temperatures.
Advantages:
Protects heat-sensitive materials.
Reduces thermal degradation.
Improves solvent recovery.
The generated vapor is removed through the vacuum system.
Depending on the application:
Solvents can be condensed and recovered.
Water vapor can be discharged safely.
The dried material exits continuously.
The main components include:
The sealed chamber provides:
Vacuum environment
Material containment
Pressure-resistant operation
The screw shaft contains a heating medium channel.
Heating media can include:
Steam
Thermal oil
Hot water
The shaft provides internal heating.
The screw flights are also designed as heating surfaces.
This significantly increases:
Effective heat transfer area
Material contact area
The outer jacket provides additional indirect heating.
The combination creates multi-directional heat transfer.
The vacuum system includes:
Vacuum pump
Condenser
Vacuum control system
Its functions include:
Reducing boiling temperature
Removing vapor
Recovering solvents
The main advantages come from optimizing three engineering mechanisms:
Increasing the effective heating area (A) improves heat transfer capability.
Compared with jacket-only dryers:
Traditional design:
Heating Wall → Material
Hollow Screw design:
Heating Wall → Material ← Heated Screw Shaft ← Heated Screw Flights
Heat enters the material from multiple directions.
Benefits:
Faster temperature increase
Reduced drying time
Better energy utilization
Drying efficiency is not only about supplying heat.
Moisture must also migrate out of the material.
The rotating screw provides:
Continuous mixing
Surface renewal
Reduced moisture diffusion distance
This improves:
Moisture migration
Drying uniformity
Final moisture consistency
The screw performs two functions:
Conveying
Controls:
Residence time
Production capacity
Mixing
Improves:
Heat contact
Moisture distribution
Product uniformity
This makes the equipment suitable for continuous industrial production.
Compared with batch vacuum dryers:
Advantages:
Continuous feeding
Continuous drying
Continuous discharge
Higher automation
Suitable for large-scale production.
Multiple heating surfaces provide:
Higher thermal efficiency
Faster drying
Lower energy consumption
Vacuum operation enables:
Lower drying temperature
Protection of sensitive materials
Reduced oxidation risk
The screw structure prevents:
Material accumulation
Uneven drying
Local overheating
For solvent-containing materials:
The closed vacuum system enables:
Vapor condensation
Solvent recycling
Reduced environmental emissions
Compared with some traditional drying systems:
Smaller footprint
Higher production capacity per unit area
Easier automation integration
Item | Traditional Vacuum Dryer | Hollow Screw Vacuum Dryer |
Operation | Mainly batch | Continuous |
Heating Method | Jacket / Shelf | Jacket + Hollow Screw |
Mixing | Limited | Continuous forced mixing |
Heat Transfer Area | Medium | High |
Drying Uniformity | Medium | High |
Automation | Limited | High |
Solvent Recovery | Available | Excellent |
Suitable Scale | Small/Medium | Medium/Large |
The Hollow Screw Vacuum Dryer is suitable for industries requiring efficient drying of valuable or difficult materials.
Pharmaceutical Industry
Applications:
Pharmaceutical intermediates
API powders
Heat-sensitive materials
Advantages:
Low temperature drying
Closed operation
Solvent recovery
Chemical Industry
Applications:
Fine chemicals
Catalysts
Chemical powders
Advantages:
Efficient solvent removal
Continuous production
Battery Materials
Applications:
Cathode materials
Anode materials
Advanced powder materials
Advantages:
Uniform moisture control
High automation capability
Food Ingredients
Applications:
Functional ingredients
Extract powders
Specialty additives
Advantages:
Low oxidation
Quality preservation
Typical materials include:
Powders
Examples:
Fine chemical powders
Pharmaceutical powders
Mineral powders
Granules
Examples:
Catalyst particles
Industrial granules
Pastes and Filter Cakes
Examples:
Chemical filter cakes
High-moisture materials
Solvent-Containing Materials
Examples:
Organic solvent systems
Recoverable solvent products
When selecting a Hollow Screw Vacuum Dryer, engineers should evaluate:
Material Characteristics
Moisture content
Particle size
Stickiness
Heat sensitivity
Solvent type
Production Requirements
Feed rate
Final moisture requirement
Operating hours
Continuous capacity
Process Conditions
Heating medium
Vacuum level
Residence time
Discharge method
Calcium Aspirin Powder Drying
Previous Process
Equipment: Conventional Hot Air Oven
Drying Time: Approximately 4 hours
Challenges:
Long drying cycle
High energy consumption
Limited production efficiency
New Process
Equipment: Hollow Screw Vacuum Dryer
Process improvements:
✔ Vacuum drying environment
✔ Multi-surface indirect heating
✔ Continuous powder mixing
✔ Improved moisture migration
Result
Drying target achieved in approximately: 30 minutes
The improvement was achieved through:
Increased heat transfer area
Improved mass transfer
Continuous material movement
Lower evaporation temperature
What is a Hollow Screw Vacuum Dryer?
It is a continuous vacuum dryer that uses hollow heated screws for both material conveying and indirect heating.
How does a Hollow Screw Vacuum Dryer work?
Material moves through a heated screw chamber under vacuum conditions. Heat causes moisture evaporation, while the vacuum system removes vapor.
What makes Hollow Screw Vacuum Dryer different from traditional vacuum dryers?
The main difference is the combination of:
Large internal heating surface
Continuous mixing
Continuous operation
Is Hollow Screw Vacuum Dryer suitable for powders?
Yes. It is especially suitable for powders requiring uniform moisture control and efficient drying.
Can it recover solvents?
Yes. The closed vacuum system can be integrated with condensers for solvent recovery.
