Industrial vacuum dryers are widely used in industries where conventional drying methods cannot meet requirements for product quality, energy efficiency, or temperature sensitivity.
Unlike atmospheric dryers, vacuum dryers operate under reduced pressure, allowing moisture and solvents to evaporate at lower temperatures.
However, not all vacuum dryers provide the same drying performance.
Different equipment designs use different approaches for:
Heat transfer
Material movement
Mixing intensity
Residence time control
Continuous or batch operation
The selection of the right vacuum dryer depends on:
Material characteristics
Moisture content
Production capacity
Heat sensitivity
Solvent recovery requirements
Final moisture target

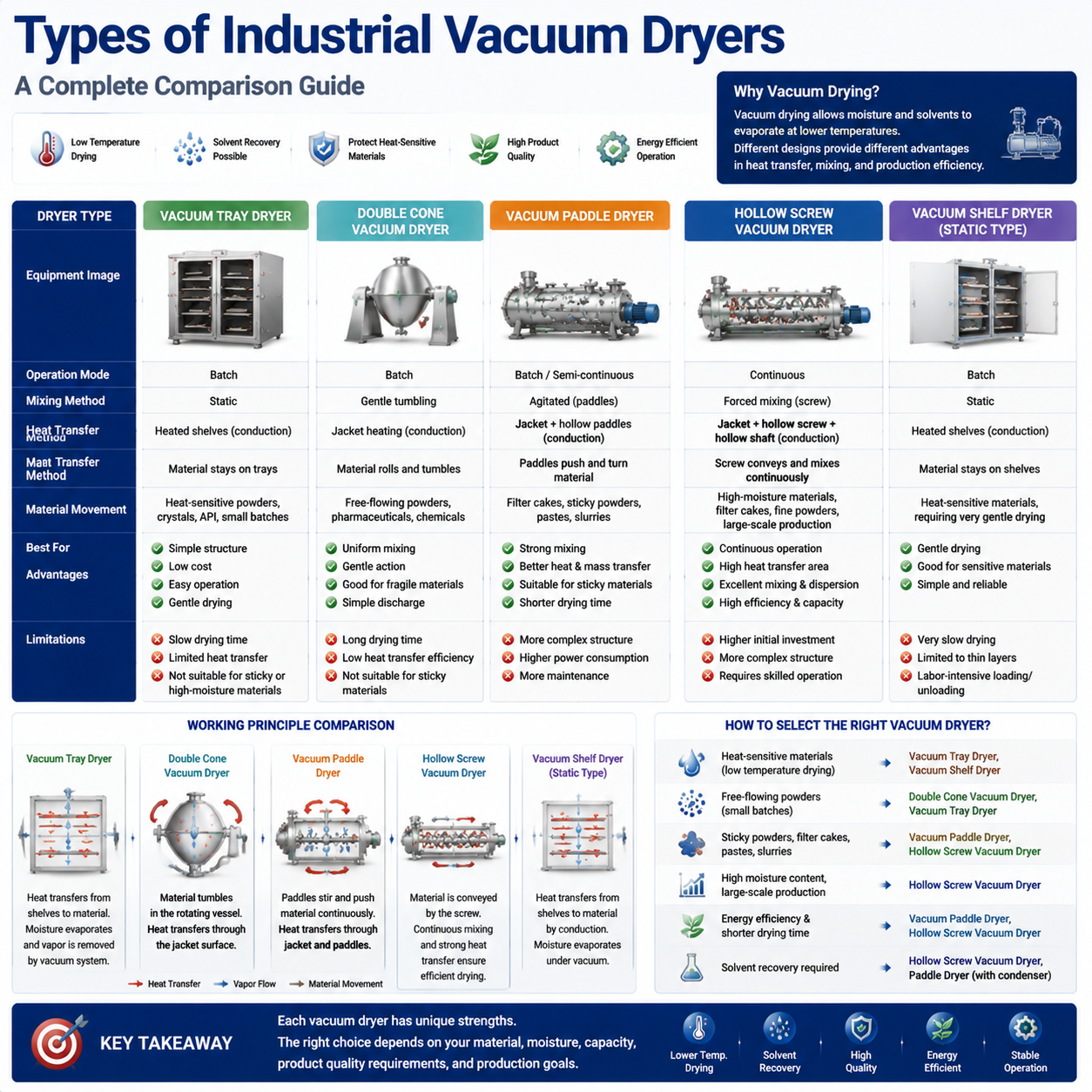

This article compares the major types of industrial vacuum dryers and explains how engineers select the most suitable drying technology.
There is no universal vacuum dryer suitable for all materials.
A pharmaceutical powder, a chemical filter cake, a battery material, and a food ingredient may require completely different drying solutions.
The reason is that materials behave differently during drying.
Key differences include:
Particle size
Flowability
Stickiness
Thermal sensitivity
Moisture binding strength
Required production scale
For example:
A free-flowing powder may be dried efficiently in a simple vacuum tray dryer.A sticky filter cake may require strong mixing and forced material movement.A large-scale continuous production process may require a continuous vacuum drying system.
Therefore:
The best vacuum dryer is not the one with the highest vacuum level, but the one that provides the optimal combination of heat transfer, mass transfer, and material handling.
Industrial vacuum dryers can generally be classified according to their structure and operating method.
Characteristics:
Material loaded and discharged in batches
Flexible production
Suitable for multiple products
Examples:
Vacuum Tray Dryer
Double Cone Vacuum Dryer
Characteristics:
Continuous feeding
Continuous drying
Continuous discharge
Higher production efficiency
Examples:
Hollow Screw Vacuum Dryer
Continuous Paddle Vacuum Dryer
Material remains relatively stationary.
Examples:
Vacuum Shelf Dryer
Vacuum Tray Dryer
Advantages:
Simple structure
Gentle processing
Limitations:
Slow heat penetration
Uneven drying for thick layers
Material is continuously mixed.
Examples:
Paddle Vacuum Dryer
Hollow Screw Vacuum Dryer
Advantages:
Improved heat transfer
Better moisture migration
Reduced agglomeration
A vacuum tray dryer consists of multiple heated shelves inside a vacuum chamber.
Material is placed on trays.
Heat transfers:
Heating Shelf ↓Tray ↓Material ↓Moisture Evaporation ↓Vacuum System
The vacuum environment reduces the boiling temperature, allowing low-temperature drying.
Low Temperature Drying
Suitable for:
Heat-sensitive materials
Pharmaceutical products
Fine chemicals
Simple Structure
Suitable for:
Easy operation
Easy maintenance
Reliable design
Flexible Production
Suitable for:
Small batches
Multiple product varieties
Limited Heat Transfer
Heat mainly enters from one direction.Thick material layers increase thermal resistance.
Long Drying Time
Because material movement is limited:
Moisture migration is slower.
Drying uniformity may decrease.
Labor Intensive
Loading and unloading are usually manual.
Pharmaceutical intermediates
Herbal extracts
Fine chemicals
Specialty powders
A double cone vacuum dryer consists of a rotating double-cone vessel.
During operation:
The vessel rotates slowly.
Material continuously falls and mixes.
Heated jacket transfers heat.
The process combines:
Gentle mixing
Indirect heating
Vacuum drying
Gentle Material Handling
Suitable for fragile materials.
Good Mixing Performance
Rotation improves:
Material distribution
Heat contact
Drying uniformity
Closed System Operation
Benefits:
Reduced contamination risk
Solvent recovery capability
Limited Heat Transfer Area
Heating mainly occurs through the vessel wall.
Low Shear Mixing
Not suitable for:
Strong agglomerates
Highly sticky materials
Batch Operation
Production capacity is limited compared with continuous dryers.
Pharmaceuticals
Food ingredients
Fine chemicals
Pigments
A vacuum paddle dryer uses rotating hollow paddles to provide:
Heat transfer
Mixing
Material movement
The paddles are heated internally, increasing effective heating area.
Improved Heat Transfer
Compared with jacket-only systems:
Larger heating surface
Better thermal efficiency
Strong Mixing Capability
Suitable for:
Slurries
Filter cakes
Sticky materials
Solvent Recovery
The closed vacuum system allows recovery of valuable solvents.
Mechanical Complexity
More moving components require:
Higher maintenance
More complex sealing design
Possible Material Damage
High shear conditions may affect fragile particles.
Chemical products
Sludge drying
Filter cakes
Pigments
The Hollow Screw Vacuum Dryer is an advanced continuous vacuum drying technology combining:
Vacuum environment
Hollow screw heating
Continuous conveying
Forced mixing
The screw shaft and screw flights are heated internally.Material moves through the dryer while continuously contacting heated surfaces.
Working process:
Wet Material Feeding ↓Continuous Screw Conveying ↓Heating + Mixing Under Vacuum ↓Moisture Evaporation ↓Vapor Removal ↓Dry Product Discharge
Large Effective Heat Transfer Area
Unlike traditional jacket heating, heat enters through:
Vessel wall
Screw shaft
Screw flights
This significantly increases the available heating surface.
Efficient Material Mixing
The screw movement provides:
Continuous material renewal
Better surface exposure
Improved moisture migration
Continuous Production
Stable capacity
Automated operation
Reduced labor requirement
Suitable for Difficult Materials
Especially suitable for:
Powders
Fine chemicals
Pharmaceutical intermediates
Battery materials
Sticky materials
Higher Initial Investment
Compared with simple batch dryers, continuous vacuum dryers require higher equipment investment.
Requires Process Optimization
Parameters such as:
Screw speed
Heating temperature
Vacuum level
Feeding rate
must be optimized according to material characteristics.
Pharmaceutical powders
Battery materials
Chemical intermediates
Specialty materials
Solvent-containing products
Equipment | Operation | Mixing | Heat Transfer Area | Production Scale | Suitable Materials |
Vacuum Tray Dryer | Batch | Low | Medium | Small/Medium | Heat-sensitive powders |
Double Cone Dryer | Batch | Medium | Medium | Small/Medium | Fragile materials |
Paddle Vacuum Dryer | Batch/Continuous | High | High | Medium/Large | Sticky materials |
Hollow Screw Vacuum Dryer | Continuous | Very High | Very High | Large | Powders, chemicals, battery materials |
Engineers should evaluate several factors.
Questions:
Is the material powder, slurry, or paste?
Is it sticky?
Is it heat-sensitive?
Does it contain solvents?
Consider:
Batch size
Daily capacity
Continuous production needs
Automation requirements
Important parameters:
Final moisture content
Drying temperature
Drying time
Product quality requirements
Evaluate:
Heat transfer area
Heating method
Solvent recovery
Vapor condensation efficiency
For difficult powders:
Consider:
Mixing intensity
Anti-agglomeration capability
Continuous discharge
Modern industries increasingly require:
Higher productivity
Lower energy consumption
Reduced labor
Better consistency
Traditional batch dryers have limitations when production scale increases.
Continuous vacuum drying provides:
✔ Stable operation✔ Automated feeding and discharge✔ Better process control✔ Higher production efficiency
This trend is especially strong in:
Battery materials
Pharmaceuticals
Advanced chemicals
Industrial vacuum drying is moving toward:
Intelligent Control
Including:
Automatic pressure control
Temperature optimization
Data monitoring
Energy Efficiency
Including:
Improved heat transfer designs
Heat recovery
Solvent recovery
Continuous Processing
More industries are moving from:
Batch production ↓Continuous manufacturing
Advanced Material Applications
Demand is increasing from:
Lithium batteries
New energy materials
Specialty chemicals
What are the main types of industrial vacuum dryers?
The main types include vacuum tray dryers, double cone vacuum dryers, paddle vacuum dryers, and hollow screw vacuum dryers.
Which vacuum dryer is best for powder drying?
It depends on powder characteristics. For large-scale continuous powder drying, hollow screw vacuum dryers provide advantages due to efficient heating and continuous mixing.
What vacuum dryer is suitable for sticky materials?
Agitated dryers such as paddle vacuum dryers and hollow screw vacuum dryers are usually more suitable because they provide continuous mixing.
What is the advantage of a continuous vacuum dryer?
Continuous vacuum dryers provide stable production, automation capability, and improved efficiency for large-scale manufacturing.
How do I select a vacuum dryer?
Selection should consider material properties, production capacity, drying requirements, energy efficiency, and process conditions.
