Why do some materials dry in 30 minutes, while others require several hours, even under the same vacuum conditions?
The answer lies in drying kinetics.
Drying is not a process with a constant evaporation rate. Instead, the drying rate changes continuously as moisture content, material temperature, and internal moisture migration evolve.
Understanding drying kinetics helps engineers:
Predict drying time
Optimize vacuum pressure and heating temperature
Select suitable drying equipment
Improve energy efficiency
Prevent over-drying and product degradation
This article explains the theory behind drying curves, the different drying stages, and how drying kinetics influence industrial vacuum drying performance.
Drying appears to be a simple process:
1. Wet material enters a dryer.
2. Heat is applied.
3. Moisture evaporates.
4. Dry material is discharged.
However, from an engineering perspective, drying is a dynamic process.
The drying rate is constantly changing.
During the early stage, moisture is removed rapidly.
As drying continues, the process slows down because moisture becomes increasingly difficult to remove.
This changing behavior is known as drying kinetics.
Understanding drying kinetics allows engineers to answer important questions such as:
Why does drying slow near the end?
When should heating temperature be adjusted?
How long should drying continue?
Which stage consumes the most energy?
Drying kinetics describes:
The relationship between drying rate, moisture content, temperature, and time during the drying process.
Rather than assuming moisture is removed at a constant speed, drying kinetics recognizes that the evaporation rate continuously changes.
This relationship is commonly represented by a drying curve.

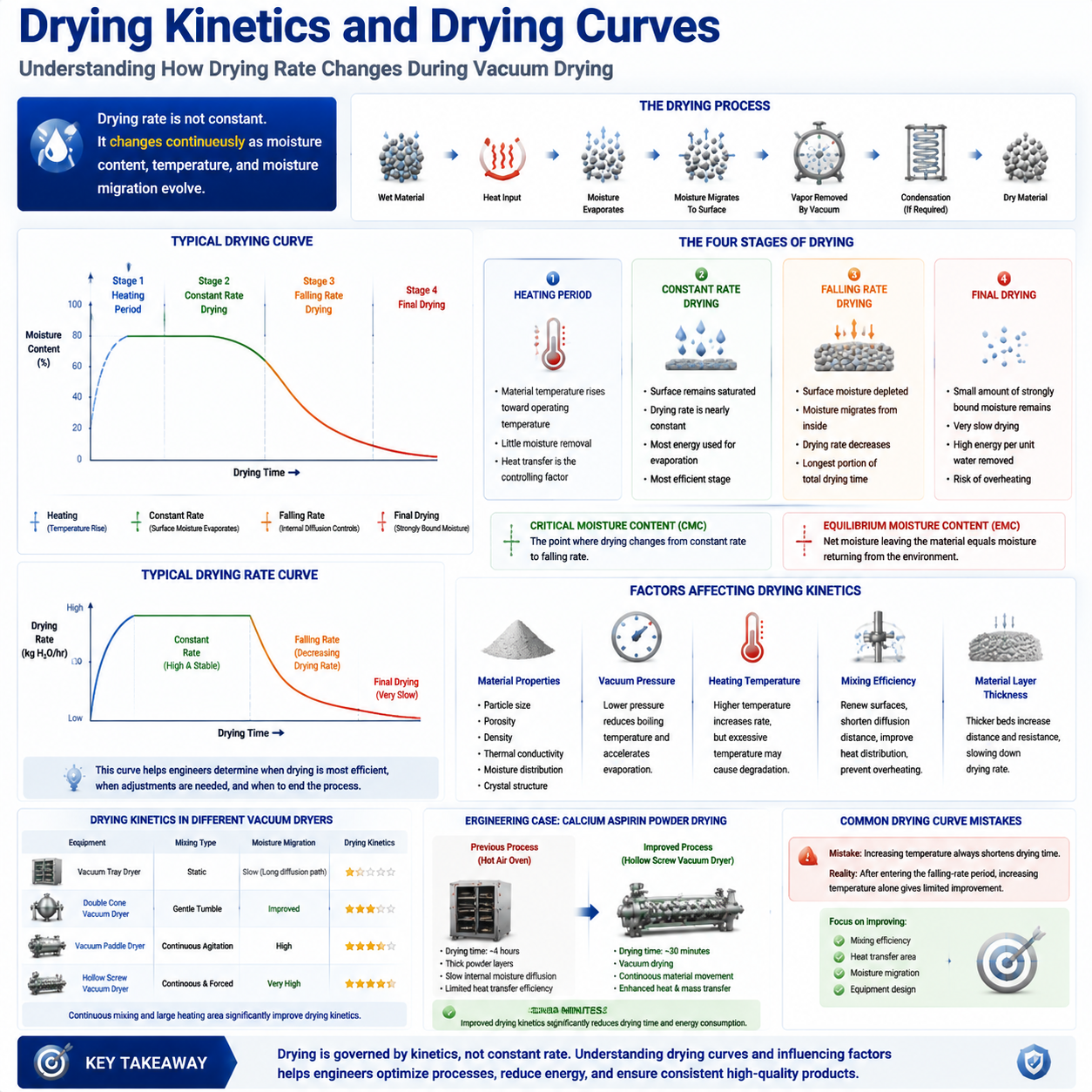

A drying curve illustrates how moisture content changes over time.
Typical axes are:
Horizontal axis (X): Drying time
Vertical axis (Y): Moisture content or drying rate
A simplified drying curve is shown below.
The slope of the curve indicates the drying speed.
A steeper slope means faster moisture removal.
Most industrial drying processes can be divided into four stages.
Initially, the material temperature rises toward the operating temperature.
Characteristics:
Little moisture removal
Most supplied heat increases material temperature
Drying rate gradually increases
During this stage:
Heat transfer is the controlling factor.
Once sufficient heat is available, surface moisture evaporates continuously.
Characteristics:
Surface remains saturated
Drying rate is nearly constant
Evaporation occurs rapidly
Most energy is used for evaporation rather than heating.
This is usually the most efficient stage.
Eventually, surface moisture becomes depleted.
Now, moisture must migrate from the interior of the material.
Characteristics:
Internal diffusion controls drying
Drying rate decreases
Moisture movement becomes increasingly difficult
This stage often represents the longest portion of industrial drying.
Only a small amount of strongly bound moisture remains.
Characteristics:
Very slow drying
High energy consumption per unit of water removed
Risk of overheating if improperly controlled
Many industrial drying processes end before absolute dryness because removing the last fraction of moisture may not be economical.
The drying rate changes significantly throughout the process.
This curve helps engineers determine:
When drying is most efficient
When process adjustments are required
When drying should be terminated
A key concept in drying kinetics is the Critical Moisture Content (CMC).
This is the point where drying changes from:
Constant Rate → Falling Rate
Above the critical moisture content: Surface moisture is sufficient.
Below the critical moisture content: Internal moisture migration becomes the limiting factor.
For many powders and filter cakes, most drying time occurs after reaching the critical moisture content.
No industrial dryer can reduce moisture indefinitely.
Eventually, the material reaches Equilibrium Moisture Content (EMC).
At this point:
Moisture leaving the material equals moisture returning from the environment.
Net drying stops.
Under vacuum conditions, the equilibrium moisture content is generally lower than under atmospheric conditions.
Several variables influence drying behavior.
Different materials exhibit different drying characteristics.
Important properties include:
Particle size
Porosity
Density
Thermal conductivity
Moisture distribution
Crystal structure
Lower pressure:
Reduces boiling temperature
Accelerates evaporation
Improves moisture removal
However, vacuum level alone cannot eliminate internal diffusion resistance.
Increasing temperature generally increases drying rate.
However:
Excessive temperatures may cause:
Product degradation
Color changes
Chemical decomposition
The optimum temperature depends on material stability.
Mixing improves drying kinetics by:
Renewing particle surfaces
Reducing diffusion distance
Improving heat distribution
Preventing local overheating
Continuous mixing is especially beneficial for powders and filter cakes.
Thicker material beds increase the distance moisture must travel.
Consequently:
Drying slows down.
Heat transfer resistance increases.
Mass transfer resistance increases.
Optimizing bed thickness is an important design consideration.
Equipment | Drying Kinetics Characteristics |
Vacuum Tray Dryer | Slow internal moisture migration due to static material layers |
Double Cone Vacuum Dryer | Gentle mixing improves moisture distribution |
Vacuum Paddle Dryer | Continuous agitation enhances heat and mass transfer |
Hollow Screw Vacuum Dryer | Continuous conveying, forced mixing, and large heating area provide faster drying kinetics |
The ability to continuously renew the material surface allows advanced dryers to shorten the falling-rate drying period.
A pharmaceutical manufacturer previously used a conventional hot air oven.
Equipment: Hot Air Oven
Drying Time: Approximately 4 hours
Challenge:
Thick powder layers
Slow internal moisture diffusion
Limited heat transfer efficiency
Equipment: Hollow Screw Vacuum Dryer
Process improvements:
Vacuum drying
Efficient indirect heating
Continuous material movement
Improved heat and mass transfer
Result: Approximately 30 minutes
The shorter drying time resulted not only from reduced boiling temperature but also from improved drying kinetics through continuous mixing and enhanced moisture migration.
Engineers sometimes assume:
Increasing heating temperature always shortens drying time.
In reality, once drying enters the falling-rate period:
Increasing temperature alone often produces only limited improvement.
Instead, improvements should focus on:
Mixing efficiency
Heat transfer area
Moisture migration
Equipment design
Drying curves are essential for:
Selecting drying equipment
Estimating drying time
Designing production capacity
Optimizing energy consumption
Determining end-point moisture
Scaling laboratory results to industrial production
Well-designed drying curves reduce trial-and-error during process development.
What is drying kinetics?
Drying kinetics describes how the drying rate changes as moisture content decreases over time.
Why does drying slow down near the end?
Because internal moisture diffusion becomes the limiting factor after surface moisture has been removed.
What is the constant-rate drying period?
It is the stage during which surface moisture is abundant and evaporation occurs at a nearly constant rate.
What is the falling-rate drying period?
It is the stage where moisture must migrate from inside the material to the surface, causing the drying rate to decrease.
Why are drying curves important?
They help engineers optimize drying time, energy consumption, equipment selection, and product quality.
