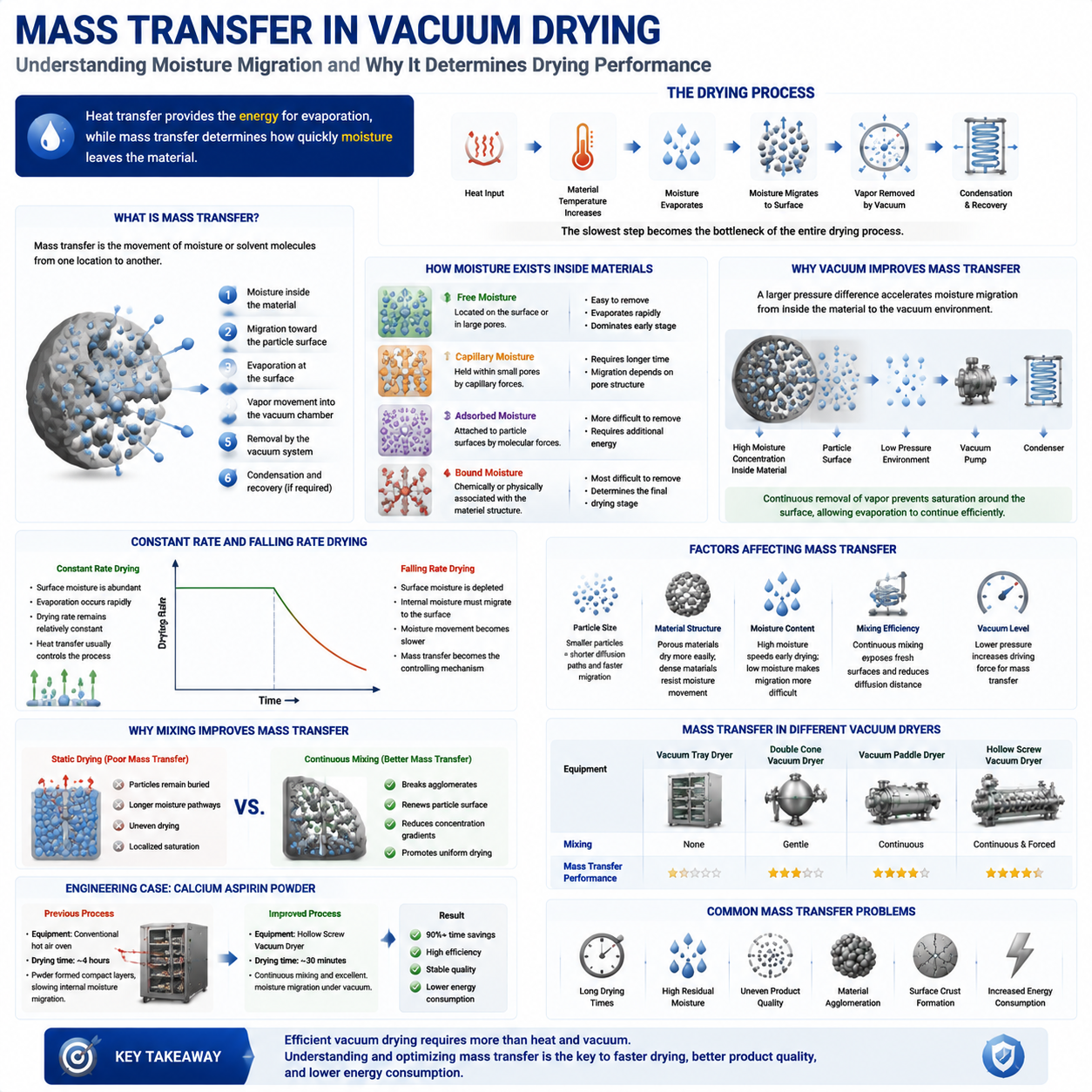

In industrial vacuum drying, heat transfer provides the energy for evaporation, while mass transfer determines how quickly moisture leaves the material.
Many drying systems achieve excellent vacuum levels and sufficient heating capacity, yet still experience long drying times. In most cases, the limiting factor is not the vacuum system or the heating system—it is the movement of moisture inside the material.
Mass transfer governs how moisture migrates from the interior of a particle to its surface, where it can evaporate under vacuum conditions. Understanding this mechanism is essential for designing efficient drying processes, selecting suitable equipment, and optimizing production efficiency.
Drying is often described as a process of "removing moisture," but from an engineering perspective it involves two simultaneous transport processes:
Heat Transfer – delivering thermal energy to the material.
Mass Transfer – transporting moisture from inside the material to the surrounding environment.
These two mechanisms are inseparable.
Even if sufficient heat is supplied, drying cannot proceed efficiently unless moisture can migrate continuously from the interior of the material to its surface.
This is why two materials with identical moisture content may exhibit completely different drying behaviors.
A common misconception is that increasing the heating temperature always shortens drying time.
In reality:
Heat transfer determines how much energy reaches the material.
Mass transfer determines how quickly moisture can escape.
The complete drying process can be summarized as:
Heat Input → Material Temperature Increases → Moisture Evaporates → Moisture Migrates to Surface → Vapor Removed by Vacuum → Dry Product
The slowest step becomes the bottleneck of the entire drying process.
Mass transfer refers to the movement of moisture or solvent molecules from one location to another.
In vacuum drying, moisture moves through several stages:
Moisture inside the material.
Migration toward the particle surface.
Evaporation at the surface.
Vapor movement into the vacuum chamber.
Removal by the vacuum system.
Condensation and recovery (if required).
Each stage influences the overall drying rate.
Moisture does not exist in the same form in every material.
Generally, it can be divided into four categories.
Free moisture is located on the particle surface or in large pores.
Characteristics:
Easy to remove
Evaporates rapidly
Dominates the early drying stage
This moisture is held within small pores by capillary forces.
Characteristics:
Requires longer drying time
Migration depends on pore structure
Adsorbed moisture is attached to the surface of particles through molecular forces.
Characteristics:
More difficult to remove
Requires additional energy
Bound moisture is chemically or physically associated with the material structure.
Characteristics:
Most difficult to remove
Often determines the final drying stage
Different moisture types explain why drying becomes progressively slower as the process continues.
Moisture moves through materials by several mechanisms.
Liquid water migrates through pores due to concentration differences.Common in:
Filter cakes
Ceramic materials
Food products
Moisture evaporates inside the material and moves as vapor through pores.
This mechanism becomes increasingly important under vacuum conditions.
Water moves through interconnected pores driven by capillary forces.
This is significant for porous powders and filter cakes.
Once moisture reaches the particle surface, it evaporates into the low-pressure environment.
The vacuum system continuously removes vapor, maintaining the driving force for evaporation.
Reducing chamber pressure does more than lower the boiling point. It also creates a larger pressure difference between:
Moisture inside the material
Vapor surrounding the material
This pressure difference accelerates moisture migration.
High Moisture Concentration
Inside Material → Particle Surface → Low Pressure Environment → Vacuum Pump → Condenser
The continuous removal of vapor prevents saturation around the material surface, allowing evaporation to continue efficiently.
Most materials experience two major drying periods.
During the initial stage:
Surface moisture is abundant.
Evaporation occurs rapidly.
Drying rate remains relatively constant.
Heat transfer usually controls the process.
Once surface moisture is depleted:
Internal moisture must migrate to the surface.
Moisture movement becomes slower.
Drying rate decreases.
At this stage, mass transfer becomes the controlling mechanism.
For many industrial powders, more than half of the total drying time occurs during the falling-rate period.
Several variables influence moisture migration.
Smaller particles generally provide:
Shorter diffusion paths
Faster moisture migration
Shorter drying time
However, extremely fine powders may agglomerate, reducing effective mass transfer.
Porous materials dry more easily because vapor can escape through interconnected pores.
Dense materials present greater resistance.
High initial moisture content often results in faster early drying.
As moisture decreases, migration becomes more difficult.
Continuous mixing:
Exposes fresh surfaces
Prevents localized saturation
Reduces diffusion distance
Improves drying uniformity
This is one reason why mixing vacuum dryers outperform static designs for many powder applications.
Lower pressure:
Reduces vapor resistance
Promotes evaporation
Increases mass transfer driving force
However, excessively deep vacuum is not always necessary.
The optimal vacuum level depends on the material characteristics.
In static drying systems:
Some particles remain buried.
Moisture pathways become longer.
· Drying becomes uneven.
Continuous mixing:
Breaks agglomerates.
Renews the particle surface.
Reduces moisture concentration gradients.
Promotes uniform drying.
This is particularly important for:
Sticky powders
Filter cakes
High-moisture slurries
Mass Transfer in Different Vacuum Dryers Equipment |
Mixing |
Mass Transfer Performance |
Vacuum Tray Dryer |
None |
Moderate |
Double Cone Vacuum Dryer |
Gentle |
Good |
Vacuum Paddle Dryer |
Continuous |
High |
Hollow Screw Vacuum Dryer |
Continuous & Forced |
Very High |
Equipment with continuous material movement generally achieves higher mass transfer efficiency because fresh wet surfaces are constantly exposed.
A pharmaceutical manufacturer needed to dry Calcium Aspirin powder.
Equipment: Conventional hot air oven
Drying time: Approximately 4 hours
Although sufficient heating was available, the powder formed compact layers, slowing internal moisture migration.
The production line adopted a Hollow Screw Vacuum Dryer.
Key improvements included:
Continuous mixing of the powder
Improved contact with heated surfaces
Enhanced moisture migration
Stable vacuum environment
The required drying target was achieved in approximately 30 minutes, significantly improving production efficiency while maintaining product quality.
This case illustrates that improving mass transfer, rather than simply increasing temperature, can dramatically shorten drying cycles.
Poor mass transfer may lead to:
Long drying times
High residual moisture
Uneven product quality
Material agglomeration
Surface crust formation
Increased energy consumption
Understanding the root cause helps engineers optimize both equipment and process conditions.
What is mass transfer in vacuum drying?
It is the movement of moisture from inside the material to its surface and then into the vacuum environment.
Which is more important: heat transfer or mass transfer?
Both are equally important. Heat transfer supplies the energy for evaporation, while mass transfer determines how quickly moisture leaves the material.
Why does drying slow down near the end?
Because the remaining moisture is usually bound within the material structure and must diffuse over longer paths to reach the surface.
Does mixing improve mass transfer?
Yes. Continuous mixing shortens diffusion paths, renews particle surfaces, and improves drying uniformity.
Can stronger vacuum always improve mass transfer?
Not necessarily. Beyond a certain point, the limiting factor becomes internal moisture diffusion rather than chamber pressure. Process optimization should balance vacuum level, heating rate, and material movement.
