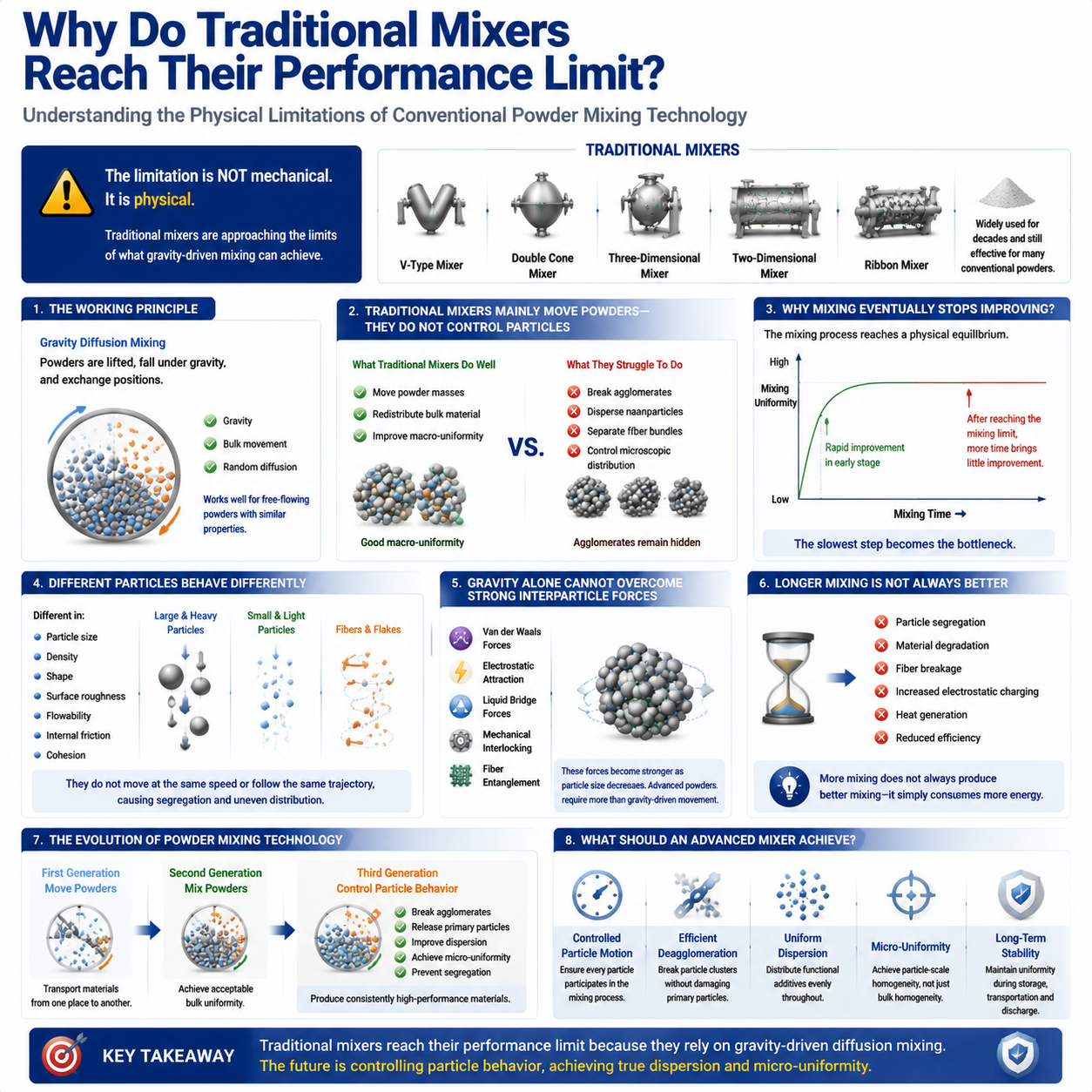

Powder And Mixing - 18. Why Do Traditional Mixers Reach Their Performance Limit?

1. Powder Mixing Has Changed

Twenty years ago, most powder systems consisted of:

• Similar particle sizes;

• Similar densities;

• Free-flowing materials;

• Relatively high additive ratios.

Under these conditions, traditional mixers performed well.

Today, however, powder systems are becoming increasingly complex.

Examples include:

• Nanoparticles mixed with micron-sized powders;

• Conductive additives below 1%;

• Lightweight fibers mixed with dense inorganic fillers;

• Ultrafine powders with strong cohesion;

• Multi-component formulations containing five or more ingredients.

The objective is no longer simply to blend powders.

It is to control particle behavior at the microscopic scale.

2. The Working Principle of Traditional Mixers

Although their structures differ, most traditional mixers share the same fundamental mechanism gravity diffusion mixing

As the vessel rotates:

• Powders are lifted;

• Powders fall under gravity;

• Different regions exchange positions.

The overall mixing process mainly depends on:

• Gravity;

• Bulk particle movement;

• Random diffusion.

This mechanism works well for free-flowing powders with similar physical properties.

However, it has inherent limitations.

3. Traditional Mixers Mainly Move Powders—They Do Not Control Particles

One of the biggest misconceptions is:

If powders continue moving, they will eventually become perfectly mixed.

In reality, particle movement and particle control are fundamentally different concepts.

Traditional mixers are effective at:

• Moving powder masses;

• Redistributing bulk material;

• Improving macro-uniformity.

However, they have limited ability to:

• Break agglomerates;

• Disperse nanoparticles;

• Separate fiber bundles;

• Control microscopic particle distribution.

In other words, they can achieve macro mixing, but struggle to achieve micro-uniformity.

4. Why Does Mixing Eventually Stop Improving?

Many production engineers have experienced the following situation:

The first few minutes of mixing significantly improve uniformity.

After that, mixing continues,but product quality barely changes. Why? Because the mixing process reaches a physical equilibrium. Initially, large concentration differences disappear rapidly. As the mixture becomes more homogeneous, the driving force for further mixing decreases. Eventually, particle movement becomes almost completely random. At this point, additional mixing time produces very little improvement.

This phenomenon is commonly known as the mixing limit.

5. Agglomerates Remain Hidden

Many advanced powders naturally form:

• Agglomerates;

• Fiber bundles;

• Pseudo-particles.

Examples include:

• Carbon nanotubes;

• Carbon black;

• Nano silica;

• Fine pharmaceutical ingredients.

Traditional gravity mixing can move these clusters throughout the vessel, but often cannot separate them into individual particles.

The result is: The powder appears uniform, while microscopic agglomerates still exist. Visually, the product looks excellent. Functionally, its performance remains compromised.

6. Different Particles Behave Differently

Real industrial powders rarely behave the same way.

Within one formulation, particles may differ in:

• Particle size;

• Density;

• Shape;

• Surface roughness;

• Flowability;

• Internal friction;

• Cohesion.

Each type of particle responds differently to gravity.

As a result, they do not move at the same speed,nor do they follow the same trajectory. This difference creates:

• Segregation;

• Uneven redistribution;

• Local concentration differences.

Traditional mixers cannot actively compensate for these differences.

7. Gravity Alone Cannot Solve Modern Mixing Problems

Gravity is an excellent driving force for moving powders.

However, gravity alone cannot effectively overcome:

• Van der Waals forces;

• Electrostatic attraction;

• Liquid bridge forces;

• Mechanical interlocking;

• Fiber entanglement.

These forces become increasingly significant as particle size decreases. Consequently, many advanced powders require more than gravity-driven movement.

They require:

• Controlled shear;

• Continuous dispersion;

• Particle deagglomeration;

• Multi-directional particle interaction.

8. Longer Mixing Is Not Always Better

A common misconception is:

If the mixture is not uniform, simply extend the mixing time.

Unfortunately, this approach often fails. After reaching the mixing limit, longer mixing may actually create new problems.

Examples include:

• Particle segregation;

• Material degradation;

• Fiber breakage;

• Increased electrostatic charging;

• Heat generation;

• Reduced production efficiency.

In many cases, more mixing does not produce better mixing. It simply consumes more energy.

9. Modern Manufacturing Requires More Than Macro Mixing

Traditional quality evaluation focused on:

• Bulk composition;

• Color consistency;

• Sampling analysis.

Today,advanced manufacturing evaluates:

• Dispersion quality;

• Micro-uniformity;

• Particle distribution;

• Functional consistency.

For example,

in lithium battery production, a mixture may satisfy conventional sampling standards, yet still fail electrochemical testing because conductive additives are unevenly distributed at the particle level.

This demonstrates an important principle:

Macro-uniformity does not guarantee micro-uniformity.

10. The Evolution of Powder Mixing Technology

The development of powder mixing can be viewed as three generations.

First Generation

Move Powders

Objective: Transport materials from one place to another.

Second Generation

Mix Powders

Objective: Achieve acceptable bulk uniformity.

This is the stage represented by most traditional mixers.

Third Generation

Control Particle Behavior

Objective:

• Break agglomerates;

• Release primary particles;

• Improve dispersion;

• Achieve micro-uniformity;

• Prevent segregation.

This represents the future direction of powder mixing technology.

11. What Should an Advanced Mixer Achieve?

Modern powder mixing equipment should no longer be evaluated solely by:

• Mixing time;

• Batch capacity;

• Rotational speed.

Instead, it should be evaluated by its ability to control particle behavior. An advanced powder mixer should simultaneously provide:

Controlled Particle Motion

Ensuring every particle participates in the mixing process.

Efficient Deagglomeration

Breaking particle clusters without damaging primary particles.

Uniform Dispersion

Distributing functional additives evenly throughout the system.

Micro-Uniformity

Achieving particle-scale homogeneity rather than only bulk homogeneity.

Long-Term Stability

Maintaining uniformity during storage, transportation, and discharge.

12. Why Advanced Mixing Technologies Are Emerging

The limitations of traditional mixers do not mean they are obsolete.

For many conventional powder systems, they remain practical and economical. However, as materials become:

• Smaller;

• Lighter;

• More functional;

• More complex;

the mixing challenge shifts from moving powders to controlling particles.

This is why new mixing technologies have emerged.

Their goal is not to replace traditional mixers, but to solve problems that gravity-driven diffusion mixing cannot adequately address.

13. Conclusion

Traditional powder mixers have served industry successfully for decades because they efficiently achieve bulk powder movement and macro-scale mixing.

However, their operating principle is fundamentally based on gravity-driven diffusion.

As modern powder systems become increasingly complex, this mechanism reaches its natural physical limit. Future powder mixing technology is evolving beyond simply rotating powders. It is evolving toward:

• Controlling particle movement;

• Breaking agglomerates;

• Improving dispersion;

• Achieving micro-uniformity;

• Maintaining long-term stability.

The question is no longer “How can we mix powders?"

The real challenge is: How can we control particle behavior to produce consistently high-performance materials?
