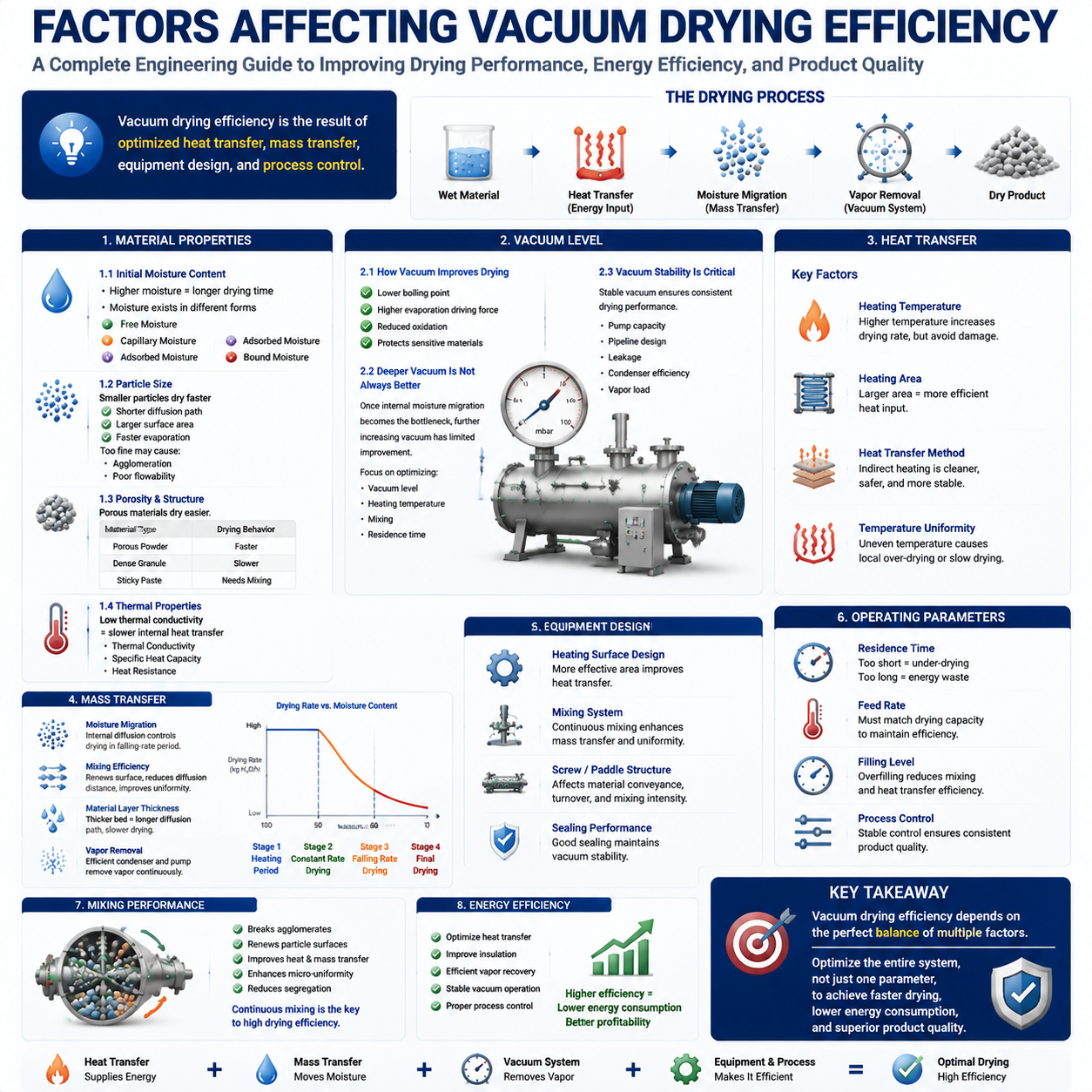

Vacuum drying efficiency is not determined by a single parameter.
Many manufacturers believe that achieving a deeper vacuum or increasing heating temperature will automatically improve drying performance. However, industrial drying is a complex process controlled by the interaction of:
Heat transfer
Mass transfer
Vacuum conditions
Material properties
Equipment structure
Mixing performance
Operating parameters
A highly efficient vacuum drying system requires the optimization of the entire drying process, not simply one individual factor.
This article explains the key factors affecting vacuum drying efficiency and provides an engineering framework for improving drying time, reducing energy consumption, and achieving consistent product quality.
Industrial drying is a balance between energy input and moisture removal.
A successful drying process requires:
Heat must reach the wet material.
Moisture must migrate from inside the material.
Vapor must be removed from the drying environment.
If any step becomes a limitation, the overall drying performance decreases.
For example:
Excellent vacuum + poor heat transfer = slow drying
High temperature + poor mass transfer = long drying cycle
Large heating area + poor mixing = uneven moisture distribution
Therefore:
Vacuum drying efficiency is the result of optimized heat transfer, mass transfer, equipment design, and process control.
Material characteristics are the first factor engineers evaluate when designing a vacuum drying process.
Different materials behave differently under the same drying conditions.
ContentInitial moisture content directly affects drying time.High moisture materials usually have:
Longer drying cycles
Higher evaporation load
Greater energy requirements
However, the relationship is not linear.
A material containing 50% moisture does not necessarily take twice as long to dry as a material containing 25% moisture.
The reason is that moisture exists in different forms:
Free moisture
Capillary moisture
Adsorbed moisture
Bound moisture
Each type requires different energy and migration mechanisms.
Particle size influences moisture migration distance.
Smaller particles generally provide:
Advantages:
✔ Shorter moisture diffusion path
✔ Larger surface area
✔ Faster evaporation
However, extremely fine powders may create new challenges:
Agglomeration
Poor flowability
Reduced vapor permeability
Therefore, optimal particle size depends on the material characteristics.
Porous materials generally dry faster because vapor can escape through internal channels.
Dense materials often require longer drying times because moisture must migrate through a more resistant structure.
Examples:
Material Type | Drying Behavior |
Porous powder | Easier moisture removal |
Dense granule | Slower diffusion |
Sticky paste | Requires mixing assistance |
Important thermal properties include:
Thermal conductivity
Specific heat capacity
Heat resistance
Materials with low thermal conductivity create greater internal temperature differences and slower drying.
Vacuum is one of the most recognizable parameters in vacuum drying, but it is often misunderstood.
Reducing pressure provides several benefits:
Lower boiling point
Moisture evaporates at lower temperatures.
Higher evaporation driving force
The pressure difference promotes vapor movement.
Reduced oxidation
Lower oxygen concentration protects sensitive materials.
Many engineers assume:
Higher vacuum = faster drying
This is not always true.
Once surface evaporation is no longer the limiting factor, internal moisture migration becomes the bottleneck.
At this stage:
Increasing vacuum further may provide limited improvement.
The better approach is optimizing:
Vacuum level
Heating temperature
Mixing
Residence time
A stable vacuum environment is more important than simply reaching a target pressure.
Factors affecting vacuum stability include:
• Vacuum pump capacity
Pipeline design
Leakage
Condenser efficiency
Vapor load
An unstable vacuum causes:
Fluctuating drying conditions
Longer drying time
Poor product consistency
Heat provides the energy required for evaporation.
However, the optimal heating temperature is a balance between:
Drying speed
Product protection
Energy consumption
Increasing temperature can improve:
Evaporation rate
Heat transfer driving force
Drying speed
Too much heat may cause:
Product degradation
Chemical reactions
Color changes
Loss of active components
This is especially important for:
Pharmaceuticals
Food ingredients
Biological materials
The average temperature is not the only concern.
Temperature distribution inside the dryer is equally important.
Poor temperature uniformity may cause:
Over-drying in some areas
Wet zones in others
Product inconsistency
Heat transfer area directly affects drying capacity.
The basic relationship is: Q=U*A*ΔT
Q = heat transfer rate
U = overall heat transfer coefficient
A = effective heat transfer area
ΔT = temperature difference
Increasing heating area improves the ability to deliver energy into the material.
Traditional Heating Design
Many conventional vacuum dryers rely mainly on:
External jackets
Heated shelves
Limitations:
Heat enters mainly from one direction
Large material thickness creates resistance
Internal regions heat slowly
Hollow Screw Heating Design
A Hollow Screw Vacuum Dryer introduces heat through:
Heating jacket
Hollow screw shaft
Hollow screw flights
Advantages:
✔ Larger effective heating area
✔ Shorter heat transfer distance
✔ Better temperature distribution
✔ Higher thermal efficiency
This is one reason continuous hollow screw vacuum drying technology achieves high drying performance for powders and granular materials.
Mixing is one of the most underestimated factors affecting vacuum drying efficiency.
Continuous mixing improves
Heat transfer
Fresh material continuously contacts heated surfaces.
Mass transfer
Moisture pathways become shorter.
Uniformity
All particles experience similar drying conditions.
Static materials may experience:
Surface drying
Internal moisture retention
Uneven drying
Material crust formation
This is especially common with:
Powders
Filter cakes
Sticky materials
Different dryers use different mixing mechanisms.
Gravity Mixing
Material moves mainly through rotation and gravity.
Advantages:
Gentle
Suitable for fragile products
Limitations:
Limited shear force
Lower mixing intensity
Forced Mixing
Mechanical elements actively move the material.
Advantages:
Better dispersion
Improved heat contact
Reduced agglomeration
This is especially valuable for difficult-to-dry powders.
Drying does not end when moisture evaporates.
The vapor must be removed effectively.
An efficient condenser:
Removes vapor quickly
Protects vacuum stability
Enables solvent recovery
Poor condensation can cause:
Increased system pressure
Reduced drying efficiency
Higher vacuum pump load
The vacuum pump must match:
Vapor generation rate
Required pressure
Material characteristics
Oversized or undersized vacuum systems both reduce efficiency.
The dryer structure has a major influence on performance.
Vacuum Tray Dryer
Advantages:
Simple
Suitable for small batches
Limitations:
Low automation
Limited mixing
Longer drying cycles
Paddle Vacuum Dryer
Advantages:
Good mixing
Larger heat transfer area
Suitable for:
Pastes
Filter cakes
Hollow Screw Vacuum Dryer
Advantages:
Continuous operation
Large heating surface
Strong material movement
High drying efficiency
Suitable for:
Powders
Granules
High-value materials
Residence time determines how long material remains inside the dryer.
Too short:
Insufficient drying
Too long:
Energy waste
Reduced productivity
A properly designed continuous vacuum dryer allows engineers to adjust:
Feeding rate
Screw speed
Heating temperature
Vacuum level
to achieve the required final moisture content.
Modern vacuum drying systems increasingly use:
PLC control
Temperature monitoring
Pressure control
Moisture monitoring
Data recording
Automation improves:
Repeatability
Product consistency
Production efficiency
Calcium Aspirin Powder Drying
Previous Process
Equipment: Conventional hot air oven
Drying time: Approximately 4 hours
Challenges:
Long cycle time
Limited production capacity
Higher energy consumption
Optimized Process
Equipment: Hollow Screw Vacuum Dryer
Optimization factors:
✔ Vacuum drying environment
✔ Efficient heat transfer
✔ Continuous mixing
✔ Improved moisture migration
Result: Same drying requirement achieved in approximately 30 minutes
The improvement was achieved through the combined optimization of:
Heat transfer
Mass transfer
Equipment structure
Process conditions
A systematic approach should follow these steps:
Understand material characteristics:
Moisture type
Particle size
Heat sensitivity
Select suitable dryer structure:
Batch or continuous
Mixing requirement
Heating area
Optimize operating parameters:
Vacuum level
Temperature
Residence time
Validate through drying tests:
Moisture curve
Energy consumption
Product quality
What is the most important factor affecting vacuum drying efficiency?
There is no single factor. Drying efficiency depends on the combined effect of heat transfer, mass transfer, vacuum conditions, and equipment design.
Does increasing vacuum always reduce drying time?
No. After internal moisture diffusion becomes the limiting factor, increasing vacuum provides limited improvement.
Why does mixing improve vacuum drying?
Mixing improves contact between material and heating surfaces while accelerating moisture migration.
Why are hollow screw vacuum dryers efficient?
Because they combine large heating surfaces, continuous mixing, and efficient material movement.
How can energy consumption be reduced in vacuum drying?
By optimizing heating conditions, improving heat transfer efficiency, recovering solvents, and selecting suitable equipment.
