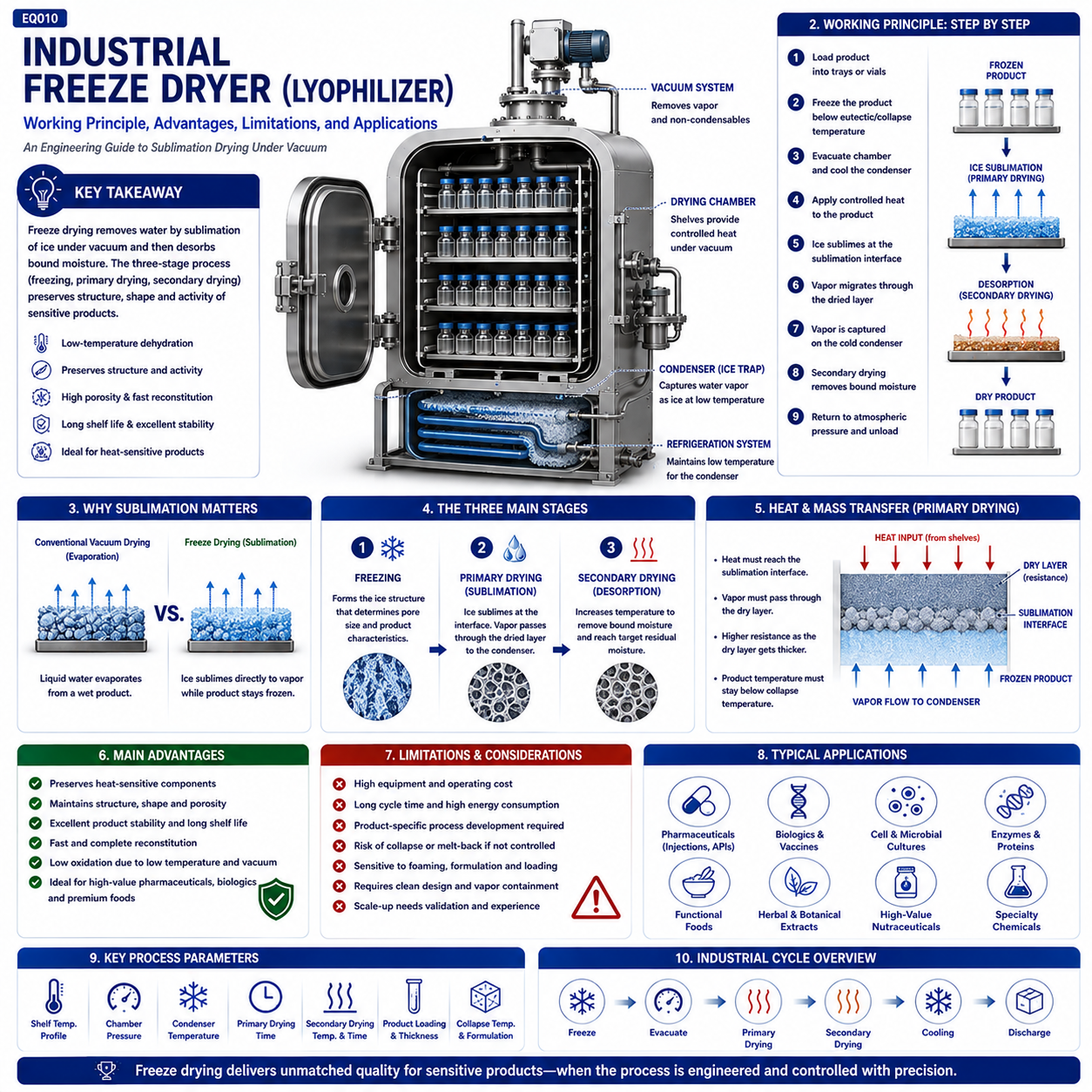

An industrial freeze dryer, or lyophilizer, removes water from a previously frozen product by sublimating ice under reduced pressure and then desorbing remaining bound moisture. Unlike conventional vacuum drying, where liquid moisture commonly evaporates from a wet product, freeze drying deliberately maintains the product in a frozen state during primary drying so that ice passes directly to vapor.
The process normally contains three major stages: freezing, primary drying by ice sublimation, and secondary drying by desorption. This combination can preserve porous structure, shape, reconstitution behavior, and temperature-sensitive product attributes, making freeze drying important in pharmaceuticals, biotechnology, high-value foods, cultures, enzymes, and other products where quality can justify the relatively high equipment and energy cost.
Freeze drying is not automatically the best solution for every heat-sensitive product. Cycle time, refrigeration duty, condenser capacity, vacuum control, product collapse temperature, freezing behavior, residual-moisture target, and product value must be evaluated against alternative vacuum drying technologies.
Freeze drying is a low-temperature dehydration process in which a product is first frozen and then exposed to sufficiently low pressure so that ice can sublime directly into water vapor. After most ice has been removed, a secondary drying stage reduces residual unfrozen or adsorbed water.
Freezing or solidification
Primary drying: ice sublimation
Secondary drying: moisture desorption
Vapor capture in a low-temperature condenser
Controlled heat input under vacuum
1. The product is loaded into trays, shelves, vials, or another suitable container.
2. The product is frozen below the temperature required to maintain the desired frozen structure.
3. The chamber is evacuated and the vapor condenser is maintained at a sufficiently low temperature.
4. Controlled heat is supplied to the frozen product.
5. Ice sublimes at the moving sublimation interface and vapor migrates through the dried porous layer.
6. Water vapor flows toward the colder condenser and deposits there as ice.
7. Primary drying continues until essentially all free ice has been removed.
8. During secondary drying, product temperature is increased under vacuum to desorb more strongly bound water.
9. The chamber is returned to the required pressure and the dry product is unloaded.
Conventional vacuum drying often begins with liquid water or solvent in a wet solid, paste, cake, or slurry. Heat supplies latent energy and the liquid evaporates. In freeze drying, the water has first been converted to ice. Under suitable pressure and temperature conditions, that ice transitions directly from solid to vapor.
This distinction matters because the frozen matrix can support the product structure while ice is removed. The spaces previously occupied by ice crystals become pores, which can produce a highly porous dried structure and rapid reconstitution.
Freezing establishes the ice-crystal structure that strongly influences subsequent mass transfer. Ice nucleation temperature, freezing rate, formulation composition, and annealing can affect crystal size and pore structure.
During primary drying, heat is supplied while chamber pressure remains low. Ice sublimes and vapor passes through the already-dried layer. Product temperature must remain below the relevant collapse, eutectic, or structural limit for the formulation.
After visible ice is removed, remaining water is associated more strongly with the product matrix. Secondary drying raises product temperature under vacuum to promote desorption and reach the required residual-moisture specification.
Primary drying is a coupled heat- and mass-transfer process. Heat must reach the sublimation interface, while generated vapor must escape through the dry product layer and flow to the condenser. If heat input is too low, the cycle becomes unnecessarily long. If heat input is too high, product temperature may exceed a critical structural limit.
As the dry layer becomes thicker, vapor-flow resistance can increase. This is one reason primary drying frequently represents the longest part of a pharmaceutical lyophilization cycle.
The condenser is not merely an accessory. It provides a cold surface on which sublimated water vapor is captured as ice, reducing the vapor load reaching the vacuum pump and helping maintain the pressure gradient that drives vapor transport.
Total ice capacity
Peak sublimation rate
Condenser temperature
Available surface area
Defrost strategy
Pressure drop between chamber and condenser
Ice nucleation can occur over a range of temperatures in an uncontrolled batch. Different nucleation histories can produce different crystal sizes and pore structures. Controlled nucleation can improve batch consistency and may shorten drying by creating more consistent ice structures; the exact benefit remains formulation- and cycle-specific.
For process development, nucleation behavior should therefore be considered alongside freezing rate, shelf temperature, chamber pressure, and formulation composition.
Low product temperature during primary drying.
Preservation of structure and formation of a porous dried matrix.
Rapid reconstitution for suitably formulated products.
Protection of sensitive biologics, cultures, enzymes, and pharmaceuticals.
Low residual moisture can support long-term stability when formulation and packaging are appropriate.
Closed vacuum processing can support sterile or contained production.
High product quality can justify the higher process cost for premium applications.
Long cycle times compared with many conventional dryers.
High equipment complexity due to refrigeration, vacuum, shelf control, and condenser systems.
Significant energy demand for freezing and sublimation.
Risk of collapse, melting, shrinkage, or loss of cake structure if critical temperatures are exceeded.
Scale-up requires careful heat-transfer and vapor-flow analysis.
Condenser capacity can limit peak sublimation rate.
Sterile pharmaceutical systems require demanding cleaning, sterilization, loading, stoppering, and validation strategies.
Capital cost is generally high.
Vaccines and injectable pharmaceuticals
Biologics and proteins
Diagnostic reagents
Microbial cultures and probiotics
Enzymes
High-value pharmaceutical intermediates
Instant coffee and premium beverage ingredients
Fruit, vegetables, seafood, and specialty foods
Research materials and reference standards
Factor | Freeze Dryer | Conventional Vacuum Dryer | Engineering Meaning |
Initial water state | Frozen | Usually liquid in wet material | Different phase-change mechanism |
Main removal mechanism | Sublimation + desorption | Evaporation + diffusion | Freeze drying protects frozen structure |
Product temperature | Very low during primary drying | Low to moderate | Both can protect heat-sensitive products |
Dry structure | Often highly porous | Material/equipment dependent | Freeze-dried products often reconstitute rapidly |
Complexity | High | Usually lower | Economics can favor conventional vacuum drying |
Typical value proposition | Maximum quality/stability | Efficient low-temperature drying | Product requirement should drive selection |
Freeze drying removes ice by sublimation; vacuum belt drying generally evaporates liquid moisture from an unfrozen product.
Vacuum belt dryers can provide continuous low-temperature drying with a substantially different product structure.
Freeze drying is preferred when preservation of frozen structure, high porosity, reconstitution, or biological stability is essential.
Vacuum belt drying may be more economical for pumpable concentrates and pastes when freeze-dried structure is not required.
Specialized continuous industrial freeze-drying systems also exist, particularly in food processing.
Freezing temperature and freezing rate
Ice nucleation behavior
Annealing conditions where used
Shelf temperature
Chamber absolute pressure
Product temperature
Condenser temperature
Primary-drying duration
Secondary-drying temperature and duration
Product fill depth
Formulation solids concentration
Critical product temperature
Residual-moisture target
Vapor-flow resistance
Condenser ice capacity
A laboratory cycle should not be copied directly to an industrial unit without evaluating scale effects. Shelf heat transfer, vial or tray position, chamber pressure distribution, condenser conductance, vapor-flow restriction, batch loading, and edge effects can change with scale.
Product temperature at representative locations
Sublimation rate
Pressure difference between chamber and condenser
Shelf temperature uniformity
Condenser capacity
End-point detection
Batch uniformity
Critical quality attributes
The product loses unacceptable quality during liquid-phase drying.
Preserving shape or porous structure is essential.
Rapid reconstitution is a critical product requirement.
A biologic, culture, enzyme, or pharmaceutical formulation requires very gentle dehydration.
Residual moisture must be tightly controlled for stability.
The product value can economically justify a long, refrigeration-intensive process.
Pilot development confirms a meaningful quality advantage over other vacuum drying methods.
The product can tolerate conventional low-temperature vacuum evaporation.
High continuous throughput is more important than preserving a freeze-dried porous structure.
The material is a filter cake, powder, paste, or slurry better suited to agitated contact drying.
Required quality can be achieved using a vacuum paddle, hollow screw, conical screw, double cone, tray, or vacuum belt dryer.
Energy use, capital cost, and cycle time make freeze drying economically unjustified.
What is an industrial freeze dryer?
A vacuum drying system that freezes the product and removes ice mainly by sublimation, followed by secondary desorption.
What are the three stages of freeze drying?
Freezing, primary drying by sublimation, and secondary drying by desorption.
Why is vacuum required?
Reduced pressure provides conditions for low-temperature sublimation and supports vapor transport toward the condenser.
Does the vacuum pump remove all water vapor?
No. Most water vapor should be captured as ice on the low-temperature condenser before reaching the vacuum pump.
Why is primary drying often slow?
Heat must reach the sublimation interface while vapor escapes through the growing dry layer without exceeding the product's critical temperature.
Is freeze drying always better for heat-sensitive materials?
No. Other vacuum dryers may achieve the required quality with shorter cycles and lower cost.
Can freeze drying be continuous?
Yes. Specialized industrial systems exist, although many pharmaceutical lyophilizers operate batchwise.
How is freeze drying different from vacuum belt drying?
Freeze drying removes water from a frozen matrix by sublimation; vacuum belt drying normally evaporates liquid moisture from an unfrozen layer.
