Introduction

A powder mixer does not create uniformity simply by rotating an internal shaft. The shaft transmits mechanical power, while the blades convert that power into a useful pattern of powder movement. Depending on their shape and position, the blades may lift material, push it along the vessel, fold one region into another or apply stronger local action to cohesive pockets.

In a double motion mixer, the internal mixing system works together with the vessel movement or with a stationary vessel, depending on the selected operating mode. The result is controlled interaction between broad powder circulation and local agitation. This makes the shaft-and-blade assembly one of the most important parts of the equipment selection process.

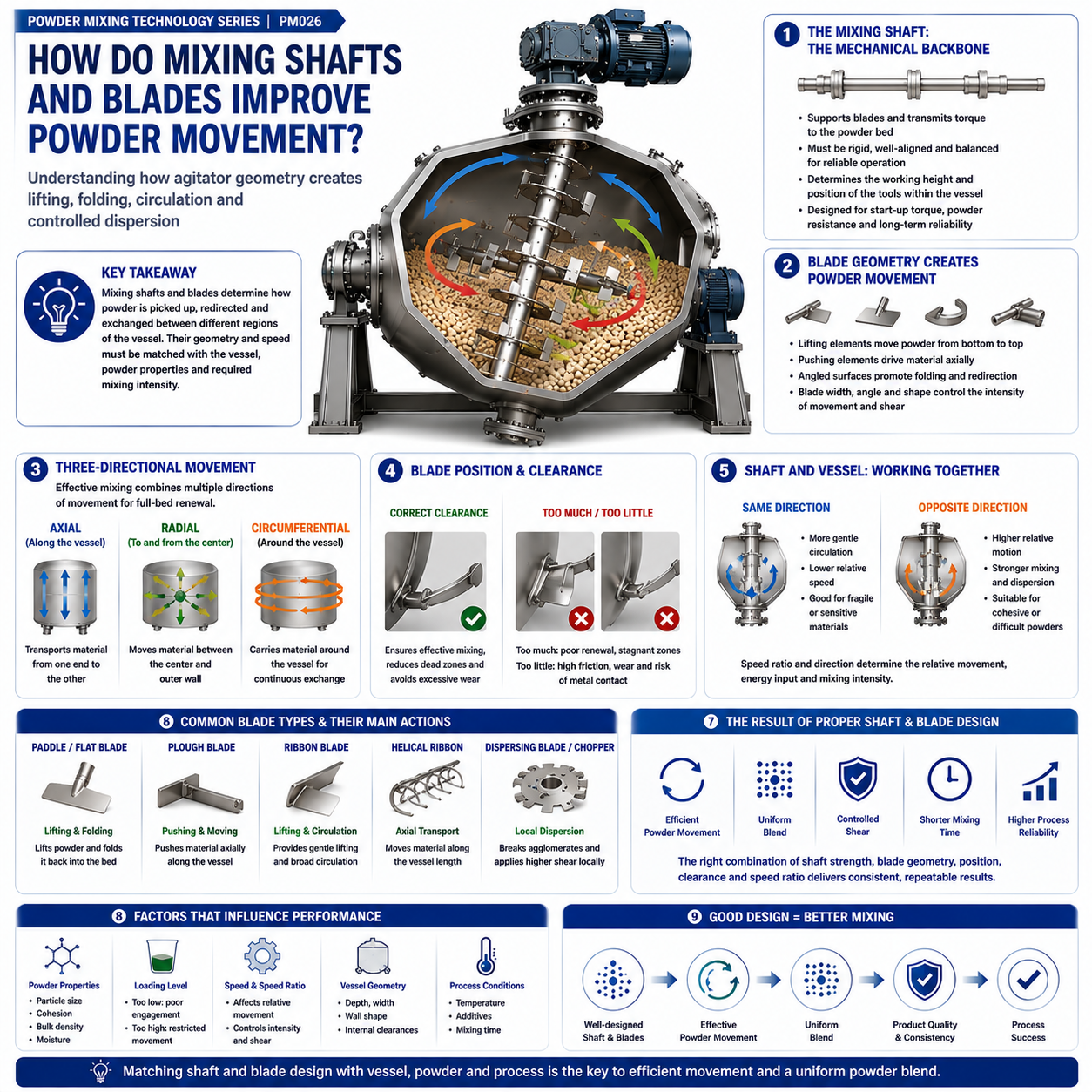

How Do Mixing Shafts And Blades Improve Powder Movement.png

1. The Mixing Shaft Is the Mechanical Backbone

The mixing shaft supports the agitator elements and transfers torque from the drive to the powder bed. It must remain sufficiently rigid and correctly aligned under the combined effects of shaft weight, tool weight, powder resistance, start-up torque and any unbalanced load. Shaft design therefore affects both mixing performance and long-term reliability.

The shaft also determines where the tools operate within the vessel. Its height, axial position and relationship with the wall and end plates influence which parts of the powder bed receive active movement. A well-positioned shaft allows the blades to engage a broad region without creating unnecessary contact, excessive friction or inaccessible residue zones.

2. Blade Geometry Converts Rotation into Powder Movement

Powder does not necessarily follow the same path as a metal blade. The blade surface, angle, width and clearance determine how much material is carried, pushed or allowed to slide. Small changes in geometry can alter the balance between lifting, folding, axial transport and local shear.

A blade that mainly lifts powder can create vertical exchange and expose new material to the surrounding flow. A blade with a stronger axial component can move material toward one end of the vessel. A paddle, bar or plough-style element may be selected when the process requires a particular combination of bulk turnover and local contact. The correct choice depends on the formulation rather than on a universal blade shape.

· Lifting elements increase renewal between lower and upper regions of the powder bed.

· Pushing elements support axial movement and help transfer material along the vessel length.

· Angled surfaces promote folding, redirecting material into neighboring regions.

· Closer or more active tool geometry can increase local mechanical action, but may also increase heat or attrition.

3. Axial, Radial and Circumferential Movement

Effective powder mixing usually involves more than one direction of movement. Axial movement transports material along the vessel. Radial movement exchanges material between the center and outer regions. Circumferential movement carries powder around the vessel or through a rotating zone. The shaft-and-blade arrangement determines how these movements are combined.

If movement is concentrated in only one direction, some regions may be repeatedly reprocessed while other regions receive less renewal. Combining directions helps reduce the risk of a narrow circulation path. In a double motion system, vessel movement can contribute to large-scale circulation while the shaft and blades create additional directional changes inside the powder bed.

4. Blade Position and Clearance Affect Full-Bed Coverage

The distance between the blade and the vessel wall, end plate or neighboring tool affects how effectively powder is renewed throughout the chamber. Excessive clearance may leave a slow-moving region outside the main active zone. Insufficient clearance can increase friction, wear and the risk of metal-to-metal contact when the machine is loaded or thermally expanded.

Clearance must also account for powder behavior. A free-flowing powder may pass through a space easily, while a cohesive or fibrous material may bridge, adhere or form a compacted layer. The design should be reviewed under actual operating conditions, including the expected loading ratio and the selected direction of movement.

5. How the Shaft and Vessel Work as a System

The shaft and blades should not be evaluated separately from the vessel. When the vessel rotates, it can carry a broad portion of the batch while the internal agitator generates additional relative movement. The amount of exchange depends on the speed ratio, direction of rotation, vessel geometry, blade arrangement and powder properties.

When the vessel and internal agitator rotate in the same direction, the relative velocity may be lower in some regions and higher in others. Opposite-direction rotation generally creates a stronger relative movement between the powder, vessel and tools. A stationary-vessel mode can provide a different circulation pattern and may be useful when the process requires the internal agitator to act independently. The most suitable mode should be verified through product trials rather than selected from direction alone.

This coordinated behavior is one reason a double motion mixer can provide more process options than a mixer with only one moving component. The operator can adjust the balance between broad circulation and local agitation while observing blend uniformity, temperature, motor load and particle condition.

6. Main Mixing Blades and High-Speed Dispersing Blades

Main mixing blades are normally responsible for moving the bulk powder mass. Optional high-speed knives or dispersing blades provide concentrated mechanical action in a smaller zone. They can be useful for soft agglomerates, bundled fibers, hard lumps or cohesive trace additives that are not adequately addressed by bulk turnover alone.

A knife dispersing dual motion mixer may use high-speed knives at approximately 1,000 rpm, with a blade-edge linear velocity of about 12 m/s, depending on the equipment configuration. These values describe a stronger local dispersing function, not a universal setting for every product. The actual speed and operating time should be selected according to the agglomerate strength, particle fragility, heat sensitivity and required final structure.

High-speed elements should be used with a clear process purpose. Excessive mechanical treatment can increase temperature, cause particle attrition or alter the shape of fragile granules and crystals. For products where particle form is important, a lower-intensity main mixing stage or a shorter dispersing stage may be more appropriate.

7. Speed Changes the Movement Pattern

Increasing shaft speed does not simply make the same process happen faster. It can change the way powder is carried by the blades, the degree of fluidization or aeration, the relative velocity between the tools and vessel, and the mechanical energy transferred to the product. Speed must therefore be considered together with blade geometry and loading level.

· Lower speeds may support gentle turnover and help protect fragile or shape-sensitive particles.

· Moderate speeds can create a stable combination of lifting, folding and bulk exchange.

· Higher speeds can strengthen local action and improve deagglomeration, but may increase heat, dust, wear or attrition.

· A staged recipe can use different speeds for charging, bulk mixing, dispersion and final homogenization.

Independent control of the vessel and agitator makes these stages easier to define. The process can begin with a movement pattern that distributes the bulk components, then introduce stronger local action only when it is needed. The final recipe should be confirmed by representative sampling and product-quality tests.

8. Matching Blade Design to Powder Properties

Blade selection should begin with the material rather than with the mixer catalogue. Particle size distribution, bulk density, flowability, cohesiveness, moisture, abrasiveness, fiber content and sensitivity to heat or breakage all affect the required tool arrangement.

· Free-flowing powders may need reliable bulk turnover and control of segregation during discharge.

· Cohesive powders may require stronger local action or optional dispersing elements to break soft agglomerates.

· Fibrous materials may need blade geometry that captures and separates bundled material without excessive wrapping.

· Abrasive powders require attention to blade material, wear allowance, shaft protection and inspection intervals.

· Fragile granules or crystals may need a gentler tool profile, lower relative speed and shorter residence time.

9. Blade Design Influences Heat, Wear and Maintenance

The blade assembly is exposed to repeated contact with the powder and to the mechanical resistance of the batch. Cohesive, abrasive or dense materials can increase torque and wear. A blade design that creates unnecessary friction may also transfer more heat to the product and increase the load on the drive system.

Maintenance planning should include shaft alignment, bearing condition, blade wear, weld inspection, seal performance and the accessibility of the internal components. Replaceable or inspectable wear parts can be valuable for abrasive applications. In hygiene-sensitive applications, the blade structure should also be reviewed for cleanability, drainage and the absence of difficult-to-access pockets.

10. Blade Design Affects Discharge and Residue

The final mixing result is not determined only at the end of the mixing cycle. Blade shape and position influence how much powder remains in the vessel and how the blend moves toward the outlet. A tool that creates strong circulation during mixing may not automatically provide the best emptying behavior for a cohesive material.

Discharge trials should observe the first, middle and final portions of the batch where appropriate. They should also check retained powder near the shaft, blades, walls and end plates. If the discharge arrangement creates a preferential flow path, the concentration of a minor component may change even when the powder was uniform before the outlet was opened.

How Shaft and Blade Choices Influence the Process

Design element

Main process effect

Selection question

Shaft rigidity

Maintains alignment and transfers torque

What load, torque and operating hours are expected?

Blade angle

Changes lifting, pushing and folding

Which movement directions are needed?

Blade clearance

Affects coverage, friction and dead zones

Can the tools renew powder near walls and ends?

Tool arrangement

Combines bulk movement with local action

Is the material free-flowing, cohesive, fibrous or fragile?

High-speed knives

Apply concentrated deagglomeration or dispersion

Are agglomerates or bundled fibers present?

Speed control

Adjusts intensity, residence time and energy

What staged recipe protects product quality?

Surface and wear design

Influences hygiene, service life and residue

What material, finish and maintenance plan are required?

Practical Example: Dispersing a Cohesive Trace Additive

Consider a formulation in which a small quantity of a cohesive powder must be distributed through a much larger carrier. The main blades first need to create repeated bulk exchange so that the trace component does not remain concentrated near the charging point. If soft agglomerates remain, high-speed dispersing blades can be introduced for a controlled stage.

The appropriate sequence depends on the actual material. A possible process may include bulk charging, low-to-moderate circulation, a short dispersing stage and final homogenization. The recipe should be validated by representative samples from different vessel locations and, when relevant, from the beginning, middle and end of discharge. This confirms both mixing performance and discharge consistency.

A Shaft-and-Blade Selection Checklist

Before recommending a double motion mixer, sales and engineering teams should confirm:

· The composition, particle-size range, bulk density, moisture and batch weight of each component.

· Whether the powder is cohesive, fibrous, abrasive, electrostatic, fragile or prone to agglomeration.

· The required movement: bulk turnover, axial transfer, local dispersion, fiber separation or gentle blending.

· The preferred operating mode, vessel movement, agitator speed range and any need for staged control.

· The need for high-speed knives, the expected dispersing duty and the acceptable limits for heat or attrition.

· Required product-contact material, surface finish, cleaning method, inspection access and wear protection.

· The discharge arrangement and whether the final blend must be checked across multiple discharge fractions.

A material trial remains the most reliable way to confirm the final tool arrangement. In addition to blend uniformity, the trial should record mixing time, motor load, temperature, residue, discharge behavior and the condition of the particles after processing.

Conclusion

Mixing shafts and blades improve powder movement by converting drive power into controlled lifting, pushing, folding and local exchange. Their geometry, position, clearance and speed determine whether the complete powder bed is renewed and whether the process achieves the required balance between bulk circulation and localized action.

For a double motion or multi-mode mixer, the shaft-and-blade assembly must be matched with the vessel, motion mode and powder properties. Main blades support broad movement, while optional high-speed dispersing elements can address cohesive agglomerates or bundled fibers when used within appropriate process limits. This system-based approach leads to more reliable mixing, easier scale-up and better control of product quality.
