A conical screw vacuum dryer is an agitated batch contact dryer that combines a conical vessel, indirect jacket heating, vacuum evaporation, and a vertically oriented screw agitator. In the classic orbiting-screw configuration, the screw rotates on its own axis while moving around the conical wall. The screw lifts material upward near the wall while gravity returns it through the central region, producing axial and radial circulation with comparatively low shear.
This configuration is used for powders, granules, pastes, and viscous slurries, particularly where low-temperature drying, solvent recovery, containment, gentle product handling, or multi-step processing are important.
The technology is versatile, but dryer selection must still be based on material behavior. Sticky-phase torque, heat-transfer area, wall fouling, dust entrainment, product fragility, cleaning requirements, and condenser/vacuum-system capacity can determine whether a conical screw dryer is appropriate.

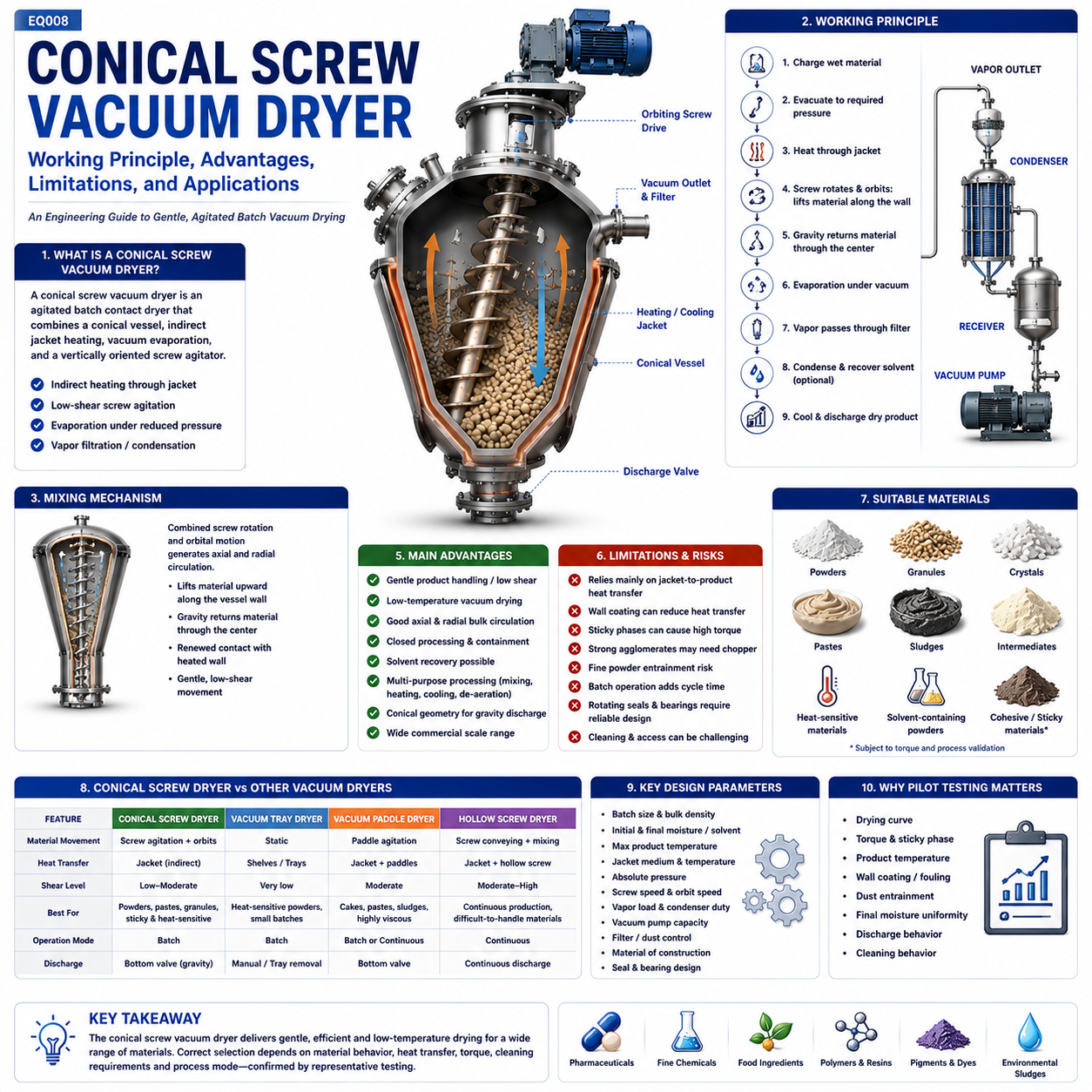

The equipment consists of a vertical conical process vessel fitted with a heating/cooling jacket and a screw-type agitator. In an orbiting-screw design, the screw is typically cantilevered from the top and moves around the vessel wall while rotating. This creates three-dimensional circulation without requiring a bottom bearing in the product zone.
The process integrates indirect heating, low-shear mechanical circulation, evaporation under reduced pressure, and vapor filtration/condensation.
1. Wet material is charged into the conical vessel.
2. The vessel is sealed and evacuated to the required absolute pressure.
3. Steam, hot water, or thermal oil supplies heat through the jacket.
4. The rotating screw lifts product upward along the vessel wall.
5. Orbital motion moves the screw around the cone while gravity returns material through the center.
6. Continuous circulation renews product contact with the heated wall.
7. Moisture or solvent evaporates under vacuum and exits through a vapor filter.
8. A condenser can recover vapor before non-condensable gases reach the vacuum pump.
9. After reaching the final specification, the product can be cooled and discharged.
The characteristic feature is the combined screw rotation and orbital motion. This generates axial and radial material movement, repeatedly brings fresh material toward the heated wall, reduces temperature and moisture gradients, and provides relatively gentle circulation compared with aggressive high-speed agitation.
In a conventional conical screw vacuum dryer, thermal energy is supplied mainly through the jacketed vessel wall. The screw continuously renews material-wall contact.
A simplified relationship is Q = U × A × ΔT, where Q is heat-transfer rate, U is the overall heat-transfer coefficient, A is effective heat-transfer area, and ΔT is the temperature driving force.
Actual heat transfer is strongly affected by material properties, wall contact, fill level, agitation, fouling, and phase changes during drying.
Vacuum reduces the saturation temperature of water or solvent, enabling evaporation at a lower product temperature. However, the overall drying rate is not determined by vacuum level alone. During later drying stages, internal diffusion can become the dominant resistance, so deeper vacuum may provide diminishing returns unless heat transfer and internal mass transfer are also improved.
Commercial conical screw vacuum dryers can process free-flowing powders, granules, crystalline products, heat-sensitive solids, fine chemicals, pharmaceutical intermediates, solvent-containing powders, pastes, viscous slurries, and certain cohesive or sticky products subject to torque and process validation.
• Gentle product movement and relatively low-shear circulation
• Low-temperature vacuum drying
• Good axial and radial bulk circulation
• Closed processing and containment
• Solvent recovery potential
• Multi-purpose processing such as mixing, heating, cooling, and de-aeration depending on design
• Conical geometry supporting gravity discharge
• Wide commercial scale range
• Classic designs depend heavily on jacket-to-product heat transfer.
• Wall coating can reduce heat transfer.
• Sticky phases can create high screw torque.
• Strong agglomerates may require an additional chopper.
• Fine powder can be entrained into the vacuum line.
• Batch operation includes charging, evacuation, drying, cooling, venting, and discharge time.
• The orbiting drive is mechanically more complex than a static tray dryer.
• Cleanability must be evaluated carefully.
• Scale-up should use heat-transfer, evaporation, torque, and circulation data rather than vessel volume alone.
Double Cone Vacuum Dryer: relies on whole-vessel tumbling and generally provides very gentle movement. A conical screw provides more positive internal circulation.
Vacuum Paddle Dryer: typically provides stronger local agitation and surface renewal, which can be useful for dense cakes, pastes, and sludges.
Hollow Screw Vacuum Dryer: can combine heated screw surfaces with positive axial conveying, making it particularly relevant to continuous production when the material is compatible with screw transport.
No configuration is universally superior; material rheology, particle sensitivity, heat-transfer requirements, cleaning, throughput, and operating mode should determine selection.
Conical dryers are widely used in pharmaceutical and fine-chemical processing because the closed vertical vessel can be engineered for containment and hygienic cleaning. Important considerations include surface finish, product-contact geometry, CIP/SIP requirements, vapor-filter cleaning, drainability, inspection access, charging/discharge containment, and seal design.
A solvent-containing process should be treated as an integrated dryer and vapor-handling system. Design inputs include peak and average evaporation rate, solvent vapor pressure, target absolute pressure, cooling-medium temperature, condenser surface area, non-condensable gas load, vacuum-pump compatibility, receiver capacity, flammability/toxicity, and material compatibility.
• Total and working vessel volume
• Batch mass and bulk density
• Initial/final moisture or residual solvent
• Solvent identity
• Maximum allowable product temperature
• Heating-medium conditions
• Jacket heat-transfer area
• Absolute operating pressure
• Screw rotational speed and orbital speed
• Drive torque
• Fill level
• Vapor-filter area
• Condenser duty
• Vacuum-pump capacity
• Cooling requirement
• Discharge and containment strategy
Material behavior can change substantially as solvent or water is removed. A slurry may become a sticky paste before becoming powder; a powder may form agglomerates; a fragile crystal may break under unsuitable mixing conditions.
Testing should record drying curve, condensate rate, product temperature, absolute pressure, heating temperature, screw torque, sticky-phase behavior, wall fouling, agglomeration, dust entrainment, particle integrity, final moisture uniformity, discharge behavior, and cleaning requirements.
What is a conical screw vacuum dryer?
It is an agitated batch vacuum dryer that uses a screw inside a conical vessel to circulate material while indirect heat and reduced pressure remove moisture or solvent.
Is it suitable for sticky materials?
Some industrial designs can process products that become sticky or viscous, but capability is material- and design-specific. Pilot testing and torque evaluation are important.
Can it recover solvents?
Yes. A closed vapor path can include filtration, condensation, a recovery receiver, and a vacuum pump selected for the solvent.
Is it continuous?
The classic conical screw vacuum dryer is primarily a batch dryer.
How is it different from a hollow screw vacuum dryer?
A hollow screw dryer can use heated screw surfaces and positive axial conveying, making it suitable for continuous processing when the material allows it.
Does deeper vacuum always shorten drying time?
No. Heat transfer and internal mass transfer can become rate-limiting.
