A Vacuum Belt Dryer (VBD) is a continuous drying system that transports a controlled layer of product through a vacuum chamber on one or more moving belts. Heat is supplied mainly by contact heating plates beneath the belts and, in some designs, supplementary radiant heating. Independent thermal zones allow the drying profile to be adjusted along the product path, while a final zone may be used for cooling before discharge.
Industrial vacuum belt dryers are used for heat-sensitive liquids, concentrates, pastes, sticky or highly viscous products, and free-flowing granular solids. Their main engineering advantage is the combination of continuous production, low-temperature vacuum evaporation, controlled residence time, and staged heating. They are especially relevant when a material passes through a sticky or high-viscosity phase that is difficult to process in conventional atmospheric dryers.
The technology is not universally suitable. Feed distribution, belt loading, product foaming, vapor load, product release, cleaning, vacuum locks, condenser capacity, and the transition from viscous material to brittle dry product must all be validated during process development.

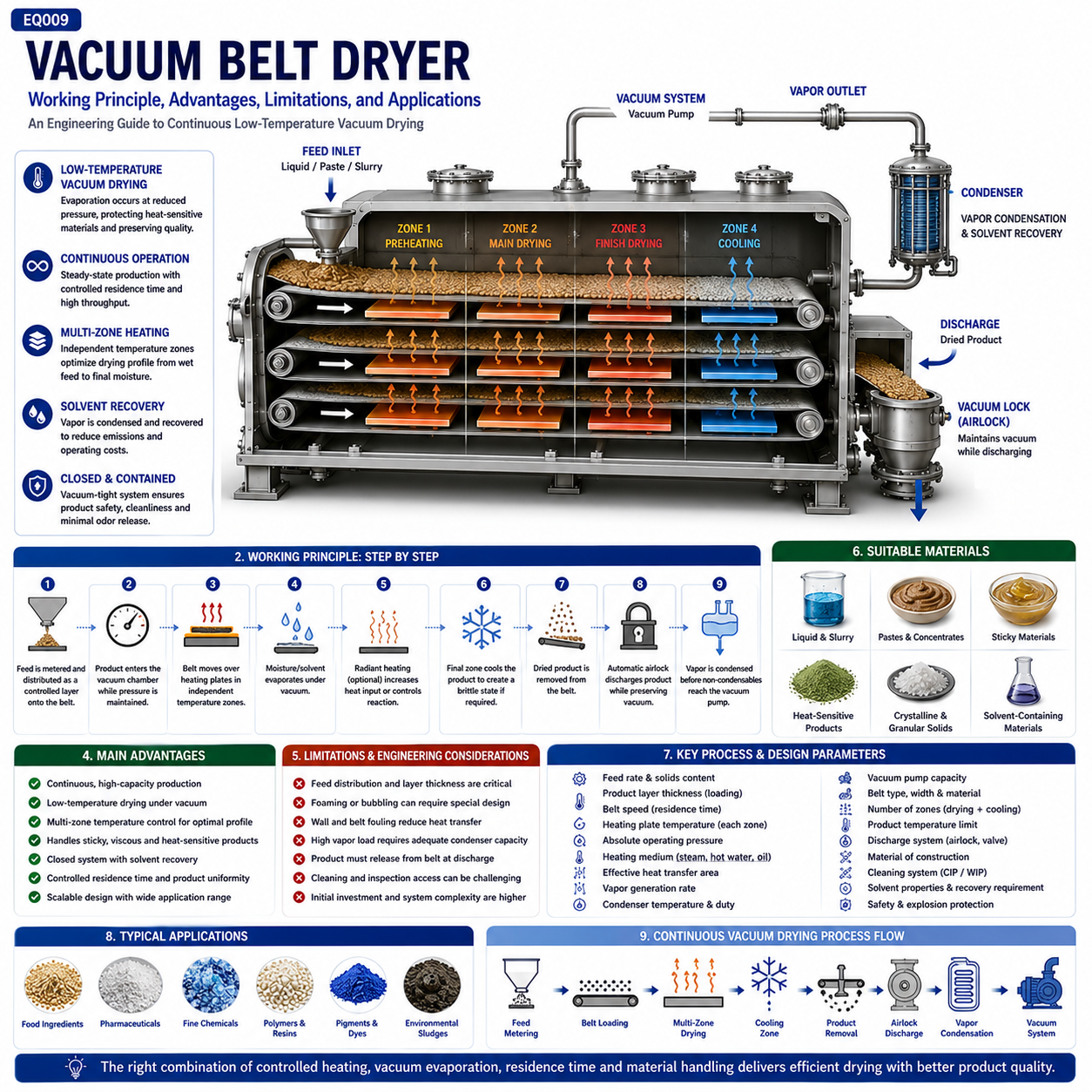

A vacuum belt dryer is a closed continuous dryer in which wet product is deposited onto a moving belt inside a vacuum chamber. The belt carries the material over independently controlled heating zones for a defined residence time. At the end of drying, the product is commonly cooled, removed from the belt, reduced to the required particle size if necessary, and discharged through a vacuum-tight transfer system.
Continuous product transport
Reduced-pressure evaporation
Indirect contact heating
Multiple temperature zones
Controlled residence time
Vacuum-tight feeding and discharge
Optional condensation and solvent recovery
1. Liquid or paste feed is metered and distributed as a controlled layer onto the belt; free-flowing solids can use dedicated dosing systems.
2. The product enters or is loaded within the vacuum boundary while chamber pressure is maintained.
3. The moving belt carries the product across contact-heating plates arranged in independently controlled zones.
4. Moisture or solvent evaporates at reduced pressure while the product gradually changes concentration, viscosity, structure, and temperature.
5. Additional radiant heating may be used in some designs to increase heat input or control product reactions.
6. A final zone can cool the dried product, which can help create a brittle state for downstream size reduction.
7. The dried product is removed from the belt and collected.
8. Automatic airlocks or intermediate chambers discharge product while preserving the chamber vacuum.
9. Generated vapor is condensed before non-condensable gases reach the vacuum system.
Contact heating plates beneath the belt provide a controlled heat source. The basic heat-transfer relationship can be expressed as Q = U × A × ΔT. In a belt dryer, effective heat transfer also depends on belt properties, product-layer thickness, contact quality, product thermal conductivity, local moisture content, and fouling.
Independent zones are important because the optimum thermal load can change during drying. The wet feed may tolerate one heating condition, while a concentrated or nearly dry product may require a lower temperature to protect quality. A cooling zone can reduce product temperature before atmospheric discharge.
Lower absolute pressure reduces the saturation temperature of water or solvent. This permits evaporation at lower product temperatures than would normally be required at atmospheric pressure. Vacuum is therefore useful for thermally sensitive ingredients, oxidation-sensitive products, and processes where aroma, color, activity, or chemical stability is important.
Vacuum does not supply the latent heat of evaporation. The dryer must still transfer sufficient thermal energy into the product and remove the generated vapor. Deeper vacuum also does not guarantee proportionally faster drying when heat transfer or internal moisture diffusion becomes limiting.
Two of the most important control variables are product loading per unit belt area and belt speed. A thicker layer increases production per unit belt area but can increase the diffusion path and create internal moisture gradients. A thinner layer generally improves heat and mass transfer but may reduce throughput.
Feed rate
Belt width and active area
Layer thickness
Belt speed
Number of belts or passes
Zone temperatures
Absolute pressure
Target final moisture
Required cooling time
Plant and herbal extracts
Fruit and vegetable concentrates
Malt extracts
Reaction flavors and hydrolyzed vegetable proteins
Proteins
Vitamins and enzymes
Pharmaceutical and nutraceutical concentrates
Heat-sensitive liquid or paste products
Sticky, hygroscopic, or highly viscous products
Free-flowing powders, granules, and larger solid pieces in suitable feeding configurations
Manufacturer literature from Bucher Merk specifically identifies continuous drying of liquid, paste-like, free-flowing granular, sticky, highly viscous, hygroscopic, and heat-sensitive products. These are equipment-specific capabilities and should be confirmed for each material through testing.
Continuous production: The belt provides a defined product path through the vacuum chamber and can integrate with upstream and downstream processing.
Low-temperature drying: Vacuum permits evaporation at reduced temperature.
Staged thermal profile: Independent heating zones allow the process to respond to changing product condition during drying.
Gentle handling: The product can remain relatively undisturbed on the belt, useful for materials sensitive to mechanical stress.
Processing of sticky or viscous feeds: Suitable industrial designs can dry products that pass through glutinous or highly viscous phases.
Closed processing: The vacuum chamber limits direct contact with ambient air.
Automated operation: Industrial systems can automate feeding, belt transport, heating, vacuum, discharge, and cleaning.
Potential solvent or aroma recovery: Generated vapors can be routed to condensation or other recovery systems.
Uniform feed distribution is critical; uneven layer thickness causes uneven drying.
Foaming or expansion under vacuum can disrupt the product layer.
Sticky products may adhere to the belt or downstream scraper/cutting system.
Heat transfer is sensitive to product-belt contact and deposit formation.
Fine dry particles may be entrained in the vapor stream.
Continuous vacuum feeding and discharge require reliable lock systems.
Large vapor loads require correctly sized condensers and vacuum equipment.
Cleaning can be complex because belts, heating plates, feeders, scrapers, and internal surfaces must all be addressed.
Residence-time distribution and final moisture uniformity must be validated during scale-up.
Capital cost and system complexity are generally higher than simple batch vacuum ovens.
Factor |
Vacuum Belt Dryer |
Vacuum Tray Dryer |
Engineering Meaning |
Operating mode |
Continuous |
Batch |
Belt suits continuous production |
Material movement |
Controlled belt transport |
Static on trays |
Belt defines residence path |
Thermal zones |
Multiple zones possible |
Usually batch profile |
Belt enables spatial temperature profiling |
Labor |
Highly automatable |
Can require tray handling |
Automation can reduce manual handling |
Product changeover |
More internal equipment to clean |
Often simpler chamber/trays |
Tray may suit frequent small campaigns |
Vacuum belt dryers are continuous; classic conical screw vacuum dryers are primarily batch systems.
Conical screw dryers actively circulate the product, while belt dryers generally transport a controlled layer with lower mechanical working.
Belt dryers can create multiple spatial heating zones and a dedicated cooling zone.
Conical screw dryers may be more compact for batch production and can handle some cohesive materials through driven agitation.
Selection depends on feed rheology, throughput, product sensitivity, cleaning strategy, and whether continuous operation is required.
Both technologies can be engineered for continuous vacuum drying.
A belt dryer transports material as a layer over heated plates; a hollow screw dryer uses positive screw conveying and internal heated surfaces.
Belt dryers can be especially attractive for liquid concentrates, pastes, and products that dry into a sheet or brittle cake.
Hollow screw dryers can be attractive for powders, granules, filter cakes, and materials that benefit from forced mixing and axial conveying.
Sticky-phase behavior is critical for both technologies, but the failure modes differ: belt adhesion and poor release for VBDs versus torque buildup or screw fouling for screw dryers.
Pilot testing should compare product quality, evaporation rate, cleaning, discharge behavior, and operating stability.
Maintaining vacuum while continuously moving material across the system boundary is a key design challenge. Industrial belt dryers use product-specific feed systems and intermediate chambers or airlocks so material can enter and leave without continuously opening the main vacuum chamber.
The design must consider bulk density, flowability, stickiness, particle size, air leakage, cycle timing, seal reliability, and the amount of non-condensable gas introduced by each transfer step.
The vacuum system must remove non-condensable gases while the condenser handles the majority of condensable vapor whenever practical. For water or solvent service, system sizing should start with the expected evaporation load rather than pump nameplate flow alone.
Peak evaporation rate
Vapor composition
Target absolute pressure
Condenser temperature approach
Cooling-water or refrigeration conditions
Air leakage
Feed-system gas ingress
Product entrainment
Solvent compatibility and safety
Food, nutraceutical, and pharmaceutical applications may require automated cleaning and hygienic design. Commercial vacuum belt dryers are available with automated cleaning, but cleanability must still be assessed for the actual product.
Belt accessibility and cleanability
Heating-plate surfaces
Feed distributor
Product scraper or cutter
Vapor filters
Internal chamber surfaces
Drainability
Cleaning validation
Cross-contamination risk
Drying after CIP before production restart
Feed composition and physical form
Initial and target moisture or solvent content
Feed viscosity and its change during concentration
Required dry-product structure
Feed rate
Layer thickness
Belt speed and residence time
Heating-zone temperatures
Cooling-zone requirement
Absolute operating pressure
Active heating/cooling area
Expected evaporation rate
Condenser duty
Vacuum-system capacity
Feeding/discharge lock design
Cleaning and hygienic requirements
Vacuum belt drying is highly dependent on how the product changes during the complete drying path. Laboratory or pilot testing should reproduce the relevant vacuum level, heat-transfer mode, layer thickness, residence time, and feed behavior.
Spreading behavior
Foaming under vacuum
Sticky or glass-transition region
Drying curve and evaporation rate
Product temperature profile
Belt release
Final moisture uniformity
Color and aroma changes
Particle or cake structure
Cooling and brittleness
Downstream crushing behavior
Cleaning behavior
What is a vacuum belt dryer?
It is a continuous vacuum dryer that carries a controlled layer of product through heated zones on one or more moving belts.
Can it dry liquid and paste products?
Yes. Industrial systems are specifically available for liquids, pastes, concentrates, and highly viscous products, provided the feed and belt-release behavior are suitable.
Why are there multiple heating zones?
The product condition changes during drying. Independent zones allow heat input to be adjusted along the residence path.
Can a vacuum belt dryer include cooling?
Yes. Commercial designs may use the final zone for product cooling before discharge.
Can it operate continuously without losing vacuum?
Yes, using engineered intermediate chambers, airlocks, and product-specific feeding/discharge systems.
Is it suitable for sticky products?
It can be, and some commercial systems are designed specifically for products passing through sticky or highly viscous phases. Pilot testing is essential.
Does vacuum belt drying preserve product quality?
Lower-temperature and low-oxygen processing can benefit heat- and oxidation-sensitive products, but actual quality retention depends on the complete process profile.
How is it different from a hollow screw vacuum dryer?
A belt dryer carries a layer over heated plates, whereas a hollow screw dryer combines internal heated surfaces, mixing, and positive screw conveying.
