A Double Cone Vacuum Dryer (DCVD) is a batch indirect-contact dryer in which a jacketed double-conical vessel rotates slowly under vacuum. Rotation gently tumbles the product and repeatedly renews contact between the material and the heated vessel wall, while reduced pressure allows moisture or solvent to evaporate at a lower saturation temperature.
The technology is particularly attractive for free-flowing powders, granules, crystals, fine chemicals, pharmaceutical intermediates, and other high-value products that benefit from gentle handling, closed processing, and low-temperature drying.
However, the double cone is not a universal vacuum dryer. Highly sticky products, strong agglomerates, and materials that form persistent lumps may require a more strongly agitated dryer or additional lump-breaking features.

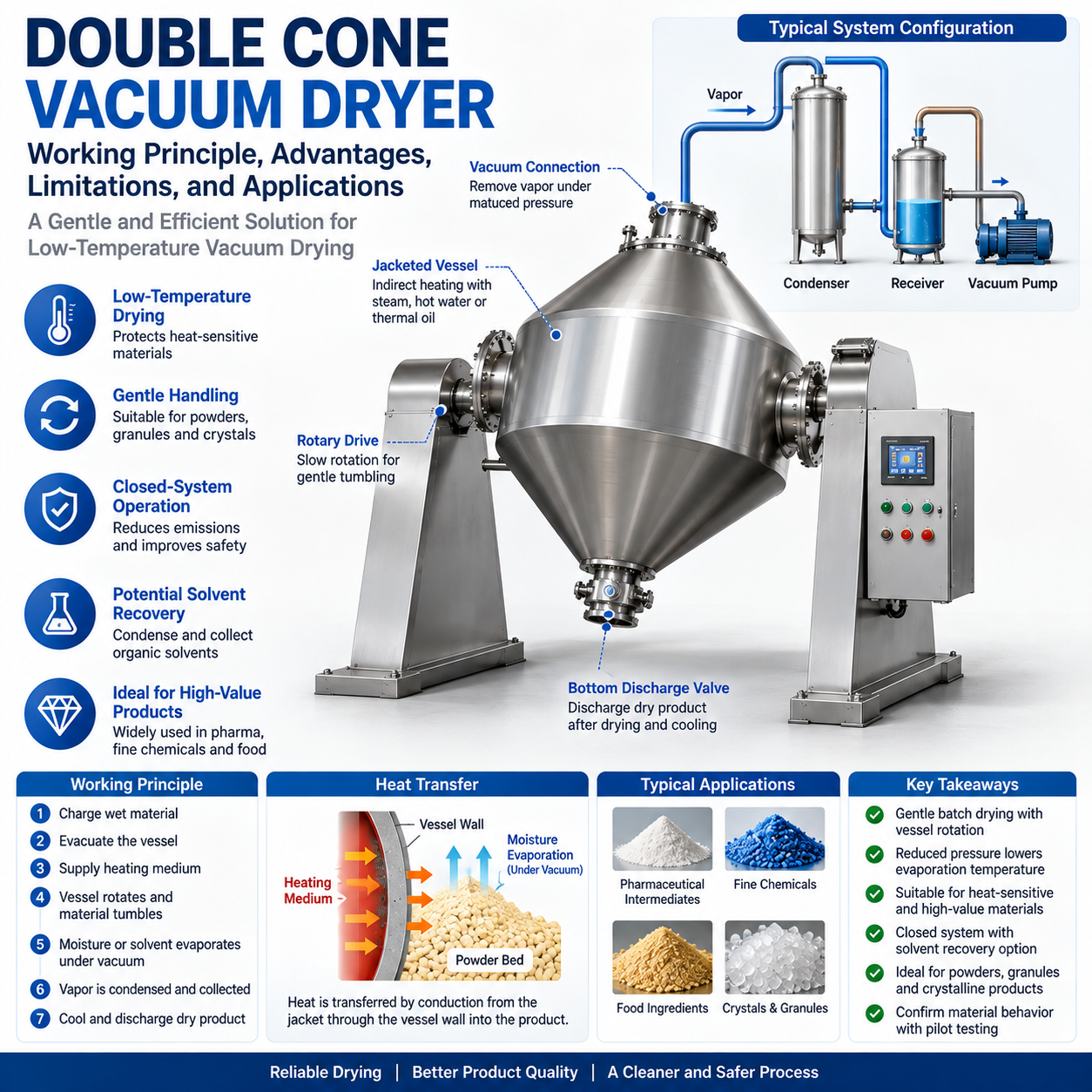

A double cone vacuum dryer consists of a sealed vessel with two conical ends, mounted horizontally so the entire vessel can rotate around its axis. The shell is normally jacketed for indirect heating using hot water, steam, or thermal oil. A vacuum connection removes generated vapor and non-condensable gases.
The process combines vacuum evaporation, indirect jacket heating, gentle rotary tumbling, closed batch processing, and optional vapor condensation and solvent recovery.
1. Material is charged into the stationary vessel.
2. The vessel is sealed and evacuated.
3. Heating medium flows through the external jacket.
4. Slow vessel rotation causes the material to tumble and redistribute.
5. Moisture or solvent evaporates under reduced pressure.
6. Vapor exits through the vacuum line and can be condensed and collected.
7. After reaching the target moisture or residual solvent, the product can be cooled and discharged.
The dominant heat-transfer path is conduction from the heating medium through the vessel wall into the product. A simplified relationship is Q = U × A × ΔT, where Q is heat-transfer rate, U is overall heat-transfer coefficient, A is effective heat-transfer area, and ΔT is the temperature driving force.
Vacuum lowers the saturation temperature of the volatile component. As drying progresses, however, internal moisture diffusion may become rate-limiting. Deeper vacuum therefore does not necessarily continue to shorten drying time once heat transfer or internal moisture migration becomes the controlling resistance.
• Gentle handling of powders, granules, and crystals
• Low-temperature vacuum drying
• Closed-system operation
• Potential solvent recovery
• Product redistribution during vessel rotation
• Relatively simple internal geometry
• Natural suitability for batch traceability
• Conventional designs concentrate most heat-transfer area at the vessel wall.
• Highly sticky products may adhere to the wall instead of tumbling.
• Low shear may be insufficient to break strong agglomerates.
• Fine powder can be entrained into the vacuum line.
• Batch loading, evacuation, heating, cooling, and discharge affect total cycle time.
• Rotating vacuum and heating connections require reliable rotary joints and seals.
• Scale-up should consider evaporation duty and heat-transfer area, not vessel volume alone.
Typical candidates include free-flowing powders, granules, crystalline products, fine chemicals, heat-sensitive materials, oxygen-sensitive materials under controlled atmosphere, and solvent-containing powders requiring closed recovery.
Extra caution is required for highly adhesive filter cakes, plastic or rubbery intermediate phases, hard agglomerates, high-moisture pastes, and materials requiring strong deagglomeration.
Vacuum Tray Dryer: static product with very low mechanical stress; double cone provides gentle tumbling and bulk batch handling.
Vacuum Paddle Dryer: internal paddles provide stronger agitation and surface renewal; often more appropriate for cakes, pastes, and sticky materials.
Hollow Screw Vacuum Dryer: combines indirect internal heating with positive screw conveying and can be advantageous for continuous production when the material is compatible with screw transport.
No dryer type is universally superior. Selection should be based on material behavior, heat and mass transfer, particle sensitivity, throughput, cleaning, and process mode.
• Batch loading mass and bulk density
• Initial and final moisture or solvent content
• Maximum allowable product temperature
• Heating-medium type and temperature
• Effective jacket area
• Absolute operating pressure
• Rotation speed
• Fill level
• Vapor-line and filter design
• Condenser duty
• Vacuum-pump capacity
• Rotary-joint and seal design
• Cooling strategy before discharge
For solvent-containing products, the dryer can be connected to a condenser and receiver. Condenser sizing should consider vapor generation rate, solvent vapor pressure, cooling conditions, non-condensable gas load, material compatibility, and target operating pressure.
Vacuum processing does not eliminate chemical or dust hazards. Solvent flammability, combustible dust, static electricity, oxygen sensitivity, vessel mechanical integrity, rotating equipment, inerting requirements, electrical area classification, and applicable safety codes should be addressed through project-specific risk assessment.
A representative drying test should confirm that the product remains manageable throughout the complete wet-to-dry transition. Important observations include drying curve, product temperature, vacuum level, condensate rate, wall sticking, agglomeration, particle damage, final moisture uniformity, discharge behavior, and cleaning behavior.
What is a double cone vacuum dryer?
A rotating batch vacuum dryer combining indirect jacket heating, reduced pressure, and gentle tumbling.
Is it suitable for heat-sensitive products?
Often yes, because vacuum can lower evaporation temperature, but actual thermal stability must be evaluated.
Can it recover organic solvents?
Yes, when the condenser, receiver, vacuum system, and safety controls are designed for the specific solvent.
Is it suitable for sticky filter cake?
Sometimes, but highly sticky materials may stop tumbling effectively. Pilot testing is strongly recommended.
Does deeper vacuum always reduce drying time?
No. Heat transfer or internal moisture diffusion can become the controlling resistance.
How is it different from a hollow screw vacuum dryer?
A hollow screw system can combine internal heated surfaces with positive axial conveying, making it attractive for continuous processing when the material is suitable.
