A double motion mixer is designed to provide more than one way to move powder. In some operating conditions, the mixing vessel rotates together with the internal mixing system. In another mode, the vessel remains stationary while the internal shaft and blades operate independently. This stationary-vessel mode is not a failure of the double motion concept; it is one of the available process configurations.
When the vessel is fixed, the agitator becomes the main source of powder movement. Its geometry, speed, clearance and position determine how the batch is lifted, folded and redistributed. The mode can be useful when the process requires controlled local action, a stable vessel interface or a simpler movement sequence, but it must still be matched with the powder and the desired result.

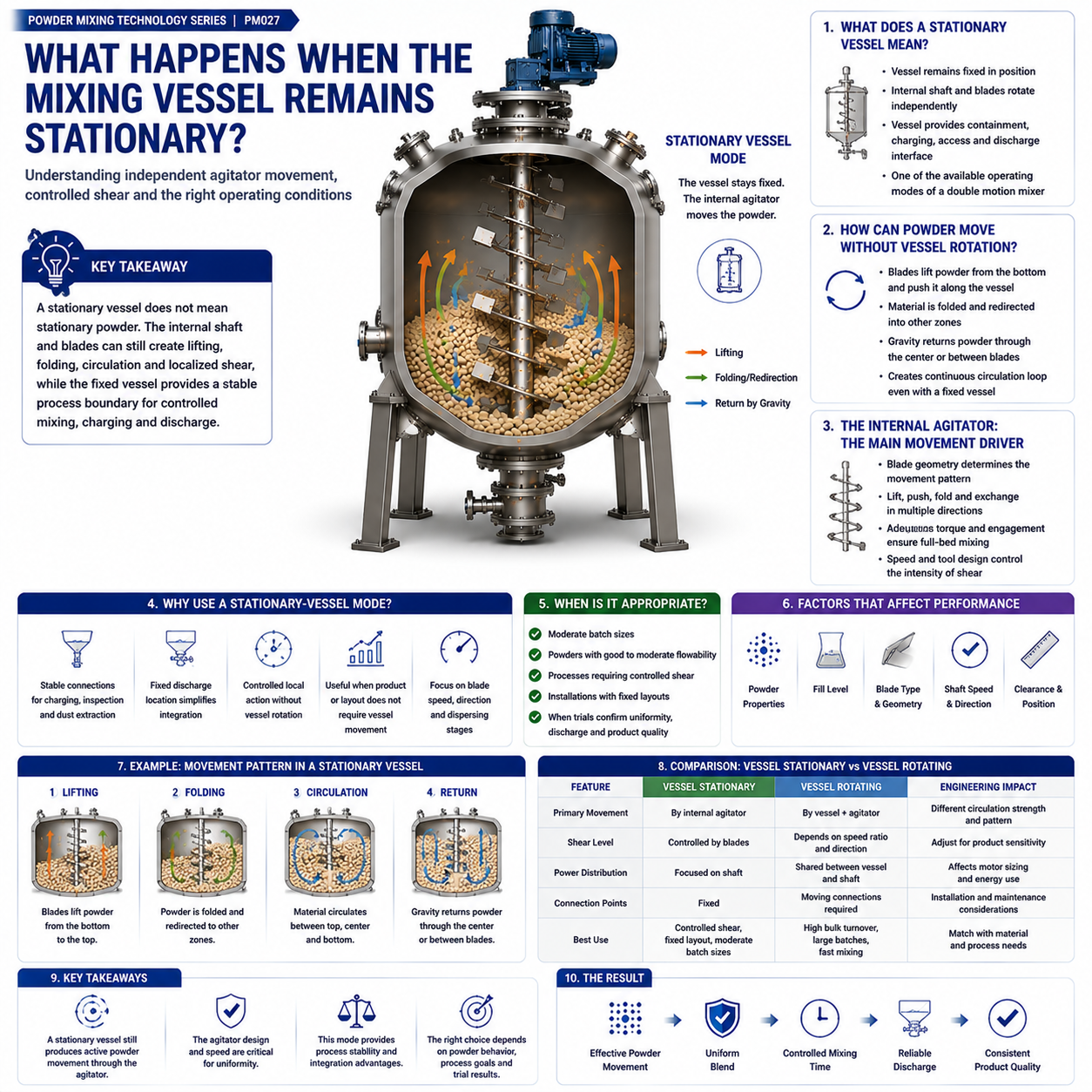

In stationary-vessel operation, the mixing chamber remains in a fixed position while the internal shaft and agitator rotate. The vessel provides the containment space, charging connections, inspection access and discharge interface. The internal tool creates the active movement inside that space.
The exact machine arrangement may vary. The shaft may be driven independently, and optional dispersing elements may operate at a separate speed. The important process feature is that the vessel does not add its own rotational movement to the powder bed. This changes the balance between bulk circulation and localized agitation compared with a mode in which both the vessel and the internal tool move.
Powder movement comes from the interaction between the rotating blades and the material. Depending on the tool profile, the blades can lift material from the lower region, push it along the vessel, fold it into neighboring zones and redirect it back into the active mixing area. Gravity then contributes to the return path as the powder falls or settles through the moving bed.
This creates a circulation loop even though the vessel itself is fixed. The strength and reach of the loop depend on the fill level, powder cohesion, blade geometry, shaft speed and wall clearance. A stationary vessel therefore does not automatically produce a weak process; it produces a different movement pattern that may be selected for a particular formulation.
The blades provide the main mechanical input to the powder bed.
The vessel walls guide and contain the circulation path.
Gravity supports the return of lifted material and contributes to vertical exchange.
The control system can define speed, direction and time for the selected mixing stage.
When the vessel is stationary, the internal agitator has a greater influence on the overall movement pattern. The shaft must transmit sufficient torque to overcome powder resistance, while the blades must engage enough of the batch to prevent a narrow circulation path. The selection of tool geometry becomes especially important for cohesive, dense or fibrous materials.
A lifting-oriented tool can renew contact between lower and upper portions of the batch. Angled blades can create folding and redirection. An axial component can move material toward an end of the vessel, while radial movement can exchange powder between central and outer regions. A practical design often combines these effects rather than relying on one direction alone.
A stationary-vessel mode can be selected when the process benefits from a fixed process boundary and independently controlled internal movement. The advantages are application-dependent and should be confirmed by trials, but several practical reasons are common:
Stable charging and inspection connections can simplify the connection of feeders, dust extraction and sampling points.
A fixed discharge location can make it easier to connect the mixer to a receiving hopper, conveyor or packaging system.
The agitator can provide controlled local action without adding vessel rotation to the batch.
A stationary vessel may be useful when the product or process layout does not require the vessel to move.
The operating sequence can focus on selected blade speeds, direction and dispersing stages.
These benefits do not mean that stationary operation is always the best choice. The correct mode depends on the powder’s flow behavior, loading level, required degree of bulk turnover, sensitivity to shear and downstream discharge requirements.
With no vessel rotation, the relative movement between the internal tool, powder and wall is created mainly by the agitator. This can provide useful localized shear where particles or agglomerates pass through the active tool zone. Shear can help distribute cohesive additives, separate soft agglomerates or improve the contact between components.
Shear should be controlled rather than maximized. Excessive relative speed can increase heat, dust, wear or particle attrition. For fragile granules, crystals or fibers whose shape must be preserved, the process may require a gentler tool profile, lower speed or a shorter high-intensity stage. The desired outcome is sufficient mechanical action for the formulation, not the highest possible energy input.
Loading level has a direct effect on stationary-vessel mixing because the internal agitator must reach and renew the powder bed without assistance from vessel movement. If the batch is too small, the blades may not engage enough material to form a stable circulation pattern. If the batch is too large, limited free space can restrict lifting and increase torque.
The apparent volume of a powder may change during charging as it aerates, settles or forms soft agglomerates. Sales and engineering teams should therefore record both batch weight and occupied volume, together with bulk density and the expected loading range. A vessel that works well for one powder may require a different operating range for another powder of the same nominal batch size.
Although the vessel does not rotate in this mode, its geometry continues to shape the circulation path. Wall curvature, end-plate form, shaft position, blade clearance and outlet location determine whether the stationary vessel supports full-bed renewal or leaves slow-moving regions.
A fixed vessel should provide enough space for the blades to create movement across the working zone. Dead zones may appear near corners, beneath poorly positioned tools or at locations that are not reached by the main flow. Increasing speed may not correct a geometry problem if a region remains outside the active circulation path. The vessel and agitator must therefore be designed as one system.
A fixed vessel can provide a predictable outlet position and a stable connection to downstream equipment. This can be valuable when the blend must be discharged into a weighing hopper, sealed container or packaging line. The outlet, valve and receiving equipment still need to be selected according to powder flowability and cohesion.
Mixing and discharge should be evaluated together. A uniform sample taken from the vessel does not by itself guarantee uniformity throughout discharge. Cohesive powders may leave slowly or retain material near the walls and tools. Free-flowing powders may form a preferential flow path. Trials should examine residue and, where appropriate, samples from the beginning, middle and end of discharge.
Operating mode | Main movement source | Typical process focus |
Stationary vessel | Internal shaft and blades | Controlled agitation, fixed interfaces and localized action |
Same-direction movement | Vessel and internal tool move together | Combined circulation with a selected relative speed |
Opposite-direction movement | Vessel and internal tool move against each other | Stronger relative movement and more intensive exchange |
Staged operation | Different modes or speeds in sequence | Balance bulk turnover, dispersion and product protection |
Consider a cohesive powder formulation that requires the main components to be blended while a fixed charging and discharge interface is preferred. A stationary vessel can provide the stable process boundary, while the internal agitator creates the required lifting and folding action. If soft agglomerates remain, a short dispersing stage can be added without changing the vessel position.
A possible trial sequence may include charging the bulk component, adding the minor component, running the main agitator at a controlled speed and then applying optional localized dispersion. The process should be checked through representative samples, motor load, temperature, residue and discharge behavior. If the result is insufficient, the first adjustments may include blade speed, mixing time, loading level or tool configuration rather than simply increasing intensity.
A stationary-vessel mode should be considered when the application includes one or more of the following conditions:
The process requires a fixed position for feeders, dust extraction, inspection or downstream connections.
The desired result can be achieved through internal agitation without additional vessel movement.
A controlled local shear stage is needed for cohesive additives or soft agglomerates.
The product is sensitive to unnecessary mechanical treatment and the operator needs to limit the movement mechanisms.
The process benefits from a stable outlet position and a clearly defined discharge sequence.
Before recommending stationary-vessel operation, sales and engineering teams should confirm:
Powder composition, particle-size range, bulk density, moisture, flowability and cohesiveness.
Required bulk turnover, axial transfer, localized dispersion and acceptable shear intensity.
Batch weight, occupied volume, expected loading ratio and changes caused by aeration or settling.
Blade geometry, shaft position, clearances and whether the complete powder bed is reached.
Required agitator speed range, direction, staged recipe and optional high-speed dispersing duty.
Fixed charging and discharge interfaces, receiving equipment, dust control and cleaning access.
Product-quality limits for temperature, particle attrition, fiber damage, residue and discharge variation.
A material trial should compare stationary operation with other available modes when the customer’s requirements are uncertain. This gives the engineering team evidence for selecting the movement pattern, blade arrangement and operating recipe that best matches the actual formulation.
When the mixing vessel remains stationary, the internal shaft and blades become the primary source of powder movement. They can still create lifting, folding, axial transfer and localized shear, while the fixed vessel provides a stable boundary for charging, inspection and discharge. The resulting process is different from vessel-rotation modes, but it can be highly useful when the formulation and plant layout support it.
Stationary-vessel operation should be selected through a system-based evaluation of powder properties, loading level, vessel geometry, blade design, speed, discharge and product sensitivity. In a multi-mode mixer, the ability to choose and control this mode gives the process more flexibility while keeping the final decision grounded in material trials and measurable product quality.
