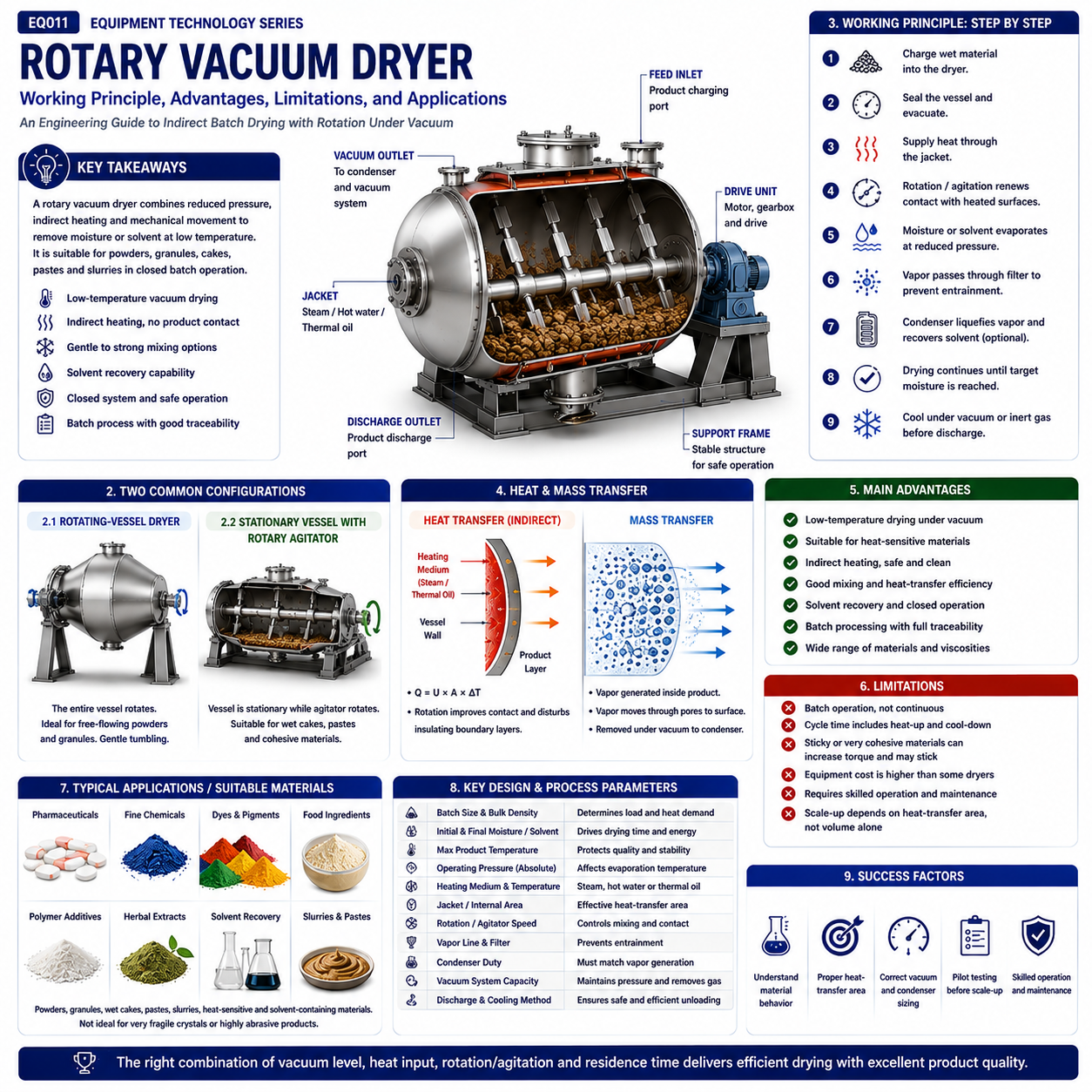

A rotary vacuum dryer (RVD) is a closed, usually batch-operated dryer that combines reduced pressure, indirect heating and mechanical rotation or agitation. Heat is transferred through a jacketed vessel or other heated surfaces while the product is repeatedly renewed against those surfaces. Moisture or solvent evaporates at reduced temperature, leaves the dryer as vapor and can be condensed for recovery.
The term rotary vacuum dryer covers several industrial configurations. Some machines rotate the entire vessel, including double-cone or rotary-cone designs; others use a stationary heated shell with an internal rotating agitator. This distinction is important because material movement, heat-transfer area, torque, sealing, cleanability and particle attrition differ significantly between designs.
RVDs are widely applied to pharmaceuticals, fine chemicals, dyes, pigments, food ingredients and solvent-wet powders or cakes where closed processing and low-temperature drying are required. They are not universally suitable for highly adhesive products, fragile crystals or continuous high-throughput duties. Selection should therefore be based on material behavior and process data rather than the equipment name alone.
A rotary vacuum dryer is an indirect-contact drying system operated below atmospheric pressure. The product is contained in a closed vessel, heated without direct contact with combustion gas, and mechanically moved so that wet material is repeatedly exposed to heated surfaces.
Jacketed or otherwise heated process vessel
Vacuum connection and vapor filter
Rotating vessel or internal agitator
Condenser and solvent receiver when recovery is required
Vacuum pump or vacuum-generating system
Drive, seals, gearbox and controls
In rotating-vessel designs, the entire product chamber rotates. Double-cone and rotary-cone vacuum dryers are common examples. Tumbling continually changes the material's position and can provide gentle mixing for powders and granules.
In another common arrangement, the heated shell remains stationary while paddles, ploughs, rakes or other agitators rotate inside it. This can provide stronger surface renewal and better handling of wet cakes, pastes or cohesive materials.
1. Wet powder, cake, granules, slurry or paste is charged into the dryer.
2. The vessel is sealed and evacuated to the required absolute pressure.
3. Steam, hot water or thermal oil supplies heat through the jacket and, in some designs, heated shaft or agitator surfaces.
4. Rotation or agitation renews product contact with the heated surfaces and reduces local temperature and moisture gradients.
5. Water or solvent evaporates at reduced temperature.
6. Vapor passes through a filter or disengagement zone to limit product entrainment.
7. A condenser liquefies recoverable vapor before non-condensable gases reach the vacuum pump.
8. Drying continues until the target residual moisture or solvent level is reached.
9. The product may be cooled under vacuum or inert gas before discharge.
Most RVDs are indirect contact dryers. A useful first-order relationship is Q = U × A × ΔT, where Q is heat-transfer rate, U is overall heat-transfer coefficient, A is effective heated area and ΔT is the temperature driving force.
Rotation does not create thermal energy; it improves the utilization of available heated area by renewing material contact and disturbing insulating boundary layers. In designs with heated agitators or shafts, the internal surface can materially increase the available heat-transfer area.
Actual heat-transfer performance changes during drying as bulk density, contact behavior, viscosity, porosity and fouling evolve.
Vacuum lowers the saturation temperature of water or solvent, but drying rate still depends on how rapidly vapor can leave the material and the dryer. Early in a cycle, surface evaporation may dominate. Later, internal diffusion through pores, crystals or agglomerates can become rate limiting.
Absolute chamber pressure
Product temperature
Internal diffusion resistance
Agitation or tumbling pattern
Vapor-filter pressure drop
Condenser temperature and capacity
Non-condensable gas load
Air leakage through seals
Closed rotary vacuum drying is particularly valuable when a wet product contains an organic solvent. The vapor system should be designed as part of the dryer rather than as a separate accessory.
Identify solvent composition and expected vapor load.
Size condenser duty from peak and average evaporation rates.
Select coolant temperature with sufficient approach to condense the solvent at operating pressure.
Provide a receiver sized for the expected condensate inventory.
Verify materials of construction, seal compatibility and vacuum-pump compatibility.
For flammable solvents, perform the required hazardous-area, inerting and explosion-risk assessment under applicable plant standards.
Pharmaceutical intermediates and APIs
Fine chemicals
Dyes and pigments
Pesticide and agrochemical intermediates
Solvent-wet powders and crystals
Filter cakes
Granular products
Food ingredients and additives
Certain slurries and pastes in agitated configurations
Low-temperature drying because evaporation occurs under reduced pressure.
Closed processing, reducing direct exposure of product and vapor to ambient air.
Potential recovery of valuable or hazardous solvents through condensation.
Mechanical surface renewal, which can improve heat and mass transfer compared with a completely static bed.
Flexible heating media such as steam, hot water or thermal oil depending on design.
Batch traceability for pharmaceutical and fine-chemical production.
Ability to combine drying with cooling, mixing or other operations in some equipment configurations.
Most conventional RVD configurations are batch processes, so charging, evacuation, drying, cooling, venting and discharge all contribute to cycle time.
Heat transfer can decline when sticky material coats the wall or heated agitator.
Highly adhesive products can create torque peaks, poor discharge or mechanical overload.
Rotating-vessel designs require reliable rotary seals or joints for vacuum and heating utilities.
Fragile crystals or granules can suffer attrition if the motion is too aggressive.
Fine powders can be entrained into vapor filters and condenser lines.
Scale-up based only on vessel volume can fail because heated area, vapor conductance and mixing behavior do not scale linearly.
Cleaning and inspection requirements can dominate equipment selection in GMP or multi-product plants.
A double-cone vacuum dryer is one specific type of rotary vacuum dryer. Its entire vessel rotates and the product is mixed mainly by gentle tumbling. The broader RVD category also includes stationary shells with internal rotary agitators.
Factor | General RVD with Agitator | Double Cone Vacuum Dryer | Selection Meaning |
Material movement | Driven internal agitation | Whole-vessel tumbling | Agitator can provide stronger surface renewal |
Sticky material handling | Potentially better, design dependent | Often limited when tumbling stops | Test sticky phase |
Particle gentleness | Design dependent | Usually gentle | Double cone can suit fragile solids |
Heated internal surfaces | Possible | Usually mainly jacket wall | Changes available heat-transfer area |
Mechanical complexity | Agitator/shaft/seals | Rotating vessel/joints | Maintenance differs |
A rotary vacuum paddle dryer is a subtype of agitated rotary vacuum dryer. Paddle geometry is specifically intended to turn and renew the product against heated surfaces. When comparing equipment, clarify the actual geometry instead of relying on the generic RVD name. Paddle, rake, plough and rotating-vessel machines can behave very differently with the same material.
Conventional RVDs are commonly batch systems; hollow screw vacuum dryers can be engineered for continuous axial conveying.
RVD product movement may come from vessel tumbling or an internal agitator; hollow screw dryers use positive screw motion.
A hollow screw design can add heated internal screw area and controlled axial transport.
For high-throughput continuous production, residence-time control and vacuum feeding/discharge can favor a continuous screw configuration when the material is compatible.
For high-value batch products requiring campaign flexibility, an RVD may be attractive.
Sticky-phase torque, fouling, product attrition and cleanability should be compared through representative testing.
Total and working volume
Batch mass and bulk density
Initial and final moisture/solvent
Solvent identity
Maximum allowable product temperature
Heating-medium temperature and pressure
Effective heat-transfer area
Absolute operating pressure
Rotation/agitation speed
Drive torque
Fill ratio
Vapor-filter area
Condenser duty
Vacuum-system capacity
Seal arrangement
Cooling requirement
Discharge method
Cleaning and containment requirements
A material can change from slurry to paste, sticky mass, granules and finally powder during one drying cycle. The most difficult stage is often not the initial wet feed or final dry powder but the intermediate rheological transition.
Drying curve and condensate rate
Product-temperature profile
Vacuum stability
Torque or drive load
Wall and agitator fouling
Agglomeration or lump formation
Particle attrition
Dust entrainment
Final moisture uniformity
Discharge behavior
Cleaning effort
What is a rotary vacuum dryer?
A closed indirect dryer that uses reduced pressure plus vessel rotation or internal rotary agitation to dry wet solids, cakes, powders, slurries or pastes.
Is every rotary vacuum dryer a double-cone dryer?
No. Double-cone dryers are one rotary-vacuum configuration. Other RVDs use stationary shells with internal paddles, rakes or other agitators.
Can an RVD recover solvents?
Yes. Vapor can be condensed and collected in a receiver when the condenser and vacuum system are designed for the solvent and vapor load.
Is an RVD suitable for sticky products?
Some agitated designs can handle cohesive or sticky phases, but severe adhesion can reduce heat transfer and increase torque. Testing is strongly recommended.
Does deeper vacuum always shorten drying time?
No. Once heat transfer or internal diffusion becomes limiting, deeper vacuum may provide little additional benefit.
Is a rotary vacuum dryer continuous?
Most conventional RVDs are batch systems. Continuous vacuum drying normally requires a dedicated continuous transport and vacuum-lock arrangement.
What information is needed for selection?
Material form, batch size, bulk density, moisture/solvent data, temperature limit, particle properties, sticky behavior, utilities, cleaning requirements and target cycle are key inputs.
