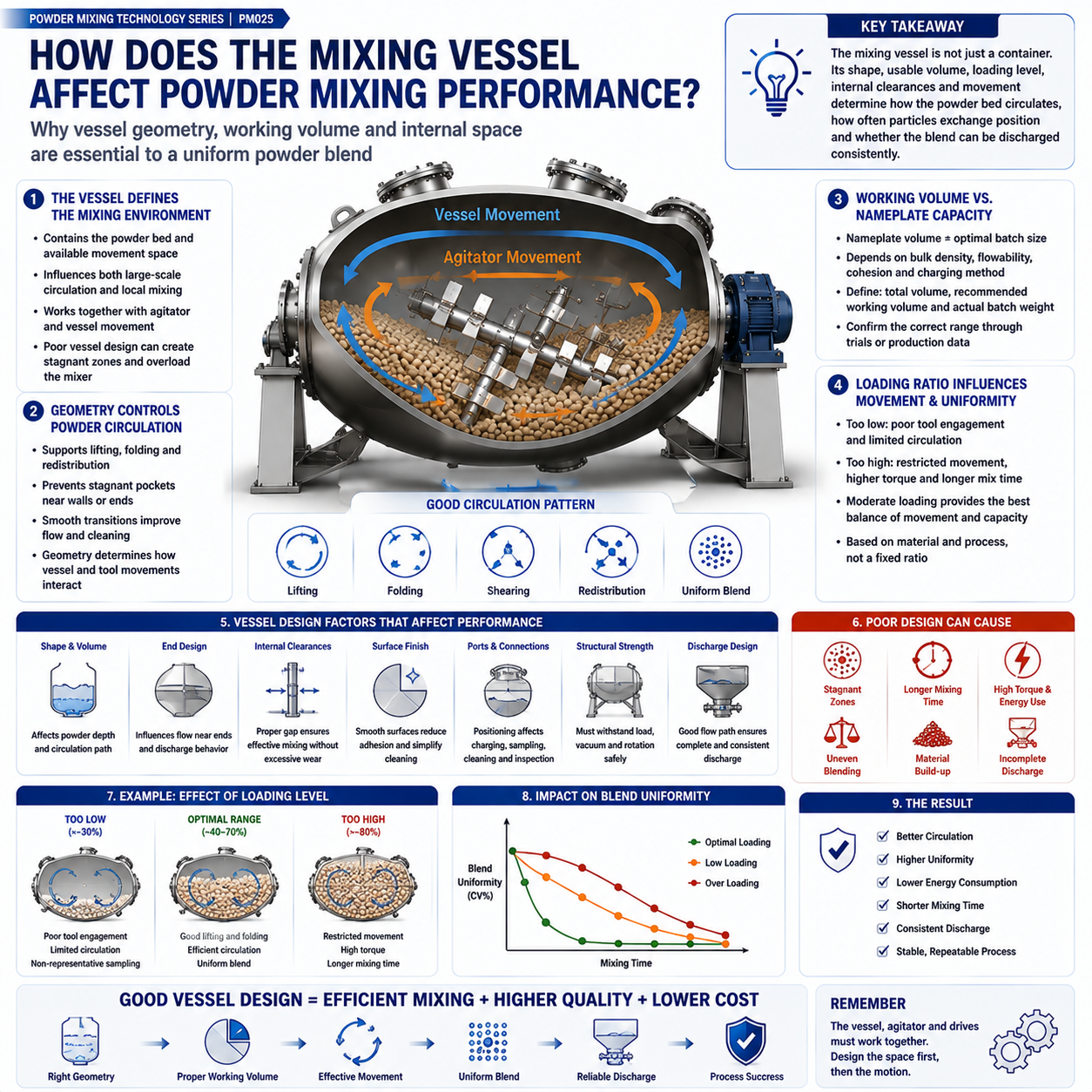

Powder And Mixing - 29. How Does The Mixing Vessel Affect Powder Mixing Performance?

Introduction

When evaluating a powder mixer, attention often goes first to motor power, agitator speed or nominal capacity. These parameters matter, but they cannot be separated from the vessel in which the process takes place. The vessel defines the powder bed, the available movement space and the relationship between the material and the mixing tools.

In a double motion mixer, the vessel may remain stationary or participate in the movement system, while the internal mixing tool is driven independently or through coordinated drives. In either case, vessel design influences the effectiveness of bulk turnover, localized mixing and optional dispersion. A well-matched vessel helps the machine use its mechanical energy efficiently; a poorly matched one can create stagnant zones, overload the mixer or make discharge difficult.

1. The Vessel Defines the Mixing Environment

Powder mixing occurs through repeated movement and exchange between different regions of the batch. The vessel contains that movement and determines the distance over which particles are lifted, folded, pushed and redistributed. Its internal dimensions therefore influence both the large-scale circulation pattern and the work performed by the agitator.

The same agitator can behave differently in vessels with different widths, depths or internal clearances. A vessel that is too shallow may not provide enough powder depth for effective turnover. A vessel that is too deep or overfilled may restrict movement and increase the torque required to rotate the batch. The vessel must be evaluated as part of the complete mixing system, not as an isolated shell.

2. Geometry Controls Powder Circulation

Vessel geometry affects how powder travels through the mixing chamber. Curved surfaces, wall angles, end shapes and the relationship between vessel width and height can either support continuous circulation or allow material to remain in poorly renewed areas. The design objective is to keep the powder bed moving through the active zone of the mixing tools.

For a double motion mixer, geometry also determines how vessel movement interacts with internal tool movement. When the vessel rotates, its walls help carry a broad region of powder, while the internal agitator creates additional local movement. The resulting relative motion depends on vessel shape, fill level, direction and speed. This is why a change in vessel dimensions can change the process even when the agitator speed remains the same.

• A suitable cross-section supports lifting and folding without creating a persistent pocket near the wall or end plate.

• Smooth transitions reduce areas where powder can settle and make cleaning more predictable.

• Internal clearances must allow the tools to act on the powder without unnecessary contact or excessive friction.

3. Working Volume Is Different from Nameplate Capacity

A mixer’s nameplate volume describes the approximate internal capacity of the vessel. It does not automatically represent the best operating batch size. The practical working volume depends on the powder’s bulk density, flowability, cohesiveness, aeration, charging method and the movement required by the formulation.

If the batch is too small, the agitator may not engage enough material to create a stable circulation pattern. If the batch is too large, the powder may have insufficient free space to lift and turn. The correct working range is therefore established from the process objective and material behavior, then confirmed through trials or production data.

For sales and engineering discussions, it is more useful to distinguish three values: total vessel volume, recommended working volume and actual batch weight. Two formulations occupying the same volume may have very different weights and torque requirements because their bulk densities are different.

4. Loading Ratio Influences Movement and Uniformity

Loading ratio describes how much of the usable vessel volume is occupied by the batch. It affects the amount of free space available for powder turnover and the degree to which the tools can renew contact between different parts of the blend. A moderate loading level normally provides a better balance between throughput and movement than an almost empty or completely filled vessel.

• Very low loading can reduce tool engagement and make sampling less representative because a small amount of powder may follow a limited path.

• Very high loading can restrict lifting and folding, increase drive load and extend the time needed to reach the desired blend uniformity.

• The preferred loading range should be based on the actual formulation, not copied from a different powder or batch size.

This is especially important for formulations that combine a light powder with a denser component, or a free-flowing carrier with a cohesive additive. The apparent fill level may change during charging as the powder aerates, settles or forms soft agglomerates. The vessel and process sequence should accommodate these changes.

5. Internal Space Determines the Effectiveness of Double Motion

The central feature of a double motion mixer is the interaction between broad powder movement and internal agitation. The vessel must provide enough space for the powder mass to move while allowing the agitator to reach and renew material throughout the working zone. If the free space is poorly matched to the formulation, one motion may dominate while another has limited influence.

When the vessel participates in rotation, its movement can promote bulk turnover over a wide region. The internal shaft and tools then act on local zones, breaking up concentration pockets and increasing exchange between different powder regions. When the vessel remains stationary, the vessel geometry still controls the circulation path created by the agitator and the available space around the tools.

The key engineering question is not simply whether both components move. It is whether the combined movement reaches the complete powder bed with the required intensity and without causing unwanted heating, attrition or structural damage.

6. Wall Shape, Clearances and Dead-Zone Control

A dead zone is an area where powder movement is significantly slower or less frequent than in the main mixing region. Dead zones may appear near corners, end plates, beneath an improperly positioned tool or in spaces that are not renewed by the vessel motion. They can cause delayed blending, residue accumulation and a difference between the bulk material and the final discharge.

Dead-zone control depends on several details working together: vessel curvature, tool geometry, shaft position, wall clearance, end-plate design and the selected operating mode. Increasing tool speed alone is not a reliable solution if the underlying geometry leaves a region outside the active flow path. Design reviews should therefore consider powder movement throughout the full vessel rather than looking only at the center of the chamber.

7. Vessel Design Affects Heat and Product Protection

Mechanical mixing can generate heat through friction, particle collisions and resistance to movement. Vessel size, loading level, wall contact and relative motion all influence how much mechanical energy is transferred to the product. For heat-sensitive powders, the vessel should be matched with a suitable operating intensity and, when required, a temperature-monitoring or cooling arrangement.

The vessel also provides the boundary for dust containment and controlled processing. A closed design can support connection to dust extraction, inert-gas protection or a vacuum arrangement when the application requires it. Seals, covers, inspection ports and charging connections must be designed together so that containment is maintained during loading, mixing and discharge.

8. Surface Finish and Cleanability Matter to Repeated Batches

Powder can remain on rough surfaces, weld irregularities, sharp transitions or poorly accessible internal areas. This retained material can affect product recovery, create cross-contamination risk during changeover and make cleaning time difficult to predict. A smooth product-contact surface and accessible internal layout support more consistent cleaning and inspection.

SUS304 is commonly used for many product-contact applications, while SUS316 or another suitable alloy may be selected when chemical compatibility or process requirements call for it. Material grade is only one part of the specification. Surface finish, weld treatment, gasket selection and the cleaning method should also be defined according to the product and destination market.

9. Vessel Movement and Discharge Position

In some double motion mixer designs, the vessel can be positioned so that the outlet reaches a defined discharge location. This is useful when the mixer must connect to a weighing hopper, conveyor, packaging line or sealed receiving container. The vessel’s shape and internal slope influence how much material can leave under gravity and how much assistance may be required for cohesive powders.

Discharge is part of the overall mixing performance. A blend that is uniform inside the vessel can become inconsistent if the outlet releases material through a preferential path or if residue remains in a low-movement region. The discharge arrangement should therefore be checked during trials, including the valve, outlet size, discharge angle, receiving equipment and cleaning access.

How Vessel Factors Influence the Process

Practical Example: A Light Powder and a Cohesive Additive

Consider a formulation that combines a low-density carrier with a small quantity of a cohesive additive. During charging, the light component may occupy a large apparent volume, while the cohesive additive may form small agglomerates or remain concentrated near the inlet. A vessel selected only by total liters may not provide the movement needed for reliable dispersion.

The equipment review should examine the actual batch weight, apparent volume after charging, preferred loading ratio, wall clearances and the role of each motion. Broad vessel movement can help renew the powder bed, while the internal agitator can increase local exchange. If soft agglomerates remain, a controlled dispersing stage may be considered. Final settings should be verified through representative sampling and product-quality testing.

A Vessel-Focused Selection Checklist

Before recommending a double motion mixer, sales and engineering teams should collect the following information:

• Total batch weight, target batch volume, bulk density and whether the powder aerates or settles during charging.

• Particle-size range, density difference between components, flowability, cohesiveness and tendency to form agglomerates.

• Required loading method, charging sequence, working-volume range and target mixing cycle.

• Need for vessel movement, stationary-vessel operation, independent agitator speed control or optional dispersing tools.

• Required product-contact material, surface finish, cleaning method and acceptable residual level after discharge.

• Discharge equipment, packaging interface, dust-control requirements and any vacuum or inert-gas conditions.

A material trial is often the most reliable way to confirm whether the proposed vessel geometry and operating range can achieve the required result. The trial should evaluate not only the sample taken from the vessel, but also discharge behavior, residue, temperature, motor load and repeatability from batch to batch.

Conclusion

The mixing vessel directly affects powder mixing performance because it defines the space in which all powder movement occurs. Geometry, working volume, loading ratio, clearances, surface finish, containment and discharge position influence whether the blend circulates evenly, whether the agitator can reach the complete batch and whether the finished product can be recovered consistently.

For a double motion or multi-mode mixer, vessel selection should always be coordinated with the agitator, drive system and control sequence. The best configuration is the one that matches the actual powder properties and production requirements, creating the required balance of bulk turnover, localized mixing, containment and controlled discharge.
