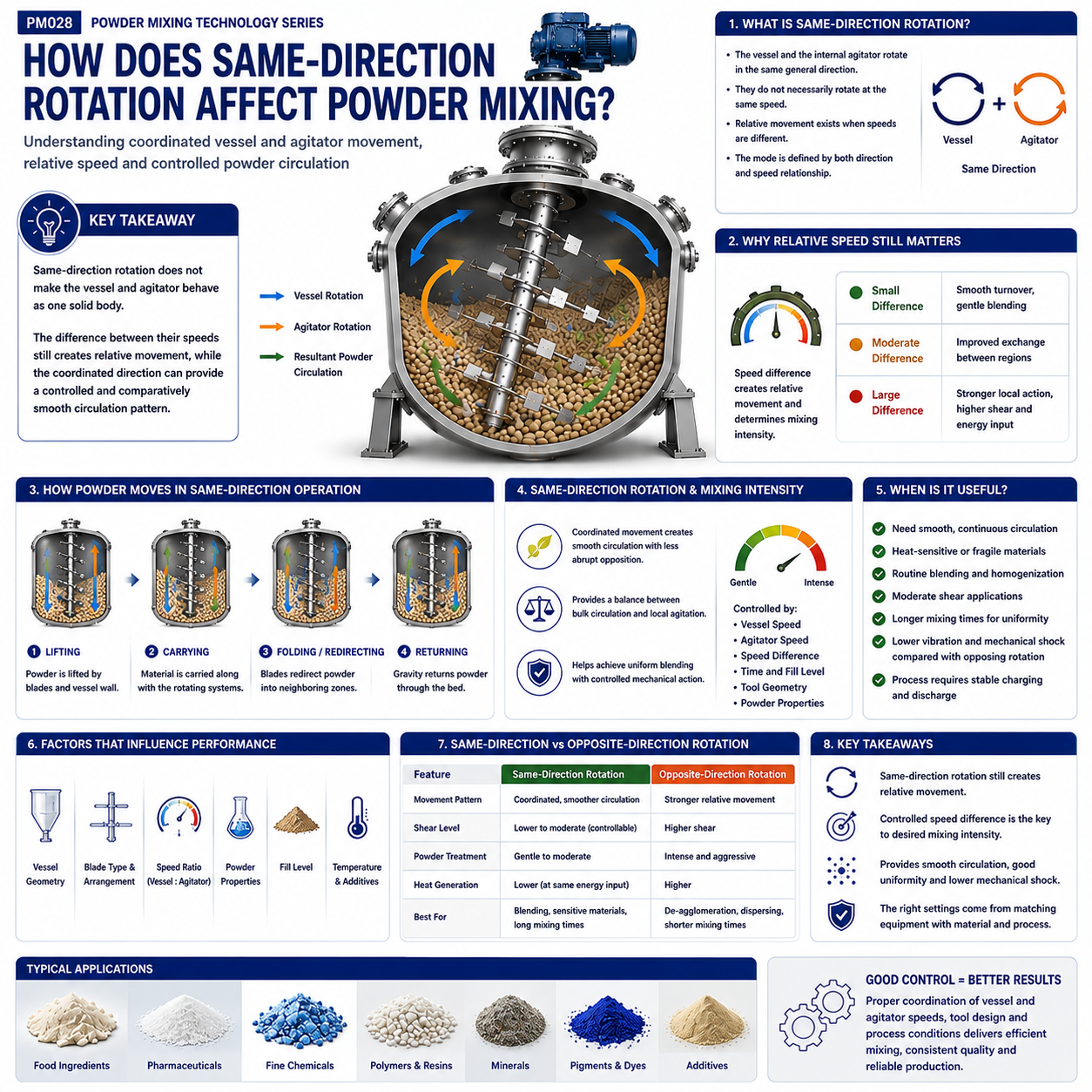

A double motion mixer can combine movement from the vessel and the internal agitator. One available mode is same-direction rotation, in which the vessel and internal mixing tool rotate in the same general direction. This mode is often misunderstood as producing little relative movement, but the actual process depends on the speed difference, tool geometry, loading level and powder properties.
When both components rotate in the same direction, the powder experiences a coordinated movement field rather than two completely opposing actions. The vessel supports broad circulation, while the internal agitator continues to lift, fold and redistribute material. By controlling the relative speed, the process can be adjusted between gentler turnover and stronger local action.
Same-direction rotation means that the mixing vessel and the internal agitator turn in the same rotational sense during a selected operating stage. They do not necessarily rotate at the same speed. If the speeds are different, the powder still experiences relative movement between the vessel wall, the internal tools and neighboring regions of the batch.
The operating mode is therefore defined by both direction and speed relationship. Direction determines how the two movement systems cooperate, while the speed difference determines how much relative motion and mechanical action are generated. A process with a small speed difference can behave very differently from one with a larger speed difference, even though both are described as same-direction rotation.
Powder mixing depends on particles changing position and exchanging contact with other particles. If the vessel and agitator move at different speeds, the internal tools do not simply follow the same material path as the vessel wall. This difference creates relative movement that can renew local contact and redistribute powder through the active zone.
As the speed difference increases, local mechanical action may become stronger. However, the relationship is not determined by speed alone. Powder cohesion, fill level, tool shape, wall friction and the position of the active zone all influence how the available energy is transferred to the batch. The practical objective is to select enough relative movement for the formulation without unnecessary heat, wear or particle damage.
Small relative speed may support smooth turnover and gentle blending.
Moderate relative speed can increase exchange between different powder regions.
Higher relative speed may provide stronger local action but should be evaluated for heat, dust and attrition.
The rotating vessel carries and redirects a broad portion of the powder mass. At the same time, the internal agitator introduces additional lifting, folding and local redirection. Because both systems move in the same general direction, their actions can be coordinated to create a continuous circulation path instead of a sudden collision between opposing movement fields.
The powder may move through several stages during one circulation cycle: it is picked up by the moving tool or wall, carried into a neighboring region, redirected by the blade profile and returned through the surrounding powder bed. Repeated cycles increase the opportunity for different components to exchange position. The actual pattern depends on the vessel shape and agitator arrangement described in the equipment design.
Same-direction rotation is often useful when the process needs a controlled balance between broad circulation and local agitation. Compared with a strongly opposing movement, the coordinated direction may reduce abrupt relative movement in selected regions. This can be beneficial for formulations that require blending without excessive mechanical treatment.
The term gentle should not be treated as a guarantee. A high agitator speed, dense batch or cohesive powder can still create a demanding mechanical condition in same-direction mode. Mixing intensity must be evaluated from the combined settings, including vessel speed, agitator speed, speed difference, direction, time, loading ratio and the use of optional dispersing tools.
The most suitable operating mode depends on the customer’s formulation and process requirements. Same-direction rotation may be considered when the application benefits from one or more of the following conditions:
The process requires broad circulation with a controlled level of relative movement.
The powder blend should be mixed effectively while limiting unnecessary impact or attrition.
The formulation contains components that need repeated exchange but are sensitive to excessive shear.
The customer wants to use a staged recipe that begins with coordinated turnover and later applies a different intensity if required.
The vessel layout and downstream process benefit from coordinated movement before a defined discharge stage.
These are process considerations rather than fixed guarantees. A material trial should confirm whether the selected same-direction speed combination reaches the required uniformity, temperature, discharge behavior and particle condition.
Some powders must be blended without excessive breakage, heat generation or structural change. Examples may include fragile granules, crystals, coated particles or fibers whose length and form are important to the final product. Same-direction operation can be evaluated when a coordinated movement field is preferred, but the tool speed and residence time remain critical.
A suitable process may use a lower initial speed to establish bulk turnover, followed by a controlled increase if the blend requires more exchange. Optional high-speed dispersing tools should be used only when their local action is needed and when the product can tolerate it. Sampling should verify that the material is uniform while retaining the required physical characteristics.
Cohesive powders may resist movement and form localized pockets. Same-direction rotation can help maintain a continuous circulation path while the internal agitator renews contact between regions of the batch. If the blend contains soft agglomerates, the process may add a short dispersing stage after the bulk components have been distributed.
The sequence should be selected according to the material. A cohesive formulation may need more relative movement or a different blade arrangement than a free-flowing powder. A small amount of a fine additive may also require attention to charging order and sampling because a uniform vessel sample does not automatically prove uniformity across the full discharge.
Same-direction rotation is a controllable process mode rather than a single fixed setting. The main variables that influence the result include:
Vessel speed and agitator speed, considered together rather than separately.
Relative speed and the direction in which the speed difference acts on the powder.
Loading ratio, occupied volume and the amount of free space available for turnover.
Charging sequence, especially when a minor component or cohesive additive is involved.
Mixing time, staged operation and the timing of optional dispersion.
Product temperature, motor load, residue, discharge variation and particle condition.
A PLC and HMI can store and repeat these settings as part of a recipe. Repeatability still depends on consistent charging, material condition, equipment maintenance and verification of the finished blend.
The movement mode can influence the condition of the powder immediately before discharge. A stable circulation pattern may help prepare the batch for a controlled outlet sequence, while a high-energy final stage may increase aeration or change the flow behavior of some powders. Discharge should therefore be treated as part of the recipe rather than as an unrelated step.
The first, middle and final fractions of discharge may behave differently, especially when components have different densities or flowability. For critical formulations, samples from multiple fractions can help confirm that same-direction mixing has not been followed by separation during outlet flow. Residue near the wall, shaft or tools should also be checked when recovery and contamination control are important.
Control factor | Influence on movement | What to verify |
Rotation direction | Coordinates vessel and internal tool movement | Does the direction suit the required circulation? |
Speed difference | Sets the degree of relative movement | Is local action sufficient without excessive energy? |
Loading level | Changes tool engagement and free space | Does the batch circulate consistently? |
Mixing time | Determines the number of circulation cycles | Has the blend reached its defined endpoint? |
Staged recipe | Balances turnover, dispersion and product protection | Are each stage and transition repeatable? |
Discharge sequence | Affects recovery and final fraction consistency | Are discharge samples and residue acceptable? |
Consider a powder blend that requires repeated bulk exchange but contains a component that should not be subjected to unnecessary mechanical damage. A same-direction stage can be evaluated to coordinate vessel circulation with internal agitation while keeping the relative movement within a controlled range.
A possible trial may begin with charging the main carrier, adding the minor component in a defined sequence and using a moderate same-direction speed combination. The trial team can then compare blend uniformity, temperature, motor load, residue and discharge fractions. If the minor component remains concentrated, the speed difference, mixing time or charging method may be adjusted. If the product shows excessive attrition or heat, the relative movement or high-intensity stage should be reduced.
Before recommending same-direction rotation, sales and engineering teams should confirm:
Whether the vessel and internal agitator can be controlled independently or through a defined coordinated recipe.
Required vessel speed, agitator speed, speed difference and operating direction for each process stage.
Powder density, particle-size range, flowability, cohesion, moisture and sensitivity to heat or breakage.
Batch weight, occupied volume, loading ratio and the expected behavior during charging and settling.
Need for optional dispersing tools and the acceptable limits for agglomerate size, attrition and temperature.
Sampling plan for the vessel and discharge, including the number of trial batches needed for repeatability.
Downstream equipment, discharge sequence, residue limits, cleaning requirements and dust control.
The recommended mode should be based on measurable results. A successful trial should show not only acceptable blend uniformity, but also stable operation, suitable product condition and consistent discharge.
Same-direction rotation creates a coordinated movement pattern in which the vessel and internal agitator rotate in the same general sense while still producing relative movement when their speeds differ. The vessel supports broad circulation, and the internal tool continues to lift, fold and redistribute the powder within the active zone.
This mode can be useful when a formulation requires controlled turnover, moderate relative movement or protection against unnecessary mechanical treatment. Its performance depends on speed relationship, loading level, powder properties, charging sequence, mixing time and discharge behavior. In a multi-mode mixer, it should be validated through trials and controlled as part of a complete recipe.
