SPRAY 006 - Spray Drying in The Food Industry

Optimizing Milk Powder Reconstitution and Coffee Flavor

In the modern food industry, converting liquid ingredients—such as dairy products, coffee extracts, fruit juices, or plant proteins—into dry powders is a challenging engineering task. Foods require efficient dehydration to extend shelf life while fully preserving their original color, flavor, and delicate heat-sensitive nutrients.

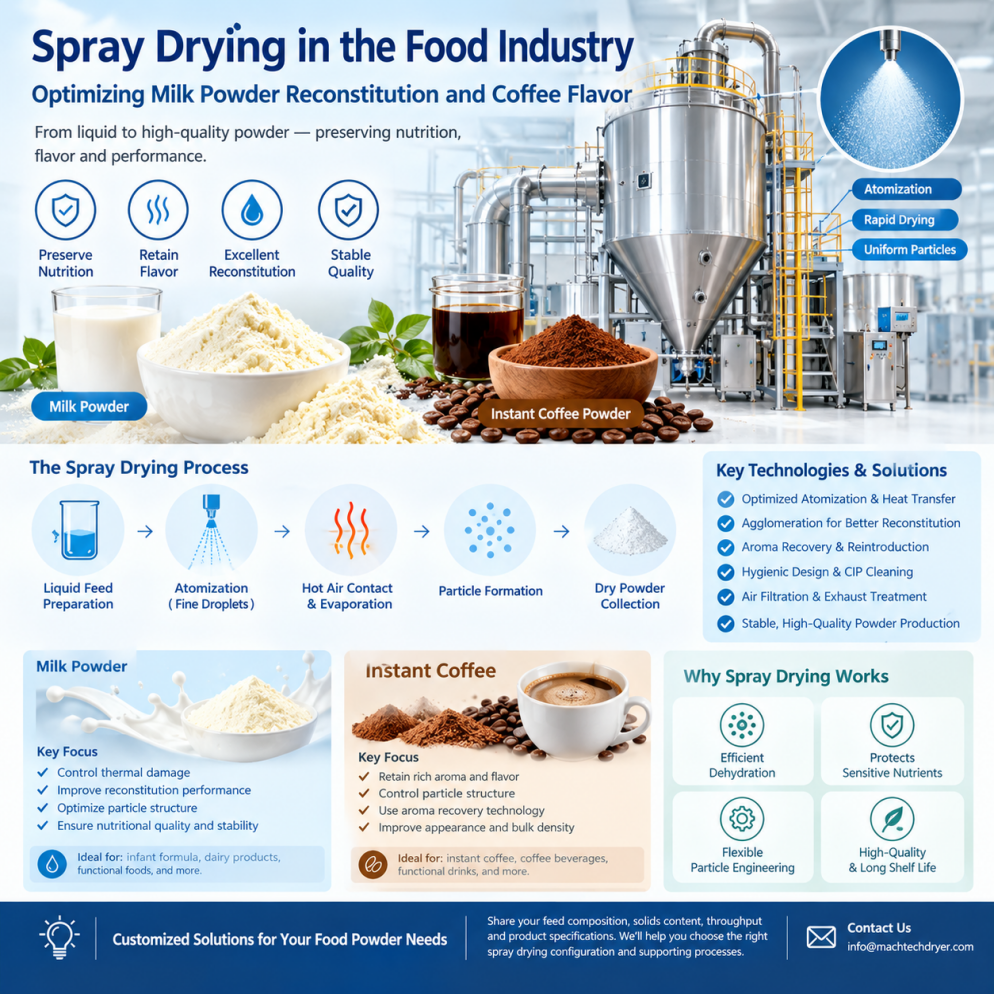

Spray drying disperses a liquid feed into fine droplets, which rapidly lose moisture through contact with hot air and form particles. It is both a drying method and an important process for adjusting the particle size, density, and rehydration performance of food powders. Converting milk, coffee extracts, plant protein liquids, and similar materials into powders involves more than moisture removal. The products must also deliver suitable flavor, nutritional quality, reconstitution performance, and storage stability.

1  Why Hot Air Temperature Is Not the Same as Product Temperature

During spray drying, the inlet air temperature in the drying chamber commonly reaches 150–250°C. This may appear potentially damaging for foods rich in proteins and vitamins. Nevertheless, spray drying can fully protect these components through what is known as the wet-bulb temperature effect.

Evaporative cooling reduces the initial thermal load

Early in drying, the droplet surface contains a substantial amount of water. Evaporation absorbs heat, so the droplet temperature is usually much lower than the surrounding hot air temperature and, under suitable conditions, may approach the local wet-bulb temperature.

This evaporative cooling effect, combined with a short drying time, helps reduce thermal damage to the material.

The protective effect does not persist throughout drying

As moisture decreases, evaporation slows and particle temperature gradually rises. Excessive drying or prolonged material accumulation on chamber walls and other surfaces can still cause changes in protein functionality, flavor loss, browning, or scorched particles.

The process therefore requires coordinated control of inlet and outlet air temperatures, feed rate, airflow, residence time, and final moisture content. Results must be verified through product testing.

2  Milk Powder Production Requires Both Drying and Easy Reconstitution

Milk powder quality encompasses moisture content, protein functionality, flavor, particle structure, and rehydration performance.

Control thermal damage across the entire process

Milk powder production typically involves raw material standardization, heat treatment, concentration, homogenization, and drying. The thermal effects on the product accumulate across these stages. Milk powders intended for different applications also have different requirements for protein characteristics. Appropriate drying conditions can help reduce unnecessary thermal damage, but cannot reverse changes already caused by upstream processing.

Agglomeration improves wetting and dispersion

Conventional spray drying often produces very fine powders of 10–50 micrometers. During reconstitution, these fines can clump at the water surface, forming lumps with a wet exterior and dry interior that are difficult to dissolve. To address this problem, high-end milk powder production lines incorporate a fluidized bed at the bottom of the drying chamber or externally for secondary granulation or agglomeration.

Principle: During the final drying stage, the surfaces of fine milk powder particles are slightly moistened, allowing them to collide and stick together. This forms larger, porous, raspberry-like agglomerates measuring 150–300 micrometers.

Effect: This porous structure acts like a sponge. During reconstitution, capillary action allows water to penetrate rapidly into the particles while air escapes, enabling the powder to dissolve immediately upon contact with water.

Evaluate instant properties separately

What is commonly called instant performance actually involves several processes:

· Wettability: Can water readily contact the powder surface?

· Sinkability: Can the powder enter the water?

· Dispersibility: Can the particles separate with minimal lump formation?

· Dissolution or rehydration: Can the components achieve the required reconstituted state?

Agglomeration generally helps improve certain aspects of reconstitution, but does not guarantee simultaneous improvement in every measure. For some fat-containing milk powders, lecithination may also be evaluated according to the formulation and product requirements to improve wettability.

3  Instant Coffee Production Requires Both Aroma Management and Particle Structure Control

An important measure of good instant coffee is whether it retains the rich aroma of freshly ground coffee. Coffee aroma comes from hundreds of highly volatile aromatic compounds. Their retention depends on multiple stages, including extraction, concentration, drying, and storage.

The selective permeability membrane effect

When coffee extract is atomized and contacts hot air, rapid water evaporation causes a highly concentrated polymer shell to form on the droplet surface. This shell has distinctive semipermeable properties:

· It allows smaller water molecules to pass through and evaporate freely.

· Like a shield, it traps larger, higher-molecular-weight volatile aroma compounds inside the particles.

By optimizing atomizer speed and the hot air flow field in the drying chamber, engineers can promote shell formation within milliseconds, maximizing retention of coffee aroma.

Aroma recovery and reintroduction are important supporting processes

Industrial instant coffee production can incorporate aroma recovery to separate, condense, and preserve aroma fractions that are easily lost, then reintroduce them according to process requirements.

Aroma preservation must therefore be considered across the entire production line, rather than through spray dryer adjustments alone.

Post-drying cooling, powder conveying, and packaging are also important. Unnecessary exposure to high temperatures, moisture uptake, and oxidation should be minimized.

Adjust density and appearance to match product targets

Instant coffee must provide good flavor as well as a specific appearance and bulk density to meet packaging and portioning requirements. By adjusting the coffee extract concentration and injecting an appropriate amount of inert gas into the feed line—for example, through nitrogen foaming—the spray dryer can produce high-quality coffee powder with well-formed particles, a deep color, and uniform density.

4  Hygienic Design Matters More Than a Standard Equipment Checklist

Food processing equipment should be easy to clean, inspect, and maintain, and should suit the product characteristics and production environment.

Product contact materials and construction

Product contact parts are commonly made from 304 or 316L stainless steel. The specific material should be selected according to product corrosiveness, cleaning chemicals, and operating conditions.

Hygienic design must also address welds, seals, drainage, maintenance access, and areas prone to powder accumulation. Surface polishing cannot replace sound structural design.

Cleaning methods and effectiveness validation

Depending on the production schedule, equipment may use disassembly for cleaning, dry cleaning, wet cleaning, or clean-in-place (CIP).

Where CIP is provided, cleaning coverage, duration, temperature, detergent concentration, rinsing, and drainage conditions must be established. After cleaning, the equipment should be thoroughly dried as required by the process, and cleaning effectiveness must be validated.

For lines processing multiple formulations or allergens, product changeover and residue control require particular attention.

Air filtration and exhaust air treatment

Inlet air filtration should be selected according to product risks, environmental conditions, and hygiene requirements. HEPA filtration should not be treated as a universal standard feature for all food spray dryers.

Powder recovery and exhaust air treatment may use cyclones, bag filters, or other suitable systems. Wet scrubbing should also be assessed according to actual needs, taking wastewater treatment, operation, and maintenance into account.

Microbiological and dust risks

Spray drying does not automatically replace a validated microbial reduction step. Raw material treatment, environmental hygiene, and prevention of post-drying contamination should all form part of food safety management.

Combustible food powders also require an appropriate risk assessment to determine powder accumulation controls, monitoring and interlocks, and protective measures.

5  Define Performance Targets Before Developing Food Powders

Small-sample testing can help screen formulations and establish basic drying conditions. If the target product requires agglomeration, aroma recovery, or a specific surface treatment, these supporting processes must also be validated. Final performance cannot be inferred from basic spray drying trials alone.

Select a Drying Solution Based on Product Requirements

Milk powder reconstitution and coffee flavor retention both depend on coordination between multiple processing stages. The value of spray drying lies in converting liquid ingredients into powders that meet application requirements through suitable atomization, heat transfer, and particle formation.

If you are developing food powders, please share your feed composition, solids content, required throughput, and target product specifications. Our technical team can help assess spray drying configurations, testing arrangements, and whether agglomeration, cooling, or other supporting processes are required.
