Spray drying is used for formulation development, process validation, and commercial powder production. However, successfully producing powder in the laboratory is only the first step. Throughput, product quality, powder recovery, and operating costs must also be evaluated before establishing a stable production process.
When selecting equipment, consider both the amount of water that must be evaporated per hour and your current testing objectives, together with the process planned for future production.
Spray dryer capacity is typically expressed as water evaporation capacity in kg/h. This is different from the liquid feed rate or finished powder output.
For example, when processing 10 kg/h of an aqueous feed containing 20% solids, with a target final moisture content of 5% on a wet basis, and assuming no material losses:
Dry solids throughput is approximately 2 kg/h.
Finished product output is approximately 2.11 kg/h.
Required water evaporation is approximately 7.89 kg/h.
Therefore, processing 10 kg of liquid feed per hour does not mean that 10 kg/h of evaporation capacity is required.
The rated evaporation capacity also corresponds to specific test conditions. Actual throughput depends on factors such as inlet and outlet air temperatures, feed solids content, viscosity, and target moisture content. For organic solvent systems, the solvent evaporation load and corresponding system configuration must be assessed separately.
Laboratory equipment primarily addresses an early-stage development question: Can the material be spray-dried into a powder that meets the required specifications?
Evaluate powder formation from solutions, emulsions, or suspensions.
Compare the effects of different formulations, carriers, or additives.
Assess the initial effects of drying temperature on product quality.
Prepare powder samples for analysis and subsequent application testing.
Many benchtop laboratory spray dryers use glass drying chambers, allowing operators to observe the spray and wall deposition. Small R&D systems with stainless steel drying chambers are also available. Heating, feeding, powder collection, and control configurations vary by model.
The minimum sample quantity depends on equipment liquid hold-up, the time required to reach stable operation, feed solids content, and the amount of powder needed. For valuable or limited samples, confirm the minimum feed quantity and expected powder recovery in advance.
At the laboratory stage, focus on:
The amount of sample available for each test.
Whether the atomization method suits the feed.
Whether the powder can be collected effectively.
Ease of disassembly, cleaning, and product changeover.
The ability to record data needed for further process development.
Successful powder production in the laboratory provides a starting point for further development. Production stability and economic feasibility still require additional validation.
Pilot equipment bridges formulation development and production. Its main purpose is to verify that the system can operate consistently and produce material that meets specifications under conditions more representative of the intended production process.
There is no universally defined capacity boundary between laboratory and pilot equipment. Rather than relying on the equipment category alone, assess its atomization method, operating duration, control capabilities, and relevance to the intended production process.
1. Stable Feeding and Atomization
Check for settling, blockage, or fluctuations in atomization during sustained operation, and assess the effects of feed temperature and viscosity.
2. Product Quality
Measure final moisture content, particle size distribution, bulk density, flowability, active ingredient content, and other critical quality attributes.
3. Wall Deposition and Powder Recovery
Observe material accumulation on chamber walls, in ducts, or inside separators. Evaluate powder recovery and performance during continuous operation.
4. Operation and Cleaning
Confirm that startup, shutdown, parameter adjustment, disassembly, and cleaning procedures are suitable for the planned production schedule.
A Pilot System Is More Than a Scaled-Down Production Unit
As equipment size increases, chamber airflow, droplet trajectories, heat transfer, and powder residence time change. Pilot results must therefore be used alongside engineering calculations; test settings cannot simply be transferred directly to a larger system.
To make pilot testing more useful for production equipment selection, choose an atomization method and process configuration that align as closely as practical with the intended production line.
Our LPG-5 spray dryer features interchangeable rotary atomizer and spray nozzle configurations. Users can select the configuration according to feed properties and testing objectives to compare atomization performance, powder formation, and powder characteristics.
Before testing, confirm the suitable materials, sample requirements, and operating conditions for each configuration. When results obtained using a small spray nozzle are used to guide the selection of a larger rotary atomization system, the effects of changing the atomization method must still be evaluated.
Industrial equipment is designed around defined product specifications, capacity targets, and operating requirements. In addition to meeting the evaporation load, the system must address product consistency, energy use, cleaning, maintenance, and production scheduling.
An industrial spray drying system typically requires coordinated design of:
The atomizer and feed system.
The drying chamber and hot air distribution arrangement.
The heat source, air filtration, and supply and exhaust air systems.
Powder separation, collection, and exhaust air treatment systems.
Automatic controls, process monitoring, and protective functions.
If the product requires agglomeration, further drying, or cooling, additional equipment such as a fluid bed may be considered.
Automatic controls can coordinate feeding, temperature, airflow, and related operating parameters to help maintain stable production.
For food or pharmaceutical applications, product-contact materials, surface finishes, hygienic design, and the need for clean-in-place (CIP) systems should be specified according to product and cleaning requirements.
For combustible powders or feeds containing organic solvents, suitable protective measures must be determined through a risk assessment. These may include inert gas protection, monitoring and interlocks, explosion venting, or other measures. Installing an individual protective device does not automatically mean that the entire system meets all hygiene or safety requirements.
Industrial systems can be designed for continuous operation, but actual operating periods still depend on wall deposition, cleaning frequency, product changeovers, and maintenance schedules. These downtime requirements must be included when calculating production capacity.

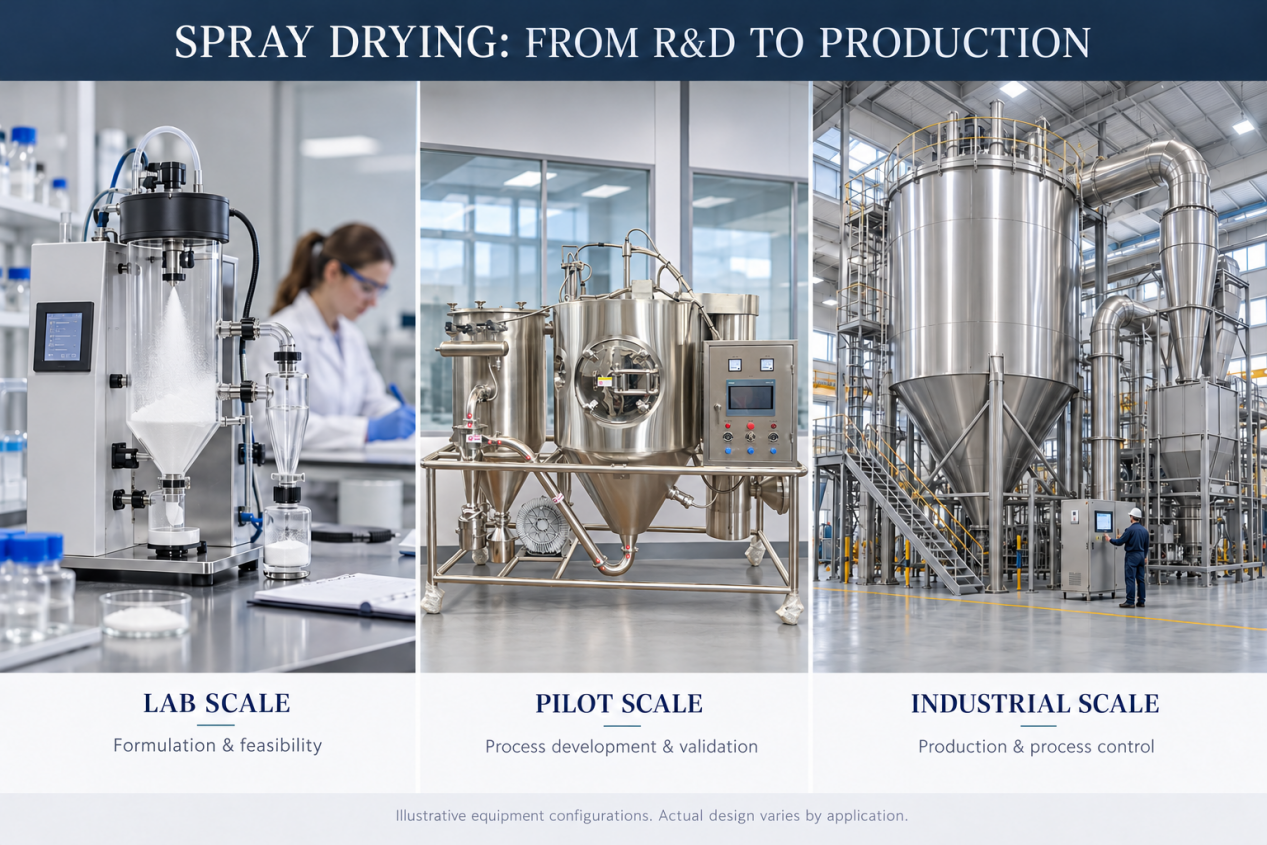

Comparison Factor | Laboratory Scale | Pilot Scale | Industrial Scale |
Primary objective | Formulation screening and powder formation testing | Process optimization and scale-up validation | Stable production and required output |
Capacity considerations | Low evaporation loads, with emphasis on minimizing sample use | Selected according to validation objectives; overlaps with laboratory and small production systems | Designed around production loads and operating schedules |
Common configuration | Benchtop glass or compact stainless steel systems | Stainless steel test systems configured for validation requirements | Drying chamber with feed, hot air, powder recovery, and supporting systems |
Atomization methods | Commonly pneumatic; other configurations are available on some models | Rotary, pressure, or pneumatic atomization | Selected according to feed properties, capacity, and product requirements |
Key performance data | Powder formation, initial product quality, and sample recovery | Stability, wall deposition, powder recovery, and repeatability of product quality | Product consistency, actual output, energy consumption, and operating periods |
Particle size control | Depends on the atomizer, feed properties, and process conditions | Focuses on consistently achieving the target particle size | System design and control are developed around product quality targets |
Typical applications | Academic research, formulation development, and preliminary testing | Corporate R&D, process development, and small-batch trials | Commercial production in food, chemical, pharmaceutical, and other industries |
Laboratory, pilot, and industrial classifications describe the intended application rather than universally standardized capacity ranges. When comparing equipment, verify the evaporation capacity, test conditions, and configuration of each specific model.
If the main objective is to determine whether a formulation can form powder, prioritize sample consumption, powder recovery, and ease of operation.
If the results will support an investment in production equipment, focus on stable operation, how well the system represents the intended process, and data recording capabilities.
If orders and output requirements are already established, select the system according to actual production loads, product quality targets, and operating costs.
Prepare the following information:
Material name and solvent type.
Solids content and viscosity at the intended feed temperature.
Presence of suspended particles and any tendency to settle.
Allowable temperature conditions.
Target moisture content, particle size, and other quality requirements.
Equipment selection should account for both the daily production target and the actual operating time available.
For example, if an eight-hour production schedule includes warm-up, shutdown, and cleaning, output should not be calculated on the assumption of eight hours at full capacity. An appropriate capacity margin may also be required.
In addition to the main equipment dimensions, confirm the overall installation height, maintenance clearance, electrical supply, heat source, compressed air, and exhaust requirements. Laboratory and pilot systems also require installation checks based on their specific configurations.
Spray dryer selection should begin with your current development tasks and future production objectives. The right equipment should meet immediate needs while providing useful data for the next stage of process development.
If you are evaluating laboratory, small-scale trial, or industrial production equipment, please share your feed properties, target throughput, and finished product specifications. Our technical team can help assess equipment capacity, atomization options, and supporting system requirements based on your operating conditions.
