Many people believe that vacuum is the key factor determining drying efficiency. In reality, vacuum only lowers the boiling point of moisture—it does not provide the energy required for evaporation.
The actual drying rate is largely determined by how efficiently heat is transferred into the wet material.
A poorly designed heating system may result in long drying times, uneven moisture distribution, and excessive energy consumption, even under excellent vacuum conditions.
This article explains the heat transfer mechanisms in vacuum drying, the factors that influence drying performance, and why equipment design plays a decisive role in industrial drying efficiency.
Every drying process requires energy.
Whether drying water, ethanol, acetone, or another solvent, the liquid must absorb enough heat to change from a liquid into a vapor.
Vacuum drying reduces the boiling temperature, but the latent heat of vaporization is still required.
This means:
Vacuum lowers the temperature required for evaporation, while heat transfer provides the energy that makes evaporation possible.
Therefore, successful vacuum drying depends on balancing two engineering parameters:
Vacuum level
Heat transfer efficiency
Among them, heat transfer is often the limiting factor in industrial applications.
Evaporation cannot occur without energy input.
Even under deep vacuum conditions, moisture will remain inside the material if insufficient heat is supplied.
A practical analogy is boiling water on a mountain:
The boiling point may decrease because of lower atmospheric pressure, but the water still requires continuous heating to keep boiling.
The same principle applies to vacuum drying.
The dryer must continuously supply heat to:
Raise the material temperature
Provide latent heat for evaporation
Compensate for heat losses
Maintain a stable drying process
Without effective heat transfer, drying efficiency decreases significantly.

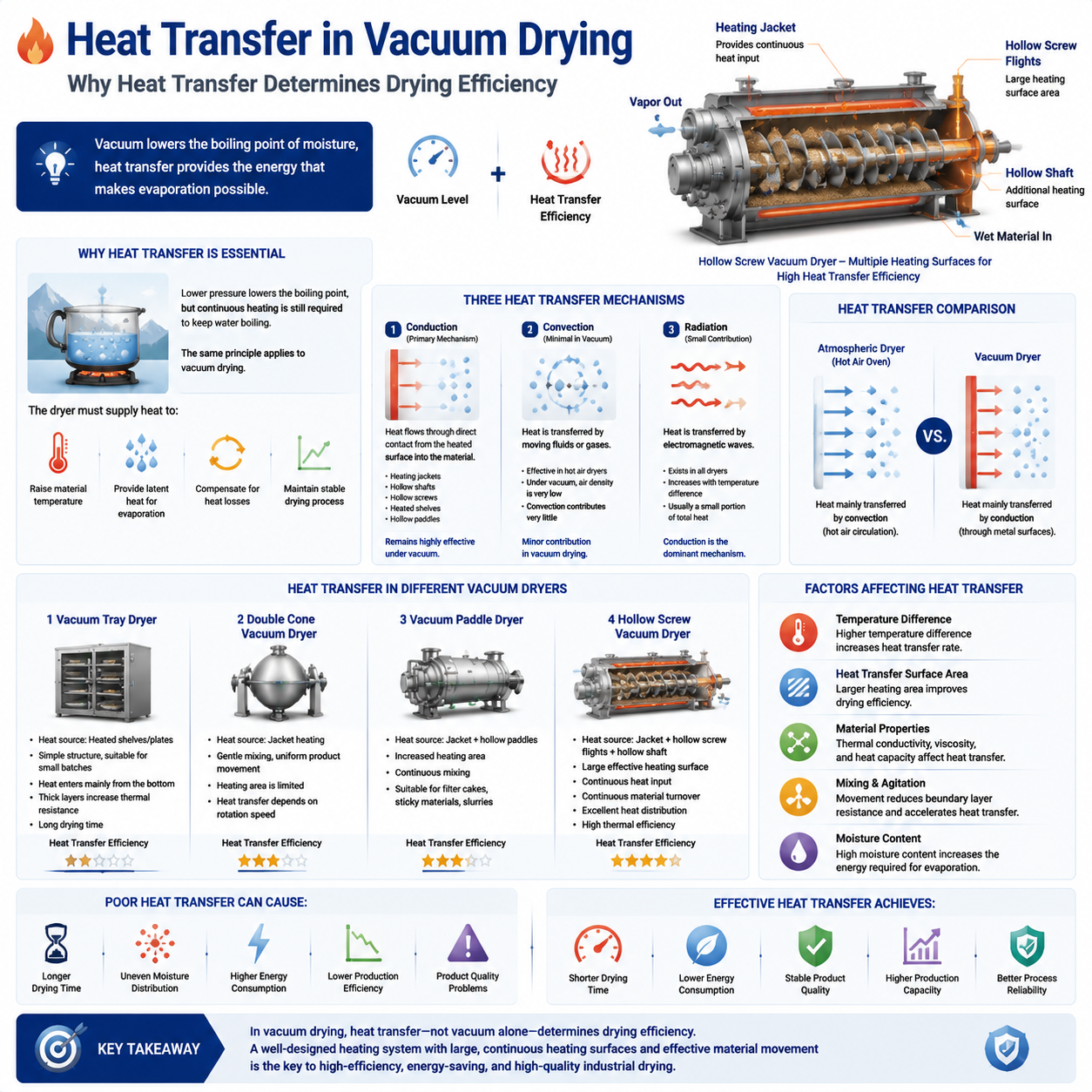

Heat can be transferred through three mechanisms:
Conduction is the primary heat transfer method in most industrial vacuum dryers.
Heat flows directly from the heated metal surface into the material.
Examples include:
Heating jackets
Heated shelves
Hollow shafts
Hollow paddles
Hollow screws
Because conduction does not rely on moving air, it remains highly effective under vacuum conditions.
Convection transfers heat through moving fluids or gases.
In conventional hot air ovens:
Hot air circulates around the product.
Heat is transferred through forced convection.
However, inside a vacuum dryer:
Air density is extremely low.
Gas movement is minimal.
As a result, convection contributes very little to heat transfer.
This is one of the major differences between vacuum drying and atmospheric drying.
All objects emit thermal radiation.
Radiative heat transfer increases with temperature difference but usually contributes only a small portion of the total heat transfer in industrial vacuum dryers.
Although radiation exists, conduction remains the dominant mechanism.
Different equipment designs provide different heating efficiencies.
Heat source:
Heated shelves
Heating plates
Advantages:
Simple structure
Suitable for small batches
Limitations:
Heat enters mainly from the bottom.
Thick material layers increase thermal resistance.
Long drying time.
Heat source:
Jacket heating
Advantages:
Gentle mixing
Uniform product movement
Limitations:
Heating area is limited.
Heat transfer efficiency depends on rotation speed.
Heat source:
Jacket
Hollow paddles
Advantages:
Increased heating area
Continuous mixing
Suitable for:
Filter cakes
Sticky materials
Slurries
Heat source:
Heating jacket
Hollow screw flights
Hollow screw shaft
Advantages:
Large effective heating surface
Continuous heat input
Continuous material turnover
Excellent heat distribution
High thermal efficiency
The combination of multiple heating surfaces significantly improves drying performance compared with traditional external heating systems.
Heat transfer rate depends largely on the available heating surface.
The greater the contact area between the heated metal and the material:
The faster heat enters the product.
The faster moisture evaporates.
The shorter the drying cycle.
Traditional dryers often rely only on external jacket heating.
In contrast, hollow screw technology introduces heat from both the outside and inside of the material bed.
This substantially increases the effective heat transfer area.
Heat transfer is not only determined by equipment design. Material movement is equally important.
If material remains stationary:
Hot spots develop.
Cold zones remain.
Moisture distribution becomes uneven.
Continuous mixing provides:
Better contact with heated surfaces.
Uniform temperature distribution.
Improved moisture migration.
Consistent product quality.
For powders and filter cakes, mixing can significantly improve drying efficiency.
The heating process can be simplified as follows:
Heating Medium(Steam / Thermal Oil)→ Heating Jacket → Hollow Screw Shaft → Hollow Screw Flights → Wet Material → Moisture Evaporation → Water Vapor → Vacuum System → Condenser
Unlike conventional dryers that heat mainly from the vessel wall, the Hollow Screw Vacuum Dryer introduces heat from multiple directions, shortening the distance that heat must travel to reach the material.
This results in faster and more uniform drying.
Several factors influence overall heat transfer performance.
A higher temperature difference increases the heat transfer rate.
However, excessively high temperatures may damage heat-sensitive products.
The heating medium should therefore be selected according to the thermal stability of the material.
More contact between the heated surface and the material leads to higher heat transfer efficiency.
Equipment with larger effective heating areas generally achieves shorter drying times.
Different materials conduct heat differently.
Heat transfer is influenced by:
Particle size
Bulk density
Moisture content
Thermal conductivity
Specific heat capacity
Understanding these properties is essential for equipment selection.
Continuous mixing improves:
Temperature uniformity
Surface renewal
Heat distribution
Mixing is especially important for sticky materials, slurries, and filter cakes.
Reducing pressure lowers the boiling point, which decreases the temperature required for evaporation.
However, vacuum itself does not increase heat transfer.
A well-balanced combination of vacuum level and heat input is necessary to achieve optimal drying performance.
Poor heat transfer may result in:
Long drying cycles
Uneven moisture content
High energy consumption
Product overheating
Material sticking
Reduced production capacity
Most drying performance issues are caused by inadequate heat transfer rather than insufficient vacuum.
When designing a vacuum drying system, engineers should evaluate:
Required production capacity
Material characteristics
Desired final moisture content
Heat-sensitive properties
Solvent type
Heating medium availability
Energy efficiency targets
The objective is not simply to maximize temperature or vacuum, but to optimize the overall heat transfer process.
A pharmaceutical manufacturer previously dried Calcium Aspirin powder using a conventional hot air oven.
Drying time: Approximately 4 hours
Limited production throughput
After implementing a Hollow Screw Vacuum Dryer, the drying time was reduced to approximately 30 minutes while achieving the same drying target.This improvement was made possible by:
Efficient indirect heat transfer through hollow screws
Increased effective heating area
Continuous material mixing
Controlled low-temperature vacuum drying
This case demonstrates that efficient heat transfer, combined with appropriate vacuum conditions, can dramatically improve industrial drying performance.
Does a higher vacuum always improve heat transfer?
No. Vacuum lowers the boiling point but does not increase the rate at which heat enters the material.
Which heat transfer mechanism is most important in vacuum drying?
Conduction is the dominant mechanism because there is very little air available for convection.
Why are hollow screws more efficient?
Hollow screws provide additional heated surfaces inside the material bed, increasing the effective heat transfer area and promoting continuous mixing.
Does mixing improve heat transfer?
Yes. Mixing continuously exposes fresh material to heated surfaces, improving temperature uniformity and drying efficiency.
What is the biggest factor affecting drying efficiency?
Drying efficiency depends on the combined optimization of heat transfer, mass transfer, and vacuum conditions. In many industrial applications, heat transfer is the primary limiting factor.
