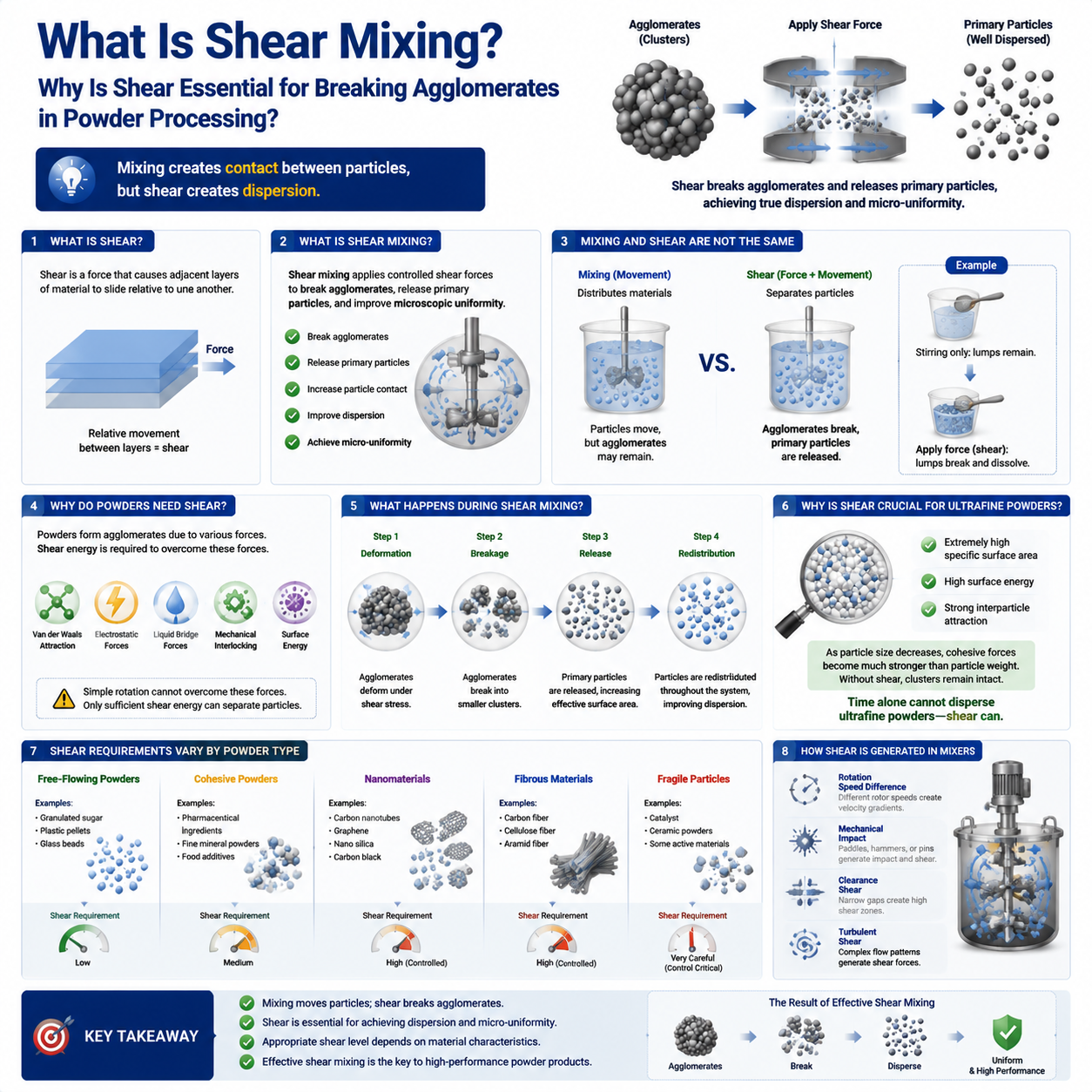

In mechanics, shear refers to a force that causes adjacent layers of material to slide relative to one another.
Imagine placing one hand on top of a deck of cards and pushing it sideways.
Instead of moving as one solid block, each layer slides slightly relative to the next.
This relative movement is called shear deformation.
In powder systems, shear occurs when neighboring particles move at different speeds or in different directions, creating friction and displacement between them.
Shear mixing refers to:
A mixing mechanism that applies controlled shear forces to separate agglomerated particles, redistribute individual particles, and improve microscopic uniformity.
Unlike simple tumbling or diffusion mixing, shear mixing actively changes the structure of the powder.
Its purpose is not merely to move particles.
Its purpose is to:
Break agglomerates;
Release primary particles;
Increase particle contact;
Improve dispersion;
Achieve micro-uniformity.
Many traditional mixers primarily perform:
Convection Mixing
Diffusion Mixing
These mechanisms move powders throughout the vessel.
However, movement alone does not guarantee that agglomerates are broken.
For example:Imagine stirring a cup of coffee containing sugar lumps.
The liquid circulates,but the sugar lumps may remain intact.
Only when the spoon applies force to crush the lumps do they dissolve rapidly.
The same principle applies to powder processing.
Movement distributes materials.
Shear separates particles.
Many powders naturally form agglomerates because of:
Van der Waals attraction
Electrostatic forces
Moisture-induced liquid bridges
Mechanical interlocking
Surface energy
These forces hold particles together.
Simple rotation cannot overcome them.
Only sufficient shear energy can gradually separate the clustered particles.
During shear mixing, several important processes occur simultaneously.
Large particle clusters begin to deform under shear stress.
Weak connections between particles start to loosen.
As shear increases,the agglomerates fracture into smaller clusters.
Smaller clusters continue to separate until individual particles are released.
This dramatically increases the effective surface area.
The released particles are transported throughout the powder system.
This improves both dispersion and micro-uniformity.
Ultrafine powders possess:
Extremely high specific surface area;
High surface energy;
Strong interparticle attraction.
As particle size decreases, cohesive forces become much stronger than particle weight.
Consequently, ultrafine powders tend to behave as clusters rather than individual particles.
Without shear,these clusters remain intact regardless of mixing time.
Increasing mixing time alone often produces little improvement.
Only controlled shear can effectively separate these agglomerates.
Different materials require different shear levels.
Examples:
Granulated sugar
Plastic pellets
Glass beads
These materials require relatively little shear.
Simple diffusion mixing is often sufficient.
Examples:
Pharmaceutical ingredients
Fine mineral powders
Food additives
Moderate shear is necessary to improve dispersion.
Examples:
Carbon nanotubes
Graphene
Nano silica
Carbon black
These materials require carefully controlled shear.
Too little shear leaves agglomerates intact.
Too much shear may damage particle morphology.
Examples:
Carbon fibers
Glass fibers
Cellulose fibers
These materials require shear capable of opening fiber bundles without breaking the fibers themselves.
One common misconception is "The stronger the shear, the better the mixing."
This is not always true.
Excessive shear may cause:
Particle breakage;
Fiber damage;
Crystal destruction;
Heat generation;
Increased electrostatic charging.
In pharmaceutical production,excessive shear may even alter particle properties and affect product quality.
Therefore,modern powder engineering emphasizes:Controlled Shear rather than Maximum Shear.
The objective is to apply enough energy to disperse particles while preserving their functional characteristics.
Shear is one of the key mechanisms for achieving micro-uniformity.
The relationship can be summarized as follows:
Agglomerates → Controlled Shear → Primary Particles → Dispersion → Micro-Uniform Distribution → Stable Product Performance
Without shear, micro-uniformity is extremely difficult to achieve.
Traditional equipment such as:
V-Type Mixers
Double Cone Mixers
Three-Dimensional Mixers
Two-Dimensional Mixers
primarily rely on gravity-induced particle movement.
They are highly effective for:
Free-flowing powders;
Similar particle sizes;
Low-cohesion materials.
However,their shear intensity is generally limited.
As a result,they may struggle to:
Break agglomerates;
Disperse nanoparticles;
Separate fiber bundles;
Achieve true micro-uniformity.
For many advanced materials,particle movement alone is no longer sufficient.
The evolution of powder mixing technology can be viewed in three stages.
Move powders.
Mix powders.
Control particle behavior.
This new generation focuses on:
Controlled shear;
Efficient dispersion;
Particle deagglomeration;
Micro-uniformity;
Long-term anti-segregation stability.
Instead of simply asking "How fast can powders be mixed?"
Engineers now ask "How effectively can particle structures be controlled?"
Shear mixing is far more than a mechanical action.
It is the process that transforms agglomerated powders into uniformly dispersed particle systems.
Without adequate shear:
Agglomerates remain intact;
Dispersion is incomplete;
Micro-uniformity cannot be achieved.
However,the goal is not to apply the highest possible shear.
The goal is to apply precisely controlled shear that:
Separates particles efficiently;
Preserves particle integrity;
Promotes uniform dispersion;
Prevents unnecessary particle damage.
As powder processing continues to evolve toward advanced materials and functional powders, shear engineering is becoming one of the core technologies that determines mixing quality.
