VA003- How Does Vacuum Drying Work?

1. Introduction

Vacuum drying is an advanced drying technology that removes moisture or solvents from materials by combining reduced pressure, controlled heating, and vapor removal inside a sealed drying system.

Unlike conventional hot air drying, which relies mainly on high-temperature air circulation to evaporate moisture, vacuum drying changes the physical conditions of evaporation by reducing the pressure inside the drying chamber.

The fundamental principle is simple:

When pressure decreases, the boiling point of water and solvents decreases, allowing evaporation to occur at lower temperatures.

This makes vacuum drying especially suitable for:

• Heat-sensitive materials

• Oxygen-sensitive products

• High-value powders

• Pharmaceutical intermediates

• Battery materials

• Fine chemicals

• Food ingredients

• Solvent-containing materials

Understanding how vacuum drying works requires knowledge of three interconnected mechanisms:

1. Vacuum generation and pressure control

2. Heat transfer to the wet material

3. Mass transfer of moisture from inside the material to the vapor phase

The efficiency of an industrial vacuum dryer depends on how effectively these three processes work together.

2. Basic Principle of Vacuum Drying

In any drying process, the objective is to remove liquid contained in a material.

The drying process requires two essential conditions:

• Energy must be supplied to convert liquid moisture into vapor.

• The generated vapor must be removed from the material.

In atmospheric drying:

• Air is heated.

• Hot air contacts the material.

• Moisture evaporates.

• Humid air carries away the vapor.

In vacuum drying:

• Pressure inside the chamber is reduced.

• The boiling point of moisture decreases.

• Heat is supplied through indirect heating surfaces.

• Moisture evaporates at lower temperatures.

• Vapor is continuously removed by the vacuum system.

The main difference is that vacuum drying changes the evaporation environment rather than simply increasing temperature.

3. Why Does Vacuum Reduce the Boiling Point?

The boiling point of a liquid is the temperature at which its vapor pressure equals the surrounding pressure.

Under atmospheric conditions:

• Water boils at approximately 100°C.

When external pressure decreases:

• Less energy is required for molecules to escape from the liquid phase.

• Evaporation occurs at a lower temperature.

For example:

This pressure-temperature relationship is the foundation of vacuum drying technology.

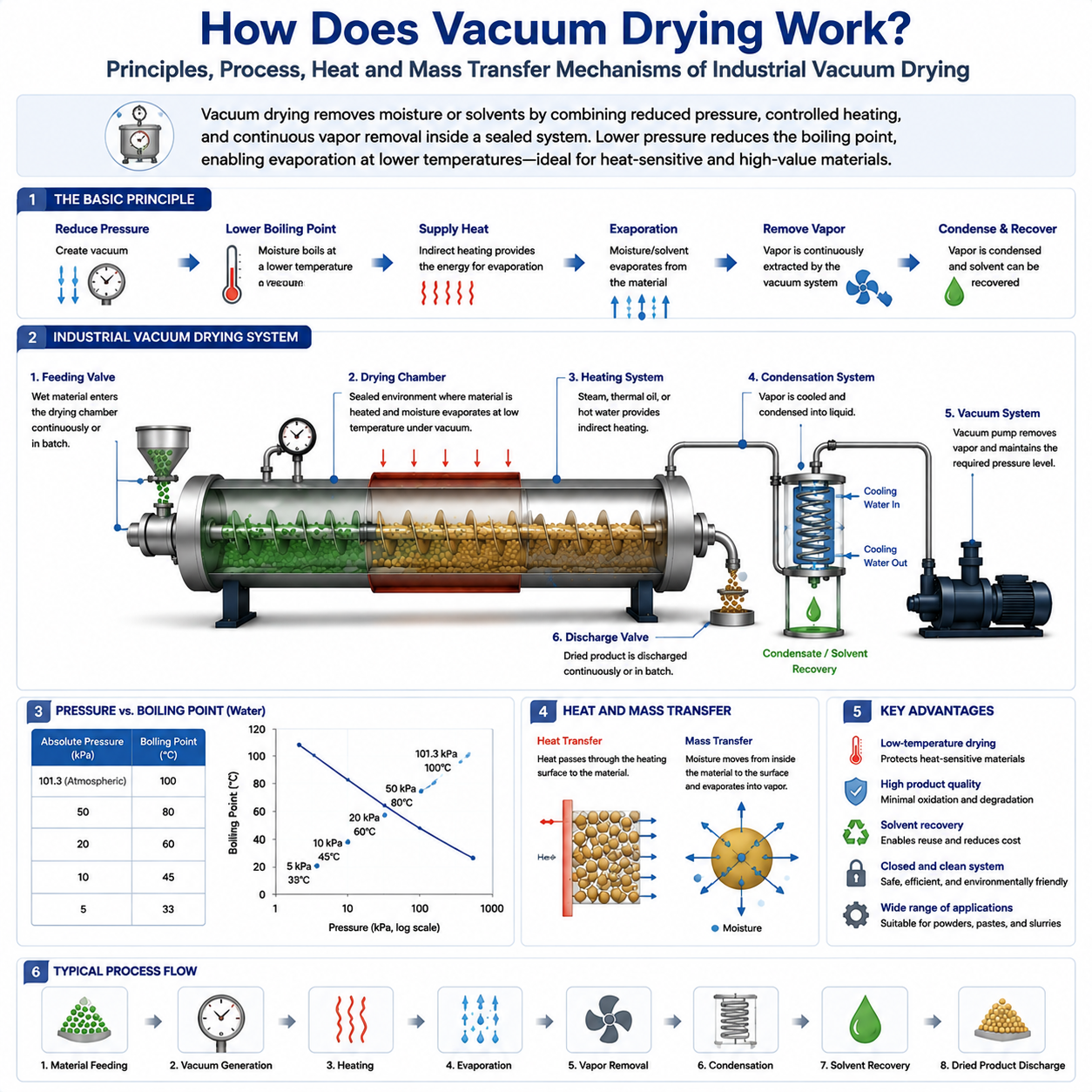

4. Main Components of an Industrial Vacuum Drying System

A complete industrial vacuum drying system usually consists of several key components.

4.1 Drying Chamber

The drying chamber provides a sealed environment where:

• Material is contained

• Vacuum conditions are maintained

• Heat is transferred

• Vapor is generated

The chamber design depends on the material characteristics and production requirements.

Examples:

• Vacuum tray dryer chamber

• Vacuum paddle dryer

• Hollow screw vacuum dryer

• Double cone vacuum dryer

4.2 Vacuum System

The vacuum system creates and maintains reduced pressure.

Typical components include:

• Vacuum pump

• Vacuum valve

• Vacuum pipeline

• Pressure sensor

• Control system

The vacuum level directly affects:

• Drying temperature

• Evaporation rate

• Solvent recovery efficiency

A properly designed vacuum system is essential for stable operation.

4.3 Heating System

Vacuum drying still requires heat input because evaporation consumes latent heat.

Common heating methods include:

• Steam heating

• Thermal oil heating

• Electric heating

• Hot water heating

Industrial vacuum dryers usually use indirect heating methods because they provide:

• Better temperature control

• Cleaner processing

• Lower contamination risk

4.4 Condensation System

When moisture or solvent evaporates, the vapor must be removed from the drying chamber.

A condenser:

• Cools the vapor

• Converts vapor back into liquid

• Enables solvent recovery

• Protects the vacuum pump

For valuable solvents, an efficient condensation system can significantly improve process economics.

5. Step-by-Step Vacuum Drying Process

Step 1: Material Loading

Wet material is introduced into the vacuum dryer.

The material may be:

• Powder

• Granule

• Slurry

• Paste

• Filter cake

• Crystal

Material characteristics determine the required drying technology.

Step 2: Vacuum Creation

After loading, the drying chamber is sealed.

The vacuum pump removes air from the chamber.

As pressure decreases:

• The boiling point decreases.

• The evaporation temperature decreases.

• The drying environment becomes controlled.

Step 3: Heating and Evaporation

Heat is transferred from the heating surface to the material.

The absorbed heat provides the energy needed for moisture evaporation.

The evaporation process includes:

1. Heat transfer into the material

2. Moisture movement inside the material

3. Phase change from liquid to vapor

4. Vapor removal from the drying zone

Step 4: Vapor Removal

The generated vapor moves from the material surface toward the vacuum outlet.

The vacuum system continuously removes:

• Water vapor

• Organic solvent vapor

• Other volatile components

This maintains the driving force for continued evaporation.

Step 5: Condensation and Recovery

The vapor enters the condenser.

Depending on the application:

• Water can be discharged.

• Organic solvents can be recovered and reused.

This closed-loop operation reduces emissions and improves sustainability.

6. Heat Transfer Mechanism in Vacuum Drying

Heat transfer is one of the most important factors determining drying efficiency.

Industrial vacuum dryers mainly rely on:

6.1 Conduction Heat Transfer

Heat moves from the heated surface directly into the material.

Examples:

• Heated jacket

• Hollow shaft

• Hollow screw

This is usually the dominant heat-transfer mechanism in industrial vacuum drying.

6.2 Convection Heat Transfer

Because vacuum systems contain limited gas, convection is less significant compared with atmospheric dryers.

This is one reason vacuum dryers often use indirect heating.

6.3 Radiation Heat Transfer

Radiation can contribute in some designs but is usually not the primary mechanism.

7. Mass Transfer During Vacuum Drying

Heat transfer provides energy, but drying efficiency also depends on mass transfer.

Moisture must move:

Internal Moisture → Material Surface →  Vapor Phase → Vacuum System

Factors affecting mass transfer include:

• Particle size

• Porosity

• Material structure

• Mixing efficiency

• Vacuum pressure

• Temperature

For powders and sticky materials, mixing becomes especially important because it improves:

• Heat contact

• Moisture migration

• Drying uniformity

8. Drying Stages in Vacuum Drying

Most materials experience several drying stages.

Stage 1: Heating Period

The material temperature increases.

Moisture removal is limited.

Stage 2: Constant Rate Drying Period

Surface moisture evaporates rapidly.

The drying rate remains relatively stable.

Stage 3: Falling Rate Drying Period

Internal moisture migration becomes the limiting factor.

Drying becomes slower.

Stage 4: Final Moisture Removal

The remaining bound moisture requires additional energy and time.

Understanding these stages helps engineers optimize:

• Drying temperature

• Vacuum level

• Residence time

• Equipment design

9. Why Vacuum Drying Improves Product Quality

Vacuum drying provides several advantages compared with conventional drying.

9.1 Lower Temperature Processing

Protects:

• APIs

• Proteins

• Organic materials

• Battery materials

9.2 Reduced Oxidation

The reduced oxygen environment minimizes:

• Color changes

• Oxidation reactions

• Product degradation

9.3 Better Solvent Recovery

Closed vacuum systems allow:

• Efficient solvent capture

• Reduced emissions

• Improved environmental performance

9.4 Improved Drying Uniformity

Advanced vacuum dryers with mixing mechanisms provide:

• Better heat distribution

• More consistent moisture content

• Reduced product variation

10. Continuous Vacuum Drying Principle

Traditional vacuum dryers often operate in batches:

Loading → Drying → Cooling → Discharging

Modern industries increasingly require continuous production.

Continuous vacuum drying allows:

• Continuous feeding

• Continuous heating

• Continuous mixing

• Continuous discharge

Technologies such as Hollow Screw Vacuum Dryers combine:

• Vacuum environment

• Indirect heating

• Screw conveying

• Continuous material movement

This design improves productivity for large-scale industrial applications.

11. Applications of Vacuum Drying

Vacuum drying technology is widely used in:

11.1 Pharmaceutical Industry

Applications:

• API drying

• Pharmaceutical intermediates

• Extract drying

Benefits:

• Low-temperature protection

• High purity

• Controlled moisture

11.2 Battery Materials

Applications:

• Lithium compounds

• Graphite

• Cathode materials

Benefits:

• Prevent oxidation

• Improve consistency

• Reduce residual moisture

11.3 Fine Chemicals

Applications:

• Pigments

• Catalysts

• Specialty chemicals

Benefits:

• Solvent recovery

• Better product quality

12. Frequently Asked Questions

What is the main principle of vacuum drying?

Vacuum drying works by reducing pressure inside a drying chamber, lowering the boiling point of moisture and enabling evaporation at lower temperatures.

Is vacuum drying faster than conventional drying?

In many applications, yes. Faster drying can be achieved because evaporation occurs under optimized pressure and temperature conditions with efficient heat transfer.

Why is vacuum drying suitable for heat-sensitive materials?

Because materials can be dried at lower temperatures, reducing thermal degradation.

Does vacuum drying save energy?

Energy savings depend on the material and process design, but vacuum drying can reduce energy consumption by improving heat utilization and enabling solvent recovery.

Can vacuum drying recover solvents?

Yes. With proper condenser design, organic solvents can be recovered and reused.
