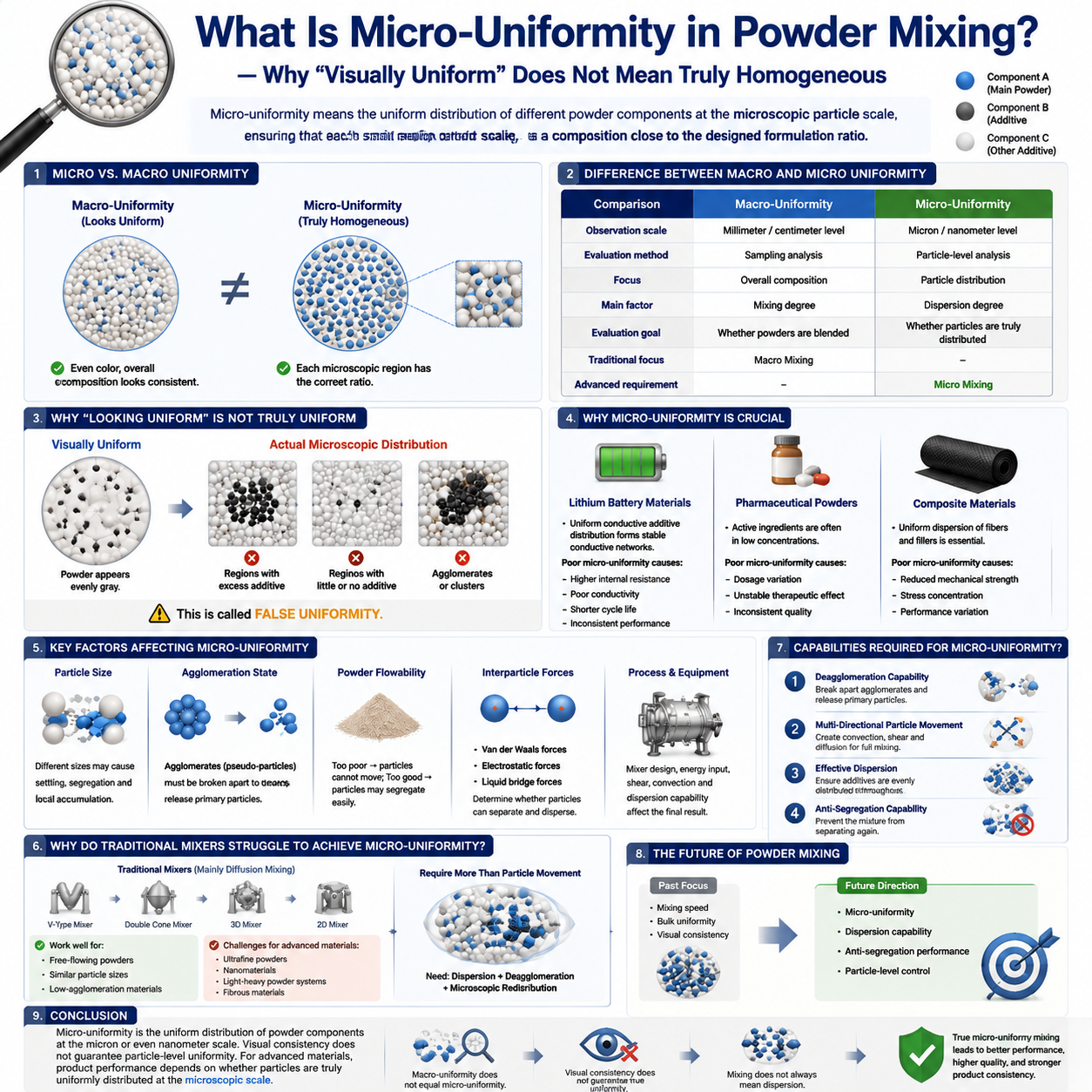

Powder And Mixing - 15. What Is Micro-Uniformity in Powder Mixing?

—Why “Visually Uniform” Does Not Mean Truly Homogeneous

In powder mixing, many manufacturers evaluate mixing quality using a simple approach:

• Checking whether the powder color appears consistent;

• Taking several samples and measuring composition;

• Observing whether there are obvious differences between locations.

If the results are similar, they usually conclude:

The powder has been mixed uniformly.

However, from the perspective of modern powder engineering, this evaluation method has significant limitations.

Especially in advanced industries such as:

• Lithium battery materials;

• Nanomaterials;

• Pharmaceutical powders;

• Semiconductor materials;

• High-performance composites;

achieving only overall uniformity is no longer sufficient.

The real factor determining product performance is micro-uniformity.

1. What Is Micro-Uniformity?

Micro-uniformity refers to:

The uniform distribution of different powder components at the microscopic particle scale, ensuring that each small region contains a composition close to the designed formulation ratio.

Simply speaking:

Macro-uniformity focuses on:

"Does the mixture look the same as a whole?"

Micro-uniformity focuses on:

"Are the particles uniformly distributed around each other at the microscopic level?"

For example

Assume a formulation contains:

• 100 kg of active material;

• 1 kg of conductive additive.

After mixing, a bulk sample analysis may show:

The overall ratio is correct.

However, microscopic observation may reveal:

• Some areas contain excessive conductive additives;

• Some areas contain almost none;

• Some particles are covered by additive clusters.

The mixture appears uniform macroscopically, but it is not truly uniform microscopically.

2. Difference Between Macro-Uniformity and Micro-Uniformity

Understanding this difference is fundamental to modern powder mixing technology.

Traditional mixing evaluation mainly focuses on Macro Mixing.

While advanced materials increasingly require Micro Mixing.

3. Why Does “Looking Uniform” Not Mean Truly Uniform?

This is one of the most overlooked issues in powder engineering.

The reason is Powder is not a continuous material. It is a collection of millions of independent particles.

Different particles have different characteristics:

• Particle size;

• Density;

• Surface properties;

• Agglomeration state.

Therefore, even if the overall appearance is uniform, there may still be:

• Local concentration zones;

• Additive-rich regions;

• Additive-deficient regions;

• Agglomerated clusters.

This phenomenon is known as False Uniformity.

Example: White Powder + Small Amount of Black Conductive Additive

After mixing, the powder may appear evenly gray.

However, if the black conductive additive forms agglomerates:

The actual distribution may be:

• Some regions with excessive conductive particles;

• Some regions lacking conductive particles.

The mixture looks homogeneous, but the particle-level distribution is not uniform.

4. Why Is Micro-Uniformity Becoming More Important?

Because many advanced products depend on:

Microscopic interactions between particles.

4.1 Lithium Battery Materials

Lithium battery materials are one of the industries with the highest requirements for micro-uniformity.

For example, cathode materials typically contain:

• Active materials;

• Conductive additives;

• Binders.

These components must form a uniform microscopic network.

Poor conductive additive dispersion can cause:

• Higher internal resistance;

• Reduced electrical conductivity;

• Lower cycle life;

• Poor battery consistency.

Therefore, battery performance depends not only on formulation, but also on:

Whether additives are uniformly distributed around individual particles.

4.2 Pharmaceutical Powders

In pharmaceutical formulations:

Active ingredients are often present at very low concentrations.

If the active ingredient is not microscopically uniform, problems may include:

• Dosage variation;

• Unstable therapeutic performance;

• Inconsistent product quality.

Therefore, pharmaceutical mixing requires:

Not only correct overall composition, but also uniform particle-level distribution.

4.3 Composite Materials

For example, carbon fiber reinforced composites.

If fibers are poorly dispersed, the material may suffer from:

• Reduced mechanical strength;

• Stress concentration;

• Performance variation.

5. Key Factors Affecting Micro-Uniformity

Achieving micro-uniformity is not simply a matter of increasing mixing time.

It depends on multiple factors.

5.1 Particle Size

Particle size strongly influences distribution behavior.

Different particle sizes may cause:

• Settling;

• Segregation;

• Local accumulation.

This is especially important when mixing:

• Nanoparticles;

• Micron-sized powders.

5.2 Agglomeration State

Many powders do not exist as individual primary particles.

Instead, they exist as pseudo-particles.

For example, nanomaterials often exist as agglomerated structures.

If these agglomerates cannot be broken apart:

Even intensive mixing may not achieve true micro-uniformity.

5.3 Powder Flowability

Flowability affects particle movement and redistribution.

Very poor flowability → Particles cannot move sufficiently.

Excessive flowability → Particles may segregate easily.

Therefore, an appropriate flow behavior is required.

5.4 Interparticle Forces

Important forces include:

• Van der Waals forces;

• Electrostatic forces;

• Liquid bridge forces.

These forces determine:

Whether particles can separate and disperse.

6. Why Do Traditional Mixers Struggle to Achieve Micro-Uniformity?

Traditional equipment includes:

• V-Type Mixers;

• Double Cone Mixers;

• Three-Dimensional Mixers;

• Two-Dimensional Mixers.

These machines mainly rely on diffusion mixing.

Their operating principle is:

The vessel rotates, allowing powders from different regions to exchange positions.

This works well for:

• Free-flowing powders;

• Similar particle sizes;

• Low-agglomeration materials.

However, when processing:

• Ultrafine powders;

• Nanomaterials;

• Light-heavy powder systems;

• Fibrous materials;

significant challenges appear.

Because these materials require more than "Particle movement."

They require "Dispersion + Deagglomeration + Microscopic Redistribution."

7. What Capabilities Are Required to Achieve Micro-Uniformity?

Modern powder mixing technology requires several key capabilities.

7.1 Deagglomeration Capability

Breaking apart:

• Agglomerates;

• Pseudo-particles.

Releasing:

Primary particles.

7.2 Multi-Directional Particle Movement

Creating different movement patterns:

• Convection;

• Shear;

• Diffusion.

7.3 Effective Dispersion

Ensuring: additives are evenly distributed throughout the powder system.

7.4 Anti-Segregation Capability

Preventing: the mixture from separating again after mixing.

8. Micro-Uniformity Is the Future Direction of Powder Mixing

In the past, powder mixing focused on:

How long does mixing take?

Today, advanced manufacturing asks:

Are particles uniformly distributed at the microscopic level?

Future evaluation standards will gradually shift from:

• Mixing speed;

• Bulk uniformity;

toward:

• Micro-uniformity;

• Dispersion capability;

• Anti-segregation performance.

9. Conclusion

Micro-uniformity refers to:

The uniform distribution of powder components at the micron or even nanometer scale.

It is fundamentally different from traditional bulk mixing evaluation.

The key principles are:

• Macro-uniformity does not equal micro-uniformity;

• Visual consistency does not guarantee particle-level uniformity;

• Mixing does not always mean dispersion.

For advanced materials, product performance depends not only on whether powders are mixed together,

but on whether particles are uniformly distributed at the microscopic scale.

Therefore, the future of powder mixing technology is moving from:

"Combining powders together" toward "Controlling particle behavior and achieving true micro-uniform mixing."

This is also the key technological direction that differentiates advanced Double Motion Mixing Technology and Super Dimensional Multi-Mode Mixing Technology from traditional:

• V-Type Mixers;

• Double Cone Mixers;

• 3D Mixers;

• 2D Mixers.
