Powder And Mixing - 16. What Is Dispersion?

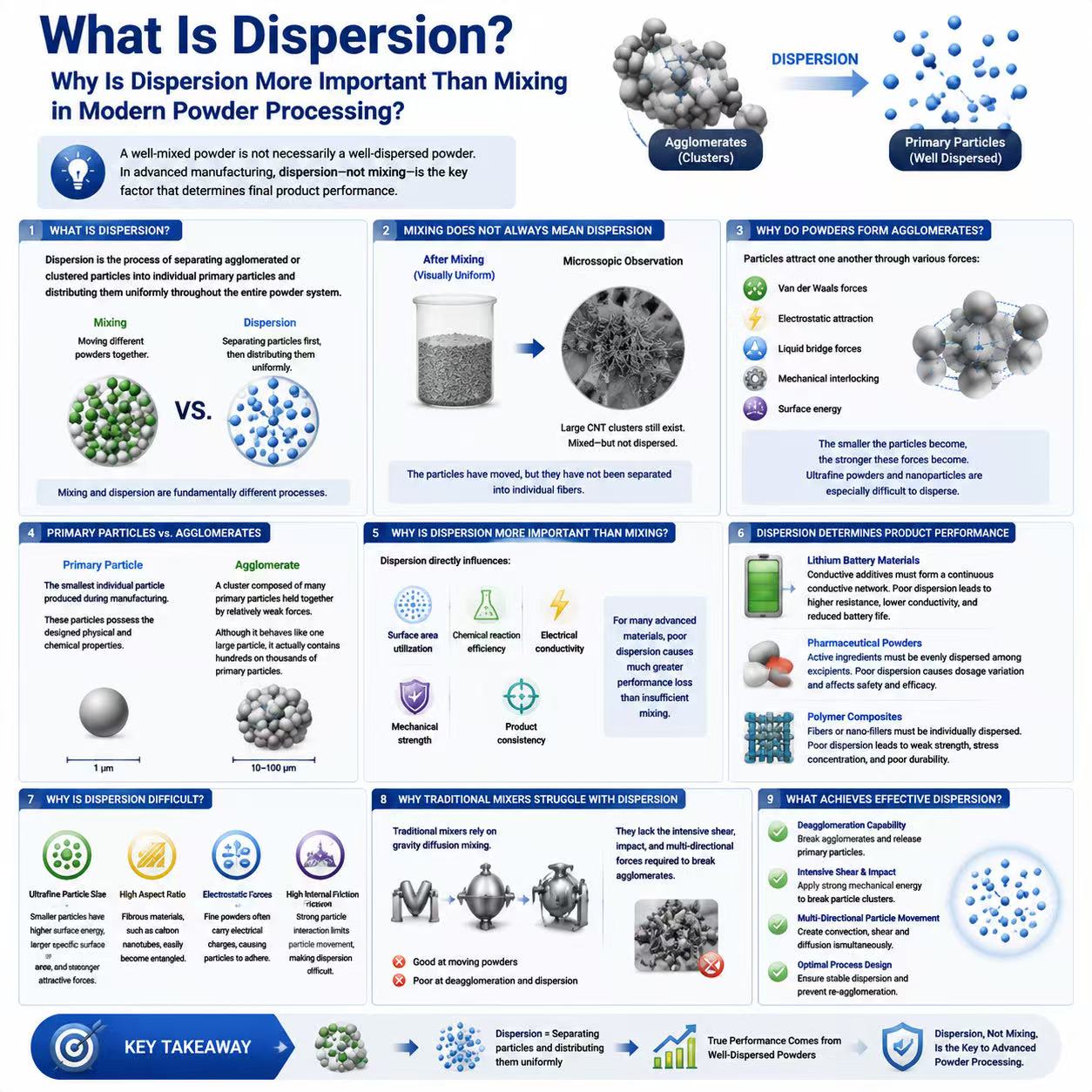

1. What Is Dispersion?

Dispersion refers to:

The process of separating agglomerated or clustered particles into individual primary particles and distributing them uniformly throughout the entire powder system.

Simply speaking,

Mixing means:

Moving different powders together.

Dispersion means:

Separating particles first, then distributing them uniformly.

These are fundamentally different processes.

2. Mixing Does Not Always Mean Dispersion

Imagine adding a small amount of carbon nanotubes into lithium battery powder.

After ten minutes of mixing, the powder may appear completely uniform.

However, under a microscope, large CNT clusters may still exist.

The carbon nanotubes have moved throughout the material,

but they have not been separated into individual fibers.

This is mixed—but not dispersed.

3. Why Do Powders Form Agglomerates?

Many powders do not exist as individual particles.

Instead, they naturally form clusters.

These clusters are called agglomerates

Agglomeration occurs because particles attract one another through forces such as:

• Van der Waals forces

• Electrostatic attraction

• Liquid bridge forces

• Mechanical interlocking

• Surface energy

The smaller the particles become, the stronger these forces become.

Therefore, ultrafine powders and nanoparticles are especially difficult to disperse.

4. Primary Particles vs. Agglomerates

Understanding dispersion requires distinguishing two different particle states.

Primary Particle

The smallest individual particle produced during manufacturing.

These particles possess the designed physical and chemical properties.

Agglomerate

A cluster composed of many primary particles held together by relatively weak forces.

Although an agglomerate behaves like one large particle,

it actually contains hundreds or thousands of primary particles.

Without breaking these agglomerates,

true uniformity cannot be achieved.

5. Why Is Dispersion More Important Than Mixing?

Modern powder engineering is no longer concerned only with moving particles.

Instead, it focuses on controlling particle interactions.

Dispersion directly influences:

• Surface area utilization

• Chemical reaction efficiency

• Electrical conductivity

• Mechanical strength

• Product consistency

For many advanced materials, poor dispersion causes much greater performance loss than insufficient mixing.

6. Dispersion Determines Product Performance

Lithium Battery Materials

Conductive additives such as carbon nanotubes or carbon black must form a continuous conductive network.

If they remain as agglomerates, conductivity decreases, internal resistance increases, and battery life is reduced.

Pharmaceutical Powders

Active pharmaceutical ingredients must be evenly dispersed among excipients.

Otherwise, individual tablets may contain different drug concentrations, affecting safety and efficacy.

Polymer Composites

Glass fibers, carbon fibers, or nano-fillers must be individually dispersed.

Poor dispersion leads to:

• Weak mechanical strength

• Stress concentration

• Poor durability

7. Why Is Dispersion Difficult?

Several factors make powder dispersion challenging.

Ultrafine Particle Size

Smaller particles have:

• Higher surface energy

• Larger specific surface area

• Stronger attractive forces

High Aspect Ratio

Fibrous materials, such as carbon nanotubes, easily become entangled.

Electrostatic Forces

Fine powders often carry electrical charges, causing particles to adhere to each other.

High Internal Friction

Strong particle interaction limits particle movement, making dispersion increasingly difficult.

8. Why Traditional Mixers Often Cannot Achieve Effective Dispersion

Traditional mixers such as:

• V-Blenders

• Double Cone Mixers

• Three-Dimensional Mixers

primarily rely on gravity diffusion mixing.

They are excellent at moving powders, but they provide limited capability to separate agglomerates.

As a result, many particle clusters remain intact after mixing.

The powder appears homogeneous, yet microscopic dispersion is still poor.

9. Modern Mixing Is Actually Dispersion Engineering

Today, advanced powder processing focuses on four sequential objectives.

Step 1

Break Agglomerates

Step 2

Release Primary Particles

Step 3

Disperse Individual Particles

Step 4

Maintain Micro-Uniform Distribution

Only after completing all four stages can true high-quality powder mixing be achieved.

10. Dispersion and Micro-Uniformity

Dispersion and micro-uniformity are closely related, but they are not identical.

Dispersion focuses on:

Separating particle clusters.

Micro-uniformity focuses on:

Distributing those separated particles uniformly throughout the system.

Without dispersion, micro-uniformity is impossible.

Without micro-uniformity, product performance cannot be fully realized.

11. Future Powder Mixing Technology

Modern powder mixing is evolving from mixing powders toward controlling particle behavior.

Future high-performance mixing systems should simultaneously achieve:

• Efficient particle movement

• Effective deagglomeration

• Uniform dispersion

• Micro-scale uniformity

• Long-term anti-segregation stability

These capabilities are becoming the new benchmark for advanced powder mixing equipment.

12. Conclusion

Dispersion is not simply another form of mixing.

It is a more advanced process that determines whether particles can function as originally designed.

A powder may be thoroughly mixed, yet still perform poorly, because its particles remain trapped inside agglomerates.

Therefore,

true powder processing is not about moving powders together—it is about separating particles, dispersing them uniformly, and maintaining stable micro-uniformity throughout the entire system.

As advanced materials continue to evolve,

dispersion engineering will become one of the core technologies shaping the future of powder processing.
