Powder mixing requires more than visible movement. A batch can circulate through a vessel and still contain cohesive pockets, fine-powder clusters, or local differences in composition. Bulk movement helps exchange material between large regions, but it may not be strong enough to open every soft agglomerate or disperse every minor component.
Convection and shear address different parts of this problem. Convective movement carries groups of particles from one region to another. Shear creates local velocity differences that deform powder structures and renew particle contacts. In a double motion or multi-mode mixer, vessel motion and internal blade motion can be adjusted so these mechanisms support one another.
Convective mixing is the large-scale movement and exchange of powder within the mixing vessel. A moving vessel, shaft, or blade assembly carries a portion of the powder from one zone to another. The powder bed is lifted, rolled, folded, redirected, and redistributed through the available working volume.
The main contribution of convection is transport. It reduces the distance that particles must travel to encounter material from another part of the batch. It also brings new powder into working zones where localized blade action can occur. Without adequate convection, a high-intensity blade may repeatedly act on the same region while other material remains poorly exchanged.
Moves powder through the full working volume.
Exchanges material between upper, lower, central, and wall-side regions.
Carries dispersed particles away from the local blade zone.
Helps prevent one portion of the batch from receiving all of the mechanical action.
Shear occurs when adjacent layers, clusters, or particle groups move at different velocities or in different directions. Mixing blades create these local differences by accelerating, cutting across, lifting, folding, or redirecting powder relative to the surrounding flow.
The main contribution of shear is local restructuring. It can deform soft agglomerates, separate weakly bonded particles, open concentration pockets, and create new contact surfaces. Shear is therefore a localized mechanism. It is valuable when the batch is moving but a portion of the formulation remains cohesive or difficult to disperse.
Creates local velocity gradients in the powder bed.
Acts on soft agglomerates and cohesive zones.
Improves the release and redistribution of fine or minor components.
Must be limited when particles, crystals, granules, or fibers are sensitive to mechanical stress.
A convective flow pattern can transport a cluster without opening it. This is common when a fine powder is held together by moisture bridges, electrostatic attraction, surface energy, or weak mechanical interlocking. The cluster behaves as a larger pseudo-particle and may circulate through the vessel while retaining its local composition.
The same limitation can appear with a small quantity of an additive. The additive may move through the vessel as a pocket or streak instead of becoming distributed at the particle level. In these cases, extending the same gentle movement may improve large-scale exchange but may not provide enough local action to reach the required endpoint.

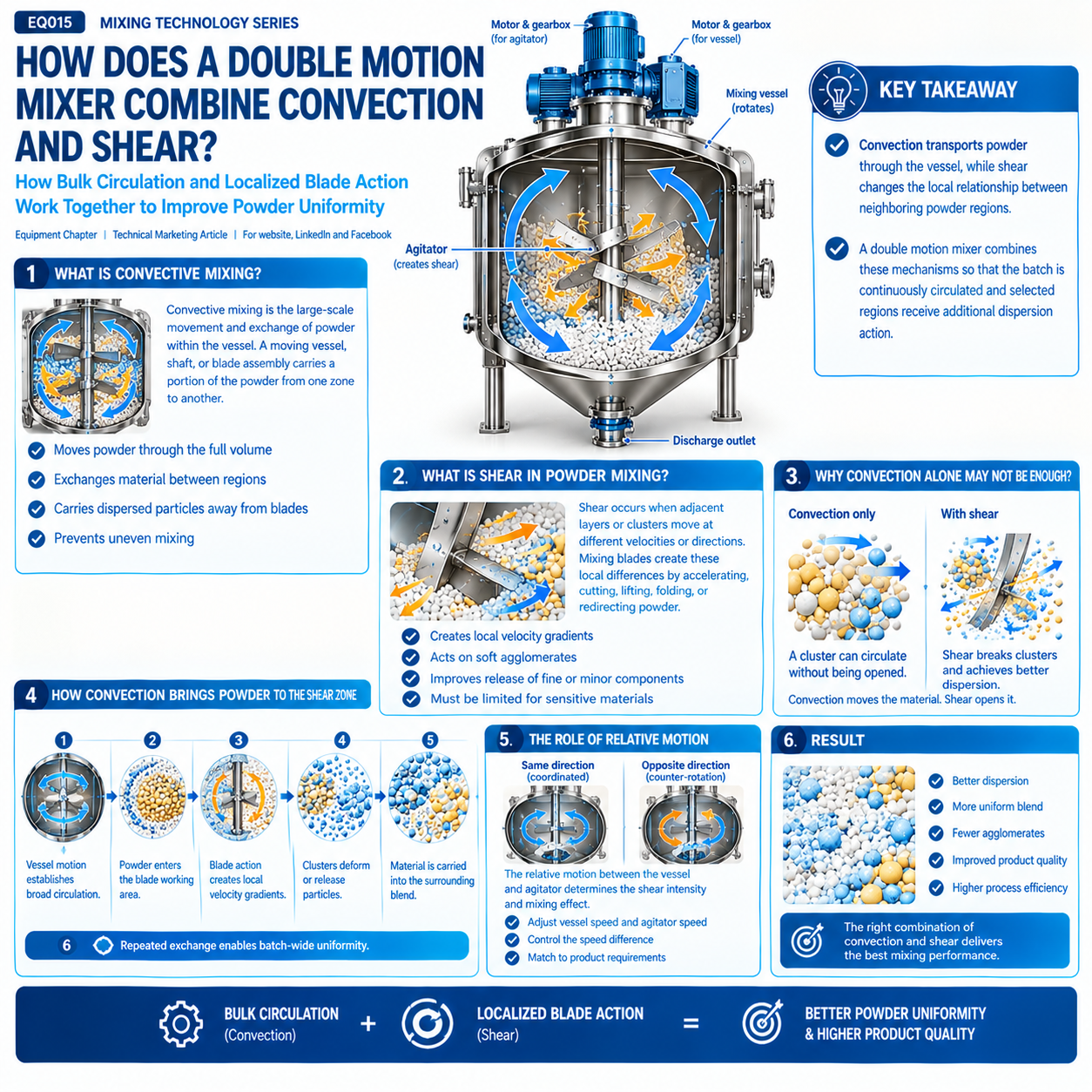

The relationship between the two mechanisms is continuous. Vessel movement establishes broad circulation and repeatedly presents new material to the internal blades. The blades then apply localized redirection or shear to the powder that enters their working zone. The vessel carries the treated material onward and brings another portion of the batch into contact with the blades.
1. Vessel motion establishes a broad circulation pattern through the working volume.
2. Powder from different regions enters the working area of the internal blade or dispersing tool.
3. Blade action creates local velocity gradients and applies controlled shear.
4. Soft clusters deform or release particles according to their cohesive strength.
5. Convective movement carries the redistributed material into the surrounding blend.
6. Repeated exchange allows localized action to contribute to batch-wide uniformity.
The result depends on the relative motion between the mixing vessel and the internal agitator. When the vessel is stationary, blade action can create local movement inside a fixed chamber. When the vessel rotates in the same direction, the relative speed may be lower in some regions and the movement may be more coordinated. When the vessel and agitator rotate in opposite directions, the relative motion can become stronger and may provide more frequent redirection and shear.
These are process conditions rather than labels that automatically determine performance. The actual flow field depends on vessel geometry, blade design, clearances, direction, speed, fill level, and powder properties. The selected condition should be confirmed by product sampling, motor-load observation, temperature checks, and inspection of the powder after mixing.
Mechanism | Primary function | What to verify |
Convection | Transports powder between large regions | Participation of the whole batch in circulation |
Localized shear | Changes local powder structures and contacts | Agglomerate opening and minor-component dispersion |
Relative motion | Controls the interaction between vessel and blades | Uniformity, mechanical work, and motor load |
Repeated exchange | Presents new material to the working zone | Uniformity across multiple sample locations |
The useful balance between convection and shear depends on the powder. Free-flowing powders may need strong circulation with moderate local action. Cohesive or lightly agglomerated powders may need a higher relative movement for a defined period. Fiber-containing blends may need enough shear to open bundles but not enough to shorten fibers or damage their structure.
Powder condition | Convection requirement | Shear requirement | Protection check |
Free-flowing blend | Complete circulation and exchange | Limited local action | Dusting and segregation |
Cohesive fine powder | Bring clusters repeatedly to the blade zone | Controlled deagglomeration | Temperature, load, and fines |
Low-dose additive | Distribute the additive through the carrier | Open local pockets | Multi-point concentration |
Fiber-containing blend | Prevent bundles from remaining isolated | Separate bundles as required | Fiber length and entanglement |
Fragile crystals or granules | Gentle full-batch movement | Minimum effective action | Morphology and particle-size change |
Macro uniformity means that samples from different large regions of the batch have similar composition. Micro uniformity refers to the distribution of components at a smaller particle or local scale. Convection is essential for macro exchange, while shear can help address the local structures that prevent micro uniformity.
Neither mechanism should be treated as a substitute for the other. A batch can be macro-uniform in appearance while fine particles remain concentrated inside soft clusters. Conversely, a local blade zone can look well dispersed while the total vessel still contains poorly exchanged regions. Representative sampling should therefore examine both the complete batch and the local condition of the difficult component.
Increasing shear can be useful, but it is not an automatic solution to every mixing problem. If the powder is not reaching the blade zone, the main issue may be vessel circulation, fill level, charging sequence, or a stagnant region. If the powder is already well dispersed but separates during discharge, the issue may be downstream handling rather than insufficient mixing intensity.
The process team should first identify whether the observed problem is transport, local dispersion, product damage, or post-mixing segregation. This diagnosis helps prevent unnecessary increases in blade speed and keeps the recipe focused on the actual process need.
Consider a blend in which a small quantity of cohesive fine powder must be distributed through a larger carrier. Initial trials show that the vessel movement circulates the carrier, but concentration samples show local differences and visible fine-powder pockets. The process team introduces a defined period of additional blade action while keeping the vessel circulation stable.
1. Charge the carrier and minor component using a defined sequence and fill level.
2. Establish complete circulation before applying the higher local action.
3. Use a controlled blade-shear stage to open soft pockets and release fine material.
4. Continue convection so redistributed material moves into the rest of the batch.
5. Take multi-point samples and check concentration, agglomerate condition, temperature, and motor load.
6. Validate the beginning, middle, and end of discharge before approving the recipe.
If uniformity improves without unacceptable product change, the combined mechanism can be incorporated into the operating recipe. If it does not, the next investigation should examine charging sequence, powder conditioning, vessel engagement, and sample representativeness before simply increasing speed.
A useful validation program compares at least two dimensions: how uniformly the batch is mixed and how the product condition changes during processing. Record vessel speed, agitator speed, direction, mixing time, fill level, motor load, temperature, visible dust, and the condition of the powder. Use these records to link the observed result to the operating condition.
Validation area | Suggested check | Purpose |
Bulk circulation | Observe flow and compare samples from different vessel regions | Confirm that convection reaches the working volume |
Local dispersion | Sieve, microscopy, or defined agglomerate assessment | Confirm that cohesive pockets are opened as required |
Blend uniformity | Multi-point concentration testing | Confirm macro and micro distribution |
Product protection | Particle size, morphology, fiber length, or granule integrity | Define the upper acceptable shear condition |
Discharge stability | Sample across discharge and downstream transfer | Confirm uniformity survives handling |
Identify whether the problem is poor bulk circulation, poor local dispersion, product damage, or post-mixing segregation.
Define the required balance between vessel movement and blade action for the formulation.
Record vessel speed, agitator speed, direction, fill level, sequence, and mixing time.
Use convection to bring different regions of the batch through the blade working zone.
Use the lowest effective shear condition that meets the dispersion requirement.
Check temperature, motor load, dust, residue, particle size, and fiber or granule condition.
Validate the product at discharge and after downstream transfer.
Convection and shear perform different but complementary functions in powder mixing. Convection transports powder through the vessel and promotes large-scale exchange. Shear creates local velocity differences that can open soft agglomerates, redistribute cohesive components, and renew particle contacts.
A double motion mixer combines these mechanisms by coordinating vessel movement with internal blade action. The vessel brings new material into the working zone, while the blades provide localized dispersion. The appropriate balance depends on powder properties, fill level, speed, direction, product sensitivity, and the required endpoint.
Reliable mixing comes from controlling both mechanisms and validating their combined result. When the operating condition is matched to the material, a double motion or multi-mode mixer can address large-scale circulation and local dispersion within one defined process recipe.
