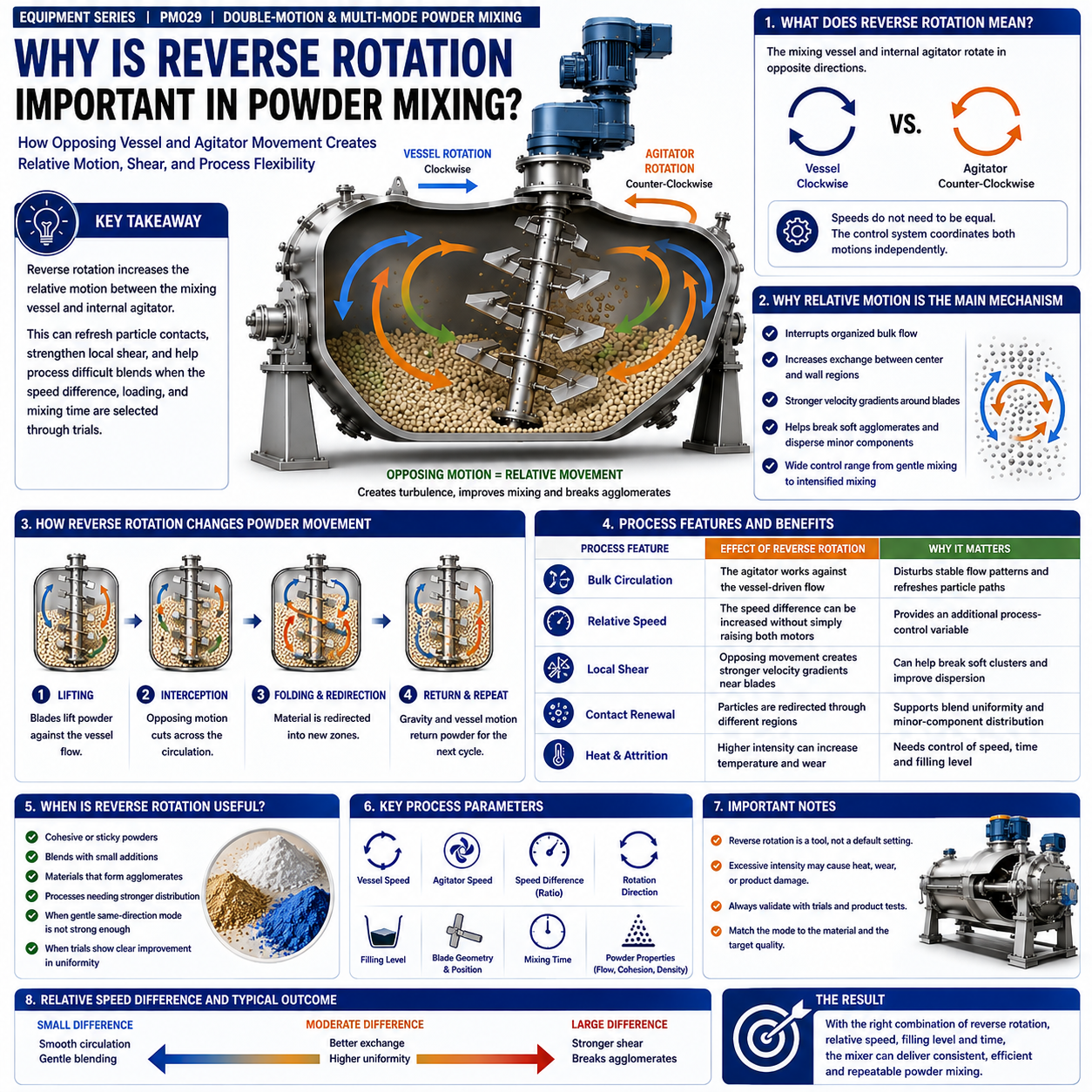

Powder And Mixing - 33. Why Is Reverse Rotation Important in Powder Mixing?

Introduction

In a double-motion mixer, the mixing vessel and the internal agitator can move as two coordinated mechanical systems. When both components rotate in the same general direction, the material experiences a coordinated flow pattern. When one component rotates in the opposite direction, the two velocity fields oppose each other. This operating condition is commonly called reverse rotation or counter-rotation.

Reverse rotation does not automatically mean that the process should run at the highest possible intensity. Its value comes from creating useful relative movement inside the powder bed. The result depends on vessel speed, agitator speed, fill level, particle properties, charging sequence, and the required product quality. Understanding these relationships helps operators choose a practical mixing mode instead of treating rotation direction as a simple on/off feature.

1. What Does Reverse Rotation Mean?

In this article, reverse rotation means that the mixing vessel and the internal shaft or blade assembly rotate in opposite directions around their respective axes or working paths. The exact movement depends on the machine design, but the operating principle is consistent: the vessel carries the bulk powder in one direction while the internal mixing elements introduce movement against that general flow.

The two motions remain mechanically coordinated through the control system. Their speeds do not need to be equal. A slow vessel movement combined with a faster reverse-moving agitator can produce a different process condition from two high-speed motions. For this reason, a mixer specification should describe not only the available rotation directions, but also the independent speed ranges and the way the two motions are controlled.

2. Why Relative Motion Is the Main Mechanism

Powder mixing improves when particles repeatedly change neighbors and travel through different regions of the vessel. Reverse rotation supports this renewal of contacts by increasing the difference between the movement of the powder bed and the movement of the internal agitator.

In a simplified rotational view, if two components rotate in opposite directions, their relative angular speed is approximately the sum of their speed magnitudes. Real powder flow is more complex because the vessel, shaft, blades, and particles occupy different positions and do not all move as rigid bodies. Even so, the simplified relationship explains why counter-rotation can produce a stronger relative disturbance at a similar nominal speed.

• More frequent interruption of organized bulk flow

• More frequent exchange between central and wall-adjacent regions

• Stronger local velocity gradients around blades and powder interfaces

• More opportunities to open soft agglomerates or distribute minor components

• A wider adjustment range between gentle circulation and intensified mixing

3. How Reverse Rotation Changes Powder Movement

The vessel motion establishes broad circulation, while the reverse-moving agitator cuts across that circulation. Powder that is being carried upward, downward, or around the vessel can be redirected by the blades. This creates a combination of bulk displacement, turning, lifting, folding, and localized shear.

The important process effect is not that every particle follows a perfectly defined path. Instead, particles are repeatedly exposed to different flow zones. A portion of the blend may move with the vessel, while another portion is picked up by the agitator and returned to the main circulation. The repeated exchange helps reduce persistent zones that would otherwise remain weakly mixed.

4. Reverse Rotation and Shear Intensity

Reverse rotation can increase shear intensity, but the actual result depends on the blade geometry, clearance, powder loading, and the material's cohesion. A cohesive powder may need sufficient relative motion to open soft agglomerates. A fragile crystal, porous granule, or fiber-containing product may require a more conservative setting to avoid unnecessary attrition or structural damage.

For process development, it is useful to separate three questions: Is the bulk blend circulating? Are local agglomerates being opened? Is the product remaining within its particle-size, shape, temperature, and appearance limits? Reverse rotation should be selected based on all three answers, not on mixing time alone.

5. When Is Reverse Rotation Especially Useful?

Counter-rotation is particularly useful when a blend needs both broad movement and stronger local redistribution. Typical situations include:

• Blends containing a cohesive or lightly agglomerated component

• Formulations with a low-dose or minor ingredient that must be distributed throughout a larger carrier

• Powders with different particle sizes or densities that tend to develop persistent concentration zones

• Applications where the vessel must provide circulation while internal blades provide additional dispersion

• Development work where several motion patterns must be compared on the same machine

It is still important to confirm whether the product requires deagglomeration, dispersion, de-aeration, or only gentle blending. These goals may call for different speed combinations and different operating sequences.

6. Reverse Rotation for Difficult or Cohesive Blends

Cohesive powders often move as lumps, sheets, or compacted clusters rather than as freely flowing particles. A vessel-only motion may carry these clusters around the chamber without opening them. Reverse rotation places the clusters into a changing field of relative movement, where blade contact, particle collision, and velocity gradients can help reduce soft agglomeration.

For a blend containing a minor amount of ultrafine powder, the process objective is usually not simply to make the whole batch move faster. It is to distribute the fine component across the carrier and prevent it from remaining in localized pockets. Reverse rotation may help, but the charging sequence and pre-dispersion step are equally important. Sampling from several locations is required to confirm the result.

7. Reverse Rotation for Sensitive Powders

Opposing movement can increase mechanical work in the powder bed. For heat-sensitive, friable, crystalline, or fiber-containing materials, excessive intensity may lead to temperature rise, particle breakage, fiber shortening, surface damage, or undesirable fines. These risks are product-specific and cannot be judged from rotation direction alone.

A practical development method is to begin with a moderate speed difference and a short mixing interval, then check blend uniformity together with product condition. Monitor motor load, product temperature, visible dusting, particle-size change, and the appearance of fibers or granules. If the product remains within specification, the process can be extended or intensified step by step until the required endpoint is reached.

8. Key Variables That Determine the Result

1. Vessel speed: sets the scale and pace of the broad powder circulation.

2. Agitator speed: determines how actively the internal elements redirect and disperse material.

3. Speed difference: controls the relative movement between the vessel-driven bed and the agitator-driven flow.

4. Fill level: changes the available free space, powder depth, and blade engagement with the bed.

5. Charging sequence: affects whether minor or cohesive components are introduced into a favorable flow environment.

6. Mixing time: must be defined by sampling and product acceptance criteria rather than a generic target.

7. Discharge condition: determines whether the uniformity achieved in the vessel is preserved during emptying and transfer.

Because these variables interact, a change in direction should be evaluated as a complete operating condition. For example, reverse rotation at a low agitator speed may provide gentle contact renewal, while the same direction at a high speed difference may provide much stronger dispersion.

9. Practical Example: Coordinated Mixing of a Cohesive Minor Component

Consider a formulation in which a small quantity of a cohesive fine powder must be distributed through a larger, free-flowing carrier. A conventional low-intensity motion may circulate the carrier while leaving fine powder concentrated in localized pockets. The development team can use a staged process on a dual-motion mixer:

1. Charge the carrier and introduce the minor component using a controlled sequence.

2. Start with vessel movement to establish broad circulation and reduce the risk of a stationary powder zone.

3. Introduce moderate reverse rotation so the internal agitator crosses the vessel-driven flow.

4. Take representative samples from multiple locations and compare concentration results.

5. Adjust the speed difference or mixing time only after checking temperature, motor load, and particle condition.

6. Validate discharge samples to confirm that the blend remains uniform during emptying.

This example illustrates the role of reverse rotation as a controllable process mechanism. It is not a universal recipe; the final settings should be established through material-specific trials.

10. Reverse Rotation and Discharge Behavior

The product can be uniform at the end of mixing and still become non-uniform during discharge if the outlet, vessel position, or transfer system creates segregation. A reverse-rotation process should therefore include a discharge check. Confirm that the vessel can be positioned consistently, that the outlet does not retain a concentrated fraction, and that the receiving equipment does not separate the blend.

For installations connected to downstream conveying or packaging, the mixer control sequence can coordinate the final rotation stop, vessel positioning, discharge opening, and transfer timing. The objective is to preserve the blend structure created during mixing and to minimize unnecessary handling after the endpoint.

A Reverse-Rotation Operation Checklist

• Define whether the process goal is blending, dispersion, deagglomeration, or a combination.

• Record vessel speed, agitator speed, rotation direction, and speed difference for each trial.

• Confirm fill level and charging sequence before comparing results.

• Use representative multi-point sampling to determine the mixing endpoint.

• Monitor temperature, motor load, visible dusting, and particle or fiber condition.

• Check the discharge sample and downstream transfer behavior.

• Keep a validated operating window instead of relying on a single nominal speed.

Conclusion

Reverse rotation is important because it increases the relative movement between the mixing vessel and the internal agitator. This opposing motion can disturb stable flow patterns, renew particle contacts, strengthen localized shear, and improve the distribution of cohesive or minor components.

Its effectiveness depends on the complete process condition: speed difference, blade design, fill level, material properties, charging sequence, mixing time, and discharge method. In a dual-motion or multi-mode mixer, reverse rotation gives engineers an additional way to match the movement pattern to the product requirement while keeping the process adjustable and testable.

The most reliable approach is to validate reverse rotation through representative sampling and product-specific quality checks. When the required intensity is clearly defined, opposing vessel and agitator movement can become a useful part of a controlled powder-mixing strategy.
