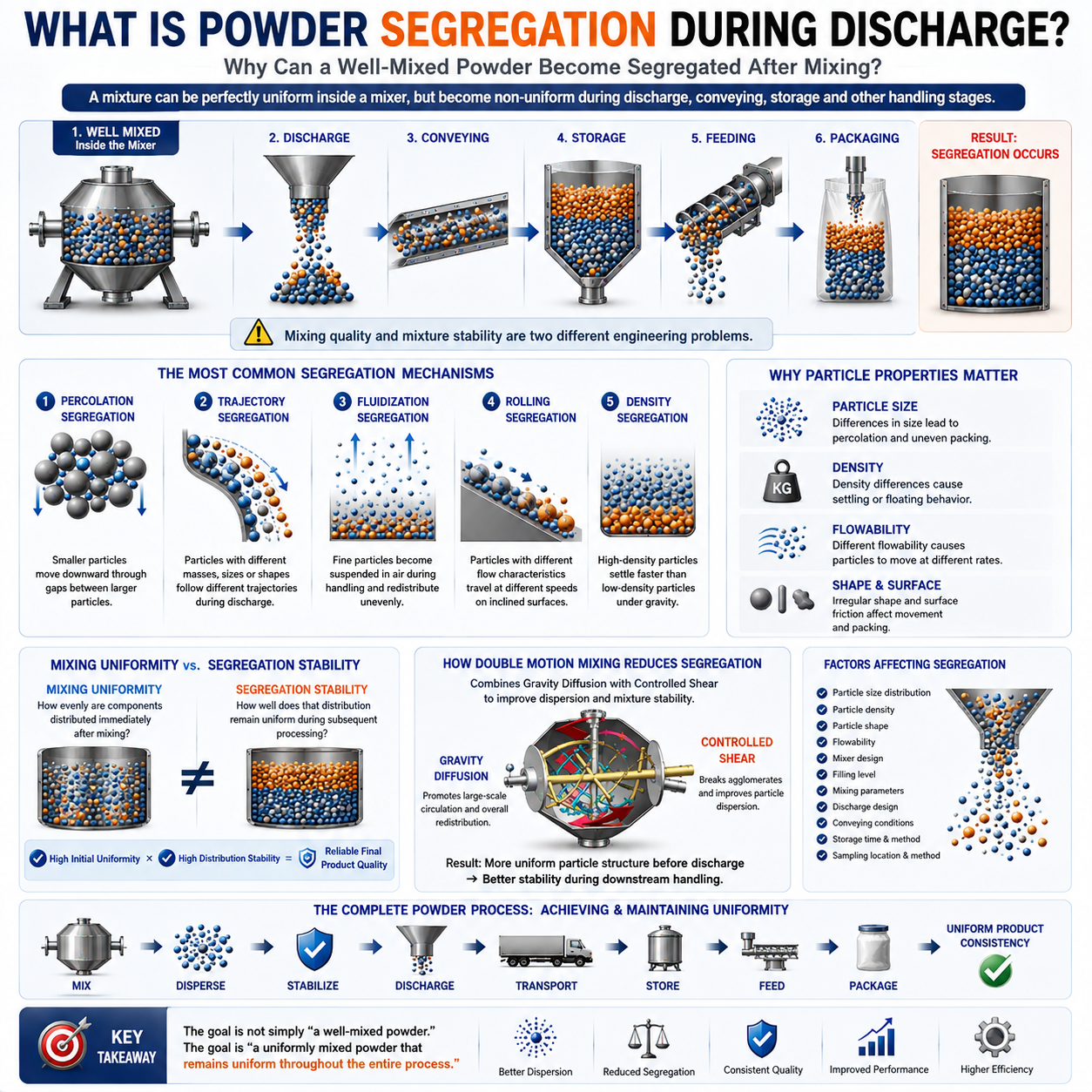

Why Can a Well-Mixed Powder Become Segregated After Mixing?
A powder mixture can be perfectly uniform inside a mixer and still become non-uniform during discharge.
This is one of the most misunderstood problems in powder processing.
Many manufacturers focus heavily on achieving a high mixing uniformity at the end of the mixing cycle.
However, the actual production process does not end when mixing stops.
After mixing, the material may undergo:
Discharge;
Conveying;
Temporary storage;
Feeding;
Packaging;
Transportation.
During these operations, particles can move relative to one another and separate.
As a result, a mixture can be well mixed inside the mixer but segregated by the time it reaches the next processing stage.
Understanding this phenomenon is essential for designing a reliable powder mixing process.
Powder segregation refers to:
The spontaneous separation or redistribution of different particle populations within a powder mixture due to differences in their physical properties and flow behavior.
These differences may include:
Particle size;
Particle density;
Particle shape;
Flowability;
Surface properties;
Coefficient of friction.
When these differences become significant, particles do not move as a single homogeneous mass.
Instead, different particle populations follow different trajectories.
The result is local concentration differences.
Mixing and segregation are competing processes.
During mixing:
Particles are redistributed.
During segregation:
Particles are separated.
If the forces driving segregation become stronger than the mechanisms maintaining uniformity, the mixture begins to separate.
This can happen even when the mixing process itself was successful.
Therefore, mixing quality and mixture stability are two different engineering problems.
Powder segregation can occur through several mechanisms.
The most common include:
Percolation Segregation
Smaller particles move downward through gaps between larger particles.
This is particularly common when particles have significantly different sizes.
Trajectory Segregation
Particles with different masses, sizes, or shapes follow different trajectories when discharged or transported.
Larger or denser particles may travel farther, while smaller particles may remain closer to the discharge point.
Fluidization Segregation
Fine particles can become suspended by air movement during:
Filling;
Discharge;
Pneumatic conveying.
When the air velocity changes, particles may redistribute unevenly.
Rolling Segregation
During movement on an inclined surface, particles with different flow characteristics may travel at different speeds.
This can cause spatial separation.
Particle size is one of the most important factors affecting segregation.
Consider a mixture containing:
Coarse particles;
Fine particles.
The fine particles can migrate into the spaces between larger particles.
This is known as percolation.
The result can be a vertical concentration gradient.
For example:
Fine particles → lower region
Coarse particles → upper region
This explains why particle-size distribution must be considered not only during mixing, but also during discharge and storage.
Density differences can create another segregation mechanism.
Consider:
A high-density powder;
A low-density powder.
Even if the two materials have similar particle sizes, they may respond differently to:
Gravity;
Acceleration;
Airflow;
Mechanical vibration.
As a result, the particles can gradually separate.
This is particularly important in formulations containing:
Metal powders;
Mineral fillers;
Lightweight additives;
Organic powders.
Good flowability is normally considered a positive property.
However, high flowability can sometimes increase segregation.
A highly mobile powder can easily:
Roll;
Slide;
Flow through gaps;
Rearrange itself.
If different components have different flowability, they may move at different rates.
This creates a paradox, a powder that flows very well may also be easier to segregate.
This is why powder flowability should never be evaluated independently from segregation behavior.
Discharge is often overlooked in mixer design.
During discharge, the powder changes from a relatively contained state to a flowing state.
This creates:
Particle acceleration;
Relative movement;
Changes in packing structure;
Air entrainment;
Particle collision.
These conditions can trigger segregation.
Therefore, the mixing process should be designed together with the discharge process.
A mixer that produces excellent uniformity but creates severe segregation during discharge may not provide a satisfactory overall solution.
Another important issue is sampling.
Suppose a 1,000 kg batch is mixed uniformly.
After discharge, the material becomes slightly segregated.
If a quality-control sample is taken from only one location, the test result may not represent the entire batch.
This creates a potential problem:
Sampling uniformity ≠ Batch uniformity.
For this reason, powder-processing engineers must consider:
Sampling location;
Sampling method;
Sampling frequency;
Discharge sequence.
These are two different concepts.
Mixing Uniformity
Describes:
How evenly are components distributed immediately after mixing?
Segregation Stability
Describes:
How well does that distribution remain uniform during subsequent processing?
A high-performance powder mixing system should achieve both.
Ideally:
High Initial Uniformity*High Distribution Stability=Reliable Final Product Quality
A common response to poor uniformity is "Increase the mixing time."
However, this does not necessarily solve segregation.
Once the mixture has reached an acceptable uniformity, continued mixing may produce little additional benefit.
In some cases, excessive mixing can even increase:
Particle attrition;
Temperature;
Electrostatic charging;
Re-segregation.
Therefore, the solution is not simply more mixing.
It is better particle control.
Advanced mixing technologies can improve mixture stability by creating more uniform particle distributions.
Important mechanisms include:
Better Particle Dispersion
Reducing large local agglomerates.
More Uniform Redistribution
Reducing concentration gradients.
Controlled Particle Interaction
Reducing large differences in local particle populations.
Appropriate Discharge Design
Preventing excessive particle separation during discharge.
These factors must work together.
Double Motion Mixing combines gravity diffusion with controlled shear.
Gravity diffusion promotes large-scale circulation, while controlled shear improves particle dispersion.
The combination helps create a more uniform particle structure before discharge.
This is particularly valuable for difficult powder systems involving:
Fine and coarse particles;
Light and heavy powders;
Cohesive and free-flowing materials;
Functional additives.
However, the final segregation behavior still depends on:
Material properties;
Mixer configuration;
Filling level;
Mixing parameters;
Discharge design;
Downstream conveying conditions.
Therefore, mixing technology should always be evaluated as part of the complete powder-processing system.
Modern powder processing should no longer ask only"Is the powder mixed uniformly?"
A more complete question is "Does the powder remain uniformly distributed throughout the entire production process?"
This changes the evaluation criteria for a mixer.
A high-performance mixing system should consider:
1. Mixing uniformity;
2. Dispersion;
3. Micro-uniformity;
4. Segregation resistance;
5. Discharge behavior;
6. Downstream material handling.
Only by considering the complete process can consistent product quality be achieved.
Traditional powder mixing focuses primarily on achieving uniformity.
Modern powder engineering focuses on achieving and maintaining uniformity.
This is an important evolution.
The objective is no longer simply Mix → Discharge,
but Mix → Disperse → Stabilize → Discharge → Transport → Maintain Uniformity
This represents a shift from conventional mixing technology toward complete powder process control.
Powder segregation is not necessarily a sign that the mixer failed.
In many cases, a powder can be adequately mixed inside the vessel but become segregated during:
Discharge;
Conveying;
Storage;
Feeding.
The fundamental reason is that different particles respond differently to gravity, airflow, vibration, and mechanical movement.
Therefore, successful powder processing requires more than achieving high initial mixing uniformity.
It requires:
Effective particle dispersion;
Controlled particle movement;
Appropriate discharge conditions;
Stable mixture structure;
Resistance to segregation.
The ultimate goal is not simply "A well-mixed powder."
It is "A uniformly mixed powder that remains uniform throughout the entire process."
This concept is particularly important for advanced materials, where even small local concentration differences can significantly affect final product performance.
