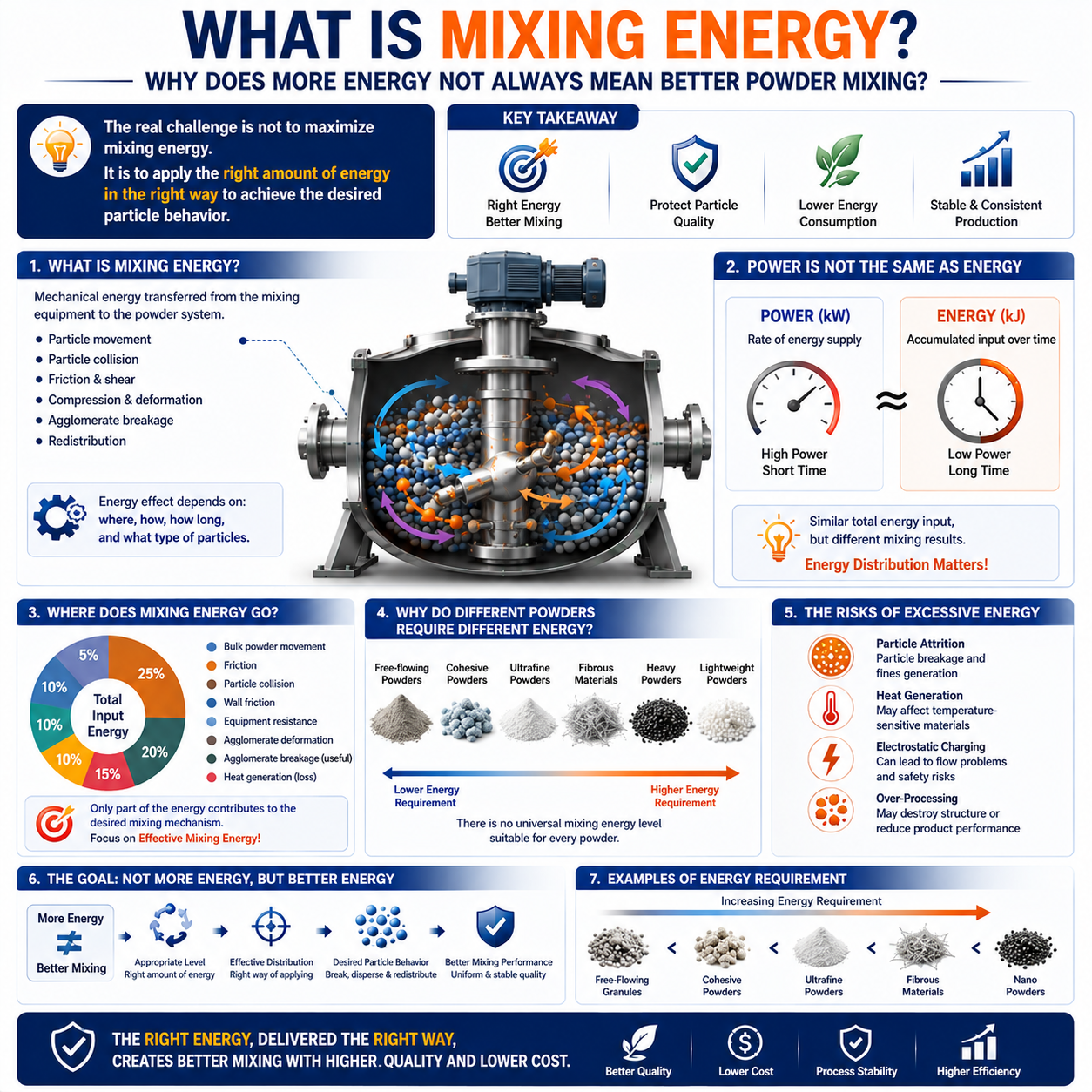

Why Does More Energy Not Always Mean Better Powder Mixing?
Powder mixing is often associated with one simple assumption more mixing energy means better mixing.
This sounds logical.
If a mixer applies more mechanical energy to the powder, the particles should move more intensely, agglomerates should break more easily, and mixing should become more uniform.
However, powder engineering is much more complicated.
In many applications, more energy does not necessarily mean better mixing.
In some cases, excessive mechanical energy can even reduce product quality.
The real challenge is not to maximize mixing energy.
It is to apply the right amount of energy in the right way to achieve the desired particle behavior.
Mixing energy refers broadly to the mechanical energy transferred from the mixing equipment to the powder system during the mixing process.
This energy can generate:
Particle movement;
Particle collision;
Friction;
Shear;
Compression;
Deformation;
Agglomerate breakage;
Redistribution.
The actual effect of the energy depends not only on how much energy is applied, but also on:
Where the energy is applied;
How it is transferred;
How long it is applied;
What type of particles are being processed.
Therefore, two mixers with similar motor power can produce completely different mixing results.
These concepts are related but should not be confused.
Power
Power describes the rate at which energy is supplied.
It is commonly expressed in kW
Energy
Energy represents the accumulated mechanical input over time.
A simplified relationship is:
Energy ≈ Power × Time
Therefore, a high-power mixer operated for a short period and a low-power mixer operated for a long period may have similar total energy input.
However, their mixing results may still be completely different.
Why? Because energy distribution matters.
When mechanical energy enters a powder system, it does not all contribute directly to mixing.
It may be consumed by:
Bulk powder movement;
Friction;
Particle collision;
Wall friction;
Equipment resistance;
Agglomerate deformation;
Agglomerate breakage;
Heat generation.
Only part of the mechanical energy may contribute directly to the desired mixing mechanism.
This leads to an important concept effective mixing energy.
The important question is not "How much energy does the mixer consume?", but "How much of that energy actually contributes to the desired particle behavior?"
Powder materials have very different physical properties.
For example:
Free-flowing powders;
Cohesive powders;
Ultrafine powders;
Fibrous materials;
Heavy powders;
Lightweight powders.
They do not respond to mechanical energy in the same way.
A free-flowing granular material may achieve good uniformity with relatively gentle movement.
An ultrafine cohesive powder may require much stronger particle interaction to break agglomerates.
Therefore, there is no universal mixing energy level suitable for every powder.
Consider a powder with:
Good flowability;
Low cohesion;
Similar particle size;
Similar density.
Particles can move relatively easily.
In such a system, large-scale convection and diffusion may be sufficient to achieve acceptable mixing.
Applying excessive shear may provide little additional benefit.
Instead, it may increase:
Energy consumption;
Particle attrition;
Heat generation.
For these materials, gentle and efficient mixing may be preferable.
Cohesive powders behave differently.
Particles may form strong clusters because of:
Van der Waals forces;
Electrostatic forces;
Moisture;
Surface energy.
Simply moving these particles through the mixer may not break the clusters.
Mechanical energy must be transferred into the agglomerates.
This is where shear becomes important.
The purpose is not simply to increase total energy.
It is to create sufficient local mechanical interaction to overcome the forces holding particles together.
As particle size decreases:
Specific surface area increases;
Surface energy becomes more significant;
Cohesive forces become stronger relative to particle weight.
Consequently, ultrafine powders tend to form agglomerates.
A mixer may consume considerable energy simply moving these agglomerates around.
However, if that energy is not effectively transferred into the agglomerate structure, dispersion may remain poor.
This demonstrates an important principle:
High energy consumption does not necessarily mean high dispersion efficiency.
Excessive mechanical energy can have undesirable effects.
Depending on the material, it may cause:
Particle Breakage
Fragile particles may be fractured.
Fiber Damage
Fibrous materials may be shortened or damaged.
Temperature Increase
Mechanical energy can be converted into heat.
Electrostatic Charging
Intensive particle contact can increase electrostatic effects.
Material Degradation
Some sensitive materials may lose their desired properties.
Therefore, more energy ≠ better mixing
The objective should be controlled energy input.
Another common assumption is "If the mixture is not uniform, increase the mixing time."
This approach can work during the early stage of mixing.
However, mixing usually follows a characteristic progression.
Initially, large concentration differences → rapid improvement
Then, smaller concentration differences → slower improvement
Eventually, mixing approaches an equilibrium or practical mixing limit.
After this point, additional mixing may produce very little improvement.
Meanwhile, energy consumption continues.
Therefore, longer mixing does not necessarily produce proportionally better mixing.
The same amount of energy can produce very different results depending on the mechanism through which it is transferred.
For example, energy used primarily for bulk movement.
Produces:
Convection;
Material circulation;
Macro mixing.
Energy Concentrated in Relative Particle Motion
Produces:
Shear;
Particle collision;
Agglomerate deformation;
Dispersion.
Therefore, the key question is not only "How much energy?", but also "What kind of particle movement does the energy create?"
Imagine two mixers.
Mixer A
Uses a high-power motor,but most of the energy is used to move the bulk powder.
Mixer B
Uses a lower overall energy input,but efficiently creates:
Material circulation;
Relative particle movement;
Controlled shear;
Particle redistribution.
Mixer B may achieve better mixing quality.
This illustrates the difference between energy consumption and energy utilization.
An advanced mixer should attempt to convert mechanical energy into useful particle behavior.
Useful effects include:
Moving particles into new regions;
Breaking agglomerates;
Improving dispersion;
Redistributing minor components;
Maintaining micro-uniformity.
The objective is therefore maximum mixing effect per unit of effective energy rather than simply maximum mechanical power.
Different mixing mechanisms perform different functions.
For example:
Convection
Efficiently moves large quantities of material.
Diffusion
Reduces local concentration differences.
Shear
Breaks agglomerates and improves dispersion.
Collision
Promotes particle interaction.
Redistribution
Maintains uniform particle distribution.
If these mechanisms are properly coordinated, mechanical energy can be used more efficiently.
Instead of repeatedly moving the same bulk material, the mixing system can continuously change:
Particle position;
Particle neighborhood;
Particle interaction;
Agglomerate structure.
Double Motion Mixing combines two complementary mechanisms gravity diffusion and controlled shear.
Gravity diffusion provides efficient bulk circulation.
Controlled shear provides particle-level interaction.
This means the mechanical energy introduced into the system can simultaneously support:
Large-scale material turnover;
Particle rearrangement;
Agglomerate breakage;
Dispersion;
Redistribution.
The goal is not to simply increase mechanical intensity.
It is to make the energy more functionally effective.
Shear is particularly important because it creates relative movement.
Consider two neighboring layers of powder.
If they move at exactly the same speed, there is little relative displacement.
But if one layer moves faster than the other, the resulting relative movement generates shear.
This can act on agglomerates and particle clusters.
Therefore, effective dispersion depends not only on the magnitude of mechanical energy,but also on the local shear environment.
The final objective of advanced mixing is not simply bulk uniformity.
It is micro-uniformity.
To achieve micro-uniformity, the mixing system must provide sufficient energy to:
Move particles;
Break relevant agglomerates;
Disperse particles;
Redistribute them;
Maintain a stable particle structure.
However, the energy must remain within a suitable operating window.
Too little:
Insufficient dispersion
Too much:
Possible particle damage or unnecessary energy consumption
The ideal condition lies between these two extremes.
Different powders have different optimal processing conditions.
The optimal mixing window depends on:
Particle size;
Particle density;
Particle shape;
Flowability;
Cohesion;
Moisture;
Agglomeration strength;
Desired uniformity;
Material sensitivity.
Therefore, advanced mixing should be treated as a process optimization problem rather than simply a power problem.
When selecting a powder mixer, motor power alone should not be used as the primary criterion.
Engineers should also consider:
Mixing Mechanism
How is mechanical energy transferred to the powder?
Energy Distribution
Where does the energy go?
Shear Capability
Can the mixer generate sufficient controlled relative movement?
Dispersion Capability
Can agglomerates be effectively reduced?
Material Protection
Can the mixer avoid unnecessary mechanical damage?
Mixing Stability
Can the desired uniformity be maintained during discharge and subsequent handling?
The development of powder mixing technology is therefore moving away from a simple philosophy:
Increase power → Increase mixing intensity → Improve mixing
toward a more sophisticated approach:
Optimize energy transfer → Control particle behavior → Achieve the required uniformity
This is an important transition in modern powder engineering.
Mixing energy is essential for powder processing, but more energy does not automatically produce better mixing.
The effectiveness of mixing energy depends on:
Material properties;
Mixing mechanism;
Energy distribution;
Shear behavior;
Mixing time;
Process conditions.
For free-flowing powders, excessive energy may be unnecessary.
For cohesive and ultrafine powders, insufficient effective energy may leave agglomerates intact.
The real objective is therefore not maximum energy, but optimal and effective energy.
Advanced mixing technologies aim to use mechanical energy more efficiently by combining different particle movement mechanisms.
The ultimate goal is to transform energy into:
Particle Movement → Agglomerate Breakage → Dispersion → Redistribution → Micro-Uniformity
rather than simply into faster bulk movement.
This is one of the fundamental principles behind the development of next-generation powder mixing technology.
