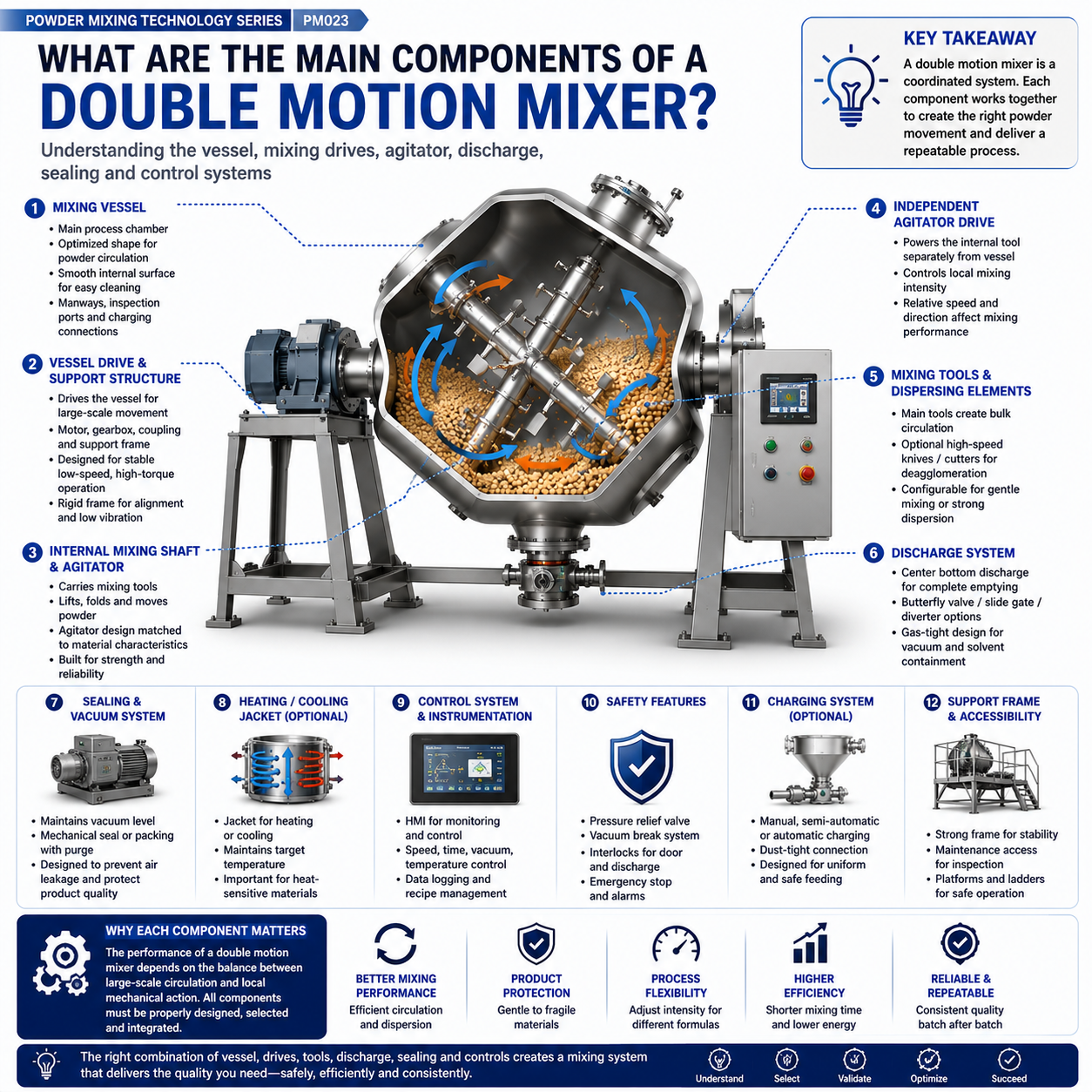

When powder formulations become more demanding, the final mixing result depends on more than motor power or nominal mixer capacity. It depends on how the equipment creates movement, transfers energy, contains dust, protects the product and discharges the blend. This is why understanding the main components of a double motion mixer is important for equipment selection, process development and after-sales support.
In a double motion mixer, two movement systems work in the same process space: the mixing vessel and the internal mixing tool are driven independently or through coordinated drives. Depending on the machine design, the vessel may remain stationary, rotate in the same direction as the agitator or rotate in the opposite direction. The exact configuration varies by model, but the engineering objective is consistent: create broader powder circulation while applying controlled mechanical action where it is needed.
The mixing vessel contains the powder and defines the space in which circulation, lifting, folding and dispersion take place. Its geometry influences how quickly material is picked up, how far it travels and whether areas of poor movement or residue can develop.
A suitable vessel should provide enough working space for the selected batch size without forcing the powder into an overloaded condition. The design must also consider the material's bulk behavior, aeration, cohesiveness, abrasiveness and tendency to adhere to metal surfaces. Smooth internal transitions and an appropriate internal finish help reduce retained material and simplify cleaning.
· Working volume and usable volume should be distinguished. The nameplate capacity is not automatically the recommended batch size.
· The vessel shape should support continuous renewal of the powder bed rather than allowing a stagnant pocket to remain in one location.
· Manways, inspection ports and charging connections should be positioned for safe loading, inspection and maintenance.
When the vessel is part of the motion system, its drive provides the large-scale movement of the powder mass. A motor, gearbox, coupling and support frame transmit torque to the vessel while carrying the weight of the equipment and batch. The vessel drive is normally selected for controlled starting, stable low-speed operation and sufficient torque under the expected load.
The support structure is equally important. It must maintain alignment between the vessel, drive and discharge position while limiting vibration. For larger machines, bearing selection, frame stiffness and access for inspection become important factors in long-term reliability. A well-designed support system also makes it easier to integrate weighing, feeding and packaging equipment around the mixer.
The internal shaft carries the mixing tools and converts drive power into local powder movement. Depending on the application, the agitator may include paddles, plough-style elements, ribbons, bars, blades or a combination of tools. The geometry determines whether the powder is mainly lifted, pushed axially, moved radially or exposed to stronger local velocity gradients.
The shaft and agitator should be designed for the actual batch load and the mechanical resistance of the formulation. Sticky or cohesive powders may require stronger torque and additional dispersing action. Fragile granules or shape-sensitive particles may require a gentler tool arrangement and a lower operating intensity. The correct design is therefore a process decision, not a choice based on speed alone.
The agitator drive powers the internal mixing tool and allows the operator to control local movement separately from the vessel movement. This separation is one of the central advantages of a double motion design. The process can use a slower, broad circulation phase, a stronger dispersing phase or a combination of both, depending on the powder formulation.
The useful parameter is not only agitator speed. The relative speed between the vessel and the internal tool, the direction of rotation and the resulting velocity difference also affect powder movement. Increasing relative motion can increase turnover and mechanical action, but it may also increase heat generation, particle attrition or tool wear. Settings should therefore be confirmed through trials and product-quality checks.
The main mixing tools establish the large-scale circulation pattern. Optional high-speed knives, cutters or dispersing elements provide more concentrated mechanical action for breaking soft agglomerates, distributing cohesive additives or improving the wetting and dispersion of difficult components. These elements are not automatically required for every powder; they should be selected according to the formulation and the desired level of mechanical treatment.
A practical equipment specification should identify the role of each tool: bulk circulation, axial transfer, wall sweeping, deagglomeration or localized dispersion. This makes it easier to explain the equipment to customers and to define a meaningful trial plan.
Powder mixers operate in an environment where fine particles can migrate toward shafts, bearings and drive components. The sealing system protects the product from outside contamination and helps prevent dust from escaping into the working area. Seal design should be considered together with powder fineness, abrasiveness, temperature, operating pressure, cleaning method and expected running hours.
Bearings support rotating components and maintain alignment under load. Poor alignment or unsuitable sealing can lead to heat, vibration, leakage and premature wear. For hygienic or contamination-sensitive applications, the seal arrangement and accessible product-contact surfaces should be reviewed as part of the complete machine design rather than treated as separate accessories.
The inlet system introduces the formulation into the vessel, while the discharge system determines how the finished blend leaves the machine. A good discharge design should provide controlled flow, reduce retained material and connect smoothly with a bin, conveyor, packaging machine or downstream process.
Positioned discharge is particularly useful when the vessel can be rotated to bring the outlet to a defined position. This allows the operator or PLC to coordinate the opening of the valve with the downstream equipment. For powders with poor flow, the outlet size, valve type, wall angle and possible vibration or assisted discharge should be evaluated during trials.
The product-contact surfaces are commonly manufactured from stainless steel such as SUS304, with SUS316 or another alloy considered when the formulation is more corrosive or when regulations require it. Material selection should account for chemical compatibility, moisture, cleaning agents, temperature and abrasion.
Surface finish also affects performance. Smooth, well-finished surfaces reduce the opportunity for powder to lodge in scratches, weld irregularities or sharp internal transitions. In food, pharmaceutical and high-purity applications, the required finish, weld treatment and cleanability should be stated clearly in the technical specification.
The control system coordinates the vessel drive, agitator drive, optional dispersing tools, valves and safety devices. A PLC and HMI can store operating recipes, set speed and time values, manage movement sequences and display alarms. Independent control of the two motion systems allows a process to be adjusted without changing the complete mechanical design.
Useful control functions may include separate speed settings, direction selection, timed stages, discharge positioning, motor overload protection and access-door interlocks. Where appropriate, motor current or torque trends can provide supporting information about load changes, although these signals should not be treated as a substitute for laboratory sampling and product-quality verification.
Rotating vessels and internal mixing tools require physical guards, access-door switches, emergency stops and controlled restart logic. The safety design should prevent access to moving parts during operation and make cleaning or inspection possible only under a defined safe condition. Local regulations and the intended export market determine the detailed requirements for electrical components, guarding and documentation.
The value of a double motion mixer comes from the interaction of its components. The vessel creates broad movement of the powder mass; the internal agitator renews local contact between different regions; optional dispersing tools address cohesive pockets; the control system defines the sequence; and the discharge system transfers the blend without undoing the mixing result.
Component | Primary function | Questions for selection |
Vessel | Holds and circulates the powder mass | What batch size, loading range and geometry are required? |
Vessel drive | Creates broad movement and carries the vessel load | What torque, speed and positioning accuracy are needed? |
Shaft and agitator | Creates local lifting, pushing and folding | Is the formulation fragile, cohesive, fibrous or abrasive? |
Dispersing element | Applies concentrated mechanical action | Are soft agglomerates or trace additives difficult to disperse? |
Seal and bearings | Contain powder and support rotating parts | What are the hygiene, temperature, dust and cleaning requirements? |
Discharge system | Transfers the finished blend with control | How will the mixer connect to conveying or packaging? |
PLC and HMI | Coordinates motion, recipes and interlocks | Which stages, records and automation functions are needed? |
Consider a formulation in which a very small quantity of silica must be distributed through a much larger quantity of xanthan gum or another cohesive powder. The challenge is not simply to move the bulk powder; it is to prevent the trace component from remaining concentrated in the charging zone or in small agglomerated pockets.
A double motion mixer can be configured so that the vessel movement promotes repeated bulk circulation while the internal agitator renews local contact between the two materials. If the formulation contains soft agglomerates, an optional dispersing tool may be used at a controlled stage. The final mixing time, speed combination and tool selection should be established through sampling and analysis, because the correct settings depend on particle properties, batch size and product sensitivity.
Before recommending a double motion mixer, sales and engineering teams should collect enough information to match the machine components with the process. A useful checklist includes:
Product name, composition, particle-size range, moisture, bulk density and expected batch weight.
Flow behavior, cohesiveness, abrasiveness, electrostatic tendency and sensitivity to heat or breakage.
Required batch capacity, target cycle time, loading method and downstream discharge arrangement.
Required material of construction, surface finish, cleaning method and contamination-control level.
Need for independent vessel and agitator speed control, dispersing tools, recipe storage and data recording.
Applicable electrical, safety, dust-control and documentation requirements for the destination market.
The main components of a double motion mixer each have a defined role: the vessel creates the process space and broad circulation; the drives provide controlled movement; the shaft and tools generate local powder action; seals and bearings protect reliability; the discharge system preserves handling control; and the PLC coordinates the complete sequence. Evaluating these components as one process system leads to better equipment selection and more predictable scale-up.
For difficult formulations, the key question is whether the complete equipment configuration can create the required movement, intensity, containment and discharge behavior for the actual material. That is the foundation of a technically sound double motion mixing solution.
