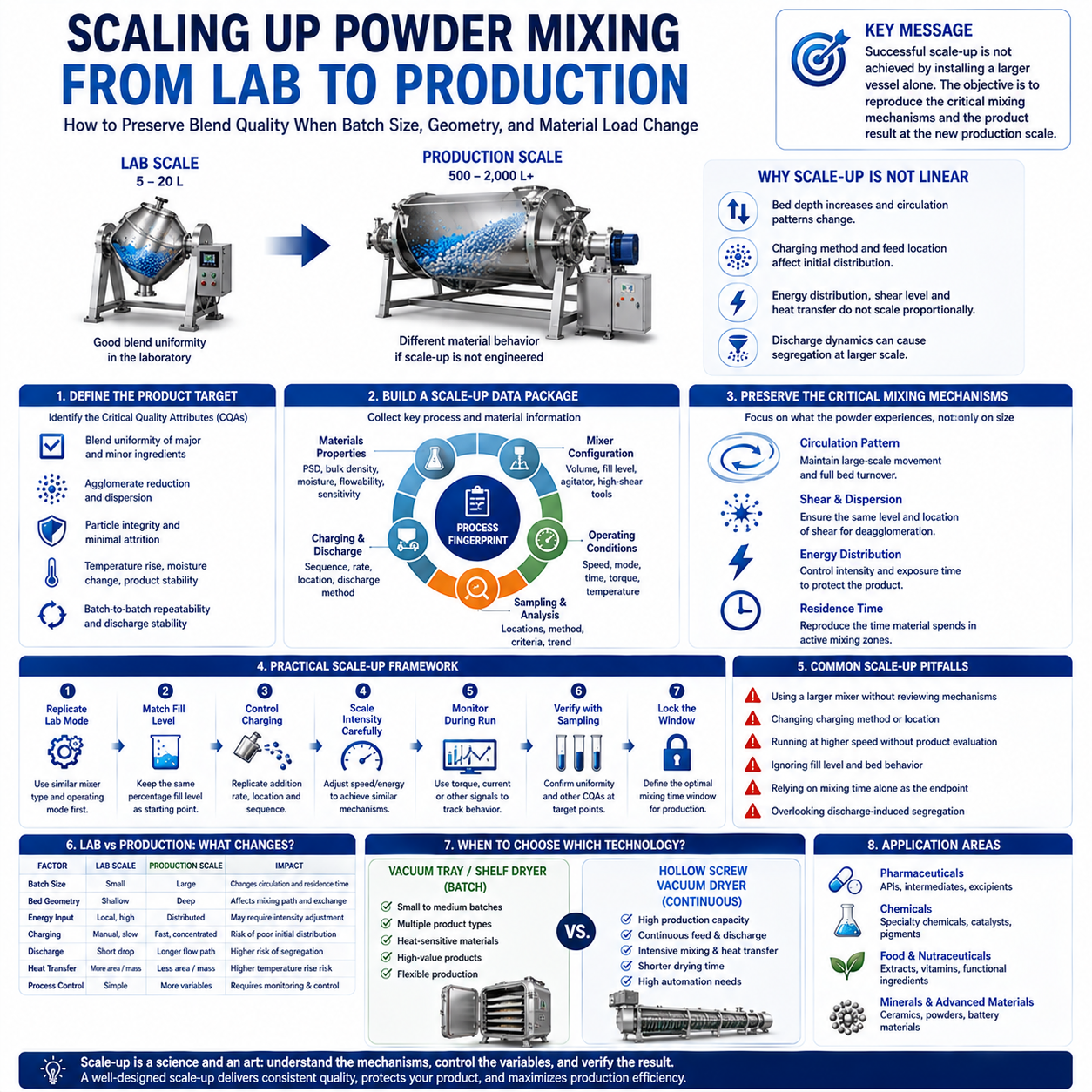

Powder And Mixing - 27. Scaling Up Powder Mixing From Lab To Production

1. Introduction

Moving a powder blend from a laboratory mixer to a pilot or production mixer is one of the most underestimated steps in powder processing. A formulation may mix well at 5 or 20 liters and then behave differently at 500 or 2,000 liters. The reason is that scale changes the geometry of the powder bed, the loading pattern, the mechanical energy distribution, the heat-transfer conditions, and the way material reaches the outlet.

For this reason, scale-up should be treated as a controlled engineering study rather than a simple capacity calculation. The central question is not, "How many times larger is the new mixer?" It is, "Which mechanisms created the required product quality in the original process, and how will those mechanisms be maintained at the new scale?"

2. Why Powder-Mixing Scale-Up Is Not Linear

In a geometrically similar system, several dimensions change together as the mixer becomes larger. However, the powder does not experience a perfectly scaled copy of the laboratory environment. The bed may become deeper, the distance from the wall to the mixing tool may increase, and the time required for material to travel through the active mixing zone may change. The mass of material also increases faster than the surface area available for heat transfer.

Operators can also unintentionally change the process while changing the equipment. A laboratory batch may be charged slowly by hand, while a production batch is loaded through a hopper in a short, concentrated stream. A minor ingredient that was distributed across the bed in the lab may form a local pocket in the larger mixer. Discharge may also introduce segregation if the blend is allowed to flow or drop for too long after mixing.

3. Define the Product Target Before Choosing a Scale-Up Rule

The correct scale-up basis depends on what the process must accomplish. A free-flowing premix may be governed mainly by convective circulation and blend uniformity. A cohesive powder may require local deagglomeration. A trace additive may require a carefully designed dilution sequence. A fragile granule may need uniform distribution with limited mechanical damage.

Before selecting equipment or operating conditions, define the critical quality attributes (CQAs) that will determine whether the scale-up is successful:

• Blend uniformity at the required sampling scale, including the distribution of minor or trace ingredients.

• Degree of agglomerate reduction and dispersion of cohesive or fine fractions.

• Particle integrity, granule-size distribution, and avoidance of excessive attrition.

• Temperature rise, moisture change, or other product changes caused by mechanical energy.

• Batch-to-batch repeatability, cleanability, containment, and discharge behavior.

There is no universal mixing time, power input, or coefficient-of-variation limit that applies to every powder. The acceptance criteria should be tied to the formulation, the application, and the downstream process. The scale-up rule is therefore selected after the product target is clear, not before.

4. Build a Scale-Up Data Package at Laboratory and Pilot Scale

A useful scale-up package records more than the final mixing time. It captures the process conditions that created the result and the signals that show how the material behaved during the run. At minimum, record:

• Material identity, moisture condition, particle-size range, bulk density, and known sensitivity to shear or heat.

• Mixer working volume, batch mass, actual fill level, agitator configuration, and the position of high-intensity tools.

• Charging order, charging time, pre-blending steps, and the location or method used for minor-ingredient addition.

• Agitator speed, operating mode, mixing time, torque or motor-current trend, and any temperature change.

• Sampling locations, sample mass, analytical method, and the relationship between test results and the process endpoint.

• Discharge method, hold-up, cleaning observations, and any visible change in the blend during transfer.

This record creates a process fingerprint. When the production mixer gives a different result, the engineering team can identify whether the cause is insufficient circulation, excessive shear, a charging problem, a fill-level mismatch, or a discharge effect.

5. Choose What Should Remain Similar

Scale-up is often discussed as if there were one correct rule. In practice, several possible bases may be considered, and the most useful basis depends on mixer type and product behavior. Common comparison points include:

For a geometrically similar mixer, maintaining similar geometry and agitator proportions can be a strong starting point. In other cases, matching tip speed, power per unit volume, torque response, number of bed turnovers, or a suitable dimensionless operating condition may be more informative. These variables are not interchangeable: matching one can change another.

The safest approach is to use engineering calculations to narrow the operating window, then confirm the window with trials at representative fill levels. Published studies on powder-blending scale-up also emphasize that blend uniformity and residence-time behavior are useful indicators when moving between scales, especially for continuous or batch-like processes.

6. Treat Fill Level as a Process Variable

The mixer should be evaluated across the actual working range, not only at the nominal capacity. A low fill may reduce contact between the powder and the active mixing zone. An excessive fill can restrict particle movement, increase torque, and reduce the exchange of material between different regions of the bed.

Powder mixing equipment is normally specified by useful volume rather than mass alone because bulk density can change with formulation, aeration, compaction, and moisture. Two batches with the same weight can occupy different volumes and therefore expose the agitator to different loading conditions.

Practical test: Run a low, nominal, and high working fill during development when possible. Compare blend uniformity, motor load, mixing time, temperature, and discharge behavior. This quickly shows whether the production recipe is robust or depends on a narrow operating point.

7. Preserve the Charging Sequence and Ingredient Distribution

The loading sequence can determine how difficult the subsequent mixing task will be. Large quantities of a free-flowing base powder may be charged first, followed by a controlled addition of minor ingredients. A small quantity of an active or functional additive may be premixed with a portion of the carrier before entering the main batch. This geometric-dilution approach reduces the distance that a trace component must travel before it is distributed through the blend.

Cohesive fines may need pre-dispersion or a controlled high-intensity stage. Liquid binders, oils, or surface treatments should be introduced at a location and rate that avoid creating wet lumps or a local sticky zone. The correct sequence is formulation-specific and must be confirmed through trials, but the principle is general: use the loading sequence to reduce the size of the hardest mixing problem before the full batch is assembled.

8. How Dual-Motion Mixing Supports Scale-Up

A dual-motion or multi-mode mixer combines more than one type of material movement within the same process. The main vessel or primary agitator creates broad circulation and exchange through the powder bed, while an independently driven high-speed tool can supply localized shear and dispersion where needed. Depending on the equipment design, these movements may be operated together or in defined stages.

This separation of functions is valuable during scale-up because the engineer can adjust the process around the material rather than relying on one fixed intensity. For example:

• Use primary circulation to distribute the bulk powder and establish whole-batch movement.

• Introduce a minor ingredient under controlled circulation so it does not remain concentrated at the charging point.

• Apply short, targeted high-intensity action to break soft agglomerates or disperse cohesive fines.

• Reduce or stop the high-speed tool once the dispersion target is reached, limiting unnecessary heat or particle damage.

• Repeat the same sequence at pilot and production scale, then fine-tune speed and duration using torque, temperature, and sampling data.

This does not eliminate the need for scale-up trials. It provides more process degrees of freedom, which can make it easier to match the required combination of circulation, shear exposure, and total treatment. Final settings must still be established from the actual material, batch size, mixer geometry, and quality results.

9. Practical Application Example: A Trace Additive in a Cohesive Powder

Consider a formulation containing a very small amount of a functional additive in a much larger powder carrier. The technical challenge is not simply to mix two ingredients; it is to distribute the additive without creating concentrated pockets, while also preventing cohesive fines from forming soft agglomerates.

A robust scale-up sequence may include a controlled pre-blend of the additive with a small carrier fraction, charging the remaining carrier in stages, establishing broad circulation, and then using a short dispersive step if agglomerates remain. Samples should be taken from multiple locations or from a validated discharge sequence. The process is accepted only when the analytical results and physical observations meet the defined criteria at the production scale.

What to monitor: Minor-component assay or tracer uniformity, visible agglomerates, motor load, temperature rise, discharge consistency, and any change in the powder's flow or bulk-density behavior after mixing.

10. Verification: Prove the Scale-Up with Data

A scale-up trial should answer two separate questions: did the material reach the required state inside the mixer, and did the finished batch remain uniform during discharge and transfer? Both matter. A blend that is uniform in the vessel can change during discharge if the particles differ significantly in size, density, or flow behavior.

1. Define the sampling map before the trial. Identify locations, timing, sample mass, and analytical method rather than selecting samples after seeing the result.

2. Compare multiple points in the batch and, when relevant, early, middle, and late discharge fractions.

3. Record process signals such as torque, current, temperature, mixing time, and any change in sound or vibration.

4. Compare the scale-up batch with the laboratory or pilot reference using the same analytical method and acceptance criteria.

5. Repeat the selected process window sufficiently to demonstrate that the result is not a one-time success caused by operator technique or unusual material condition.

Sampling quality is part of mixing quality. If the sampling plan is too small, too localized, or not representative of the discharge, the data may give false confidence or make a good process appear unstable.

11. Common Scale-Up Problems and Corrective Actions

12. Conclusion

Powder-mixing scale-up succeeds when the process is designed around material behavior and measurable product requirements. The engineer must understand how fill level, bed movement, charging sequence, mechanical intensity, temperature, and discharge interact at the new scale.

A dual-motion or multi-mode mixer can support this work by combining whole-batch circulation with controllable local dispersion. Its value is not a promise of one universal mixing time; it is the ability to select and adjust different mixing mechanisms within a repeatable process window. With representative trials, disciplined sampling, and clear acceptance criteria, the transition from laboratory development to industrial production becomes a controlled engineering step rather than a costly guess.
