In powder processing, mixing time is often treated as a simple setting: load the mixer, run it for a fixed number of minutes, and discharge the batch. In practice, that approach can create inconsistent results. The time required to reach a stable blend depends on the formulation, loading pattern, particle interactions, mixer geometry, operating speed and discharge behavior.
The goal is therefore not to mix for as long as possible. The goal is to identify the shortest practical time at which the blend meets its quality requirements and remains stable during discharge and downstream handling. This article explains how to establish that endpoint and how a dual-motion or multi-mode mixer can support a more controlled process.
Two batches made with the same mixer and the same nominal recipe may not reach the same condition at the same time. Small changes in the way powders enter the vessel can alter the initial distribution of material. A fine additive placed in one concentrated zone behaves differently from the same additive dispersed gradually over a larger carrier bed.
The following variables commonly change the time required to reach an acceptable blend:
Fill level and working volume: the material bed may move freely at one loading level but form a compact, poorly exchanging mass at another.
Feed sequence and location: the order, rate and point of addition influence how quickly minor ingredients are distributed.
Particle properties: cohesion, surface roughness, shape, moisture and electrostatic behavior affect how easily particles separate and redistribute.
Operating intensity: vessel movement, blade speed, direction and the balance between tumbling and local shear change the rate of mixing.
Product sensitivity: fragile granules, coated particles or temperature-sensitive ingredients may require a controlled endpoint rather than maximum mechanical energy.
For these reasons, a recipe that specifies only “mix for 10 minutes” does not fully describe a robust process. A stronger specification defines the operating mode, the mixing endpoint, the sampling method and the acceptable range of variation.
The optimal mixing time is the point at which the blend has reached the required quality and additional mixing provides little benefit or introduces new risk. It is a balance among four objectives:
Composition control: the relevant ingredients are distributed within the required tolerance.
Product protection: particles are not unnecessarily fractured, polished, heated or otherwise changed by prolonged mechanical action.
Process efficiency: the batch is not held in the mixer longer than necessary, preserving capacity and reducing energy consumption.
Downstream stability: the blend does not separate rapidly during discharge, transfer, storage or feeding into the next operation.
This definition is important because the best sample taken from the mixer is not always the best final product. A blend can appear uniform inside the vessel and then separate during discharge if the discharge pattern, drop height or conveying conditions are poorly controlled.

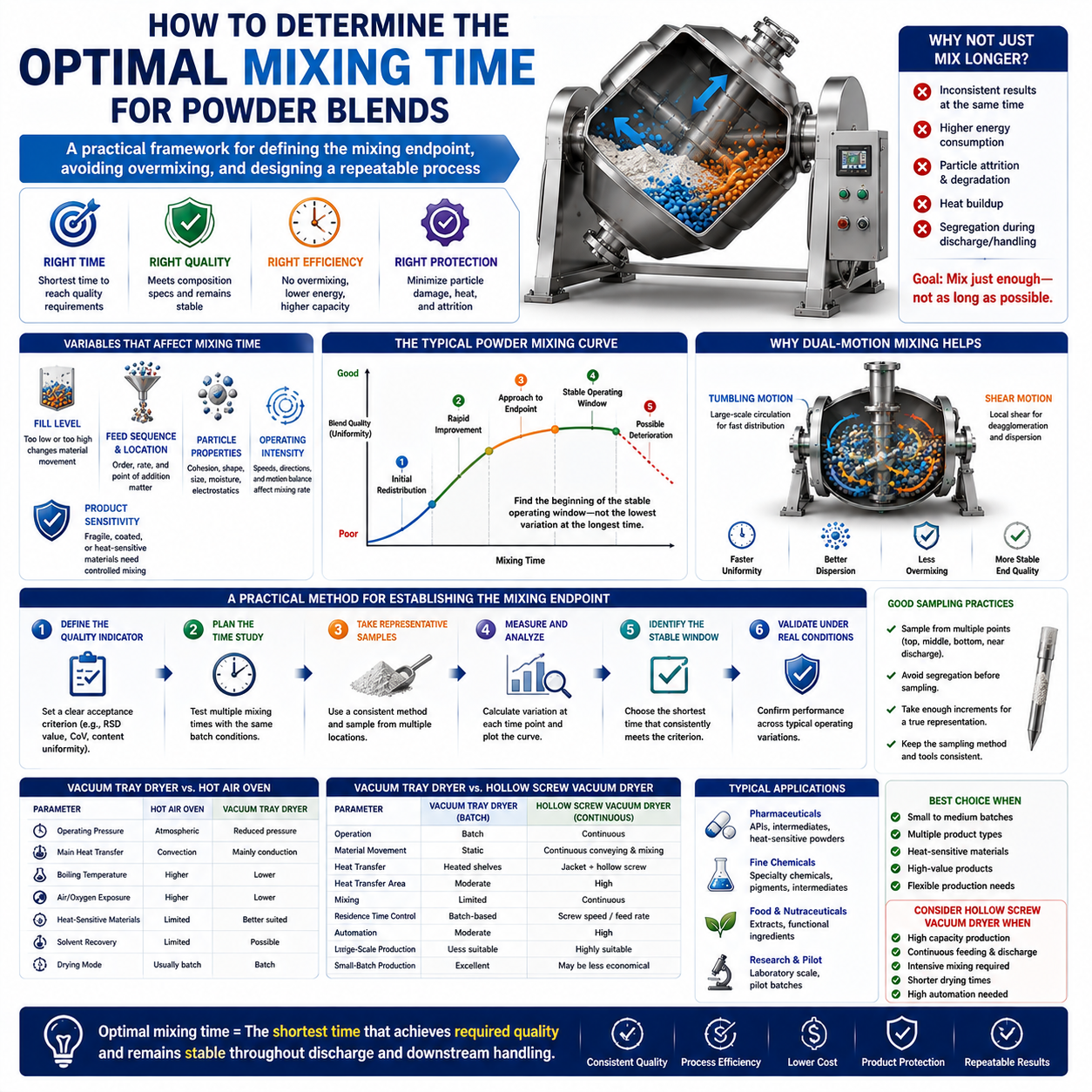

When blend quality is monitored at several time points, the process often follows a recognizable pattern. The exact curve depends on the material system, but the stages are useful for designing a test plan:
1. Initial redistribution: large concentration differences are reduced as the main powder bed begins to exchange material.
2. Rapid improvement: the active mixing mechanisms produce a clear reduction in composition variation, often giving the largest quality gain per minute.
3. Approach to endpoint: additional mixing still improves the blend, but the rate of improvement becomes smaller and more dependent on local dead zones or difficult ingredients.
4. Stable operating window: several consecutive time points meet the acceptance criterion with acceptable repeatability.
5. Possible deterioration: prolonged mixing may cause attrition, heat generation, agglomerate re-formation or renewed separation during discharge and handling.
The objective of a time study is to find the beginning of the stable operating window—not simply the lowest variation observed at the final, longest mixing time.
A reliable endpoint can be established with a structured small-scale or pilot study before finalizing a production recipe. The test should change one variable at a time wherever possible.
Select an indicator that represents the risk in the real product. Depending on the formulation, this may be the concentration of a tracer component, active ingredient, colorant, salt, conductive additive or another measurable marker. The indicator should be analytically stable and sufficiently sensitive to reveal meaningful differences among samples.
Instead of testing only one duration, collect batches or samples at several time points—for example, early, middle and late stages of the cycle. The exact intervals should be selected according to expected mixing speed and batch value. A time sweep shows whether the process is still improving, has reached a plateau or has begun to deteriorate.
Collect samples from different regions or discharge fractions rather than relying on one scoop from the top of the vessel. Sampling should consider the vessel geometry, the position of the sampling points and the way material exits the mixer. The number and size of samples should be sufficient to distinguish process variation from analytical variation.
Set the criterion before interpreting the results. The criterion may involve a concentration range, a statistical measure of variation, a visual or color target, or a combination of product-specific checks. Avoid selecting the endpoint only because one test result looks favorable.
Repeat the selected condition with independent batches. An endpoint that works once but changes significantly with small variations in loading or feeding is not yet a robust production setting. Confirm that the selected time remains acceptable across realistic operating conditions.
Longer mixing is not automatically safer. Once the required distribution has been achieved, additional mechanical action can change the material or create conditions for renewed separation. The risk depends on the formulation and should be verified experimentally, but several mechanisms are common:
Particle attrition: brittle granules or crystals may fracture, changing particle-size distribution and flow behavior.
Heat accumulation: high-speed or high-shear operation can raise product temperature, which may matter for temperature-sensitive ingredients, fats, coatings or reactive systems.
Surface modification: repeated contact can polish particles, alter surface charge or increase adhesion to other particles.
Re-segregation during discharge: a very mobile blend may separate as it falls, transfers or enters a hopper.
Degradation of fragile structures: coated granules, porous particles or shape-sensitive inclusions may lose their intended form.
A robust process therefore uses enough energy to achieve the required distribution, then transitions promptly to controlled discharge. The endpoint and discharge step should be developed as one connected operation.
A dual-motion mixer combines vessel movement with an independently driven internal mixing element. In a multi-mode design such as the CWDMH-200L Multi-Mode Dynamic Mixer, the operator can use different combinations of vessel rotation and blade rotation to create a practical balance between bulk turnover and localized dispersion.
This matters for mixing-time development because different stages of the batch may need different mechanisms:
Process stage | Primary objective | Useful mixing action | Practical benefit |
Initial loading | Spread ingredients through the bed | Gentle vessel movement | Reduces concentrated feed zones |
Main blending | Exchange bulk material | Vessel movement plus blade assistance | Improves turnover across the working volume |
Dispersion | Break local clusters or distribute a minor component | Short, controlled higher-shear interval | Adds local intensity without extending the whole cycle |
Final conditioning | Protect the blend and prepare for discharge | Lower-intensity movement or a controlled stop | Limits unnecessary mechanical exposure |
Discharge | Empty the vessel consistently | Independent blade/discharge mode | Helps reduce residual hold-up |
The value is not that every formulation automatically mixes faster. The value is that the mixer gives the process engineer more than one way to apply mechanical energy. A time study can therefore compare a gentle turnover stage, a short shear stage and a controlled discharge stage instead of using one constant setting for the entire batch.
Independent adjustment of vessel and blade speed also supports a more transparent scale-up discussion. The engineer can describe whether a result came primarily from bulk circulation, blade-assisted dispersion or the interaction of both mechanisms, making the recipe easier to reproduce and troubleshoot.
A minor ingredient used at a low dosage must be distributed through a much larger quantity of carrier powder. A useful process may begin with a preblend or staged addition, followed by moderate vessel movement and a short, controlled shear interval. The endpoint should be verified with samples from multiple locations because a single sample can miss local concentration differences.
If a mineral powder contains soft clusters, bulk turnover alone may not release them consistently. A dual-motion mixer can use vessel movement for broad circulation and a limited blade-intensity stage for localized dispersion. The test should also check whether the higher-intensity stage changes particle shape, dust generation or product temperature.
A food premix may contain a fine base powder together with fragile flakes, crystals or coated inclusions. The correct process may use a longer gentle blending stage and avoid a prolonged high-shear finish. In this case, the endpoint should include both composition distribution and physical appearance after discharge.
Functional additives often need to be distributed at a low dosage without creating persistent local agglomerates. The process engineer should test addition sequence, vessel movement and short shear intervals together. The selected endpoint should be tied to the downstream performance test—not only to visual uniformity in the mixer.
Observed symptom | Likely process issue | Adjustment to investigate | Verification |
Some batches require much longer time | Variable loading, feed location or moisture | Standardize loading and addition sequence | Compare time-sweep results across batches |
Top and bottom samples differ | Insufficient bulk turnover or a local dead zone | Change vessel movement or fill level | Use a mapped sampling plan |
Good mixer samples but poor final product | Segregation during discharge or transfer | Reduce drop height and control discharge | Test first, middle and last discharge fractions |
Quality improves, then declines | Overmixing, attrition or heat | Shorten the high-intensity stage | Track temperature, particle condition and quality indicator |
Residual material remains after discharge | Poor discharge geometry or insufficient blade assistance | Use a controlled discharge mode | Measure residual mass and inspect hold-up areas |
Troubleshooting should begin with the process sequence and sampling method before changing mixer size or adding more power. A measurement that does not represent the batch can make a stable process appear unstable, while an underspecified operating sequence can make a capable mixer appear inconsistent.
Before releasing a powder-mixing recipe for routine production, confirm that the following points have been addressed:
The formulation, batch size and loading range are defined.
The feed sequence, addition location and preblend requirements are recorded.
The time sweep includes enough points to show the improvement and plateau regions.
Samples are taken from representative vessel locations or discharge fractions.
The analytical method and acceptance criterion are defined before the final endpoint is selected.
The selected time is confirmed in repeated batches, not only in one trial.
The discharge step is included in the quality assessment.
Speed, direction, operating mode and any short shear interval are written into the recipe.
The correct powder-mixing time is determined by the material system and the required product performance—not by a universal rule or a longer cycle. A structured time study can reveal when the blend reaches a stable operating window, while representative sampling confirms whether that condition survives discharge and handling.
Dual-motion and multi-mode mixers are valuable in this development process because they allow bulk movement, localized shear and controlled discharge to be adjusted as related but distinct operations. When the equipment settings, sampling plan and acceptance criterion are developed together, the result is a mixing recipe that is more efficient, more repeatable and easier to scale.
