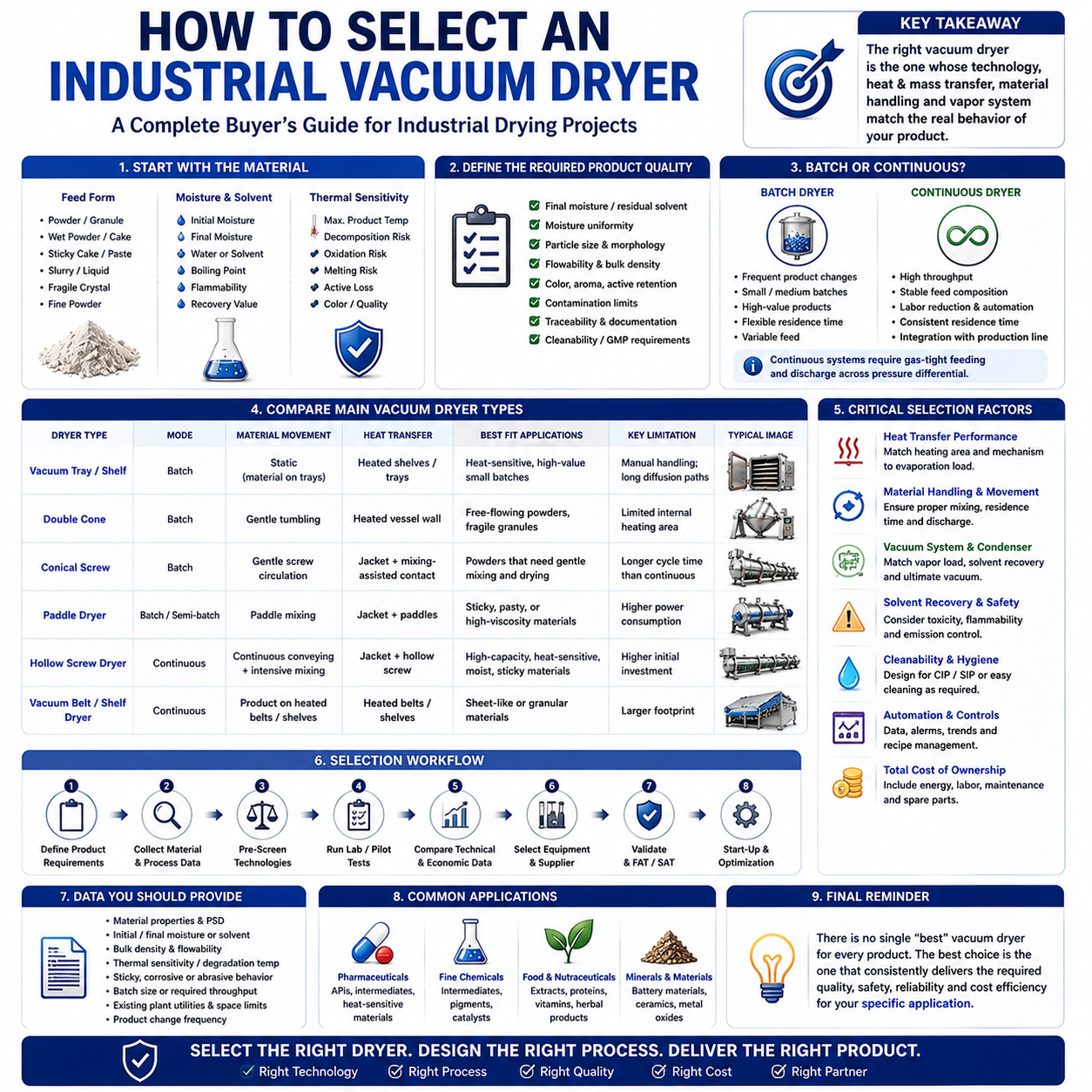

EQ005 - How To Select An Industrial Vacuum Dryer?

Executive Summary

Selecting an industrial vacuum dryer is not a matter of choosing the machine with the deepest vacuum, largest motor, or largest nominal vessel volume. The correct dryer is the one whose heat-transfer method, material movement, vapor-handling system, operating mode, cleanability, safety strategy, and control system match the real behavior of the product.

Industrial drying involves simultaneous heat and mass transfer. For vacuum applications, equipment selection becomes especially important when the product is heat-sensitive, oxygen-sensitive, solvent-containing, sticky, difficult to flow, or required to reach a narrow final-moisture specification.

This guide provides a practical engineering workflow for comparing vacuum tray, double-cone, conical-screw, paddle, hollow-screw, and other vacuum drying configurations, while identifying the process data a manufacturer should provide before equipment sizing begins.

1. Start with the Material — Not the Dryer

A sound selection process starts with the feed material because its physical form and behavior during drying determine which technologies are technically feasible.

1.1 Feed Form

• Free-flowing powder or granule

• Wet powder or centrifuge cake

• Sticky filter cake

• Paste or highly viscous mass

• Slurry or pumpable liquid

• Fragile crystal or granule

• Fine powder with dusting or entrainment risk

A material may also change dramatically during drying. A pumpable slurry can become a sticky paste before turning into a powder. Selection must therefore consider the complete drying path, not only the initial feed condition.

1.2 Moisture and Solvent Characteristics

• Initial moisture or solvent content

• Required final moisture or residual solvent

• Free versus bound moisture

• Water or organic solvent

• Boiling point and vapor pressure

• Solvent toxicity, flammability and recovery value

• Multiple volatile components or azeotropic behavior

Vacuum can lower the boiling temperature, but it does not remove the latent heat requirement for evaporation. Vapor generation must also be matched to condenser and vacuum-system capacity.

1.3 Thermal Sensitivity

Determine the maximum acceptable product temperature and the consequences of exceeding it. Potential risks include decomposition, oxidation, discoloration, melting, loss of active components, crystal-form changes, and unwanted chemical reactions.

2. Define the Required Product Quality

• Final moisture or residual-solvent specification

• Moisture uniformity

• Particle-size and morphology preservation

• Bulk density and flowability

• Color, aroma, or active-component retention

• Contamination limits

• Batch traceability

• GMP, hygienic, or cleanability requirements where applicable

The dryer should be selected around the required dried product, not merely around an evaporation-capacity figure.

3. Batch or Continuous Vacuum Drying?

Batch Vacuum Drying

Batch systems are often appropriate for:

• Frequent product changes

• Small or medium campaign sizes

• High-value products requiring batch traceability

• Variable feed characteristics

• Processes requiring flexible residence time

Continuous Vacuum Drying

Continuous systems become attractive when:

• Feed composition is reasonably stable

• Throughput is high

• Labor reduction and automation are important

• Consistent residence time and product moisture are required

• The dryer must integrate directly with upstream and downstream equipment

Continuous vacuum processing also requires reliable feeding and discharge across a pressure differential. Gas-tight feeding and discharge are therefore core process-design issues.

4. Compare the Main Vacuum Dryer Types

5. Evaluate Heat Transfer

A useful engineering relationship is Q = U × A × ΔT, where Q is heat-transfer rate, U is overall heat-transfer coefficient, A is effective heat-transfer area, and ΔT is the temperature driving force.

• Is heat supplied only through an external jacket?

• Are internal shafts, paddles, or screw flights heated?

• Does the product continuously contact heated surfaces?

• Will fouling or wall build-up reduce heat transfer?

• Can the allowable product temperature provide sufficient temperature driving force?

Usable heating area and actual product contact are more meaningful than nominal vessel volume alone.

6. Evaluate Mass Transfer and Material Movement

During the falling-rate period, internal moisture migration can become the controlling resistance. Agitation may expose fresh surfaces, reduce local moisture gradients, break weak agglomerates, and improve contact with heated surfaces.

• Does the product become sticky as moisture falls?

• Does it form hard lumps or crusts?

• Can excessive shear damage crystals or particles?

• Will fine powder be entrained into the vacuum line?

• Does the product require gentle tumbling or stronger forced turnover?

• Is positive axial conveying required?

7. Size the Vacuum and Condensation System from Vapor Load

Vacuum-pump selection should consider the actual process gas load, including non-condensables, leakage, and vapor not removed by upstream condensation. For solvent-containing products, condenser design is part of the drying process because it affects solvent recovery, vacuum stability, and pump loading.

8. Consider Safety Before Final Selection

Vacuum does not automatically make a drying process safe. Organic solvents, combustible dusts, toxic vapors, and reactive products can require additional controls.

• Solvent and dust flammability/explosion characteristics

• Inert-gas requirements

• Grounding and static-control strategy

• Pressure/vacuum mechanical design

• Temperature and pressure interlocks

• Condenser and receiver design

• Electrical area classification where applicable

• Applicable pressure-vessel, machinery, environmental, and occupational-safety requirements

A formal process hazard assessment should be performed for the specific material and installation.

9. Cleaning, Cross-Contamination and Maintenance

• Accessibility of product-contact surfaces

• Dead zones and material retention

• CIP/WIP requirements where relevant

• Seal replacement and shaft maintenance

• Filter accessibility

• Inspection access

• Product-changeover time

• Drainability and solvent compatibility

10. Compare Energy Consumption on a Defined Basis

A meaningful comparison should consider the complete process rather than only heater power.

• kg of moisture/solvent evaporated per batch or hour

• Heating-medium consumption

• Electrical load of pumps, agitators, and auxiliaries

• Cycle or residence time

• Cooling requirements

• Solvent recovery value

• Cleaning and turnaround time

• Useful dry-product output per day

11. Pilot Testing Is a Critical Selection Step

Dryer scale-up is difficult because material structure, heat transfer, moisture migration, mixing, and wall interaction can all change during drying. Representative laboratory or pilot testing reduces selection and scale-up risk.

• Initial and final moisture

• Material temperature

• Heating-medium temperature

• Absolute pressure

• Drying time

• Condensate quantity versus time

• Torque/agitation behavior

• Stickiness and agglomeration changes

• Final particle condition and flowability

• Product quality after drying

A static vacuum-oven test can establish whether low-temperature vacuum evaporation is feasible, but it does not by itself predict the performance of an agitated industrial dryer.

12. Practical Selection Matrix

13. Information to Send a Vacuum Dryer Manufacturer

1. Material name and composition, including hazardous components.

2. Physical form: powder, granule, cake, paste, slurry, or liquid.

3. Bulk density and, where relevant, particle-size distribution.

4. Initial moisture or solvent content.

5. Required final moisture or residual solvent.

6. Moisture/solvent identity and recovery requirement.

7. Maximum allowable material temperature.

8. Required wet-feed or dry-product capacity.

9. Operating hours per day and batch/continuous preference.

10. Known stickiness, agglomeration, foaming, dusting, or corrosivity.

11. Available heating medium.

12. Available cooling-water conditions.

13. Required material of construction and cleaning/hygiene standard.

14. Site electrical supply, installation constraints, and applicable codes.

15. Representative sample for laboratory or pilot testing where possible.

14. When a Hollow Screw Vacuum Dryer May Be Appropriate

A hollow screw vacuum dryer becomes attractive when the material is compatible with screw transport and the process benefits from simultaneous conveying, mixing, and indirect internal heating.

• Medium-to-high continuous throughput

• Need to reduce manual batch handling

• Powder or granular feed requiring continuous turnover

• Need for a large effective indirect-heating area

• Controllable residence time

• Closed-system moisture or solvent removal

• Integration with continuous upstream/downstream production

For sticky or highly viscous products, testing is especially important because some materials pass through a high-torque adhesive phase during drying.

15. Common Selection Mistakes

• Selecting by nominal vessel volume instead of evaporation duty and material behavior.

• Assuming the deepest possible vacuum always produces the shortest drying time.

• Ignoring the falling-rate period and internal moisture diffusion.

• Comparing heating area without considering real product contact.

• Underestimating condensation requirements.

• Ignoring behavior between the wet and dry states.

• Choosing continuous equipment before validating vacuum feeding and discharge.

• Failing to evaluate cleaning, cross-contamination, and maintenance.

• Scaling directly from a static oven test to an agitated production dryer.

• Purchasing before representative testing when process risk is high.

16. Frequently Asked Questions

What is the most important factor when selecting a vacuum dryer?

There is no single factor. Material behavior, thermal sensitivity, moisture/solvent characteristics, product quality, throughput, heat and mass transfer, safety, cleaning, and operating mode must be considered together.

Is a deeper vacuum always better?

No. Once heat transfer or internal moisture migration becomes limiting, a deeper vacuum may provide little additional drying-rate benefit.

Which vacuum dryer is best for heat-sensitive materials?

Several designs can be suitable. The choice depends on allowable temperature, physical form, required agitation, capacity, and product-quality requirements.

When should I choose a batch vacuum dryer?

Batch systems are often preferred for flexible multiproduct production, smaller campaigns, variable feeds, or strict batch traceability.

When should I choose a continuous vacuum dryer?

Continuous systems are attractive for stable feeds, higher throughput, automation, and production-line integration.

Can vacuum dryers recover organic solvents?

Yes. A closed system can route solvent vapor to a condenser and receiver, provided the complete system is engineered for that solvent and its hazards.

Why is pilot testing necessary?

Testing reveals drying kinetics, stickiness, torque, entrainment, product quality, and other behavior that may not be predictable from basic data alone.

What information is needed for an accurate quotation?

At minimum: material form, capacity, initial/final moisture, solvent identity, allowable temperature, bulk density, utilities, construction material, and special safety or cleaning requirements.
