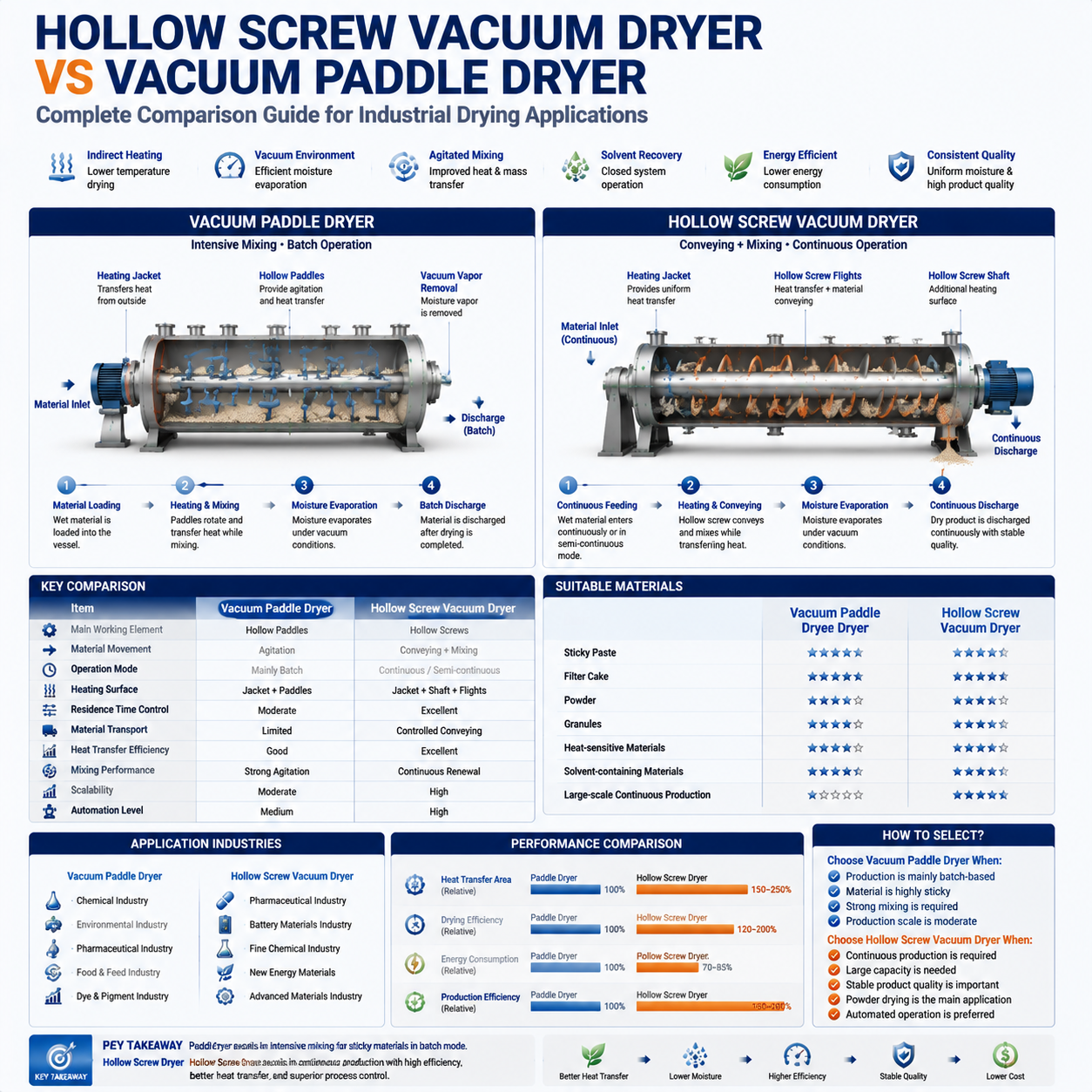

EQ003 - Hollow Screw Vacuum Dryer VS Vacuum Paddle Dryer

1. Executive Summary

Both Hollow Screw Vacuum Dryers and Vacuum Paddle Dryers are advanced indirect heating vacuum drying systems designed for challenging materials such as powders, pastes, filter cakes, and solvent-containing products.

At first glance, they appear similar because both technologies use:

• Vacuum drying environment

• Indirect heating

• Mechanical agitation

• Closed solvent recovery systems

However, their engineering designs are different.

The main difference is:

A Vacuum Paddle Dryer focuses on intensive mixing and heat transfer through heated paddles, while a Hollow Screw Vacuum Dryer combines heating, conveying, and continuous material movement through a hollow screw structure.

The optimal choice depends on:

• Production mode

• Material characteristics

• Required capacity

• Mixing requirements

• Residence time control

• Product sensitivity

This article provides an engineering comparison between Hollow Screw Vacuum Dryers and Vacuum Paddle Dryers to help manufacturers select the most suitable drying technology.

2. Introduction: Why Compare These Two Technologies?

In industrial drying applications, many materials cannot be effectively processed by conventional dryers.

Typical challenges include:

• High moisture content

• Sticky behavior

• Agglomeration tendency

• Heat sensitivity

• Solvent recovery requirements

• Strict final moisture requirements

Agitated vacuum dryers were developed to overcome these challenges.

Among them:

• Vacuum Paddle Dryer

• Hollow Screw Vacuum Dryer

are two commonly selected technologies.

Both improve drying performance through:

• Increased heat transfer area

• Mechanical material movement

• Vacuum operation

However, their internal mechanisms create different performance characteristics.

3. Working Principle Comparison

3.1 Vacuum Paddle Dryer

A Vacuum Paddle Dryer uses rotating hollow paddles installed inside a heated vessel.

The paddles provide:

• Material agitation

• Heat transfer

• Mixing

Typical structure:

Heating Jacket → Material ← Heated Hollow Paddles → Vacuum Vapor Removal

During operation:

1. Material enters the vessel.

2. Heated paddles rotate and mix the material.

3. Heat transfers from paddles and jacket.

4. Moisture evaporates under vacuum.

5. Vapor is removed through the vacuum system.

3.2 Hollow Screw Vacuum Dryer

A Hollow Screw Vacuum Dryer uses hollow screws as both:

• Heating elements

• Conveying elements

Typical structure:

Heating Jacket → Material ← Hollow Heated Screw Flights ← Hollow Heated Screw Shaft → Continuous Discharge

During operation:

1. Wet material enters continuously/batch.

2. Hollow screws transport and mix the material.

3. Heat transfers through screw shaft, flights, and jacket.

4. Moisture evaporates under vacuum.

5. Dry product exits continuously.

4.  Structural Difference

5. Heat Transfer Performance Comparison

Heat transfer is one of the most important factors affecting drying efficiency.

The basic relationship: Q=U*A*ΔT

Q = heat transfer rate

U = heat transfer coefficient

A = effective heating area

ΔT = temperature difference

5.1 Vacuum Paddle Dryer

Advantages:

• Heated paddles increase heating area.

• Material contacts hot surfaces during mixing.

Limitations:

• Heat transfer depends on paddle configuration.

• Material movement may not be uniform in large vessels.

5.2 Hollow Screw Vacuum Dryer

Advantages:

The hollow screw provides multiple heating surfaces:

• External jacket

• Hollow shaft

• Hollow flights

Benefits:

✔ Larger effective heating area

✔ Shorter heat transfer distance

✔ Continuous surface renewal

✔ Improved temperature uniformity

For materials with poor thermal conductivity, the additional internal heating surfaces can significantly improve drying efficiency.

6. Mixing Performance Comparison

Mixing affects both:

• Heat transfer

• Mass transfer

Vacuum Paddle Dryer

The paddles create strong agitation.

Advantages:

• Good mixing

• Suitable for sticky materials

• Effective agglomerate breaking

Suitable for:

• Slurries

• Filter cakes

• Pastes

Hollow Screw Vacuum Dryer

The screw creates:

• Axial movement

• Continuous turnover

• Forced material renewal

Advantages:

• Uniform material exposure

• Controlled residence time

• Continuous surface renewal

Especially suitable for:

• Powders

• Granules

• Continuous production processes

7. Continuous Production Capability

This is one of the biggest differences.

Vacuum Paddle Dryer

Most applications: Batch operation

Process:

Loading → Drying → Cooling → Discharge

Advantages:

• Flexible production

• Suitable for multiple products

Limitations:

• Downtime between batches

• Lower automation level

Hollow Screw Vacuum Dryer

Designed for continuous processing:

Continuous Feeding → Drying → Continuous Discharge

Advantages:

• Stable production

• Higher automation

• Easier integration with production lines

Suitable for:

• Large-scale manufacturing

• 24-hour production

8. Residence Time Control

Residence time directly affects:

• Drying quality

• Final moisture

• Production capacity

Vacuum Paddle Dryer

Residence time depends mainly on:

• Batch time

• Filling level

• Mixing condition

Adjustment is relatively limited.

Hollow Screw Vacuum Dryer

Residence time can be controlled through:

• Screw speed

• Feeding rate

• Dryer length

Advantages:

• More precise process control

• Better scalability

9. Material Suitability Comparison

10. Application Comparison

Vacuum Paddle Dryer Applications

Common industries:

Chemical Industry

Examples:

• Pigments

• Chemical intermediates

• Sludge materials

Environmental Industry

Examples:

• Waste sludge drying

• Industrial residues

Pharmaceutical Industry

Examples:

• Wet cakes

• Intermediate products

Hollow Screw Vacuum Dryer Applications

Common industries:

Pharmaceutical Industry

Applications:

• API intermediates

• Fine powders

Advantages:

• Uniform moisture control

• Closed operation

Battery Materials

Applications:

• Cathode materials

• Anode materials

• Specialty powders

Advantages:

• Continuous operation

• High consistency

Fine Chemical Industry

Applications:

• Solvent-containing powders

• Functional materials

Advantages:

• Solvent recovery

• Energy efficiency

11. Energy Efficiency Comparison

Energy consumption depends on:

• Material properties

• Moisture content

• Heating method

• Drying conditions

Vacuum Paddle Dryer

Advantages: Efficient compared with conventional dryers

Limitations: Batch operation increases auxiliary energy consumption

Hollow Screw Vacuum Dryer

Advantages:

• Higher heat transfer efficiency

• Continuous operation reduces downtime

• Better utilization of heating energy

Potential benefits:

• Shorter drying cycles

• Lower specific energy consumption

• Higher productivity

12. Product Quality Comparison

13. Equipment Selection Guide

Choose a Vacuum Paddle Dryer when:

✔ Production is mainly batch-based

✔ Material is highly sticky

✔ Strong mixing is required

✔ Production scale is moderate

Choose a Hollow Screw Vacuum Dryer when:

✔ Continuous production is required

✔ Large capacity is needed

✔ Stable product quality is important

✔ Powder drying is the main application

✔ Automated operation is preferred

Optimized Process

Equipment: Hollow Screw Vacuum Dryer

Process improvements:

• Vacuum drying environment

• Multi-surface indirect heating

• Continuous powder mixing

• Improved moisture migration

Result

Drying target achieved in: Approximately 30 minutes

The improvement was achieved through:

• Increased heating surface

• Better heat transfer

• Improved mass transfer

• Continuous material movement
