One of the most important principles behind vacuum drying is:
Reducing pressure lowers the boiling point of liquids.
This principle allows industrial vacuum dryers to remove moisture and solvents at much lower temperatures compared with conventional atmospheric drying.
For many heat-sensitive materials, this difference is critical.
A pharmaceutical active ingredient, lithium battery material, specialty chemical, or biological product may lose its performance when exposed to excessive heat. Vacuum drying solves this challenge by changing the pressure environment instead of simply increasing the drying temperature.
But why exactly does pressure affect boiling point?
The answer lies in the relationship between:
Vapor pressure
Atmospheric pressure
Molecular movement
Phase equilibrium
Understanding this relationship is essential for engineers designing and operating vacuum drying systems.

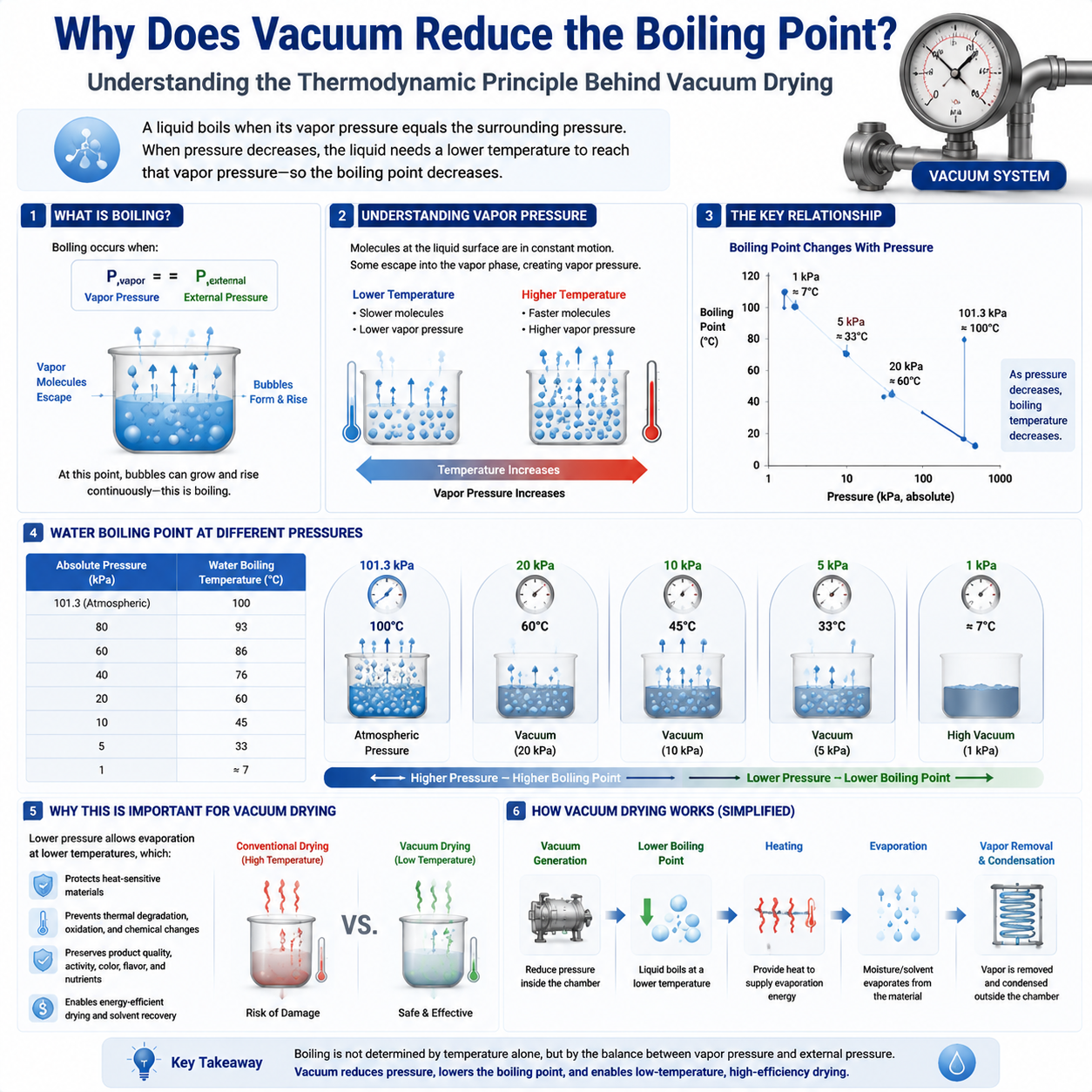

Many people think "A liquid boils when it reaches 100°C."
However, this statement is only true for water under standard atmospheric pressure (101.325 kPa).
Boiling does not happen because a liquid reaches a specific temperature.
A liquid boils when:
The vapor pressure of the liquid becomes equal to the pressure surrounding the liquid.
This is the fundamental definition of boiling.
The surrounding pressure can be:
Atmospheric pressure
Reduced pressure inside a vacuum chamber
Increased pressure inside a pressurized vessel
Therefore, boiling temperature changes when external pressure changes.
To understand vacuum drying, we first need to understand vapor pressure.
Inside any liquid, molecules are constantly moving.
Some molecules near the surface have enough energy to escape into the gas phase.
This creates vapor above the liquid.
The pressure created by these vapor molecules is called Vapor Pressure
Vapor pressure depends mainly on:
Temperature
Liquid properties
Higher temperature
→ Faster molecular movement
→ More molecules escape
→ Higher vapor pressure
Lower temperature
→ Slower molecular movement
→ Lower vapor pressure
A liquid begins boiling when liquid vapor pressure = external pressure.
The relationship can be expressed as:
P_{vapor}=P_{external}
Where:
P_vapor = vapor pressure of liquid
P_external = surrounding pressure
Under normal atmospheric conditions:
Water vapor pressure reaches atmospheric pressure at 100°C
Therefore, water boiling point = 100°C
When a vacuum pump reduces pressure:
Example:
External pressure decreases from 101.3 kPa to 20 kPa.
The water only needs to reach a much lower vapor pressure.
Therefore, water can boil at approximately 60°C
The relationship between vacuum pressure and boiling temperature is fundamental for vacuum dryer design.
Absolute Pressure | Water Boiling Temperature |
101.3 kPa | 100°C |
80 kPa | 93°C |
60 kPa | 86°C |
40 kPa | 76°C |
20 kPa | 60°C |
10 kPa | 45°C |
5 kPa | 33°C |
1 kPa | Approximately 7°C |
As pressure decreases → Boiling temperature decreases → Drying can occur at lower temperatures
Traditional hot air drying removes moisture by increasing temperature.
However, high temperatures can damage sensitive products.
Examples:
Pharmaceutical Materials
High temperature may cause:
Active ingredient degradation
Reduced activity
Chemical changes
Battery Materials
Excessive temperature may cause:
Oxidation
Structural changes
Reduced electrochemical performance
Food Ingredients
High temperature may cause
Flavor loss
Color change
Nutrient degradation
Vacuum drying provides another approach, instead of increasing temperature:
Reduce pressure → Lower boiling point → Evaporate moisture at lower temperature
From a thermodynamic perspective, drying requires overcoming the latent heat of vaporization.
When liquid changes into vapor, liquid + Energy → Vapor
The required energy is called latent heat of vaporization.
During vacuum drying:
1. Heat is supplied to the material.
2. Moisture molecules gain energy.
3. Vapor pressure increases.
4. Pressure balance is reached.
5. Moisture evaporates.
6. Vacuum removes vapor continuously.
The vacuum environment maintains the driving force for evaporation.
Drying efficiency depends on the difference between:
Vapor pressure at the material surface
Vapor pressure in the surrounding environment
This difference is called driving force for mass transfer
A vacuum system reduces the vapor pressure around the material.
This increases the tendency of moisture molecules to leave the material.
The process becomes Moisture Inside Material → Material Surface → Low Pressure Environment → Vacuum System → Condenser.
Although lower boiling temperature is the most famous advantage of vacuum drying, the technology provides additional benefits.
Lower oxygen concentration reduces:
Oxidation reactions
Color changes
Product degradation
Many industrial materials contain organic solvents.
Vacuum drying allows:
Controlled evaporation
Efficient condensation
Solvent recycling
Controlled low-temperature drying helps preserve:
Chemical structure
Crystal properties
Product purity
A practical example demonstrates the importance of this principle.
A pharmaceutical manufacturer used a conventional hot air oven for drying Calcium Aspirin powder.
The traditional process required approximately 4 hours
The limitation was:
Long drying cycle
High energy consumption
Limited production efficiency
After applying a Hollow Screw Vacuum Dryer, the material was dried under controlled vacuum conditions.
Because the boiling point of moisture was reduced same drying result achieved in approximately 30 minutes.
The improvement was achieved through:
Reduced evaporation temperature
Efficient heat transfer
Continuous mixing
Improved moisture migration
Vacuum level is not always "the deeper, the better."
The optimal vacuum condition depends on:
Including:
Moisture content
Particle size
Heat sensitivity
Solvent type
Including:
Final moisture level
Product quality
Crystal structure
Purity requirements
Including:
Heating area
Mixing efficiency
Condenser capacity
Vacuum pump selection
Therefore, vacuum drying is an engineering optimization process, not simply creating the highest vacuum possible.
Different vacuum dryers require different operating strategies.
For example:
Vacuum Tray Dryer
Suitable for:
Small batches
Heat-sensitive materials
Vacuum Paddle Dryer
Suitable for:
Powders
Pastes
Materials requiring mixing
Hollow Screw Vacuum Dryer
Suitable for:
Continuous production
Large-scale powder drying
High-value materials
Advantages:
Large heat transfer area
Uniform mixing
Continuous feeding and discharge
Not necessarily. Drying efficiency depends on the balance between vacuum level, heat input, material properties, and vapor removal capacity.
Because moisture can evaporate at lower temperatures under reduced pressure.
The operating pressure depends on the material and process requirements. Many industrial applications operate from several kPa to tens of kPa absolute pressure.
Yes. Vacuum drying is widely used for solvent-containing materials because solvents can evaporate at lower temperatures and be recovered through condensation.
The ability to achieve efficient drying while maintaining lower product temperatures.
