VA001- What Is Vacuum Drying?

1. Introduction

Vacuum drying is an advanced industrial drying technology that removes moisture or organic solvents from materials under reduced pressure. By lowering the pressure inside a sealed drying chamber, the boiling point of liquids decreases significantly, allowing evaporation to occur at much lower temperatures than in conventional atmospheric drying.

This unique characteristic makes vacuum drying an ideal solution for processing heat-sensitive, oxygen-sensitive, solvent-containing, and high-value materials. It is widely applied in industries such as pharmaceuticals, fine chemicals, lithium battery materials, food ingredients, pigments, catalysts, advanced ceramics, and metal powders.

Compared with conventional hot-air drying, vacuum drying offers superior product quality, lower oxidation risk, improved solvent recovery, and greater process safety. As global industries continue to demand higher product consistency, lower energy consumption, and cleaner manufacturing processes, vacuum drying has become one of the most important technologies in modern industrial production.

2. Why Is Vacuum Drying Becoming More Important?

Modern manufacturing is undergoing a transformation driven by higher quality standards, stricter environmental regulations, and increased demand for energy-efficient production.

Traditional drying methods often expose products to high temperatures and oxygen, which can cause:

• Product oxidation

• Thermal degradation

• Color changes

• Loss of volatile components

• Reduced product activity

• Increased emissions of volatile organic compounds (VOCs)

Vacuum drying addresses these challenges by enabling low-temperature evaporation in a controlled environment. This not only protects product quality but also supports solvent recovery and reduces environmental impact.

As a result, vacuum drying has become a preferred technology for industries producing high-value materials where product performance is directly influenced by the drying process.

3. Definition of Vacuum Drying

Vacuum drying is an indirect or direct heating process carried out inside a sealed chamber where the internal pressure is maintained below atmospheric pressure using a vacuum system.

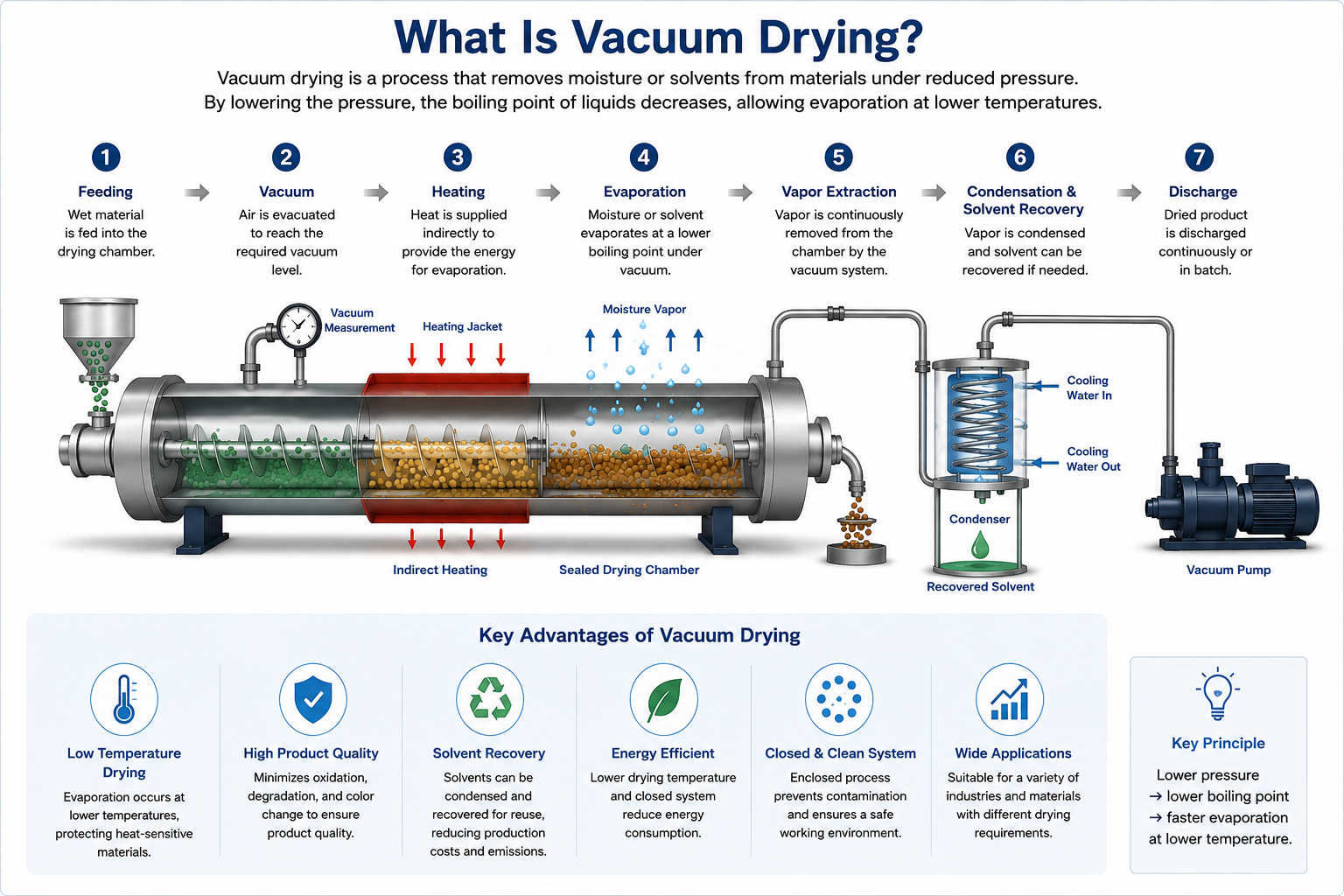

During operation:

1. Wet material is loaded into the drying chamber.

2. Air is evacuated by a vacuum pump.

3. Heat is supplied through an external heating source.

4. Moisture or solvent evaporates at a reduced boiling point.

5. Vapor is removed continuously by the vacuum system.

6. The vapor is condensed and can be recovered if required.

7. The dried product is discharged after reaching the target moisture content.

Unlike conventional drying, the reduced pressure allows efficient moisture removal without exposing the material to excessive temperatures.

4. How Does Vacuum Drying Work?

The principle of vacuum drying is based on a simple thermodynamic relationship:

As pressure decreases, the boiling point of a liquid also decreases.

For example, water boils at approximately 100°C (212°F) under atmospheric pressure (101.3 kPa). Under vacuum conditions, however, the boiling point decreases significantly.

This phenomenon allows moisture and solvents to evaporate at temperatures that would otherwise be impossible under atmospheric conditions.

For heat-sensitive materials such as pharmaceutical intermediates, lithium battery materials, enzymes, proteins, and specialty chemicals, this lower drying temperature helps preserve product quality while improving drying efficiency.

5. The Three Fundamental Elements of Vacuum Drying

Every industrial vacuum drying process relies on the interaction of three fundamental engineering principles:

5.1 Pressure Control

A vacuum pump continuously removes air from the drying chamber to maintain the desired operating pressure.

Pressure directly influences:

• Boiling point

• Drying temperature

• Evaporation rate

• Solvent recovery efficiency

• Product quality

5.2 Heat Transfer

Although evaporation occurs under vacuum, energy is still required to convert liquid into vapor.

Heat is commonly supplied through:

• Heating jackets

• Hollow shafts

• Hollow screws

• Heating plates

• Thermal oil systems

• Steam jackets

Efficient heat transfer is one of the most critical factors affecting drying performance and energy consumption.

5.3 Mass Transfer

Once moisture begins to evaporate, vapor must continuously migrate from inside the material to its surface and then into the vacuum environment.

Factors affecting mass transfer include:

• Particle size

• Material porosity

• Moisture distribution

• Mixing efficiency

• Residence time

Heat transfer and mass transfer work together throughout the entire drying process.

6. Vacuum Drying Process Flow

A typical industrial vacuum drying process includes the following steps:

1. Material feeding

2. Chamber sealing

3. Vacuum generation

4. Heating

5. Moisture evaporation

6. Vapor extraction

7. Condensation and solvent recovery

8. Product cooling (if required)

9. Continuous or batch discharge

This closed-loop process minimizes contamination while improving energy utilization and environmental performance.

7. Why This Matters for Industrial Production

For many products, drying is not simply a moisture removal step—it directly determines product quality, production efficiency, operating costs, and environmental compliance.

Selecting an appropriate vacuum drying technology can significantly improve:

• Product purity

• Moisture consistency

• Production capacity

• Energy efficiency

• Solvent recovery rate

• Overall manufacturing reliability

This is why vacuum drying has become a key process in many high-value manufacturing industries.
